EWP Hangers
Heavy-Duty Face Mount Truss Hangers
THD
Reference Series: HHUS
Medium-to-heavy capacity face mount hanger. Some THD models are available with a Min/Max installation option.
Materials: See Load Table

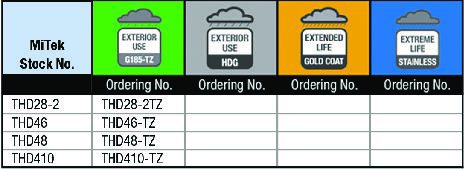

Finish: G90 galvanizing
Code Reports:
View Code Report Table
Technical Bulletins
- Special Order Worksheet
- Face Mount Hanger "Gap" Testing Technical Bulletin
- Reduced Heel Installations with Face Mount Hangers Technical Bulletin
- EWP Installation Guide
- Corrosion Protection Technical Bulletin
- THD210 Masonry Application Technical Bulletin
- THD210-2 Masonry Application Technical Bulletin
- THD210-3 Masonry Application Technical Bulletin
- THD26 Masonry Application Technical Bulletin
- THD28 Masonry Application Technical Bulletin
- THD28-2 Masonry Application Technical Bulletin
- THD410 Masonry Application Technical Bulletin
- THD412 Masonry Application Technical Bulletin
- THD414 Masonry Application Technical Bulletin
- THD46 Masonry Application Technical Bulletin
- THD48 Masonry Application Technical Bulletin
- THD610 Masonry Application Technical Bulletin
- THD612 Masonry Application Technical Bulletin
- Plated Truss Installation Guide
Installation
- Use all specified fasteners.
- THD Min – Fill all round nail holes.
- THD Max – Fill all round and diamond holes.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
THD28 Heavy-Duty Truss Hanger
Load Tables
THD Specification Table
EWP Sizes: 1-1/2" x 9-1/4” - 9-1/2" to 2-11/16" x 11-1/4" – 16”
EWP Sizes: 2-11/16” x 14” – 16” x 3-1/2” x 18” – 26”
EWP Sizes: 5-1/4” x 7-1/4” to 7” x 18” – 26”

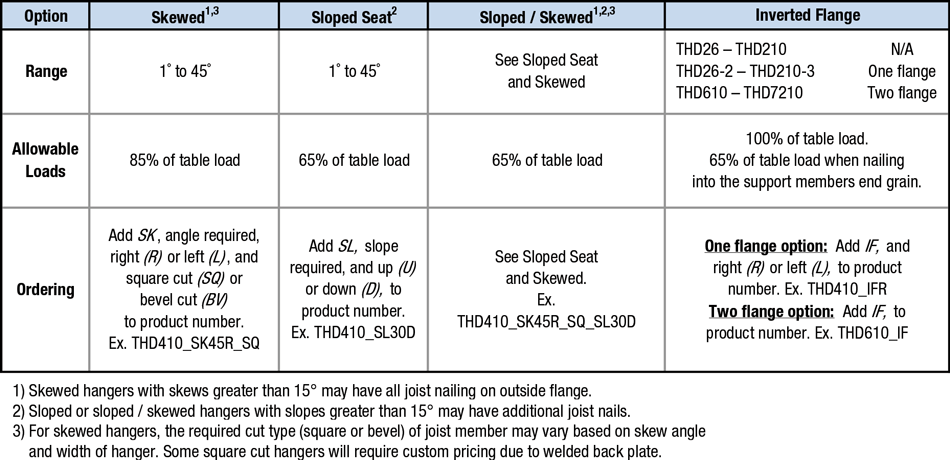

Option Details:
Code Report Table

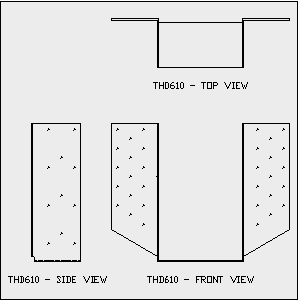

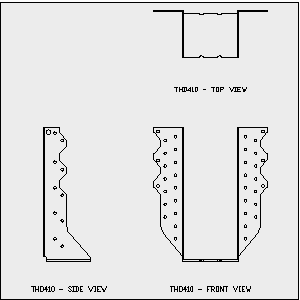

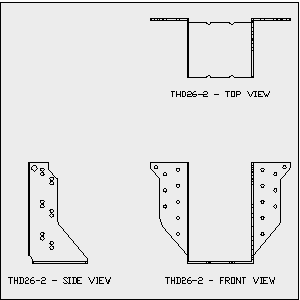

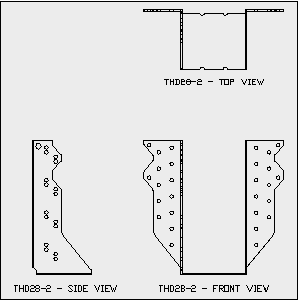

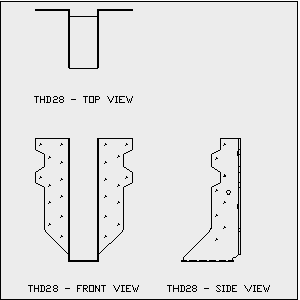

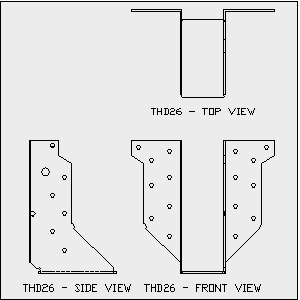

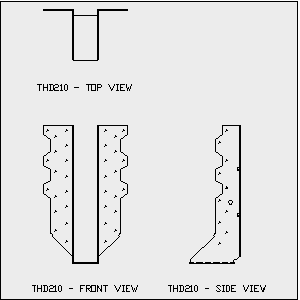

3-View Product Drawings
