Solid Sawn Hangers
Welded Top Flange Hangers
KHW / SW / SWH
Reference Series: WP
SW – Light-duty hanger.
SWH – Medium-duty hanger.
KHW – Heavy-duty hanger installs with NA20D nails for higher load capacities.
SWH – Medium-duty hanger.
KHW – Heavy-duty hanger installs with NA20D nails for higher load capacities.
Materials:
SW top flange – 12 gauge; stirrup – 12 gauge;
SWH top flange – 7 gauge; stirrup – 12 gauge;
KHW top flange – 3 gauge; stirrup – 10 gauge
SW top flange – 12 gauge; stirrup – 12 gauge;
SWH top flange – 7 gauge; stirrup – 12 gauge;
KHW top flange – 3 gauge; stirrup – 10 gauge
Finish: Primer
Code Reports:
View Code Report Table
Technical Bulletins
Installation
- Use all specified fasteners.
- NA20D nails are supplied with KHW hangers.
- KHW models are not recommended for use with LVL, PSL, or LSL headers.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
SW210 Welded Top Flange Hanger
Load Tables

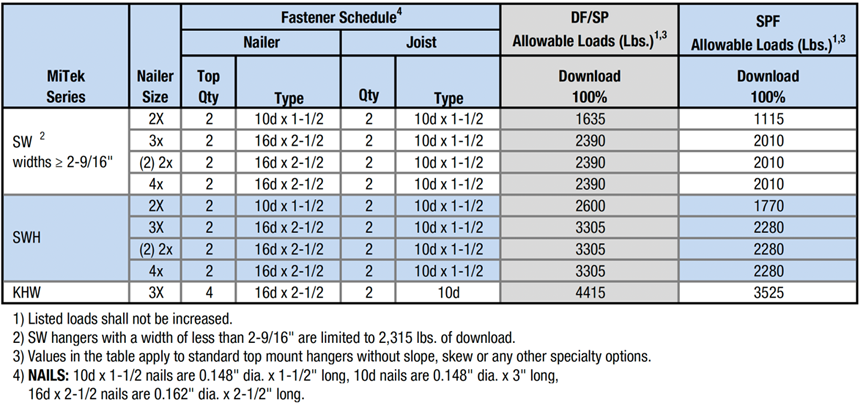

Joist Sizes: 2 x 4 to (2) 2 x 8
Joist Sizes: (2) 2 x 10 to 4 x 16
Joist Sizes: (3) 2 x 10 to 8 x 16
Glulam Sizes
Option Details:
Code Report Table
3-View Product Drawings
