EWP Hangers

Adjustable Rafter-to-Plate Connectors

TMP / TMPH

Reference Series: VPA
The TMP and TMPH are designed to make rafter-to-plate connections and eliminate time-consuming bird’s-mouth notching or bevel plate installation. Both series are available in I-Joists sizes, as well as standard 2x sizes.
TMP – Adjusts to pitches from 1/12 to 6/12.
TMPH – Adjusts to pitches from 6/12 to 14/12.
Materials: TMP – 18 gauge; TMPH – 16 gauge, Fulcrum – 12 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Position connector on top plate. Fasten connector to outside of top plate with specified nails. Insert rafter into rafter pocket. Adjust rafter and pocket to correct pitch. Fasten rafter to connector with specified nails. Installing the TMP requires driving specified nails through the opposing slots in the pocket. TMPH installation involves sliding the fulcrum until it supports the pocket at the desired pitch and nailing down through the fulcrum base into the top plate to lock the fulcrum into position.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

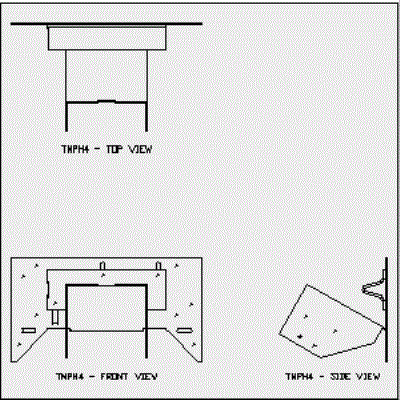

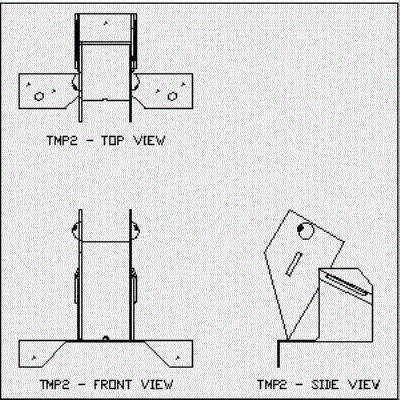

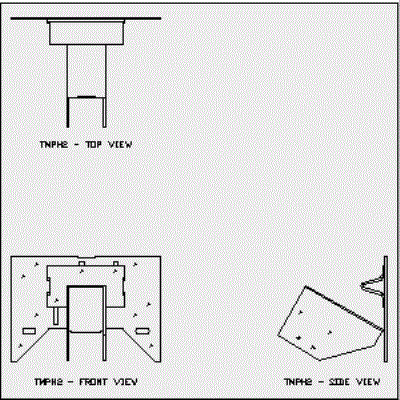

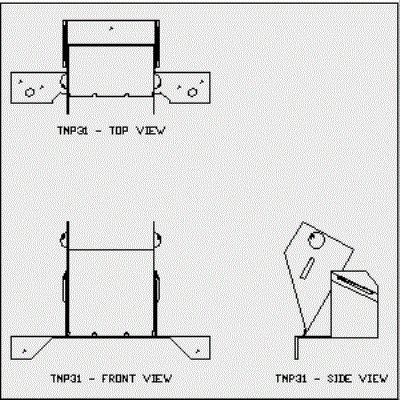

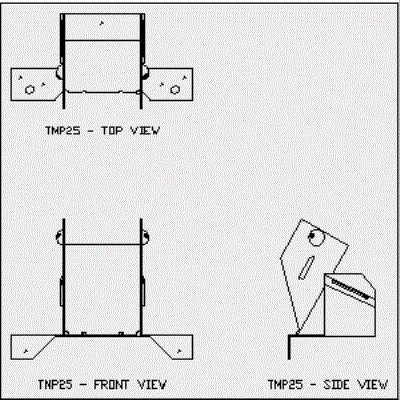

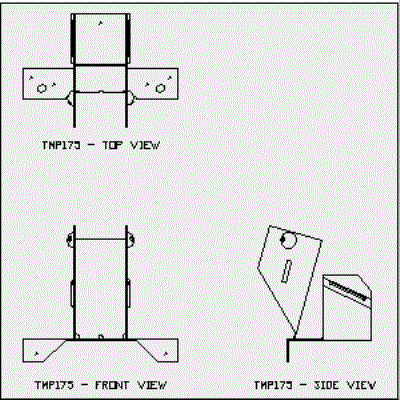

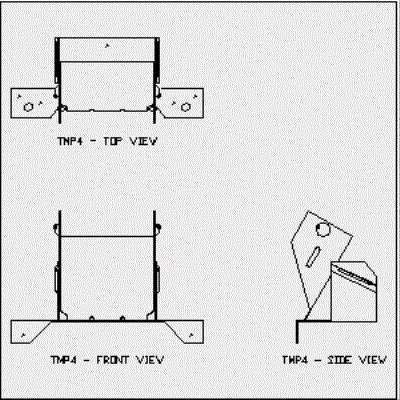

3-View Product Drawings

MiTek Stock # Download or View Files
TMP175 DWG DXF PDF View Image
TMP2 DWG DXF PDF View Image
TMP23 DWG DXF PDF View Image
TMP25 DWG DXF PDF View Image
TMP31 DWG DXF PDF View Image
TMP4 DWG DXF PDF View Image
TMPH175 DWG DXF PDF View Image
TMPH2 DWG DXF PDF View Image
TMPH23 DWG DXF PDF View Image
TMPH25 DWG DXF PDF View Image
TMPH31 DWG DXF PDF View Image
TMPH4 DWG DXF PDF View Image

High Wind Drawings

MiTek Stock # Download or View Files

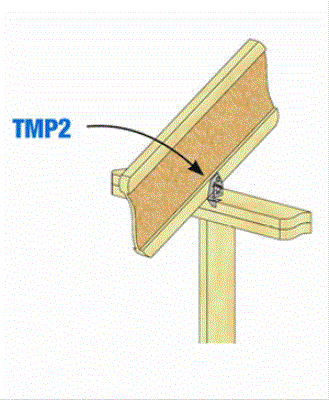

TMP
Rafter-to-WallDWGDXFPDFView Image
TMP2
Rafter-to-WallDWGDXFPDFView Image

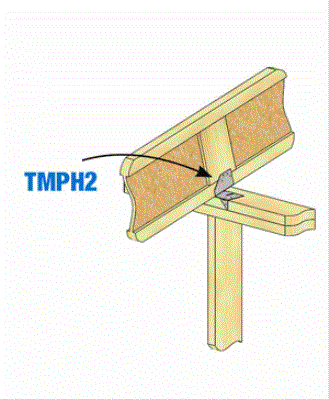

TMPH
Rafter-to-WallDWGDXFPDFView Image
TMPH2
Rafter-to-WallDWGDXFPDFView Image
