Concrete and Masonry

Foundation Anchor


Reference Series: MAS

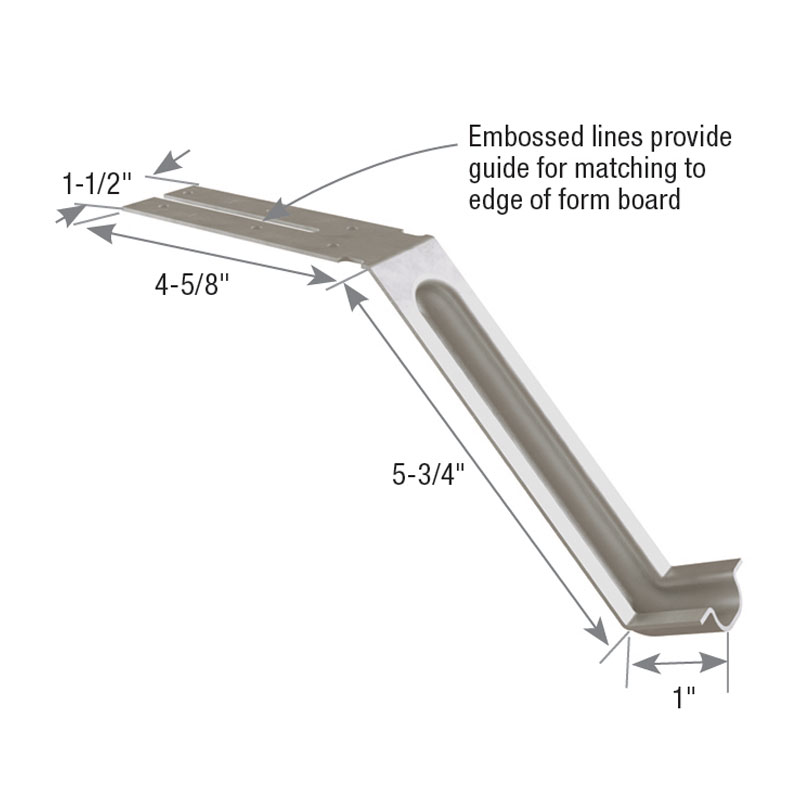

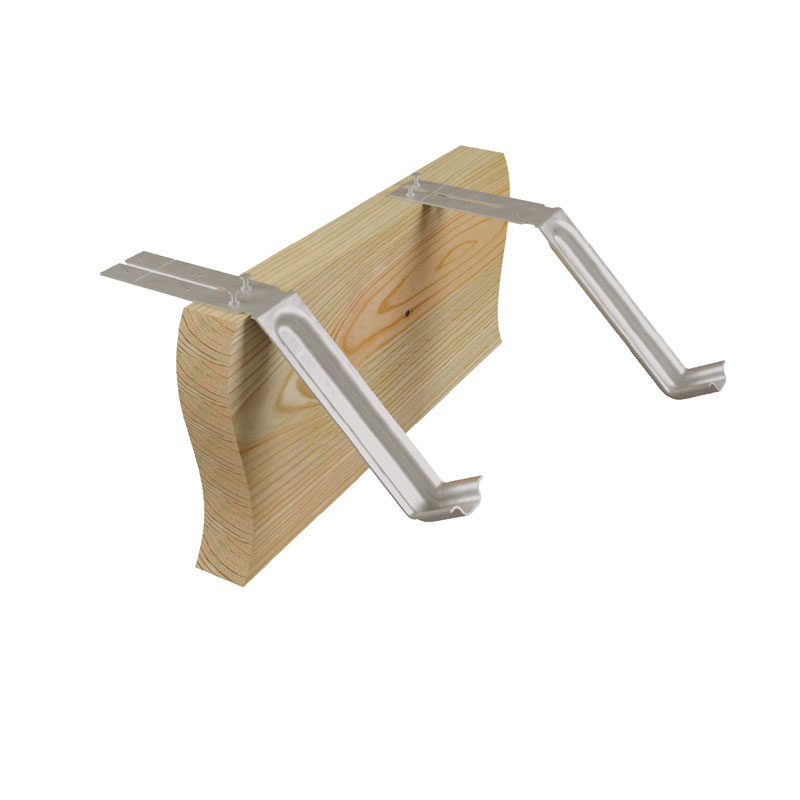

For installation into concrete slabs. The FA3 features a split flange for nailing to both mudsill and stud for greater framing versatility.
Materials: 16 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table


  • Use a minimum of two anchors per mudsill. An anchor should always be within 12″ of the end of each mudsill section.
  • Do not rely on these anchors to secure concrete sections together between cold joints.

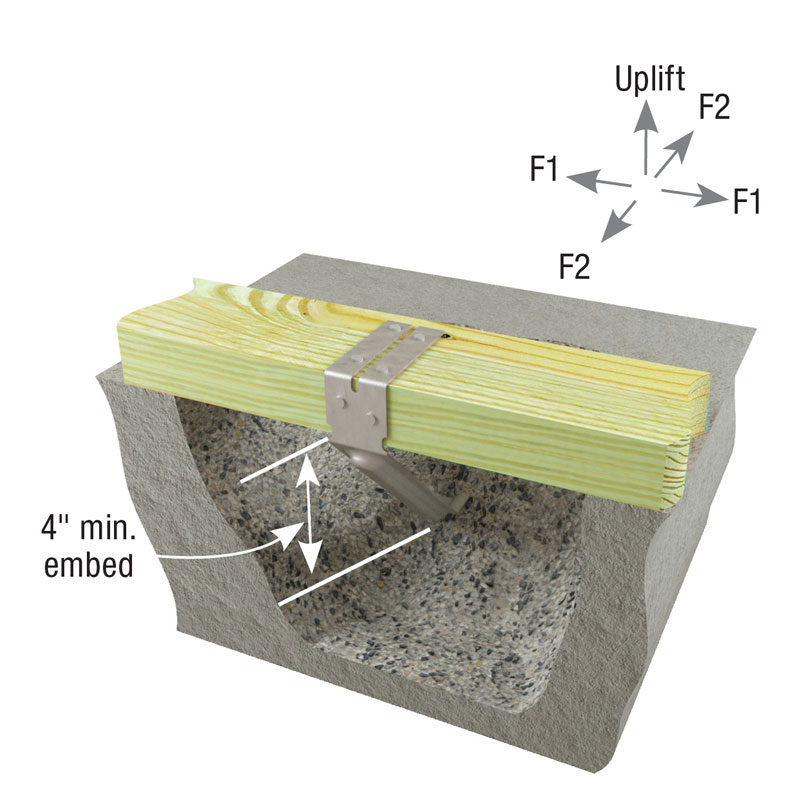

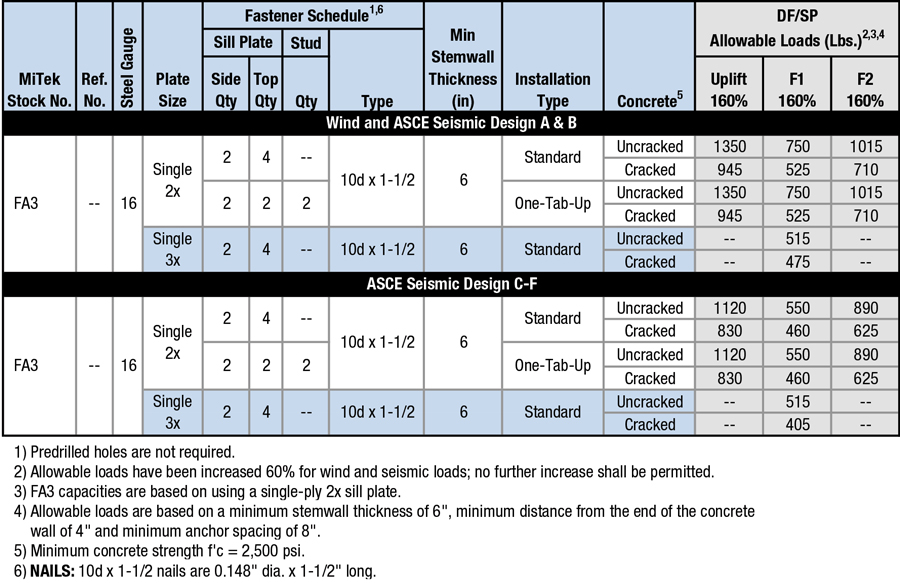

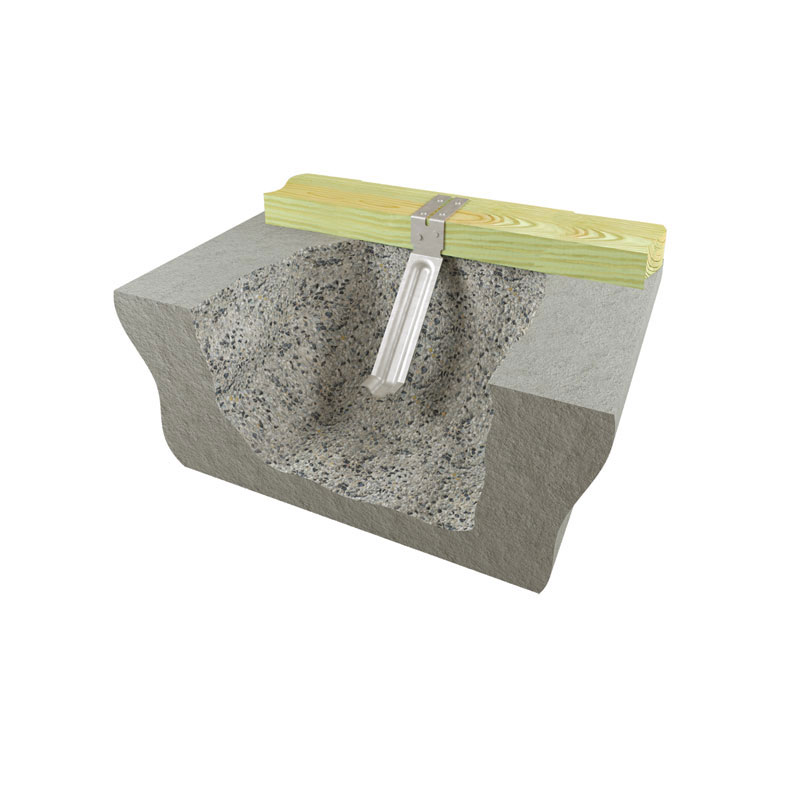

  • Insert into wet concrete (minimum strength of 2,500 psi). Place mudsill after concrete cures. Secure flanges to sill (and stud, if applicable), bending flanges as needed to achieve a tight fit. Fasten as directed in load table.
  • Do not use in red clay brick.
  • For installation in severe corrosion environments, see Corrosion Information Click here.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Option Details:

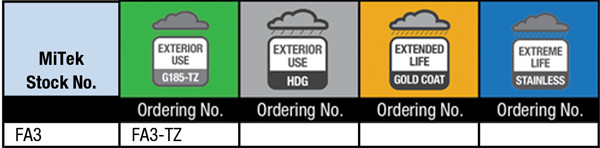

Corrosion Resistant Products Table

Corrosion Resistant Products Table View / Download the above load table as a PDF

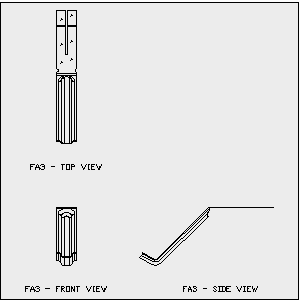

3-View Product Drawings

MiTek Stock # Download or View Files
FA3 DWG DXF PDF View Image

High Wind Drawings

MiTek Stock # Download or View Files
Truss Single StoryDWGDXFPDFView Image
Mono Concrete SlabDWGDXFPDFView Image
