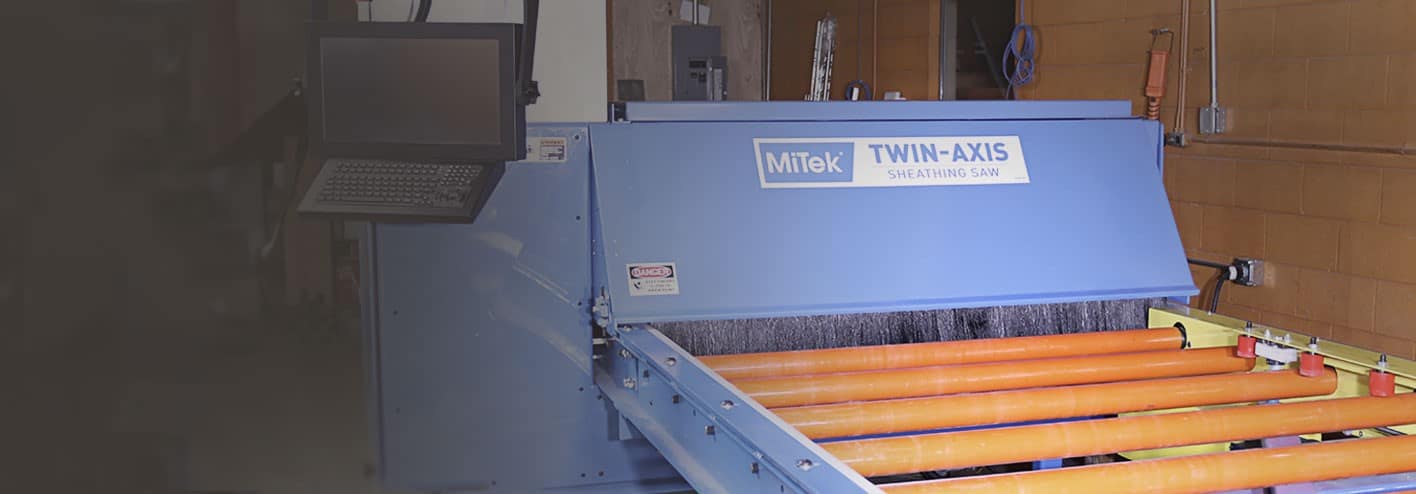

TWIN-AXIS™ SHEATHING SAW

A specialized saw for cutting wall panel sheathing.

Request More Information
Features

CUTS WALL PANEL SHEATHING

  • Two saw blades: 1 for ripping and 1 for cross-cuts
  • Up to 6 cross-cuts per pass.
  • Deliver cut sheathing panels directly to assembly station with only 1 operator.
  • Better material optimization than with a router
Play Icon

Twin-Axis Sheathing Saw

Specifications

OVERVIEW

Less is more! Cut wall sheathing with less time, less material, less mess, and less maintenance. The ripping blade stays stationary as the drive system moves the sheathing material through the saw. The cross-cut blade makes up to 6 cross-cuts per pass.

  • Cutting data and optimization analysis sent to saw automatically by MiTek® ShopNet™ software in auto mode
  • Semi-auto mode allows manual entry of data
  • Infeed aligner: Automatically squares sheet while feeding to reduce workload on operator and improve accuracy
  • Outfeed sheet lifter included: Choose one from the Options section
  • All cutting done inside the saw chamber: reduces dust, improves safety
  • Can adjust dimensions to bias cut for sheathing gaps as required by sheathing manufacturers
  • Easy operation:
    • Simple, intuitive software
    • Enter data using touch screen or keyboard
    • Easy-to-use calibration feature
  • Eliminates bottlenecks:
    • Reduces time spent at assembly station
    • Quality of sheathing can be inspected prior to reaching assembly station
  • Easy to maintain:
    • Motion control and both saw blades located above the deck to reduce dust and eliminate debris in components
    • Fast blade changes reduce maintenance time
    • Easy access to components
    • Down draft air flow design keeps dust inside the saw box and directed into the dust collection system
    • Pull-out dust pans for easy cleanup
PHYSICAL DATA
Dimensions26’ long x 7’ 6” wide x 6’ 8” high
Saw Blades2 saw blades 350 mm, carbide tipped, negative hook 5 hp, 3400 rpm
Infeed materialAccepts all standard sheathing material: Sheet rock, OSB, CDX, Zip System® and more
Pneumatic requirements9 scfm at 90 psi
PERFORMANCE DATA
ModesAuto mode & semi-auto mode
Cuts1 rip cuts width, and up to 6 cross cuts on each sheet pass
Infeed material size16’L x 50” W x 2-1/4” H maximum
Min. infeed material3” wide and any length the conveyor can hold
Accuracy+/- 1/16”
Cycle time3+ cycles per minute, depending on complexity
Feed rate120 ft/min while ripping
HMI pushbuttonsTouch screen with keyboard, plus supplemental pushbuttons for additional control
ELECTRICAL DATA
Electrical specs208 Y / 120 VAC, 60 Hz, 3-phase (other voltage require transformer)
FLAFLA 40.6 amperes
SAFETY DATA
E-stopsPushbuttons
Interlocks4 doors are interlocked with safety system
Safety ComplianceUL (panels), OSHA
LabelsBilingual or ISO

OPTIONS

Each machine includes one of these lifting options:

  • Outfeed Sheet Lifter: Lifts all material off outfeed conveyor surface for easy removal
  • Outfeed Fence Edge Lifter: Lifts edge of cut parts at operator side for easy removal

Download the Full Spec Sheet

Download PDF
