Solid Sawn Hangers
Heavy-Duty Top Mount Hangers
HDO
Reference Series: BA, HUTF, HUSTF, LB

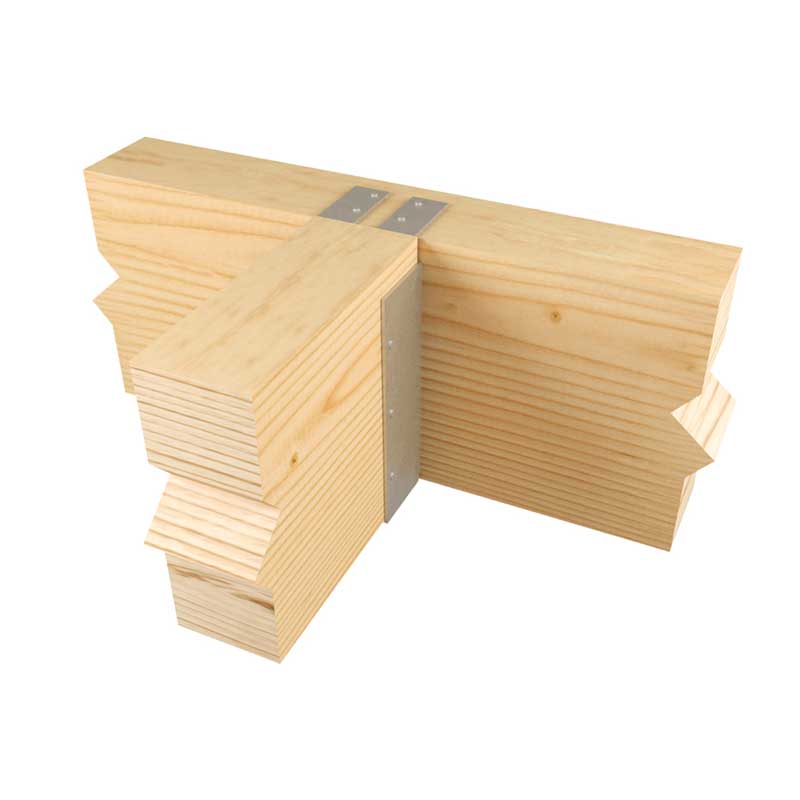

Primarily used to hang joists or headers in medium load conditions. These hangers provide higher load values with less nailing.
Materials: 12 gauge
Finish: G90 galvanizing
Code Reports:
View Code Report Table
Installation
- Use all specified fasteners.
- Check top flange dimensions to ensure compatibility with header widths.
- Do not use for welded or nailer applications. Reference Specialty Options load table below for hanger options.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
HDO28-2 Heavy-Duty Top Mount Hanger
Load Tables

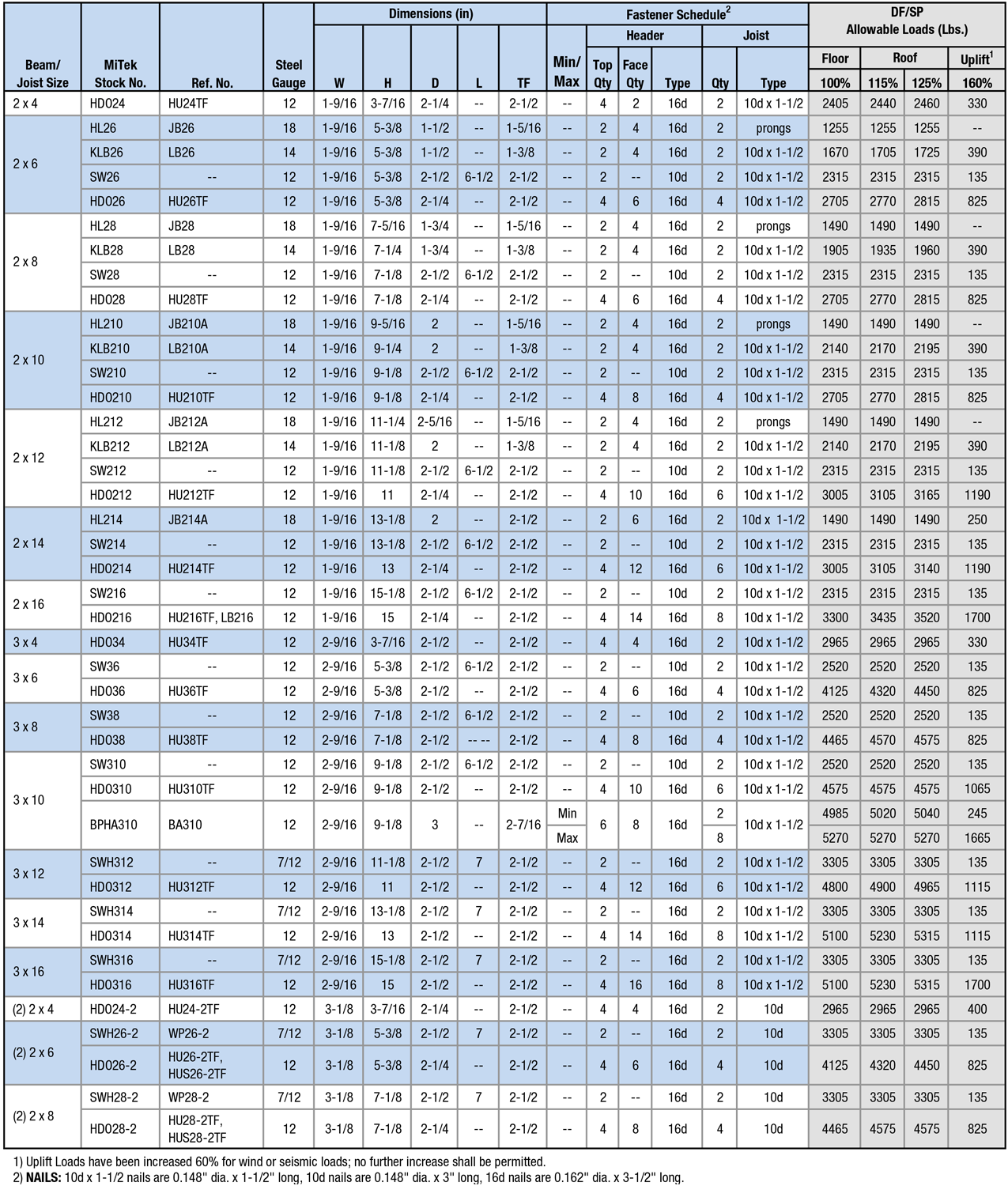

Joist Sizes: 2 x 4 to 4 x 6

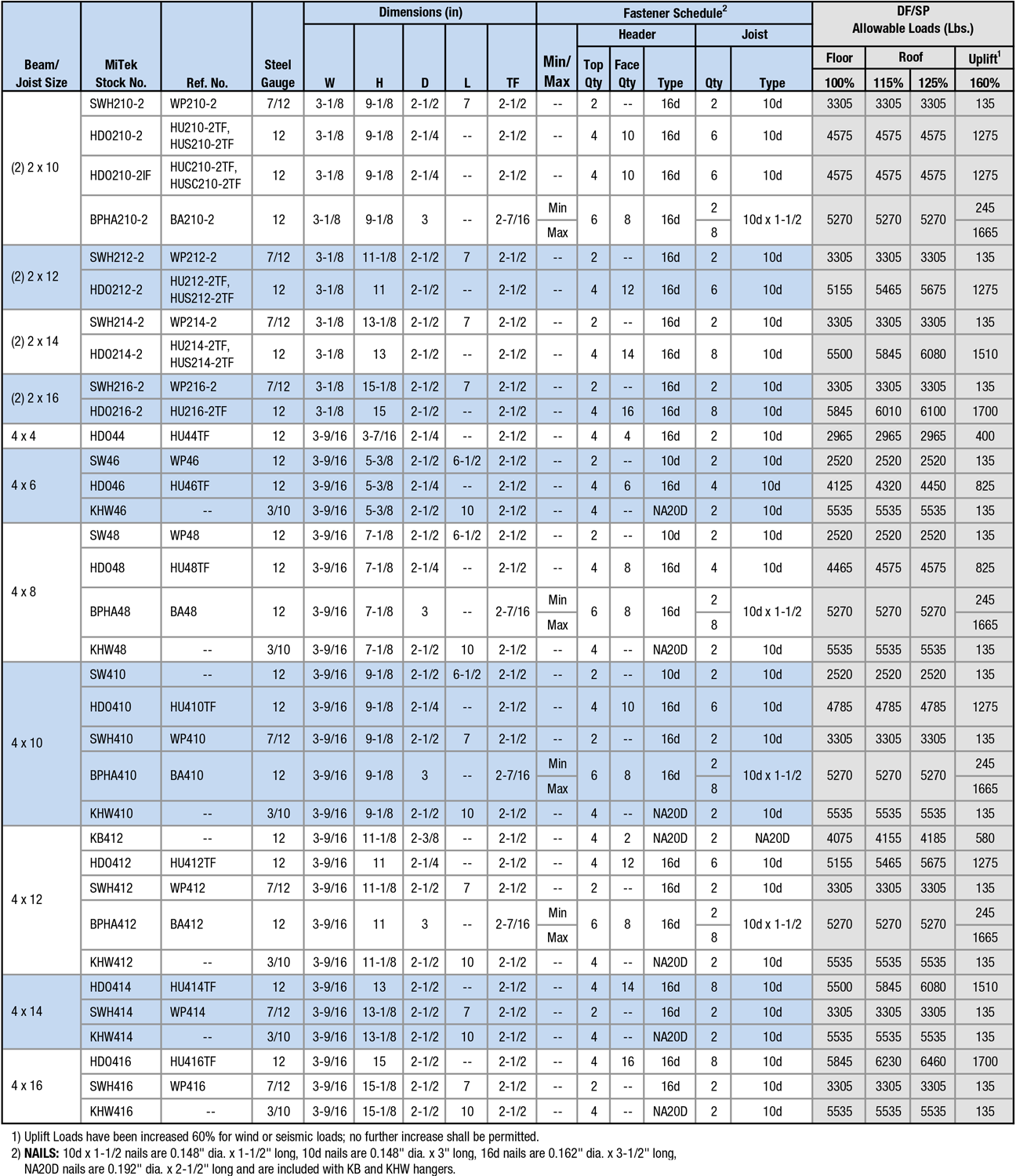

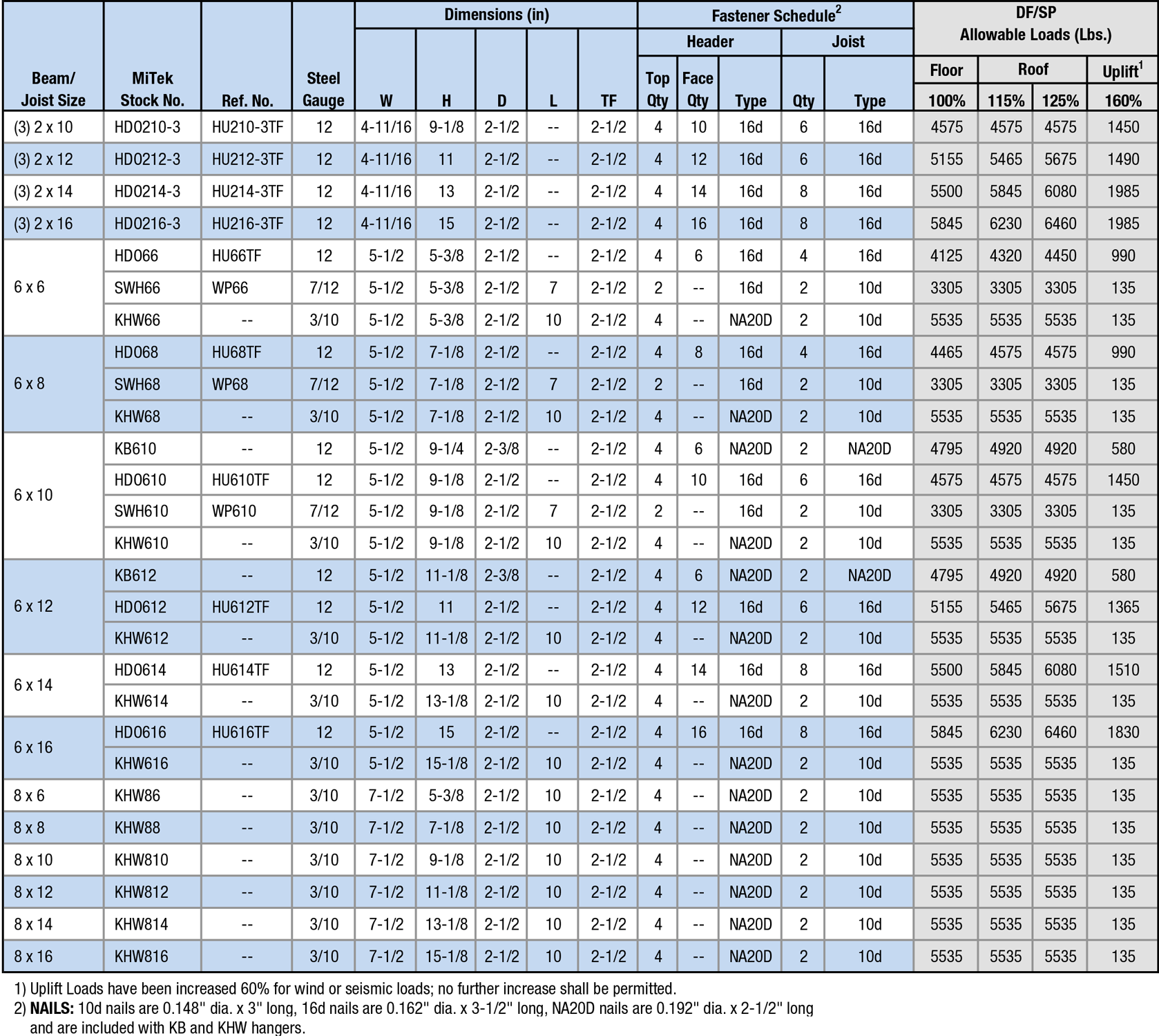

Joist Sizes: 4 x 8 to 8 x 16

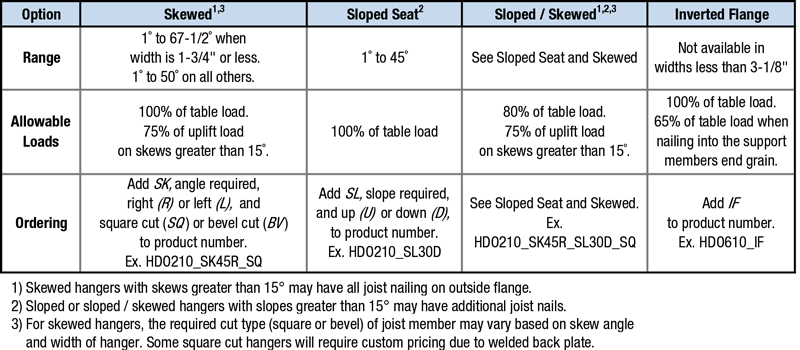

Option Details:
Code Report Table

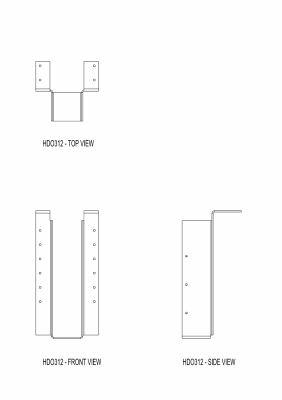

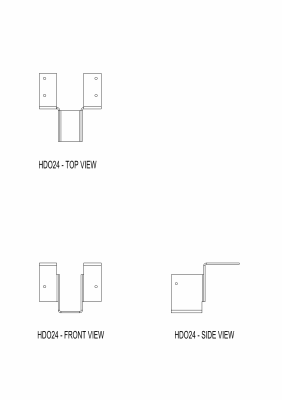

3-View Product Drawings
| MiTek Stock # | Download or View Files | |||
|---|---|---|---|---|

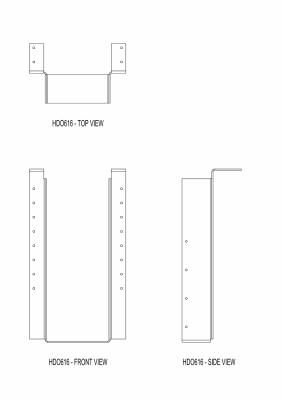

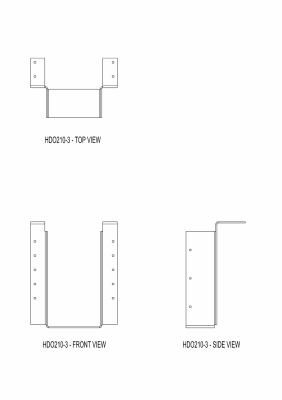

| HDO210-3 | DWG | DXF | View Image | |
| HDO214-2 | DWG | DXF | View Image | |

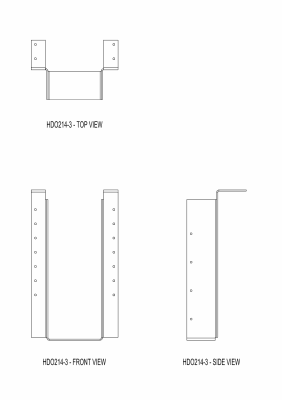

| HDO214-3 | DWG | DXF | View Image | |
| HDO216 | DWG | DXF | View Image | |

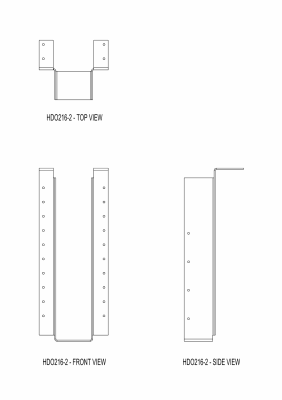

| HDO216-2 | DWG | DXF | View Image | |

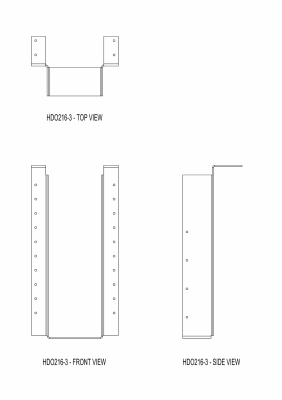

| HDO216-3 | DWG | DXF | View Image | |
| HDO24 | DWG | DXF | View Image | |
| HDO24-2 | DWG | DXF | View Image | |

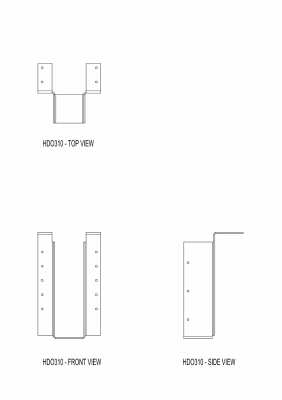

| HDO310 | DWG | DXF | View Image | |
| HDO312 | DWG | DXF | View Image | |

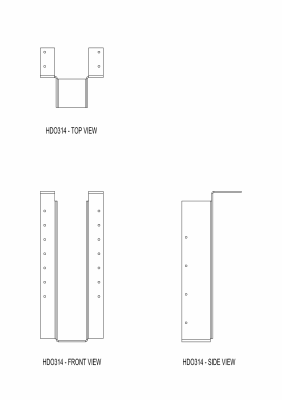

| HDO314 | DWG | DXF | View Image | |
| HDO316 | DWG | DXF | View Image | |

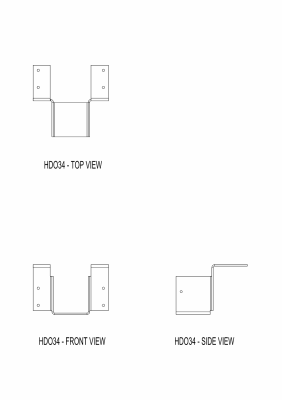

| HDO34 | DWG | DXF | View Image | |
| HDO36 | DWG | DXF | View Image | |

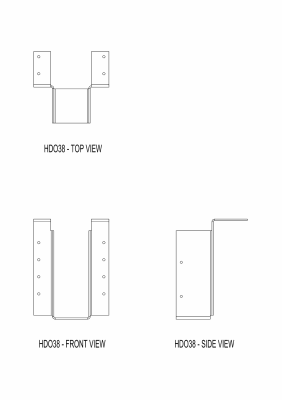

| HDO38 | DWG | DXF | View Image | |

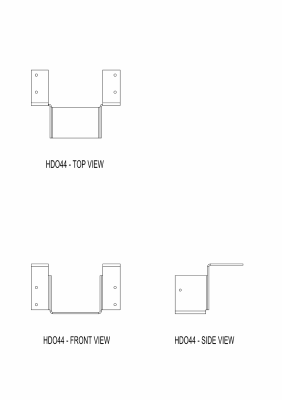

| HDO44 | DWG | DXF | View Image | |
| HDO616 | DWG | DXF | View Image | |

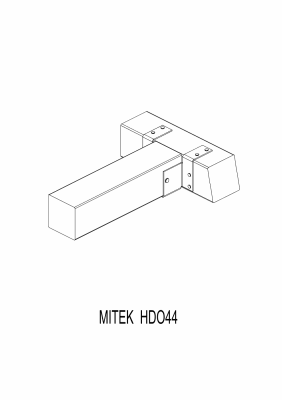

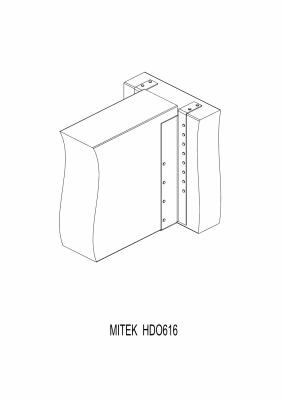

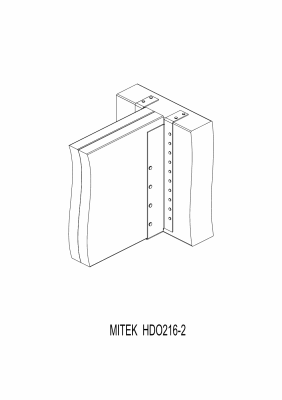

Application Drawings
| MiTek Stock # | Download or View Files | ||||
|---|---|---|---|---|---|

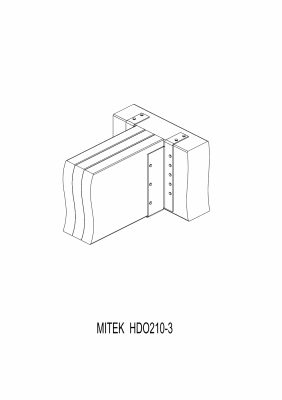

| HDO210-3 | Typical | DWG | DXF | View Image | |
| HDO214-2 | Typical | DWG | DXF | View Image | |
| HDO214-3 | Typical | DWG | DXF | View Image | |
| HDO216 | Typical | DWG | DXF | View Image | |
| HDO216-2 | Typical | DWG | DXF | View Image | |
| HDO216-3 | Typical | DWG | DXF | View Image | |
| HDO24 | Typical | DWG | DXF | View Image | |

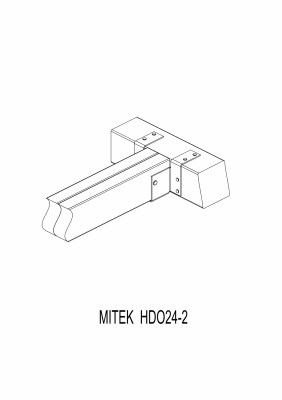

| HDO24-2 | Typical | DWG | DXF | View Image | |
| HDO310 | Typical | DWG | DXF | View Image | |

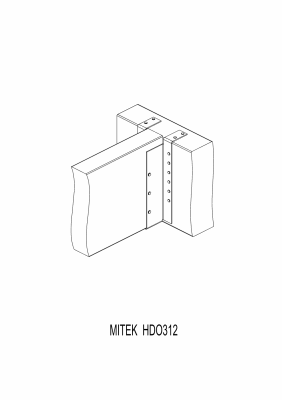

| HDO312 | Typical | DWG | DXF | View Image | |
| HDO314 | Typical | DWG | DXF | View Image | |

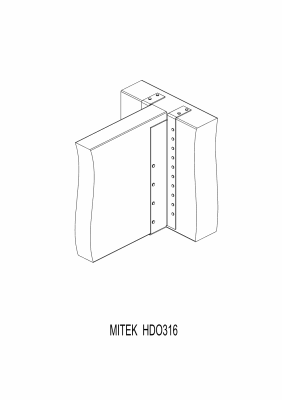

| HDO316 | Typical | DWG | DXF | View Image | |

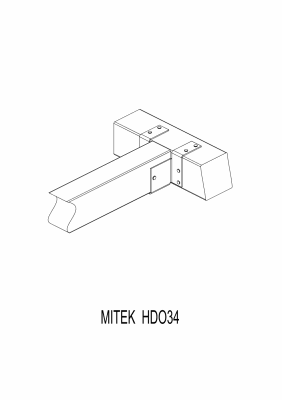

| HDO34 | Typical | DWG | DXF | View Image | |

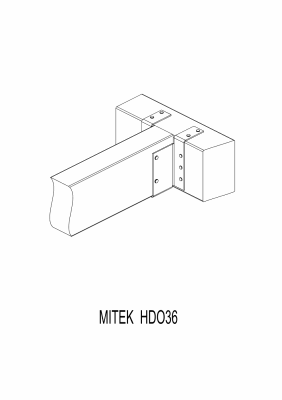

| HDO36 | Typical | DWG | DXF | View Image | |
| HDO38 | Typical | DWG | DXF | View Image | |
| HDO410 | Typical | DWG | DXF | View Image | |
| HDO44 | Typical | DWG | DXF | View Image | |
| HDO616 | Typical | DWG | DXF | View Image | |
