Plated Truss
Heavy-Duty Truss Hangers
THDH
Reference Series: HGUS

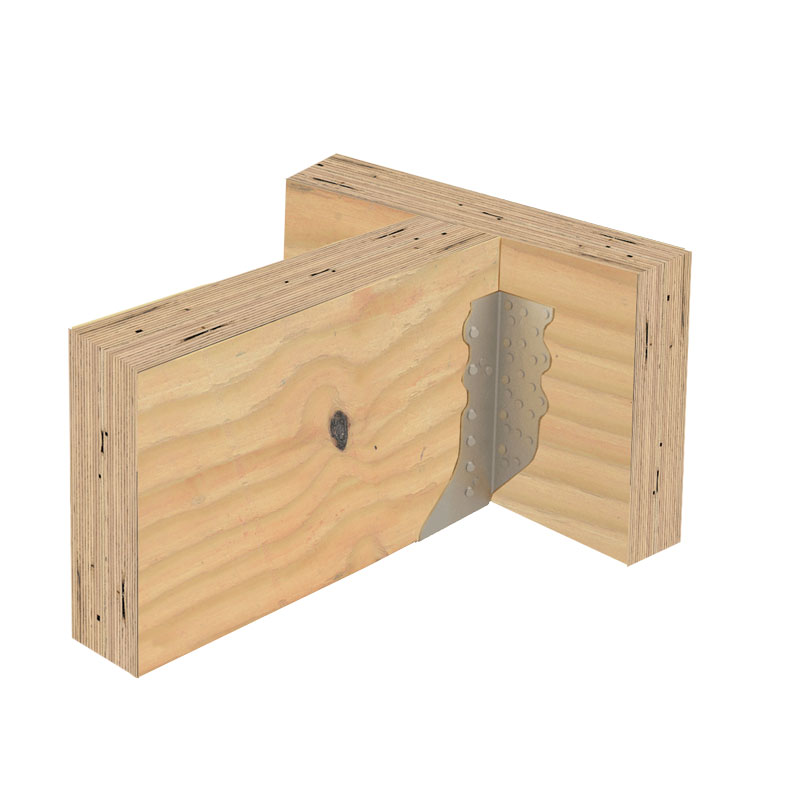

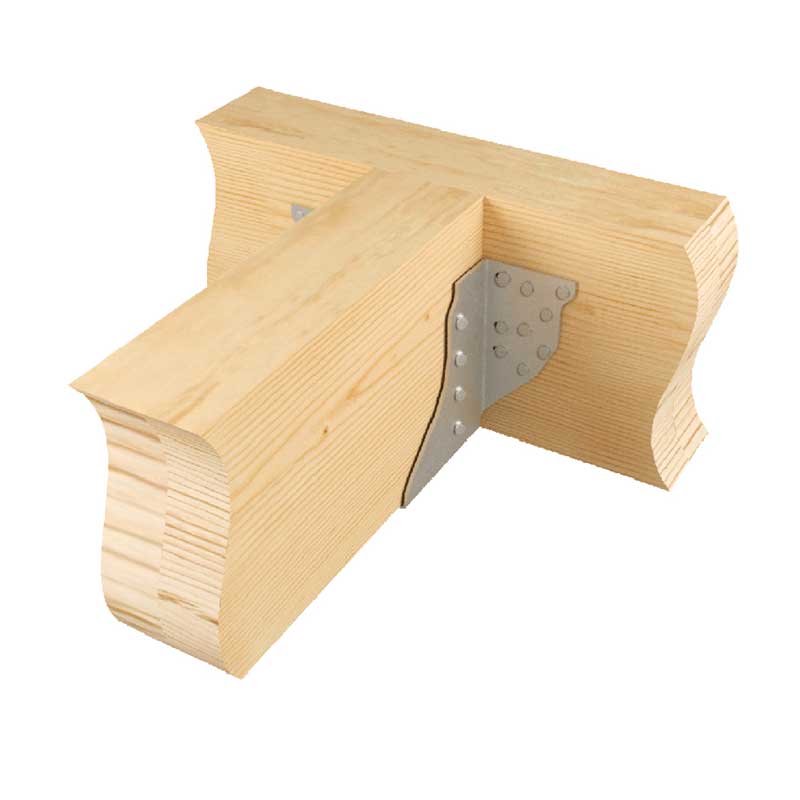

The THDH are high capacity face mount hangers designed for truss-to–truss and structural composite lumber (LVL, PSL and LSL) connections.
Materials: 12 gauge
Finish: G90 galvanizing
Code Reports:
View Code Report Table
Resources
MiTek Product CatalogTechnical Bulletins
- Special Order Worksheet
- Face Mount Hanger "Gap" Testing Technical Bulletin
- Reduced Heel Installations with Face Mount Hangers Technical Bulletin
- EWP Installation Guide
- Corrosion Protection Technical Bulletin
- THDH26 Masonry Application Technical Bulletin
- THDH414 Masonry Application Technical Bulletin
- Plated Truss Installation Guide
Installation
- Use all specified fasteners.
- Joist nails must be driven in at a 30° to 45° angle through the joist or truss into the header to achieve listed loads. Standard length “double shear” nails must be used to achieve listed load values.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

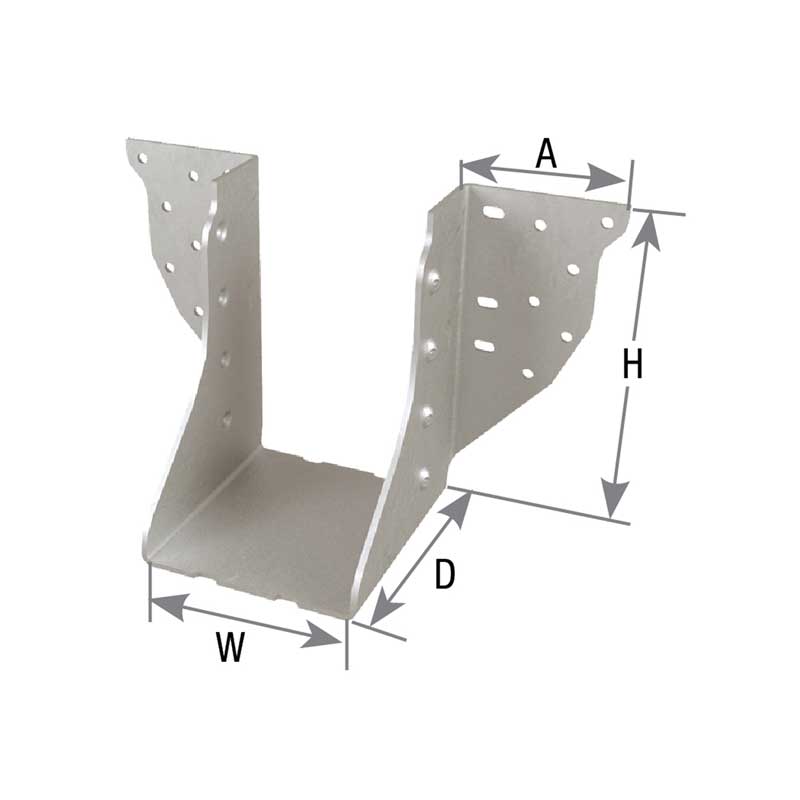

THDH26-2 Heavy-DutyTruss Hanger

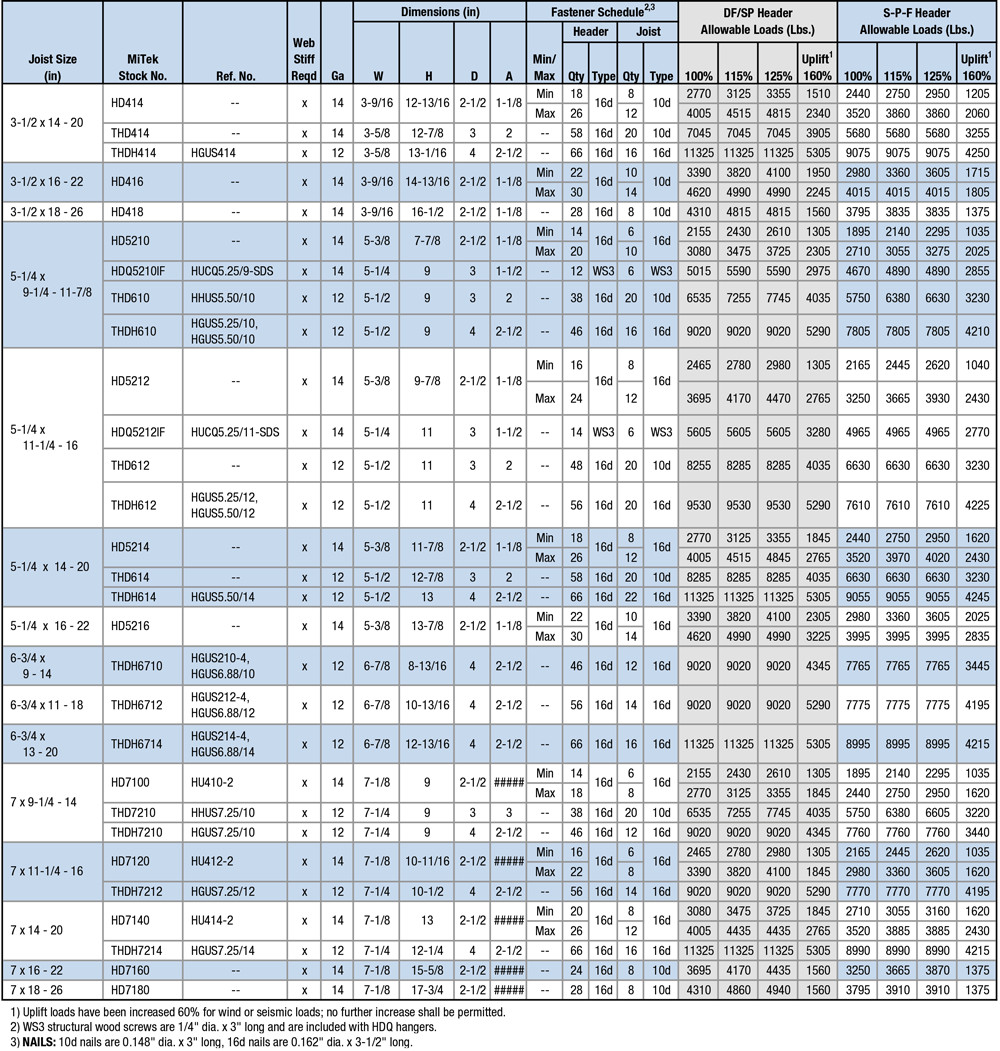

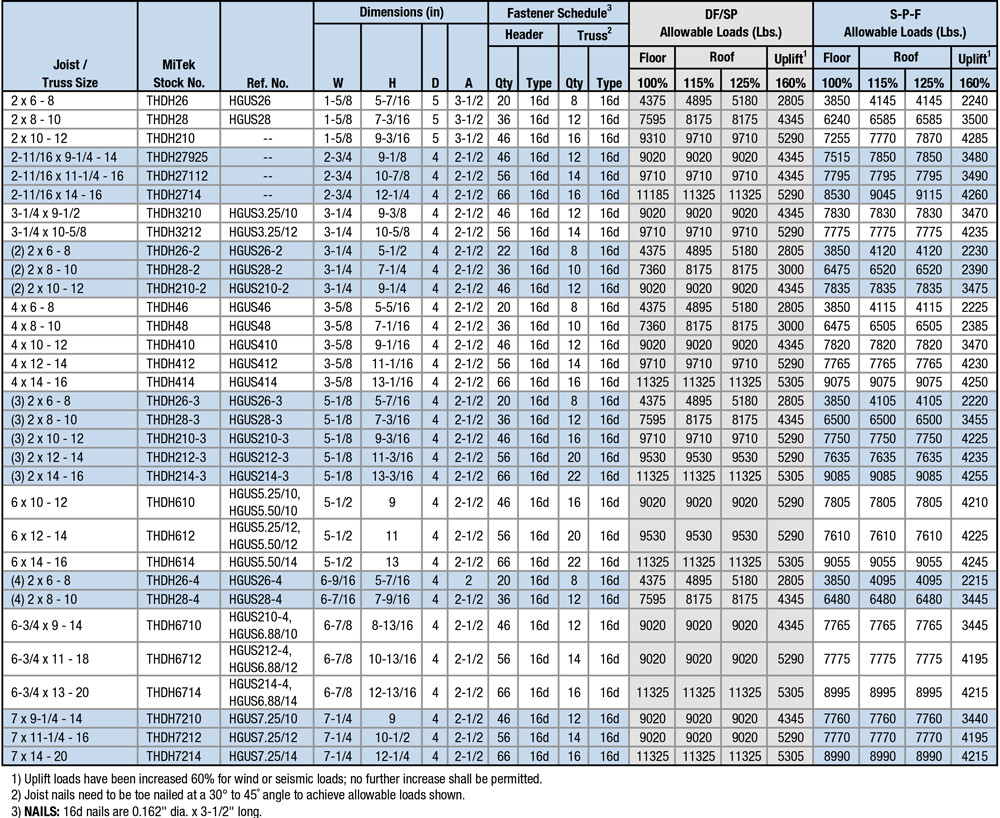

Load Table
THDH Specification Table
EWP Sizes: 1-3/4" x 7-1/4" to 3-1/2" x 16"
EWP Sizes: 3-1/2" x 14" to 7" x 26"

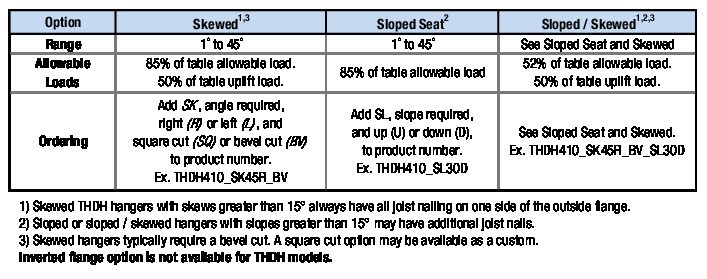

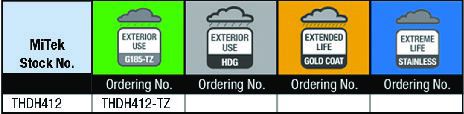

Option Details:
Code Report Table

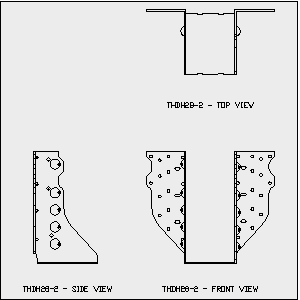

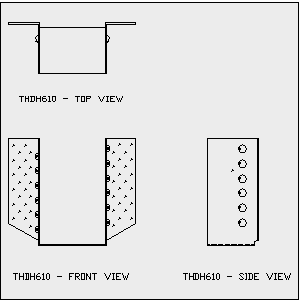

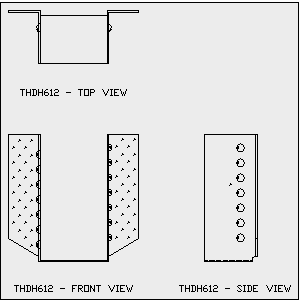

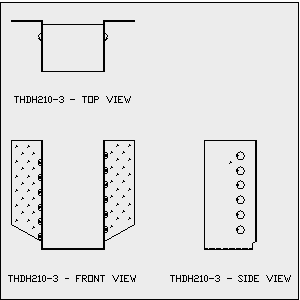

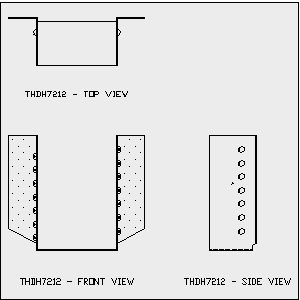

3-View Product Drawings
| MiTek Stock # | Download or View Files | |||
|---|---|---|---|---|

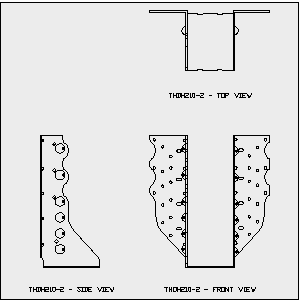

| THDH210-2 | DWG | DXF | View Image | |
| THDH210-3 | DWG | DXF | View Image | |

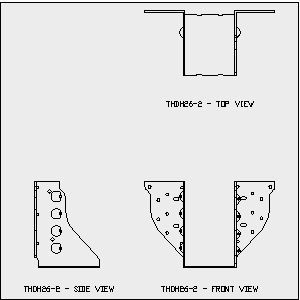

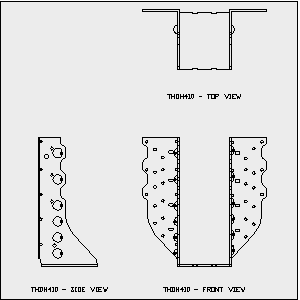

| THDH26-2 | DWG | DXF | View Image | |
| THDH28-2 | DWG | DXF | View Image | |
| THDH28-3 | DWG | DXF | View Image | |
| THDH410 | DWG | DXF | View Image | |

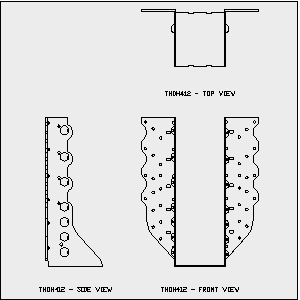

| THDH412 | DWG | DXF | View Image | |

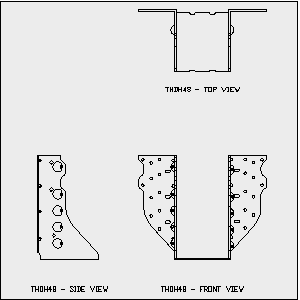

| THDH48 | DWG | DXF | View Image | |
| THDH610 | DWG | DXF | View Image | |
| THDH612 | DWG | DXF | View Image | |

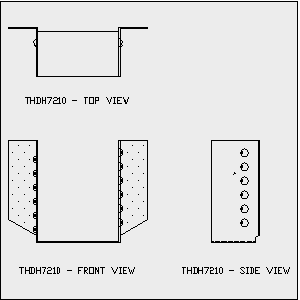

| THDH7210 | DWG | DXF | View Image | |
