Holdowns

Concrete Angles

TDL

Reference Series: A
These angles secure wood posts to concrete or wood floors in light-duty applications.
Materials: 12 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Resources

MiTek Product Catalog

Options

Technical Bulletins

Installation

  • Use specified fasteners.
  • The TDL10 can be embedded into concrete. Minimum embedment depth is 4″ to achieve allowable loads.
  • Moisture barrier may be required.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Typical TDL5 nail installation

Typical TDL5 nail installation

Typical TDL5 nail installationTDL10 Concrete AngleTypical TDL10 embedded bolt installation

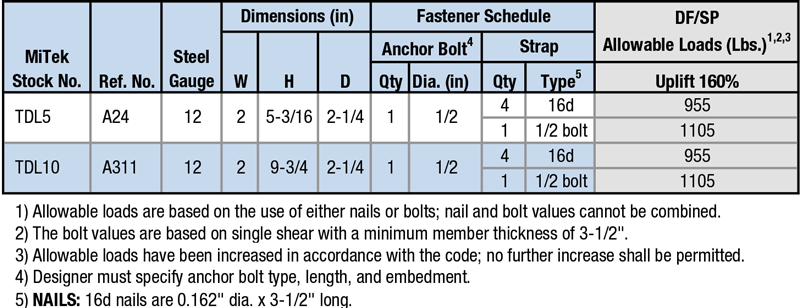

Load Table

-- -- View / Download the above load table as a PDF

Option Details:

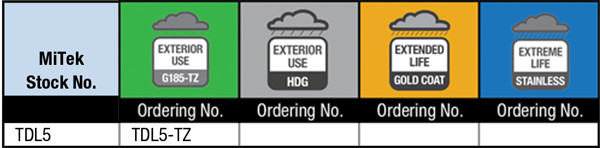

Corrosion Resistant Products Table

Corrosion Resistant Products Table View / Download the above load table as a PDF

Code Report Table

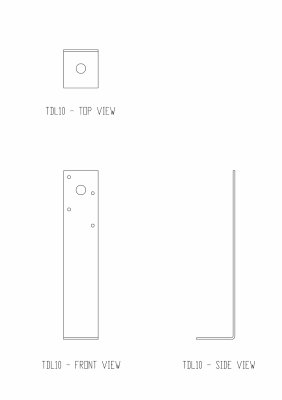

TDL10

No Code Listing

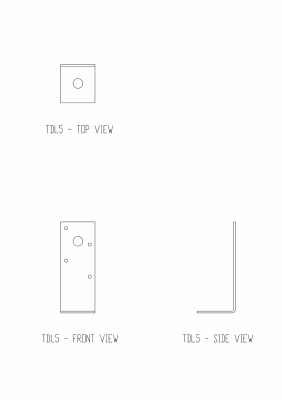

TDL5

No Code Listing

TDL5-TZ

No Code Listing
