EWP Hangers
Heavy-Duty Fire Wall Hangers
FWHH
Reference Series: -- --
The MiTek FWHH Heavy-Duty Fire Wall Hanger is designed to support beams and purlins at header locations. The higher capacity of the FWHH is achieved through top flange bearing along with added face and beam/purlin nailing. As with the FWH hanger, the advanced design allows you to install the hangers before the drywall is attached, allowing your project to be completely framed-up and weather-tight before the drywall sheathing shows up on site.
2 Hour Fire Rating: FWH hangers are tested per ASTM E814 standards. When installed on one side of a maximum 2 hour fire-rated wall assembly, the penetration of the MiTek FWH Fire Wall Hanger through the gypsum wallboard will not reduce the fire resistive rating of the 2 hour fire resistive assembly.
2 Hour Fire Rating: FWH hangers are tested per ASTM E814 standards. When installed on one side of a maximum 2 hour fire-rated wall assembly, the penetration of the MiTek FWH Fire Wall Hanger through the gypsum wallboard will not reduce the fire resistive rating of the 2 hour fire resistive assembly.
Materials: 12 gauge
Finish: Primer
Code Reports:
View Code Report Table
Resources
MiTek Product CatalogInstallation
- Install the FWHH hanger flanges tight to the face of the header.
- A minimum 2-ply 2×10 header is required for proper installation.
- The beam/purlin should bear fully on the FWHH seat with a gap no greater than 1/8″ between the end of the supported member and the hanger.
- Gypsum Wallboard Installation – Use the FWH-T template to slot cut the gypsum wallboard. See FWH-T Template Sequence. Slide the gypsum wallboard into position and fasten to the framing members meeting the minimum requirements specified by code.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

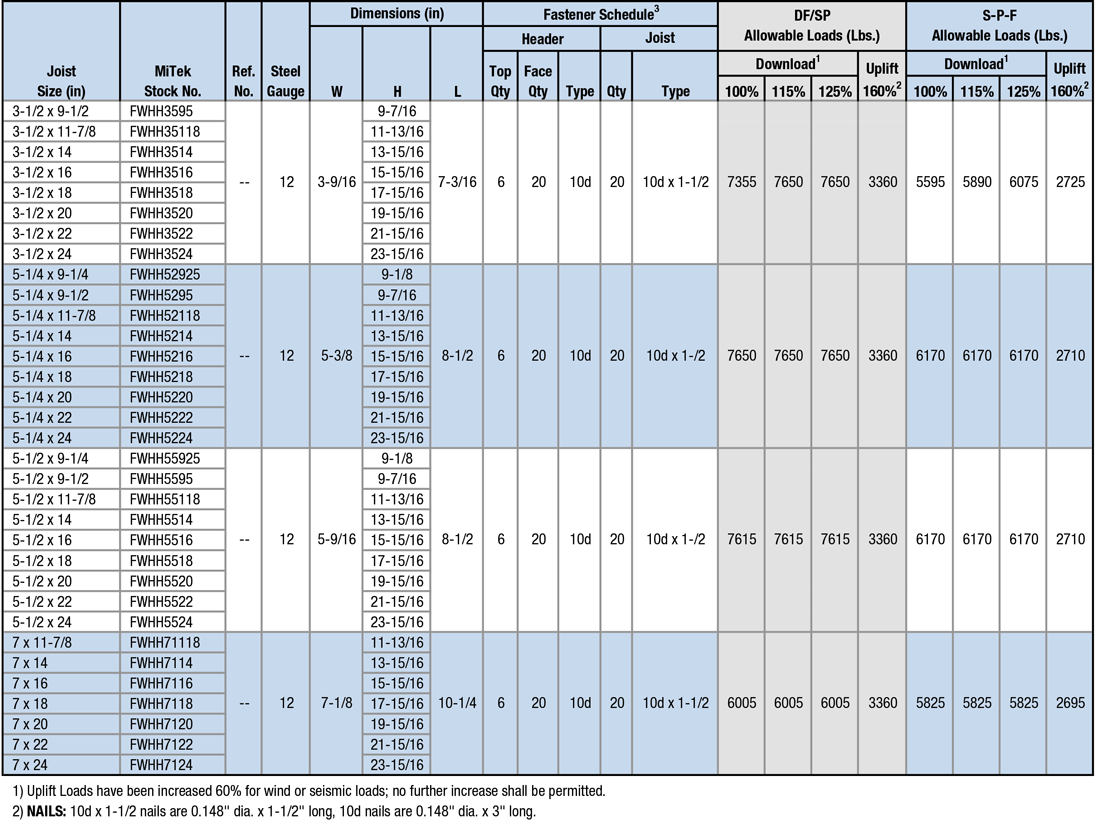

FWHH Fire Wall Hanger

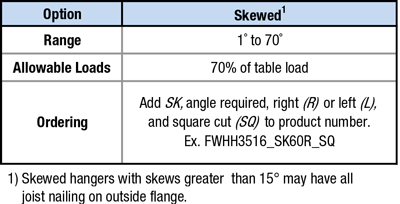

Option Details:
Code Report Table
FWHH3595
FWHH35118
No Code Listing
FWHH3514
No Code Listing
FWHH3516
No Code Listing
FWHH3518
No Code Listing
FWHH3520
No Code Listing
FWHH3522
No Code Listing
FWHH3524
No Code Listing
FWHH52925
No Code Listing
FWHH5295
No Code Listing
FWHH52118
No Code Listing
FWHH5214
No Code Listing
FWHH5216
No Code Listing
FWHH5218
No Code Listing
FWHH5220
No Code Listing
FWHH5222
No Code Listing
FWHH5224
No Code Listing
FWHH55925
No Code Listing
FWHH5595
No Code Listing
FWHH55118
No Code Listing
FWHH5514
No Code Listing
FWHH5516
No Code Listing
FWHH5518
No Code Listing
FWHH5520
No Code Listing
FWHH5522
No Code Listing
FWHH5524
No Code Listing
FWHH71118
No Code Listing
FWHH7114
No Code Listing
FWHH7116
No Code Listing
FWHH7118
No Code Listing
FWHH7120
No Code Listing
FWHH7122
No Code Listing
FWHH7124
No Code Listing
No Code Listing
