Angles & Straps
Stud Plate Ties
RSPT / SPT / TSP
Reference Series: RSP4, SSP, DSP, SP1, SP2, TSP
RSPT – 18 or 20 gauge.
SPT – 20 gauge.
TSP – 16 gauge. Optional diamond holes of various uplift capacities with Min and Max nailing configurations.
SPT – 20 gauge.
TSP – 16 gauge. Optional diamond holes of various uplift capacities with Min and Max nailing configurations.

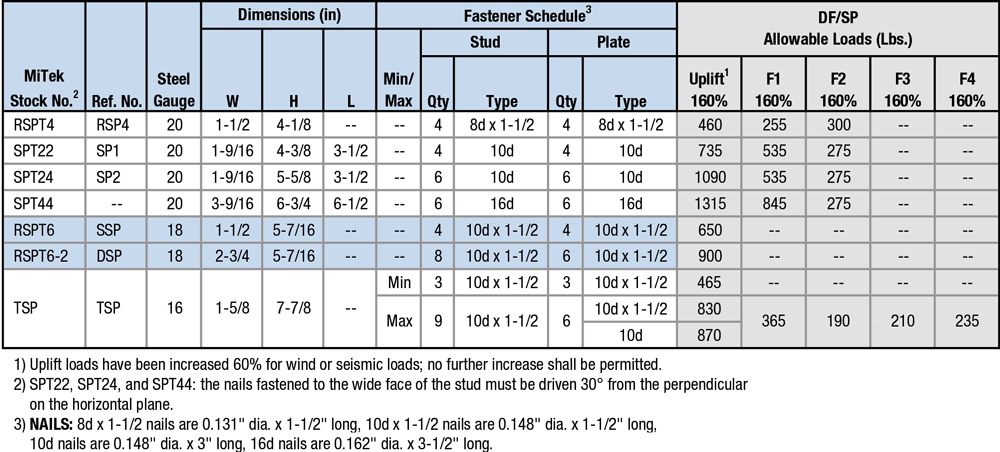

Materials: See Load Table
Finish: G90 galvanizing
Code Reports:
View Code Report Table
Installation
- Use all specified fasteners.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
RSPT4 Stud Plate Tie
Option Details:
Code Report Table

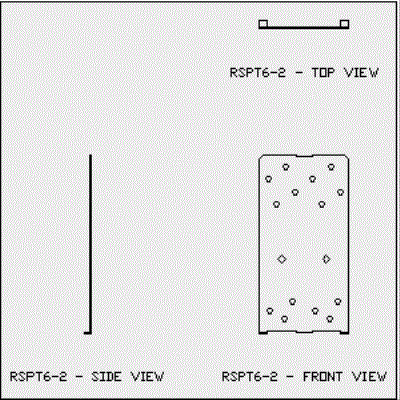

3-View Product Drawings
| MiTek Stock # | Download or View Files | |||
|---|---|---|---|---|

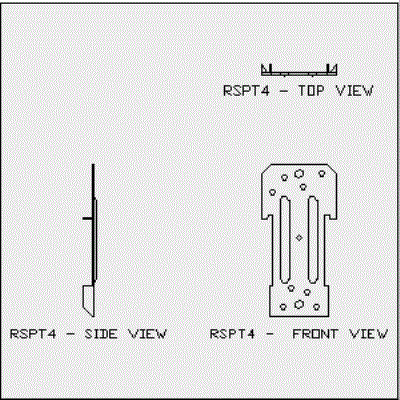

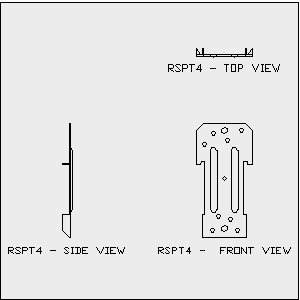

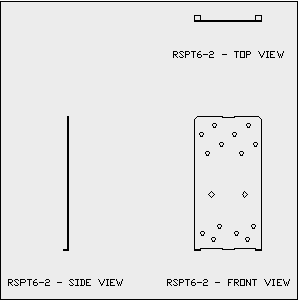

| RSPT4 | DWG | DXF | View Image | |

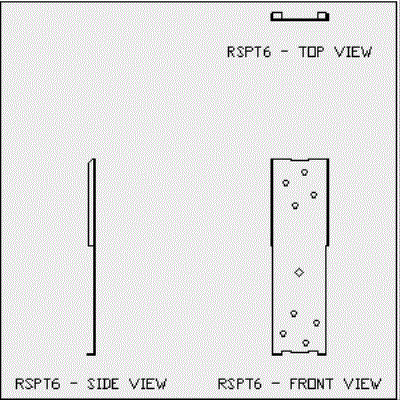

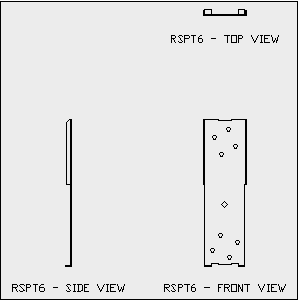

| RSPT6 | DWG | DXF | View Image | |
| RSPT6-2 | DWG | DXF | View Image | |

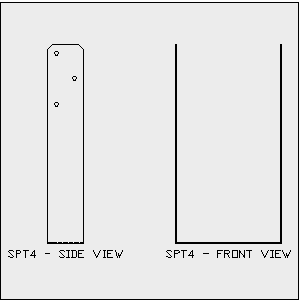

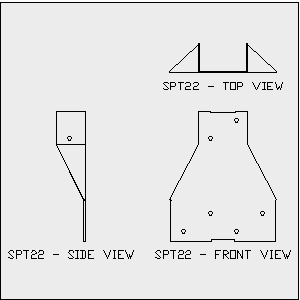

| SPT22 | DWG | DXF | View Image | |

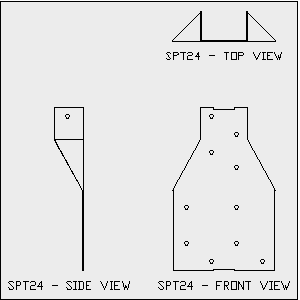

| SPT24 | DWG | DXF | View Image | |
| SPT4 | DWG | DXF | View Image | |
| SPT44 | DWG | DXF | View Image | |
| SPT6 | DWG | DXF | View Image | |
| SPT8 | DWG | DXF | View Image | |
Application Drawings
| MiTek Stock # | Download or View Files | ||||
|---|---|---|---|---|---|
| SPT44 | Typical | DWG | DXF | View Image | |
High Wind Drawings
| MiTek Stock # | Download or View Files | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPT22 |
|
|||||||||||||||
| SPT24 |
|
|||||||||||||||
| SPT4 |
|
|||||||||||||||
