Angles & Straps

Coiled Strapping


Reference Series: CMST, CMSTC, CS
Coiled strapping enables cut-to-length convenience for a variety of immediate job site needs.

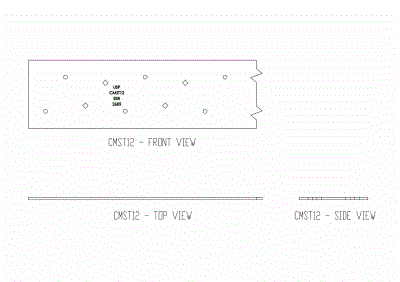

CMST – 3" wide strapping features diamond nail holes to provide nailing options and reduce wood splitting.

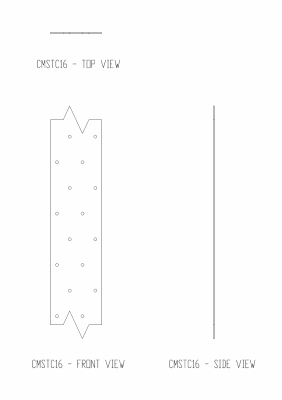

CMSTC – 3" wide strapping is designed for high load conditions. Engineered to reduce wood splitting.

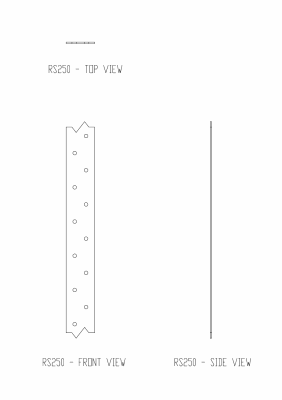

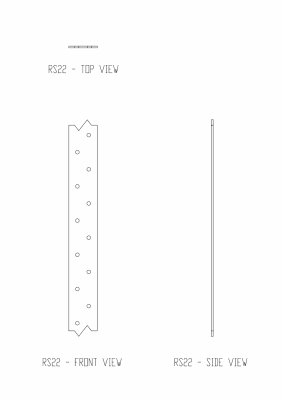

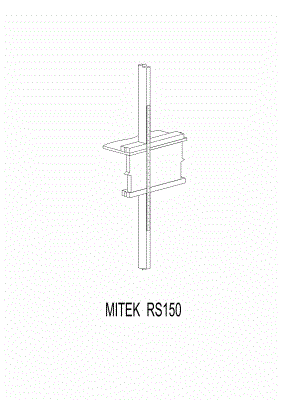

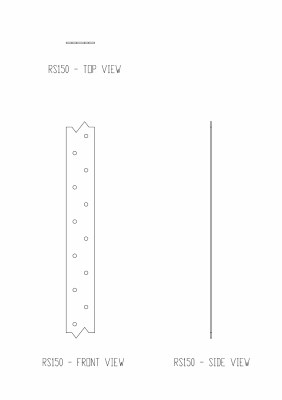

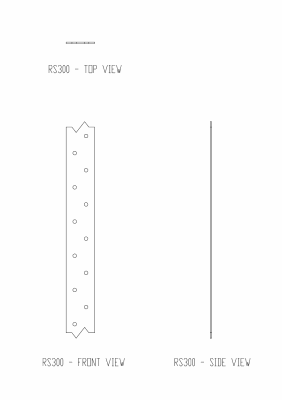

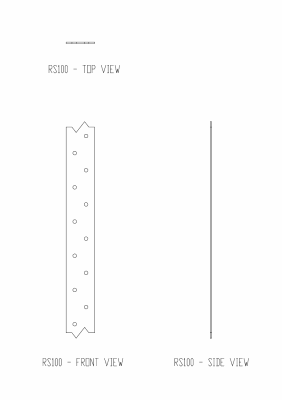

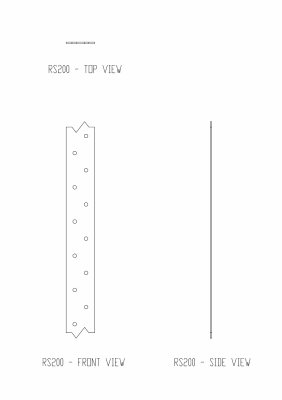

RS – 1-1⁄4" wide strapping packaged in cartons containing 25-foot or longer coils.
Materials: See Load Table
Finish: G90 galvanizing
Code Reports: View Code Report Table


  • Use all specified fasteners.
  • For safety, always wear gloves when handling or cutting coiled strapping.
    CMST/CMSTC installations: Install to a minimum 2 ply 2x edge. Increase nail spacing if wood begins to split.
  • Designer may specify alternate nailing schedules. Refer to Nail Specification Table Click here for nail shear values. Load values shall not exceed published allowable loads.
  • Unless specified otherwise by the panel manufacturer, straps may be installed over wood structural panels. Use full length nails of specified nail diameter to ensure adequate penetration into the main member is achieved (10 times the diameter minimum).

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Option Details:

Corrosion Resistant Products Table

Corrosion Resistant Products Table View / Download the above load table as a PDF

High Wind Drawings

MiTek Stock # Download or View Files
Piling FlushDWGDXFPDFView Image
Floor-to-FloorDWGDXFPDFView Image
Piling FlushDWGDXFPDFView Image
Floor-to-FloorDWGDXFPDFView Image
