Solid Sawn Hangers

Beam and Purlin Hangers

BPHA / KB / KLB

Reference Series: LB, LBA
Top mount hangers cover medium-to-heavy beam and purlin applications.
Materials: BPHA – 12 gauge; KB – 12 gauge; KLB – 14 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Options

Installation

  • Use all specified fasteners.
  • NA20D nails are included with hangers where applicable.
  • BPHA Min Nailing – Fill all round nail holes.
  • BPHA Max Nailing – Fill all round and diamond nail holes.
  • KB / KLB models are not recommended for use with LVL, PSL, or LSL members.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

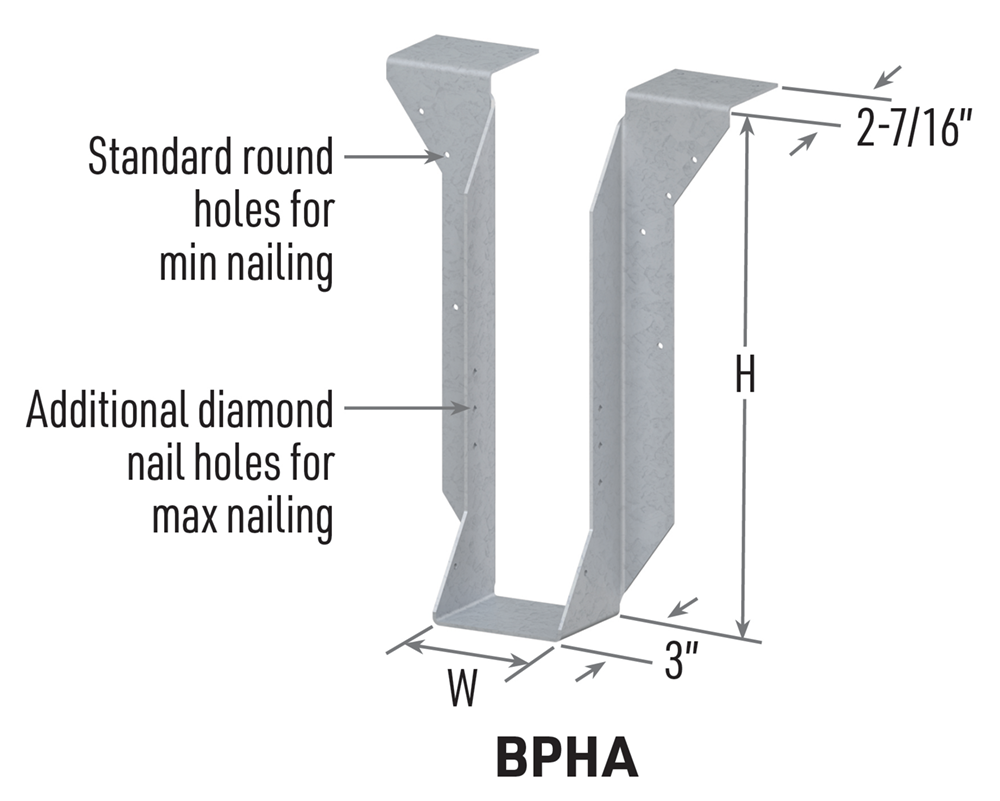

BPHA Top Mount Hanger

BPHA Top Mount Hanger

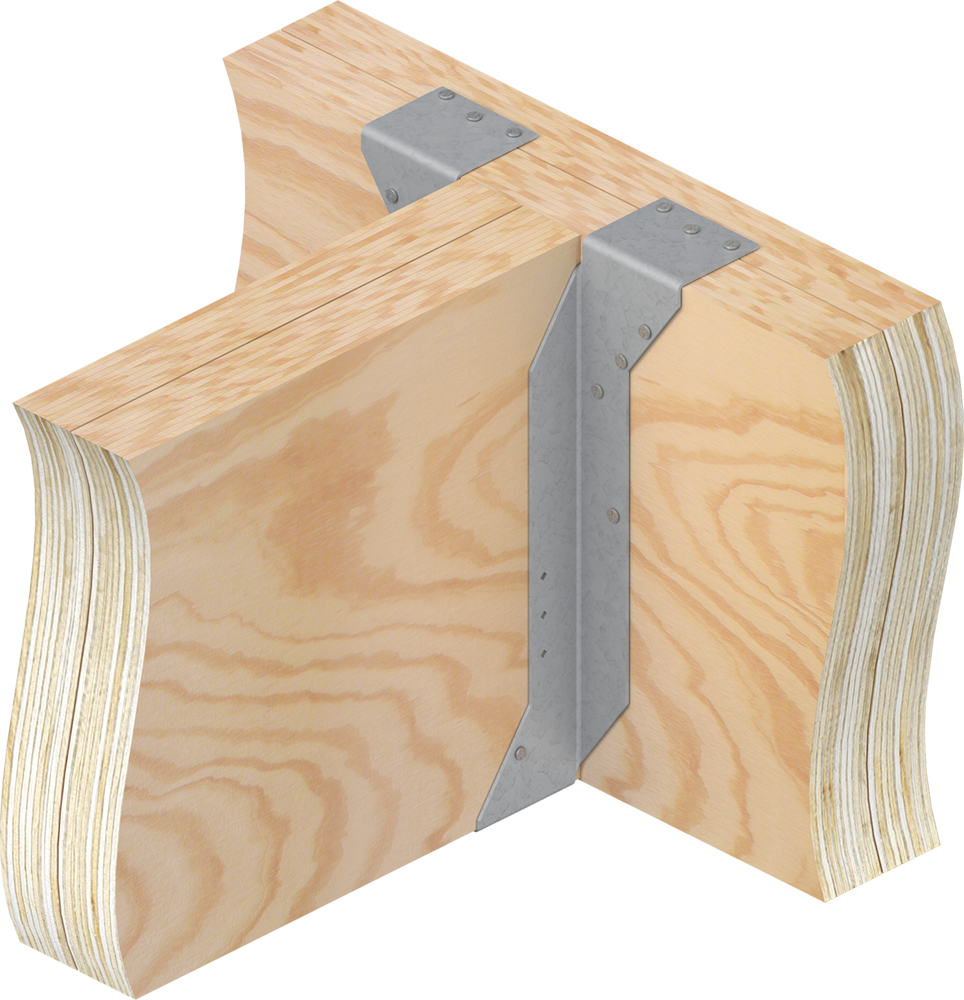

BPHA Top Mount HangerTypical BPHA min nailing installationTypical BPHA max nailing installationKLB Beam and Purlin HangerTypical KLB installationKB Beam and Purlin HangerTypical KB installation

Load Tables

Joist Sizes: 2 x 4 to (2) 2 x 8
Joist Sizes: 2 x 4 to (2) 2 x 8 View / Download the above load table as a PDF
Joist Sizes: (2) 2 x 10 to 4 x 16
Joist Sizes: (2) 2 x 10 to 4 x 16 View / Download the above load table as a PDF
Joist Sizes: (3) 2 x 10 to 8 x 16
Joist Sizes: (3) 2 x 10 to 8 x 16 View / Download the above load table as a PDF

Option Details:

BPHA Specialty Options Table

BPHA Specialty Options Table View / Download the above load table as a PDF

Welded Top Flange Installation

Welded Top Flange Installation View / Download the above load table as a PDF

Corrosion Resistant Products Table

Corrosion Resistant Products Table View / Download the above load table as a PDF
