Truss and Rafter Tiedowns
Uplift Girder Ties
UGTS / USC
Reference Series: -- --
UGTS – 2-bolt shorter design when space is limited.
USC – 4-bolt high load design.
USC – 4-bolt high load design.

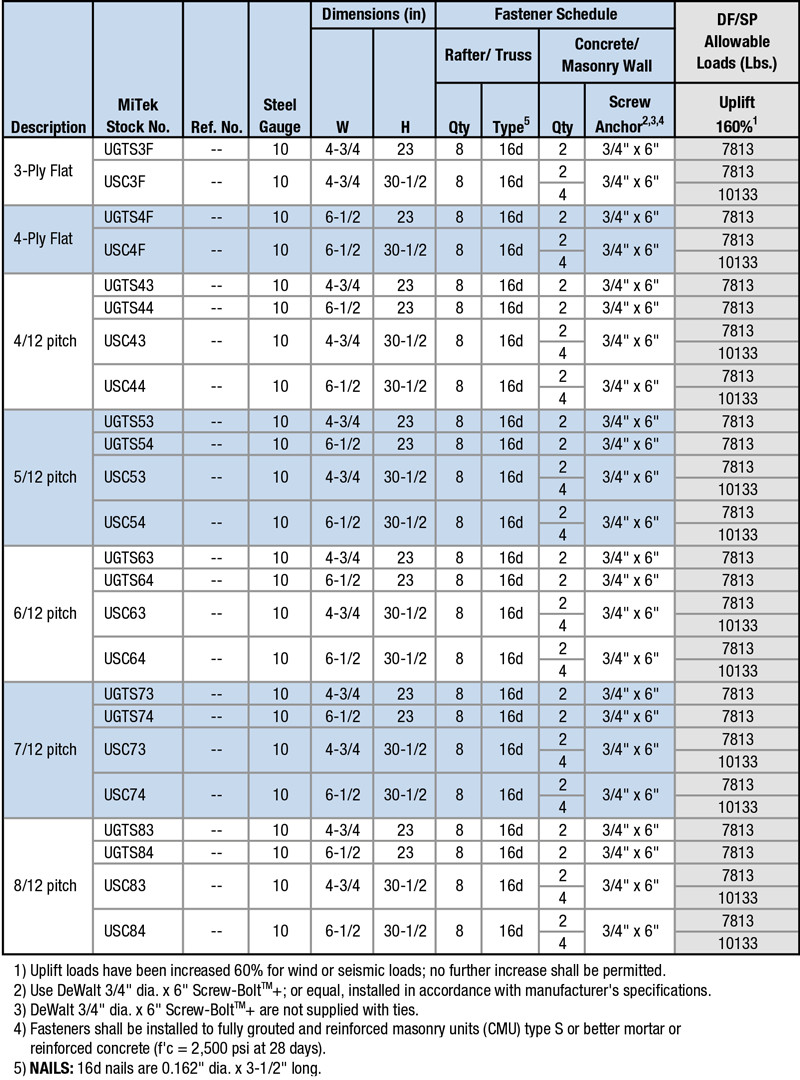

Materials: 10 gauge
Finish: USP primer
Code Reports:
View Code Report Table
Installation
- Use all specified fasteners.
- Bolts must be ordered separately.
- Place connector over truss or rafter and fasten with specified fasteners.
- Designer shall be responsible for design of masonry structure, including any required reinforcement.
- For 2 ply applications, add filler block.
- Works with heel heights up to 14″.
- Moisture barrier may be required.
