Truss and Rafter Tiedowns

Uplift Girder Ties

UGTS / USC

Reference Series: -- --

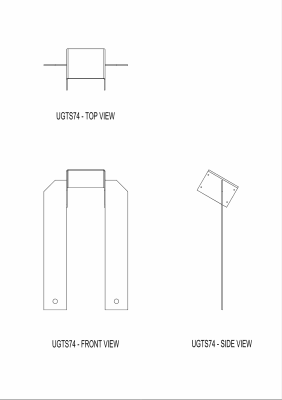

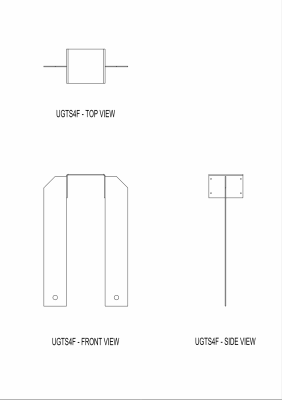

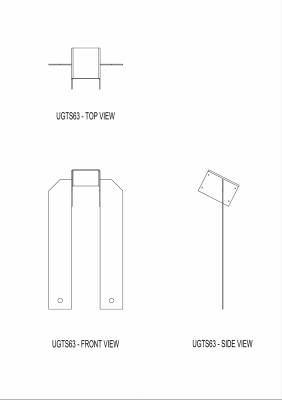

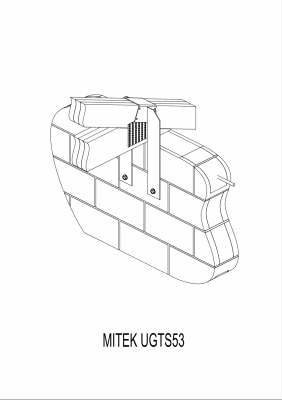

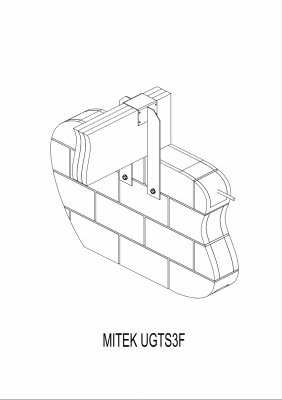

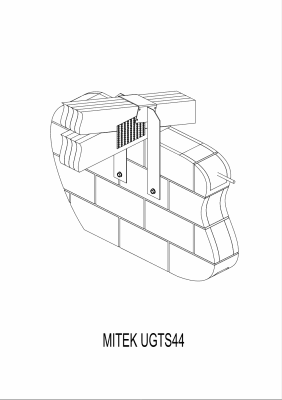

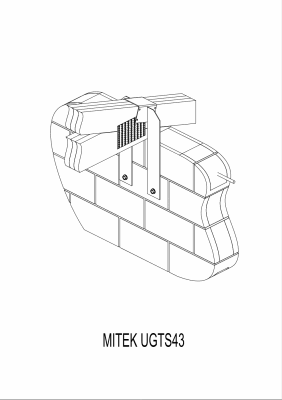

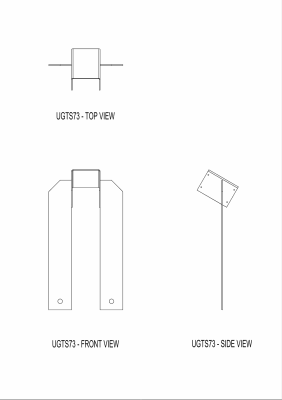

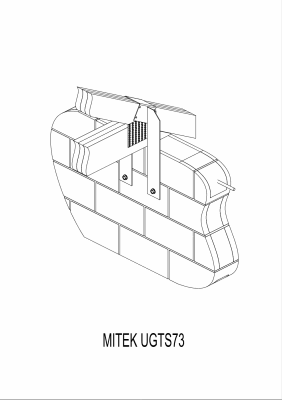

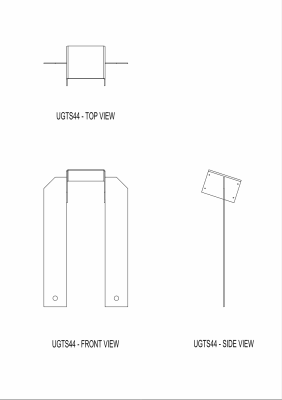

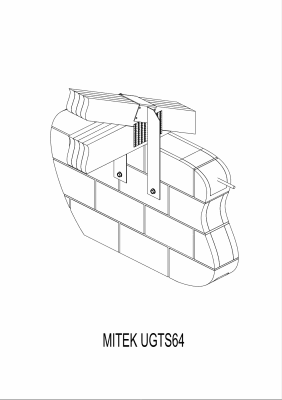

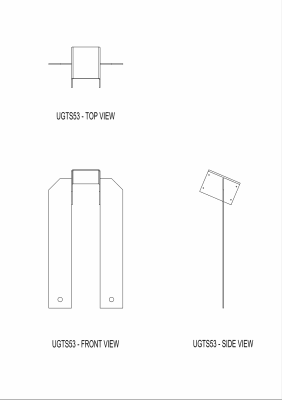

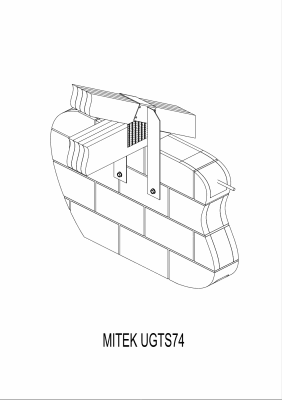

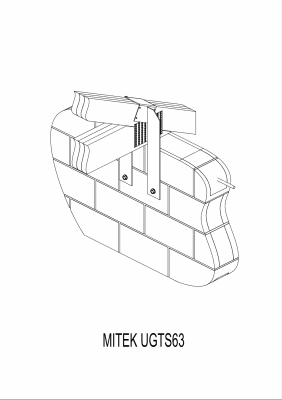

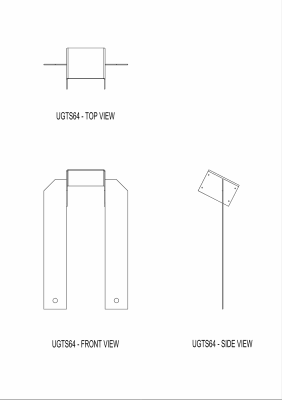

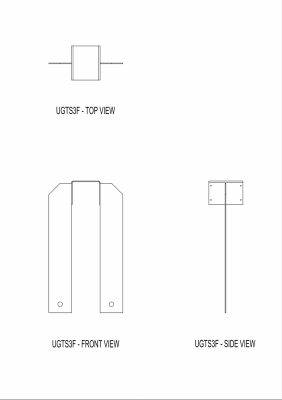

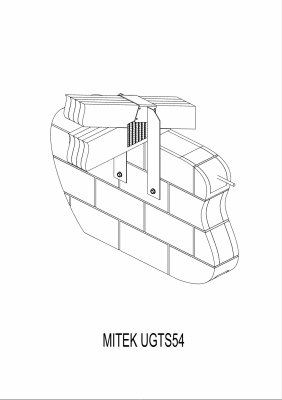

UGTS – 2-bolt shorter design when space is limited.

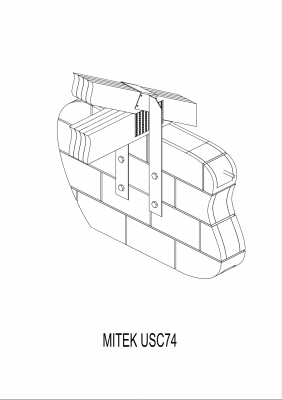

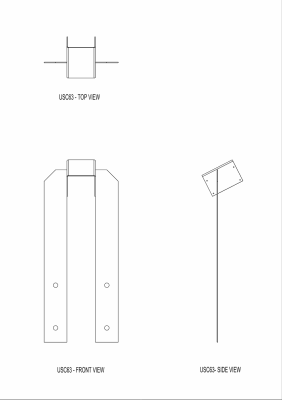

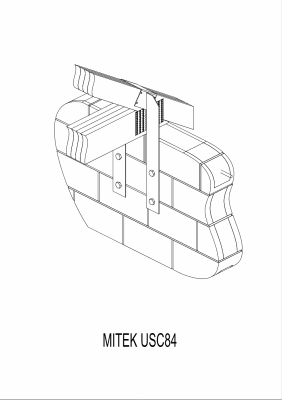

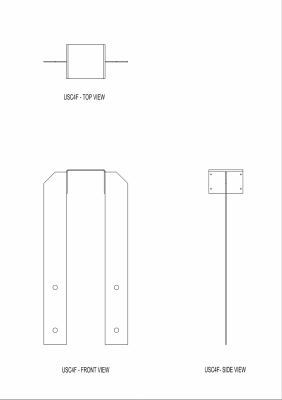

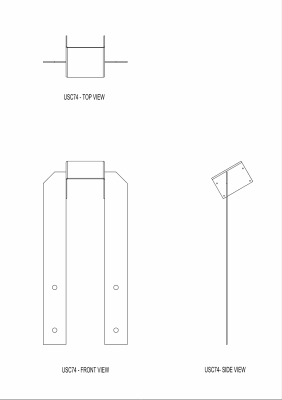

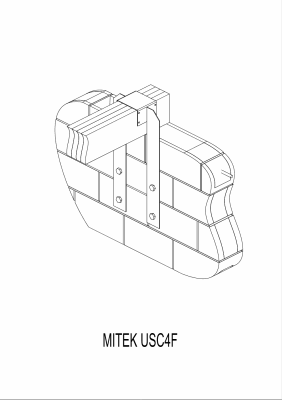

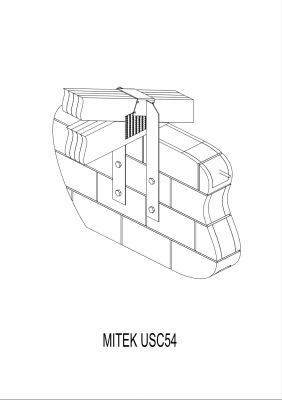

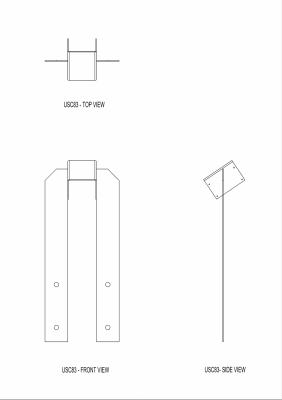

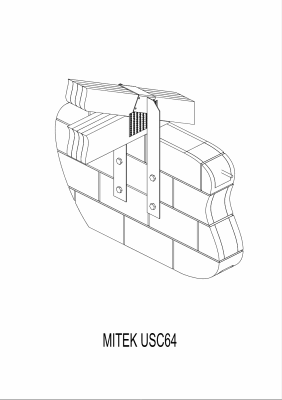

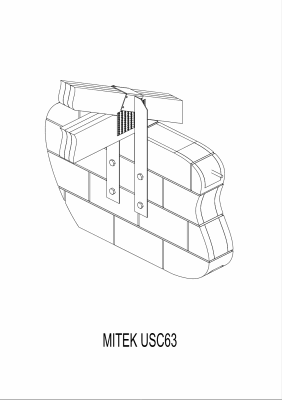

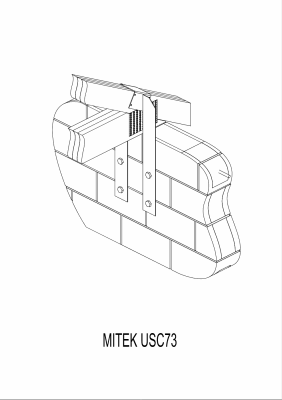

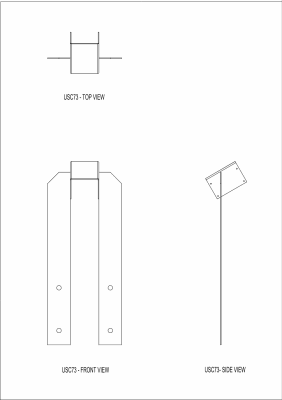

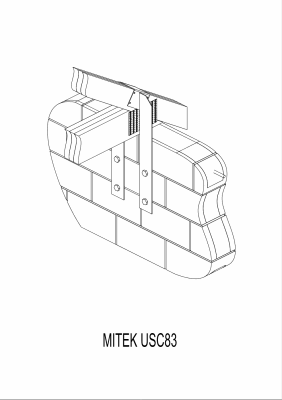

USC – 4-bolt high load design.
Materials: 10 gauge
Finish: USP primer
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Bolts must be ordered separately.
  • Place connector over truss or rafter and fasten with specified fasteners.
  • Designer shall be responsible for design of masonry structure, including any required reinforcement.
  • For 2 ply applications, add filler block.
  • Works with heel heights up to 14″.
  • Moisture barrier may be required.
