Truss and Rafter Tiedowns

Masonry Uplift Connectors

SHA

Reference Series: -- --
Connects trusses directly to masonry or concrete and features slotted base holes to ease installation.
Materials: Angle – 3 gauge; Gussets – 10 gauge
Finish: USP primer
Code Reports: View Code Report Table

Resources

MiTek Product Catalog

Installation

  • Use all specified fasteners.
  • Install directly flush to masonry wall.
  • The SHA series connectors shall be installed in pairs.
  • Moisture barrier may be required.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

SHA6 Masonry Uplift Connector

SHA6 Masonry Uplift Connector

SHA6 Masonry Uplift ConnectorTypical SHA6 installationSHA6T Masonry Uplift ConnectorTypical SHA6T installation

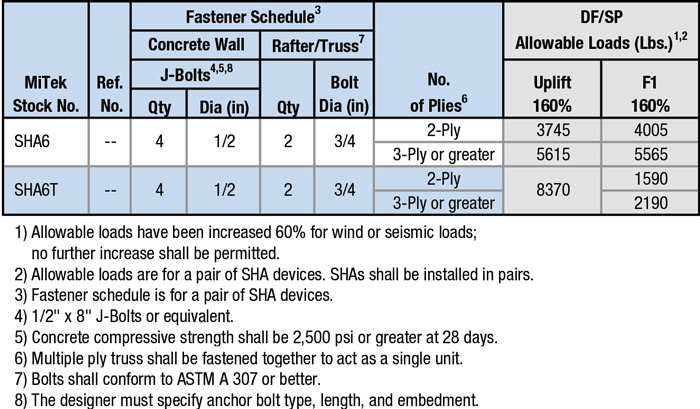

Load Table

-- -- View / Download the above load table as a PDF

Code Report Table

SHA6

No Code Listing

SHA6T

No Code Listing
