Solid Sawn Hangers

Purlin Hangers

JDS

Reference Series: PFB, PFD
The JDS Purlin Hangers provide a convenient, flexible solution when attaching purlins together.
Materials: 18 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Joist nails must be driven at a 30° to 45° angle through the purlin into the header to achieve listed loads. Standard length “double shear” nails must be used to achieve listed load values.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

JDS24S Purlin Hanger

JDS24S Purlin Hanger

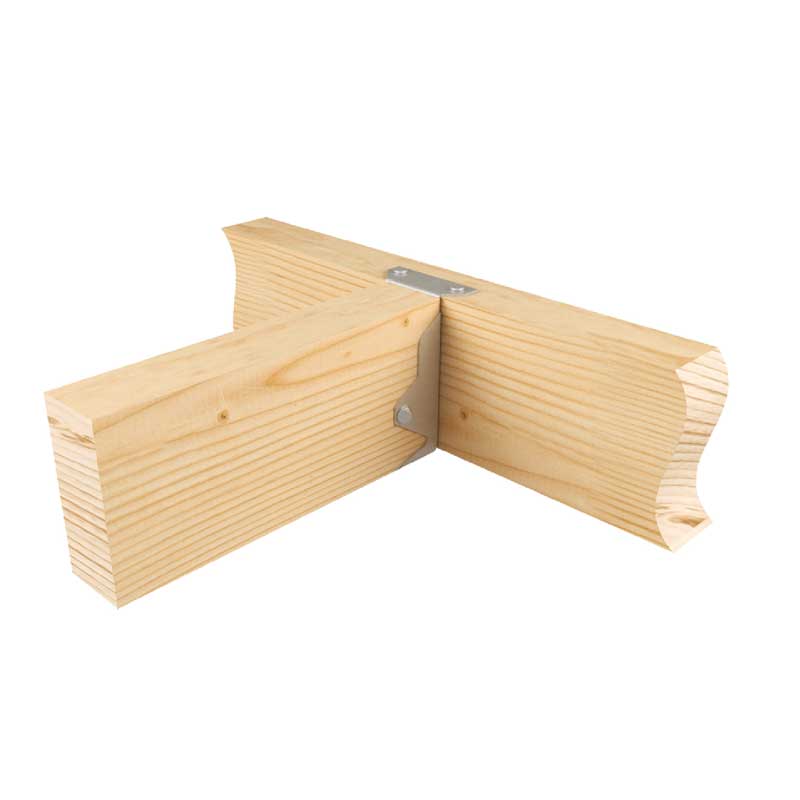

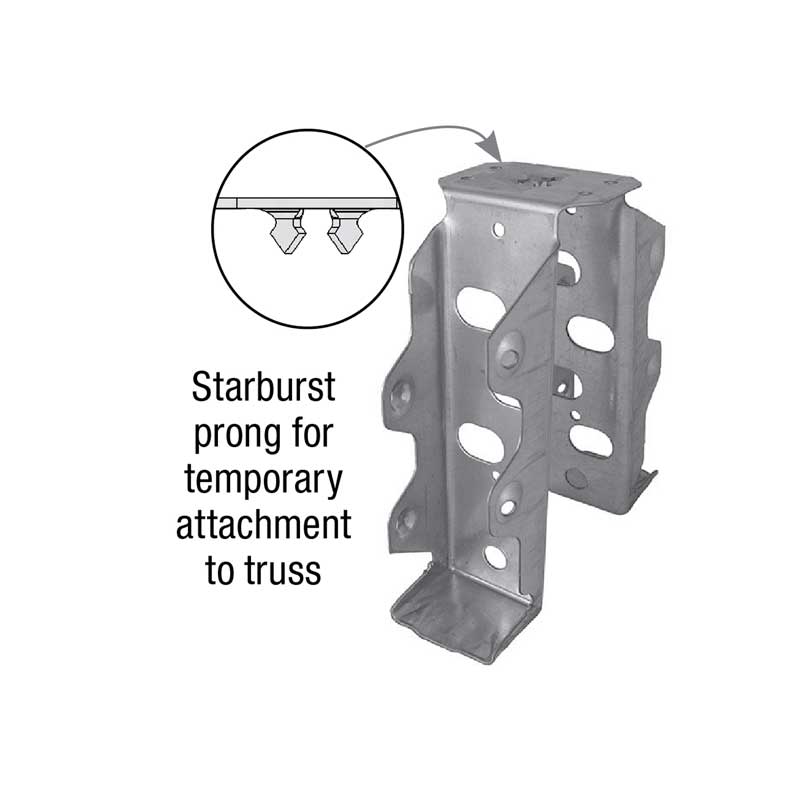

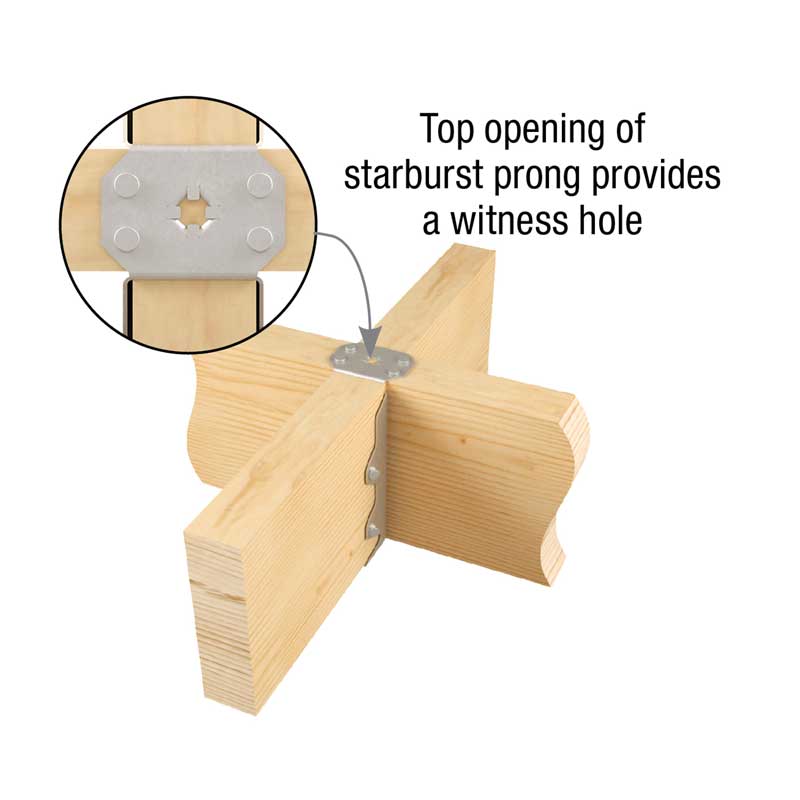

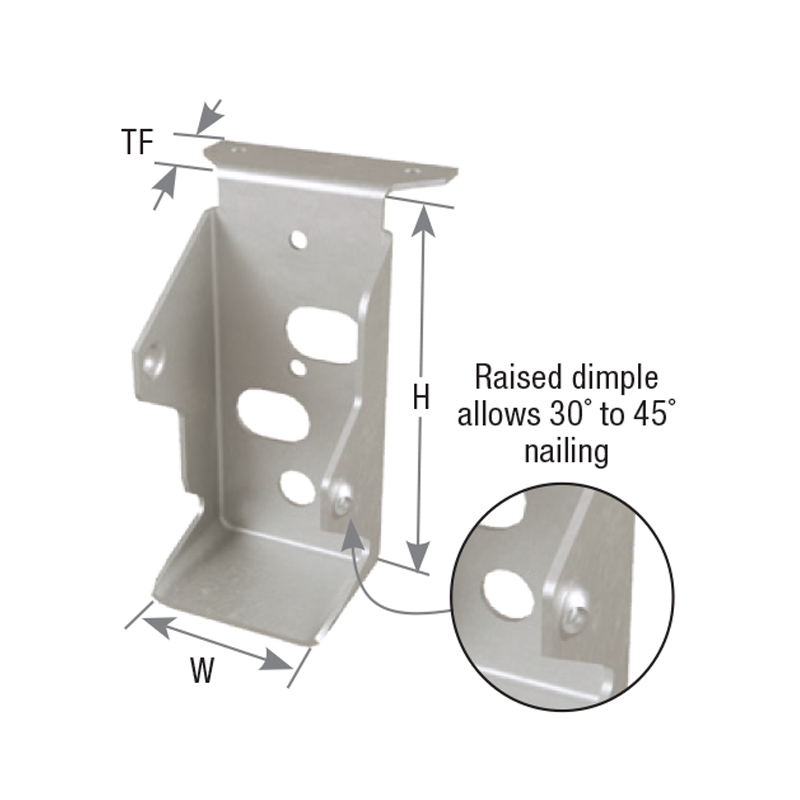

JDS24S Purlin HangerTypical JDS24S installationJDS26 Purlin Hanger (JDS24 similar)Typical JDS26 installationJDS26-175 Purlin HangerJDS26-175 installationDouble Shear Nailing detail

3-View Product Drawings

MiTek Stock # Download or View Files

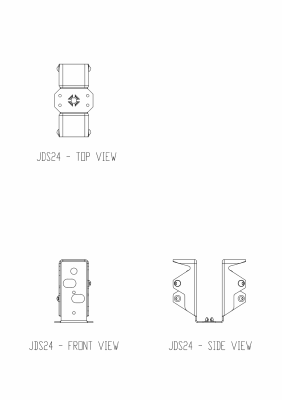

JDS24 DWG DXF PDF View Image

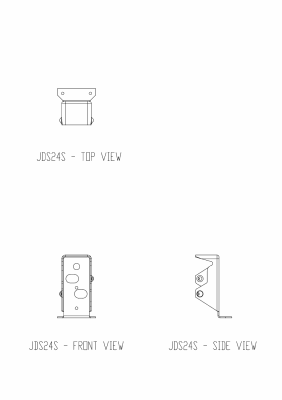

JDS24S DWG DXF PDF View Image

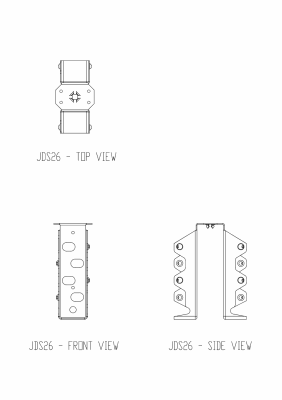

JDS26 DWG DXF PDF View Image

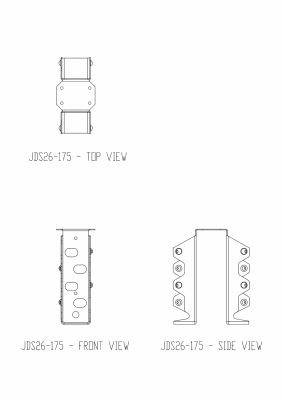

JDS26-175 DWG DXF PDF View Image
JDS26S DWG DXF PDF View Image

Application Drawings

MiTek Stock # Download or View Files

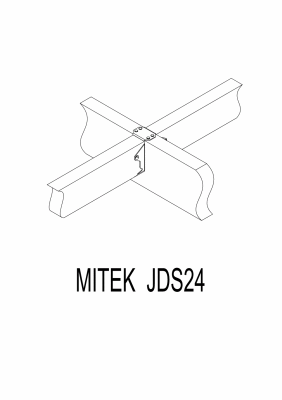

JDS24 Typical DWG DXF PDF View Image
JDS26S Typical DWG DXF PDF View Image
