Plated Truss

Supplementary Bearing Plates

SBP

Reference Series: TBE

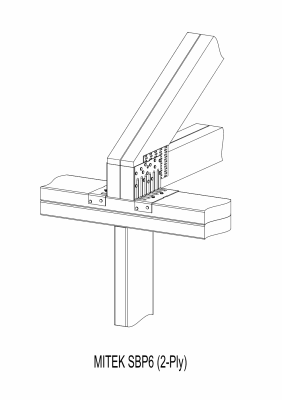

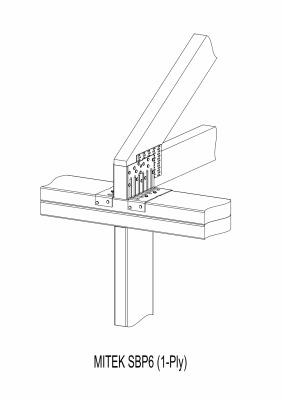

Use the SBP instead of extra truss plies or nail-on scabs to distribute concentrated truss reactions and avoid top plate crushing. The two-piece design accommodates any number of girder plies. A wraparound design gives superior uplift resistance, and reinforcement ribs effectively distribute bearing loads. Works with both single and double 2x4 or 2x6 top plates.
Materials: 16 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Technical Bulletins

Installation

  • Use all specified fasteners.
  • The SBP shall be installed in pairs.
