Plated Truss

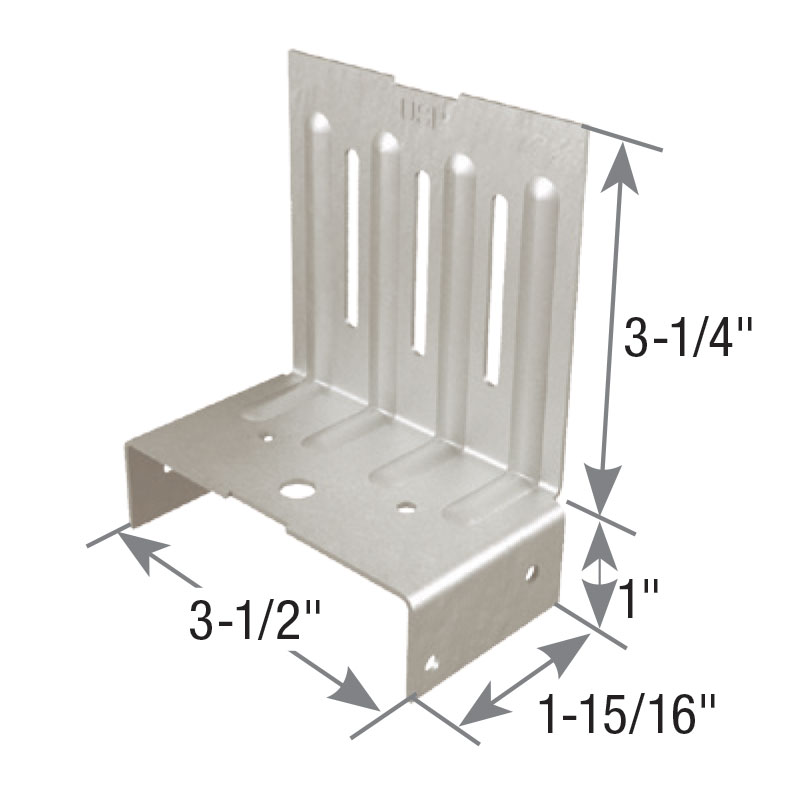

Heavy Truss Deflection Clip

HTC

Reference Series: HTC
Slotted design allows truss to deflect without imposing load on wall below.
Materials: 16 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

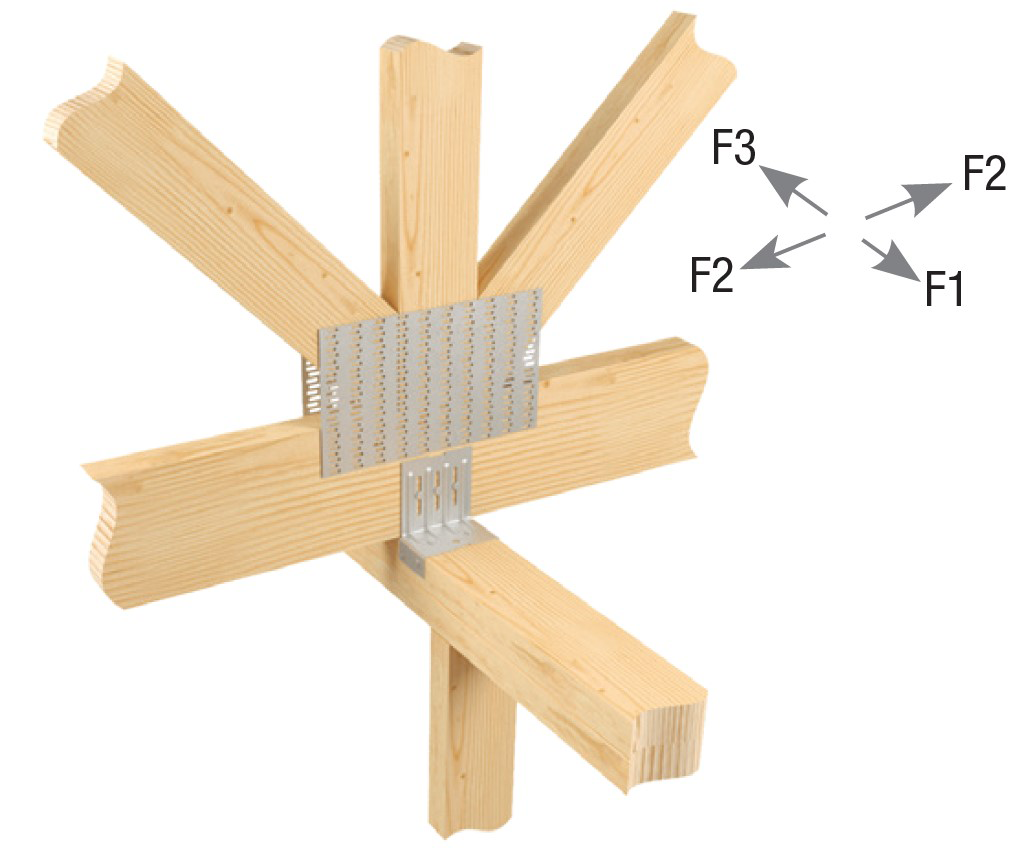

Installation

  • Use all specified fasteners.
  • Do not fully set nails.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

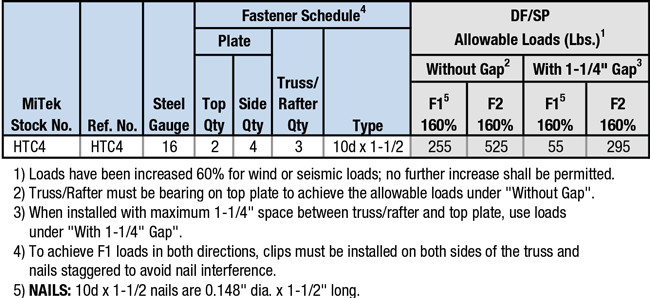

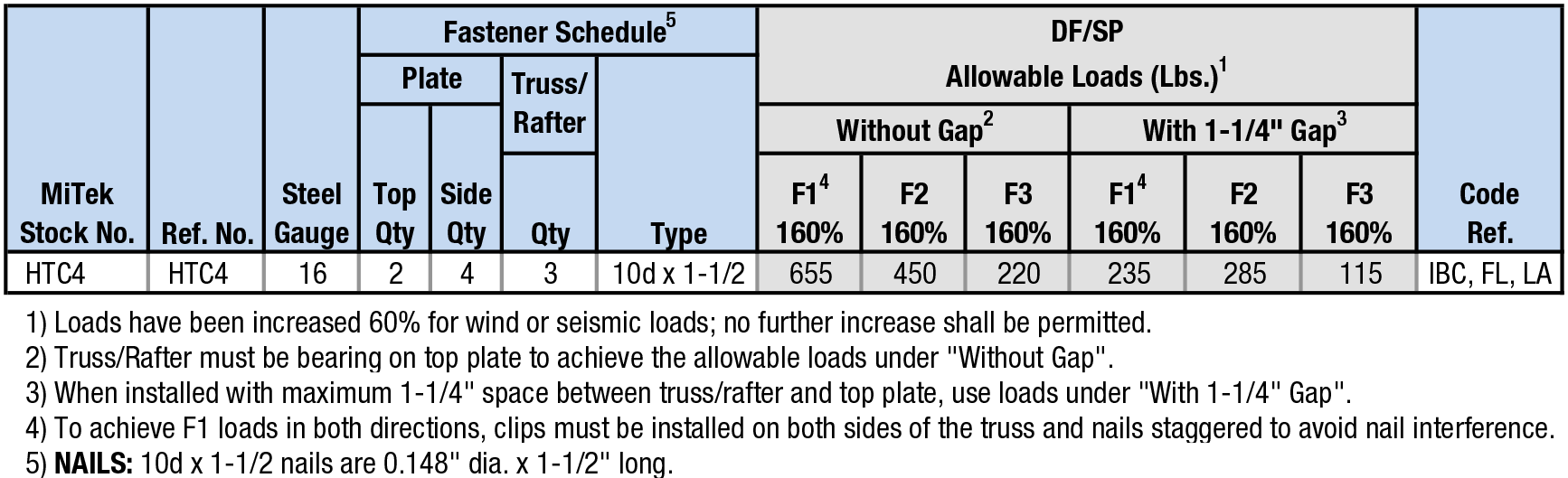

Code Report Table
