Truss Spacers

TS / TSX

Reference Series: TSF
Truss spacers give framers fast and accurate spacing for trusses, rafters, or floor joists. The TS and TSX eliminate the need to mark layouts on bearing plates, improve installation speed, and help eliminate spacing errors. These spacers are light weight and compact.
Materials: TS – 20 gauge; TSX – 22 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Installation

  • Use (1) 8d nail per end to fasten units to trusses, rafters, or floor joists.
  • Important: These units provide spacing guides only. Do not rely on the TS or TSX for bracing.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

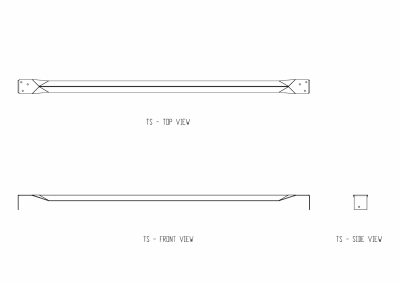

TS single-unit spacer

TS single-unit spacer

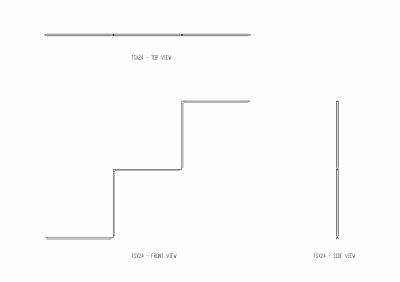

TS single-unit spacerTSX24 multi-unit spacerTypical TSX24 installation

Code Report Table

TS

Non-Structural: Product is not load rated and does not require code evaluation.

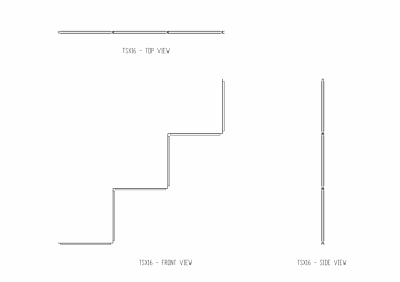

TSX16

Non-Structural: Product is not load rated and does not require code evaluation.

TSX24

Non-Structural: Product is not load rated and does not require code evaluation.
