Plated Truss
Embedded Truss Anchors
TA / TAR
Reference Series: -- --
TA – Anchors are rated for both uplift and lateral loads. They can be installed straight or field-bent around truss or rafter members. An embossed embedment line assures accurate embedment depth.
TAR – Riveted anchors provide a moisture barrier in addition to uplift and lateral resistance all in one product.
TAR – Riveted anchors provide a moisture barrier in addition to uplift and lateral resistance all in one product.
Materials: 14 gauge
Finish: G90 galvanizing
Code Reports:
View Code Report Table
Installation
- Use all specified fasteners.
- Embed 4″ into concrete tie beam or masonry bond beam.
- For double anchor installations: anchors should be installed on opposite sides of wood member and offset 3/4″ from each other in bond beam or concrete tie beam.
- Designer may specify alternative nailing schedules. Refer to Nail Specification Table Click here for nail shear values, load values shall not exceed published allowable loads.
- When using alternative nailing schedules, lower-most holes in strap shall be filled progressing upward towards the top of the strap.
- Straps may be installed straight or wrapped over to achieve table loads.
- Moisture barrier will be required in TA installations unless another moisture remediation method is used.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
TA18 Embedded Truss Anchor
Code Report Table
TA12
TA14
No Code Listing
TA14R
No Code Listing
TA16
No Code Listing
TA16R
No Code Listing
TA18
No Code Listing
TA18R
No Code Listing
TA20
No Code Listing
TA20R
No Code Listing
TA22
No Code Listing
TA22R
No Code Listing
TA24
No Code Listing
TA24R
No Code Listing
TA36
No Code Listing

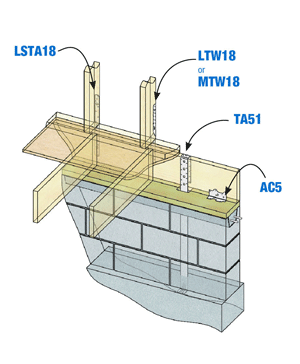

High Wind Drawings
MiTek Stock # | Download or View Files | |||||
---|---|---|---|---|---|---|
TA |
|
|||||
TA20 |
|
|||||
TA51 |
|
No Code Listing
