Plated Truss

Girder Tiedowns

MUGT15

Reference Series: MGT
Designed for higher uplift resistance for wood frame and concrete block construction. The MUGT15 can accommodate variable truss bearing depths.
Materials: 12 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • When straps are wrapped over the truss, install nails in backside of truss. See MUGT15 installation diagram for minimum nail requirements into the face and on top of the truss.
  • If installed straight-up with no wrap over the top of the truss, fill all nail holes.
  • Moisture barrier may be required.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

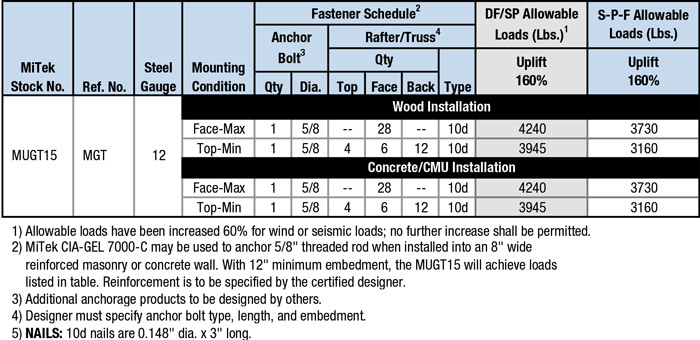

Code Report Table

3-View Product Drawings

MiTek Stock # Download or View Files
MUGT15 DWG DXF PDF View Image
