Plated Truss

Butterfly Hanger

CLPBF

Reference Series: -- --
The butterfly hanger’s flared header flange design allows for added nailing. Excellent truss-to-truss hanger for 2x4 purlin or truss bottom chords.
Materials: 18 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Resources

MiTek Product Catalog

Installation

  • Use all specified fasteners.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

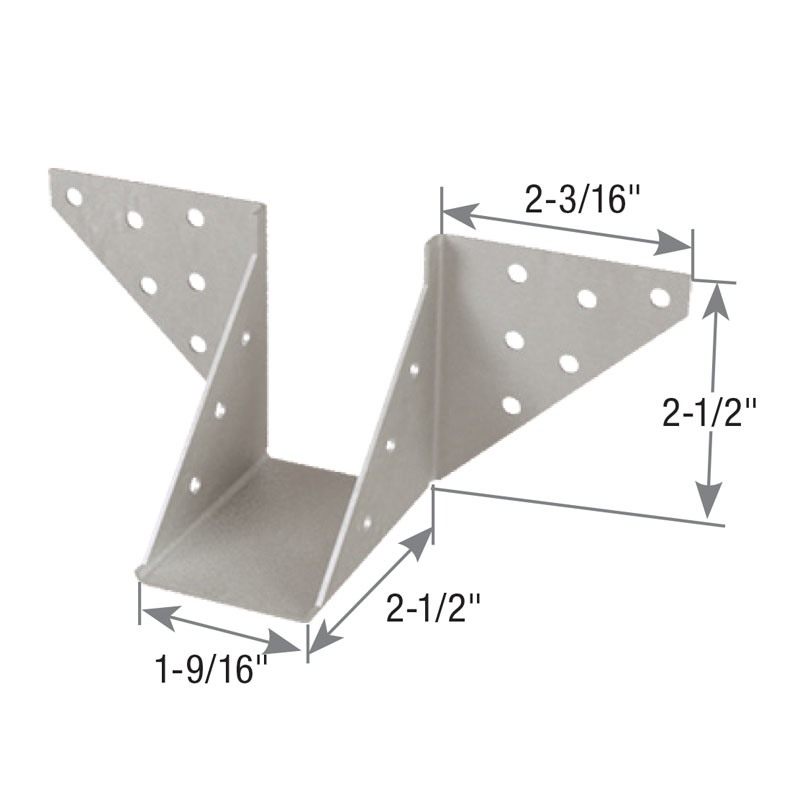

CLPBF Butterfly Hanger

CLPBF Butterfly Hanger

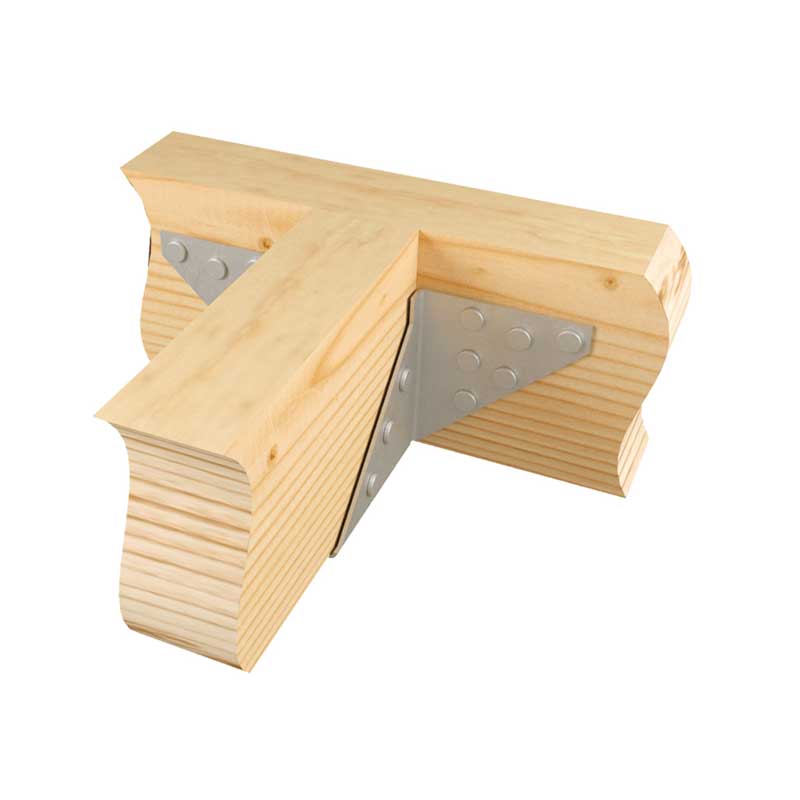

CLPBF Butterfly HangerTypical CLPBF installation

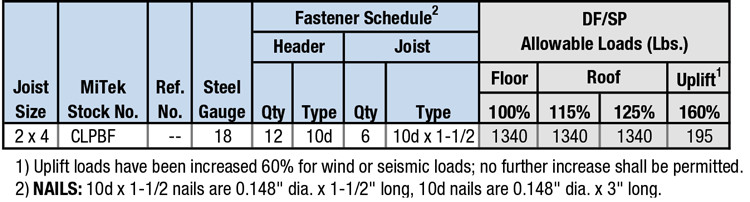

Load Table

-- -- View / Download the above load table as a PDF

Code Report Table

CLPBF
ESR-3445
FL17232
LABC_ESR-3445

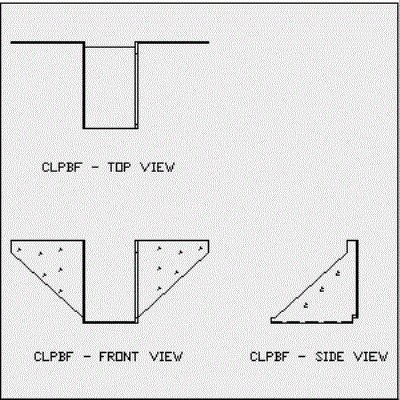

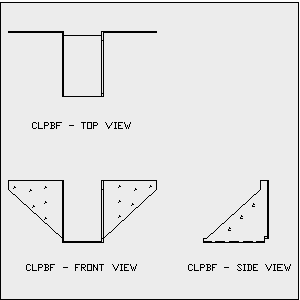

3-View Product Drawings

MiTek Stock # Download or View Files
CLPBF DWG DXF PDF View Image
