Plated Truss

Girder Truss Hangers


Reference Series: THDHQ
The THDHQ hangers are designed to attach multi-ply girder trusses together using MiTek’s WS Wood Screws for higher design load capacity. THDHQ hangers can also be used to attach structural composite lumber (SCL).
Materials: 12 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table


  • Use all specified fasteners.
  • WS Wood Screws are supplied with THDHQ hangers.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

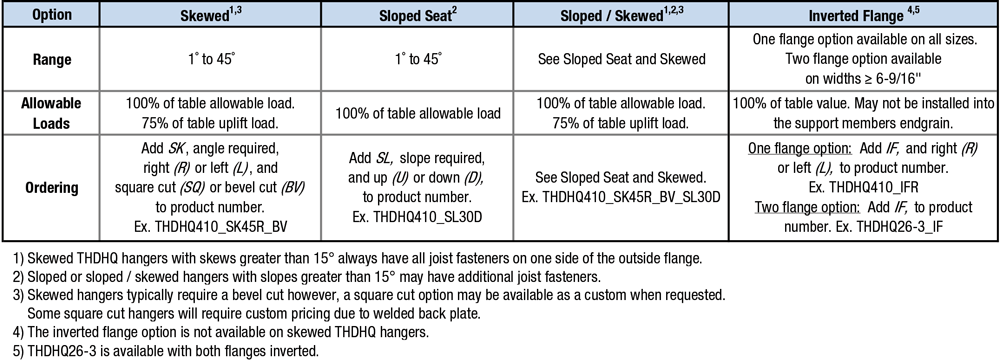

Option Details:
