Glulam Beam Connectors
Glulam Face Mount Hangers
GHF
Reference Series: -- --
An architectural choice for exposed glulam purlin applications. The GHF features heavy load capacity and a multitude of optional designs for unusual applications. Header fasteners are positioned high and joist flange fasteners low for best design with glulam members.

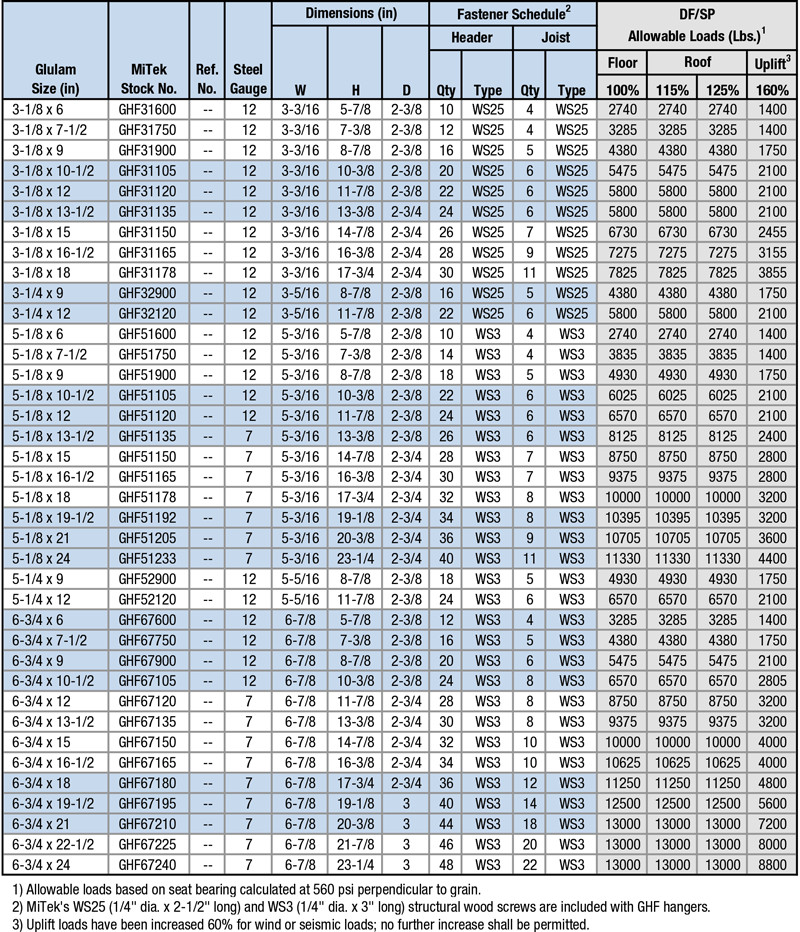

Materials: See Load Table
Finish: USP primer
Code Reports:
View Code Report Table
Technical Bulletins
Installation
- Use all specified fasteners.
- WS Wood Screws are supplied with GHF hangers.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
GHF Glulam Face Mount Hanger
Option Details:
Code Report Table
GHF31105
GHF31120
No Code Listing
GHF31135
No Code Listing
GHF31150
No Code Listing
GHF31165
No Code Listing
GHF31178
No Code Listing
GHF31600
No Code Listing
GHF31750
No Code Listing
GHF31900
No Code Listing
GHF32120
No Code Listing
GHF32900
No Code Listing
GHF51105
No Code Listing
GHF51120
No Code Listing
GHF51135
No Code Listing
GHF51150
No Code Listing
GHF51165
No Code Listing
GHF51178
No Code Listing
GHF51192
No Code Listing
GHF51205
No Code Listing
GHF51233
No Code Listing
GHF51600
No Code Listing
GHF51750
No Code Listing
GHF51900
No Code Listing
GHF52120
No Code Listing
GHF52900
No Code Listing
GHF67105
No Code Listing
GHF67120
No Code Listing
GHF67135
No Code Listing
GHF67150
No Code Listing
GHF67165
No Code Listing
GHF67180
No Code Listing
GHF67195
No Code Listing
GHF67210
No Code Listing
GHF67225
No Code Listing
GHF67240
No Code Listing
GHF67600
No Code Listing
GHF67750
No Code Listing
GHF67900
No Code Listing

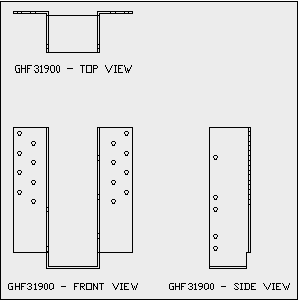

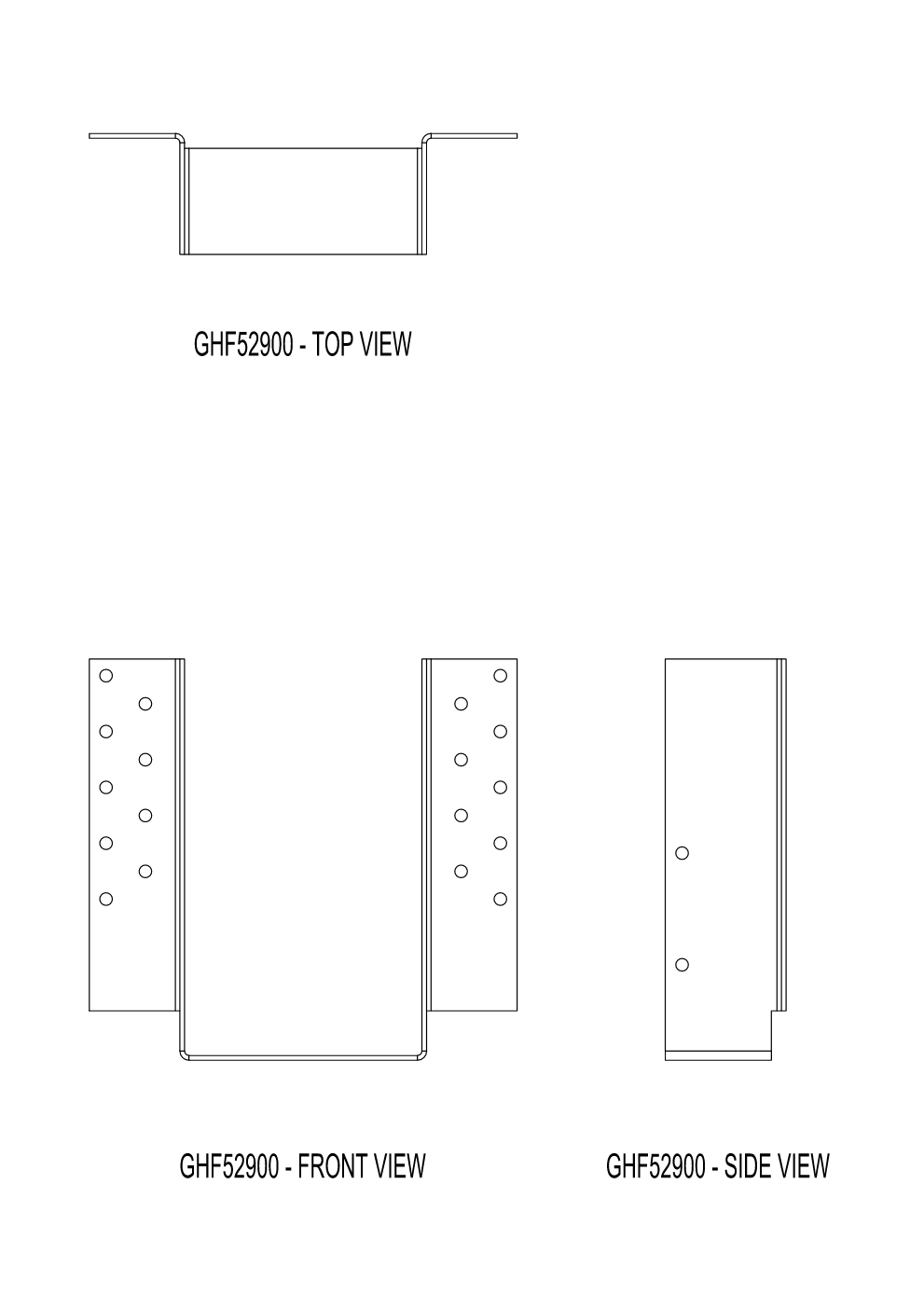

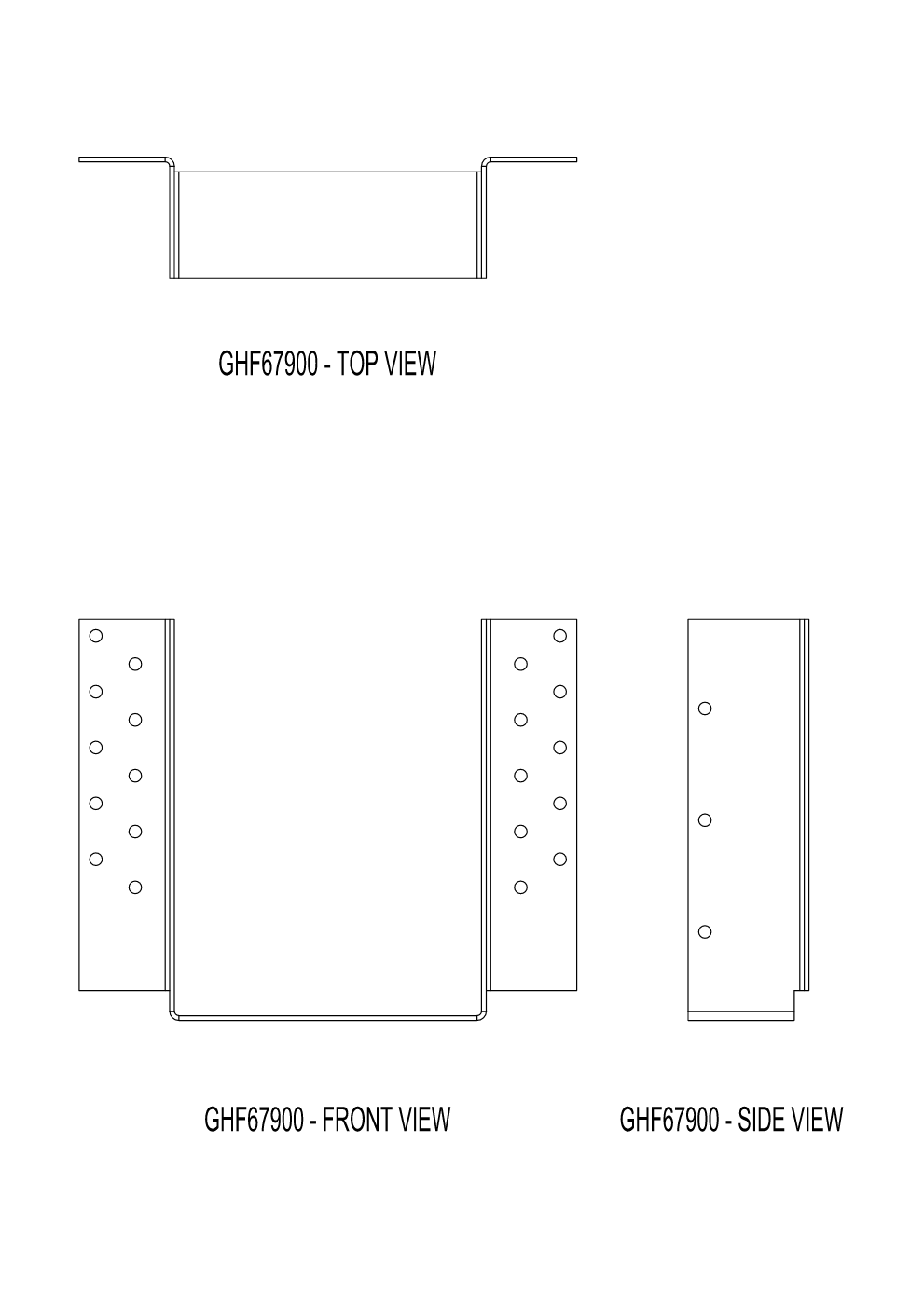

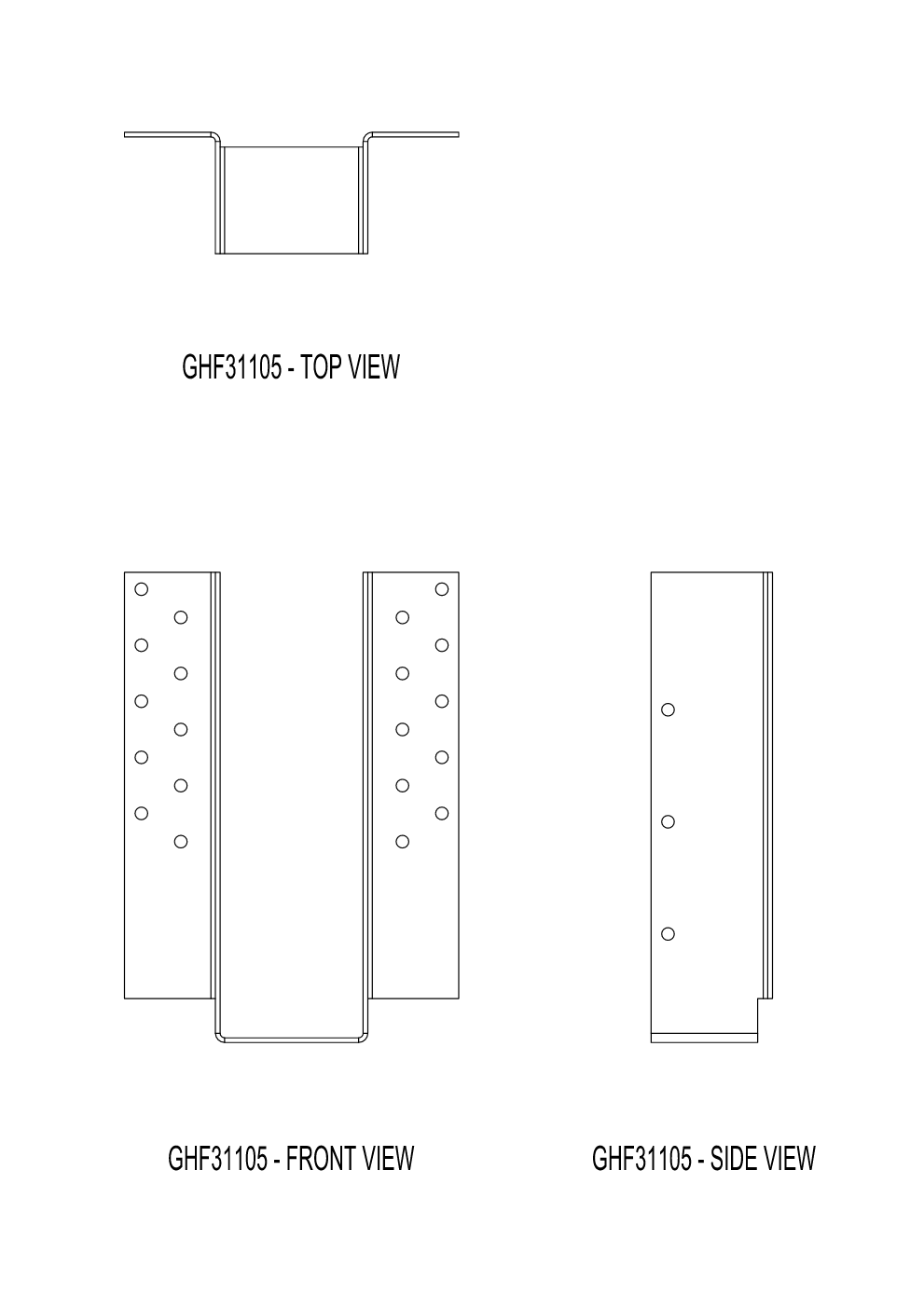

3-View Product Drawings
Application Drawings
| MiTek Stock # | Download or View Files | ||||
|---|---|---|---|---|---|
| GHF31105 | View Image | ||||

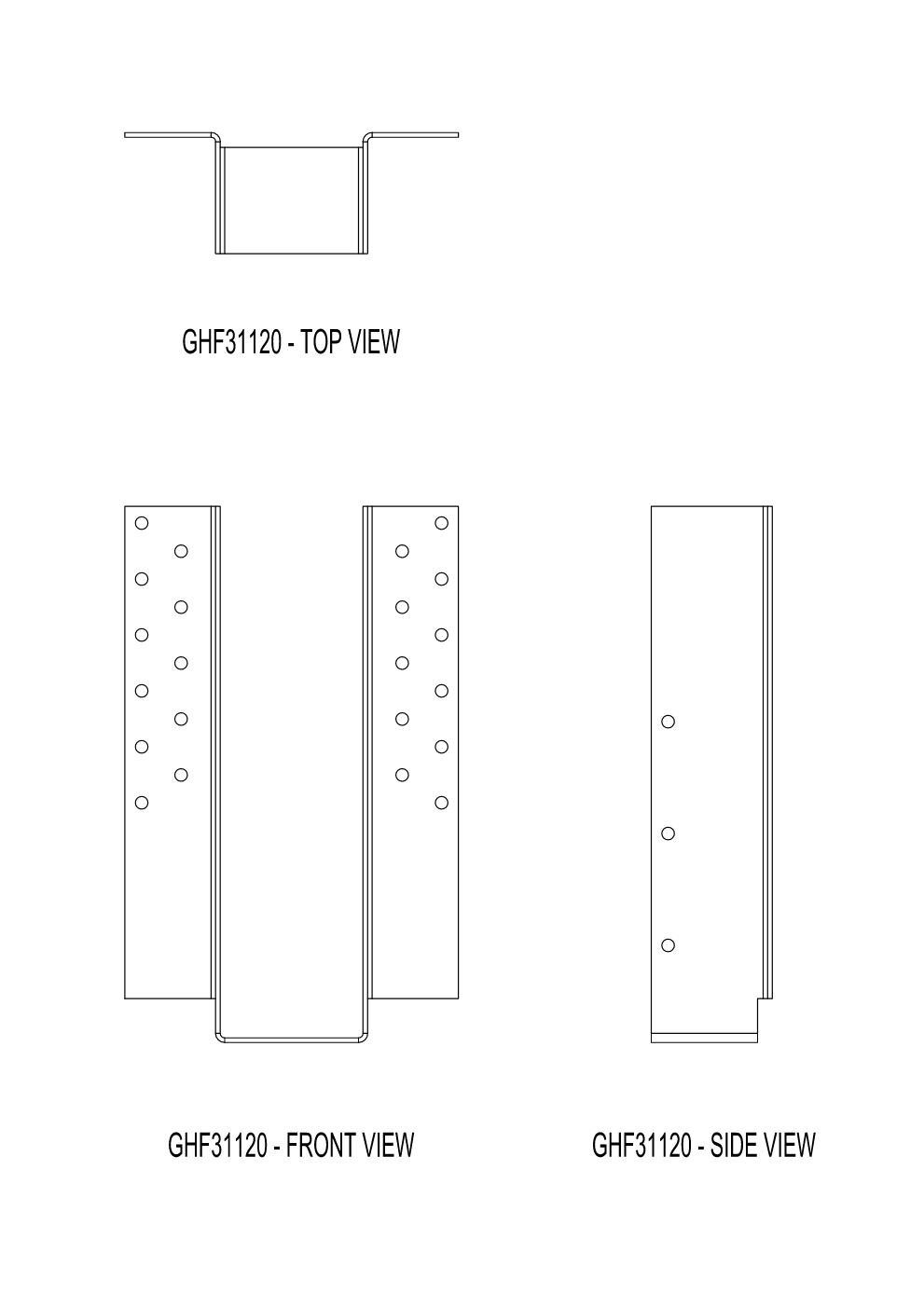

| GHF31120 | View Image | ||||

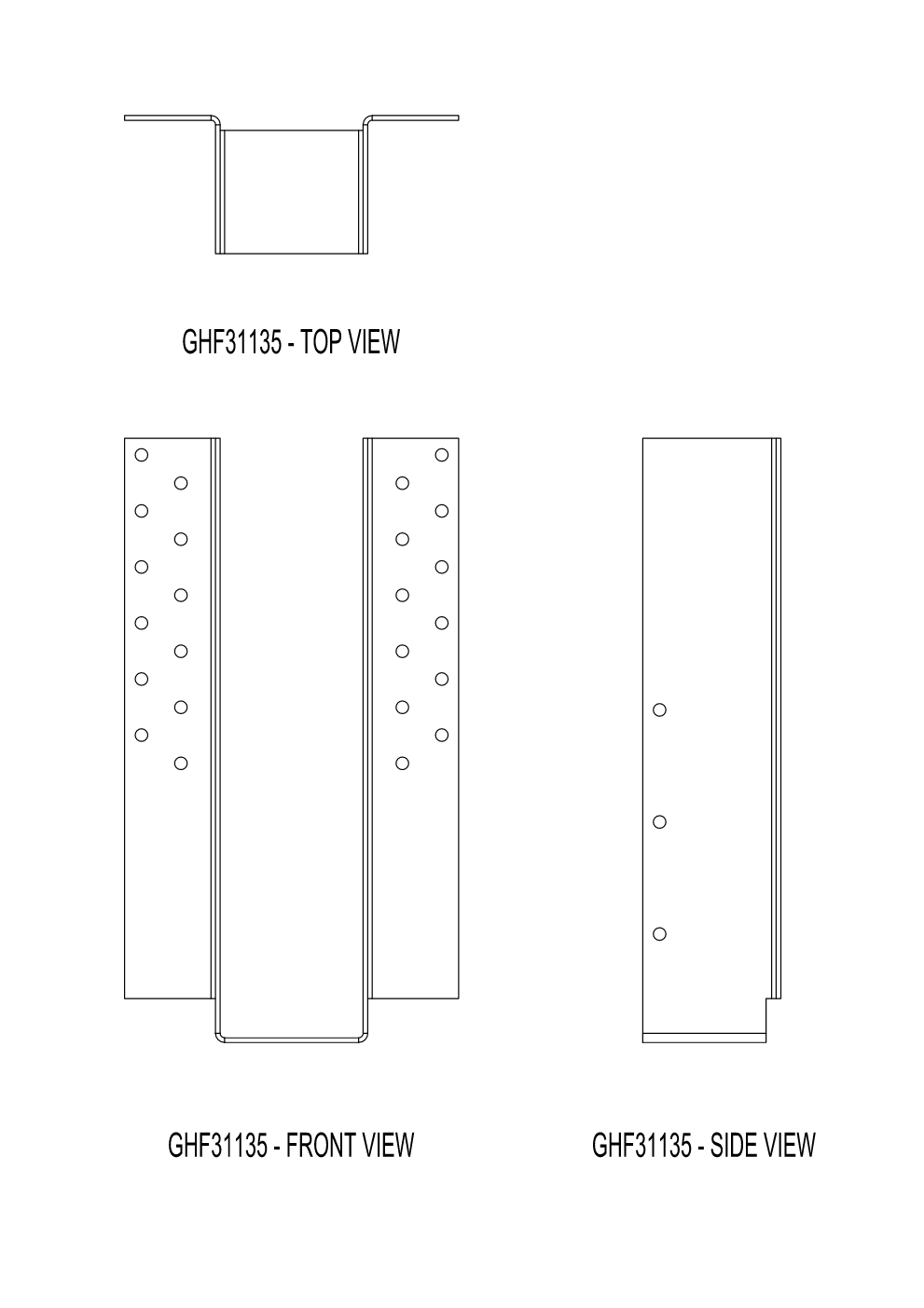

| GHF31135 | View Image | ||||

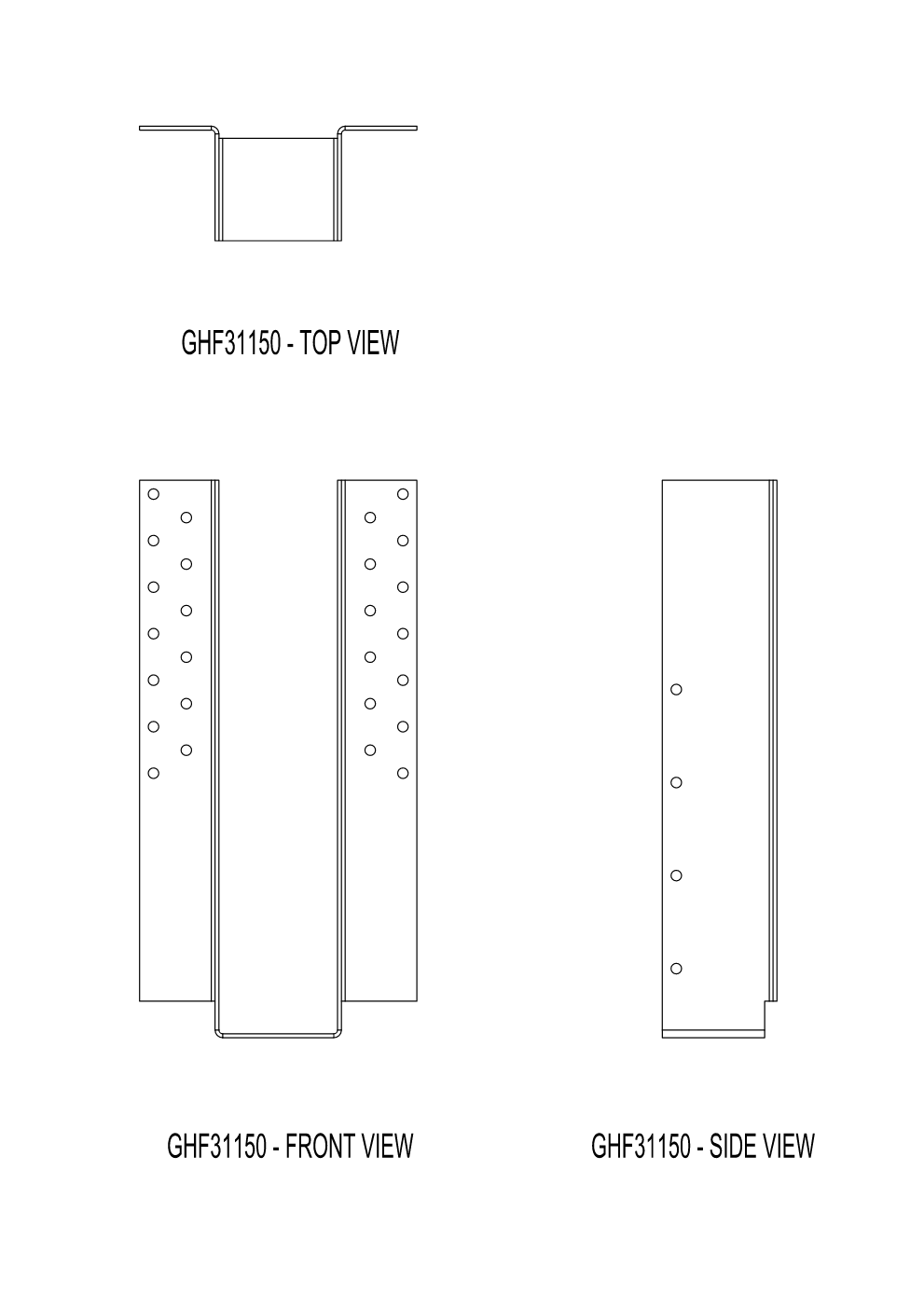

| GHF31150 | View Image | ||||

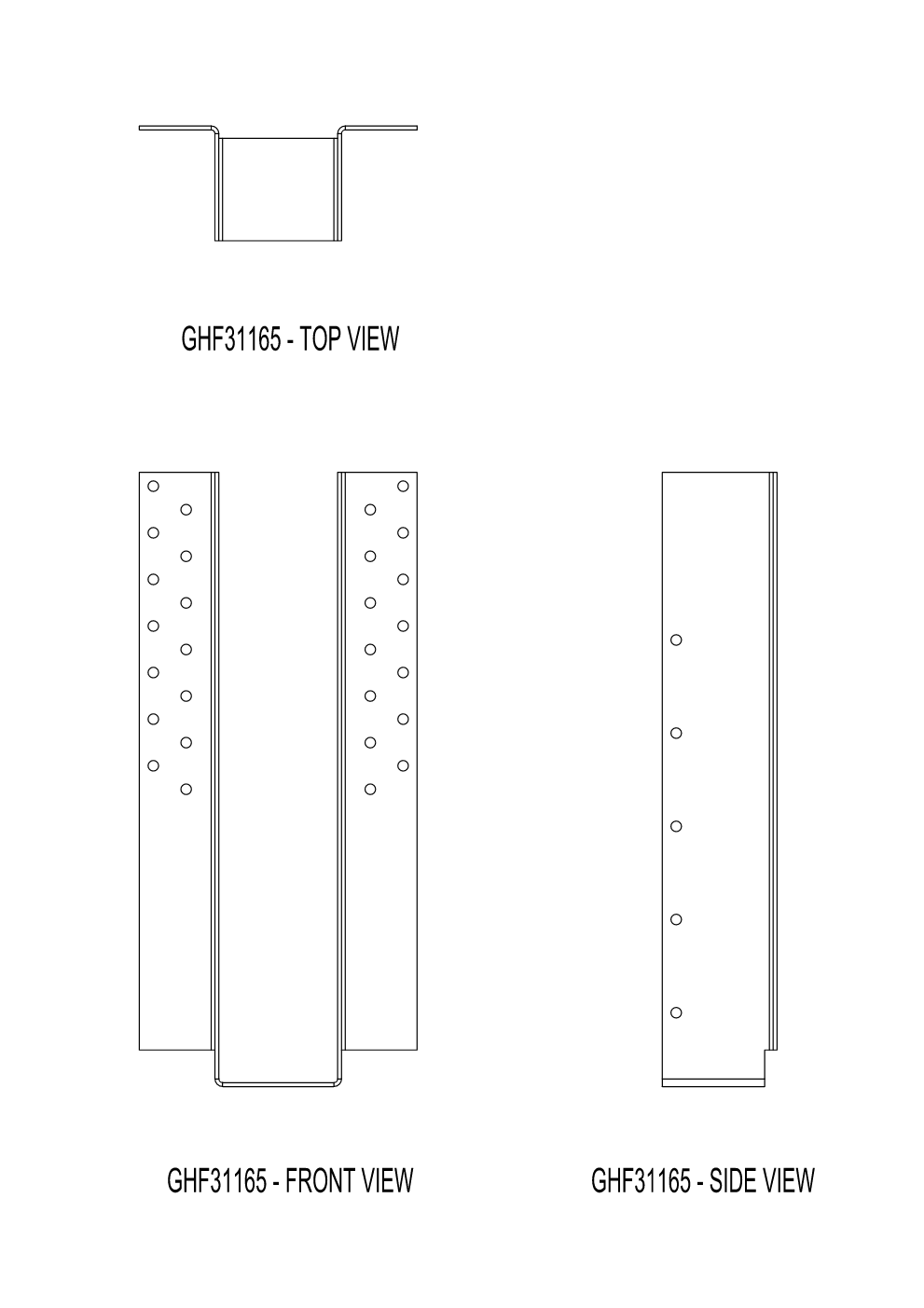

| GHF31165 | View Image | ||||

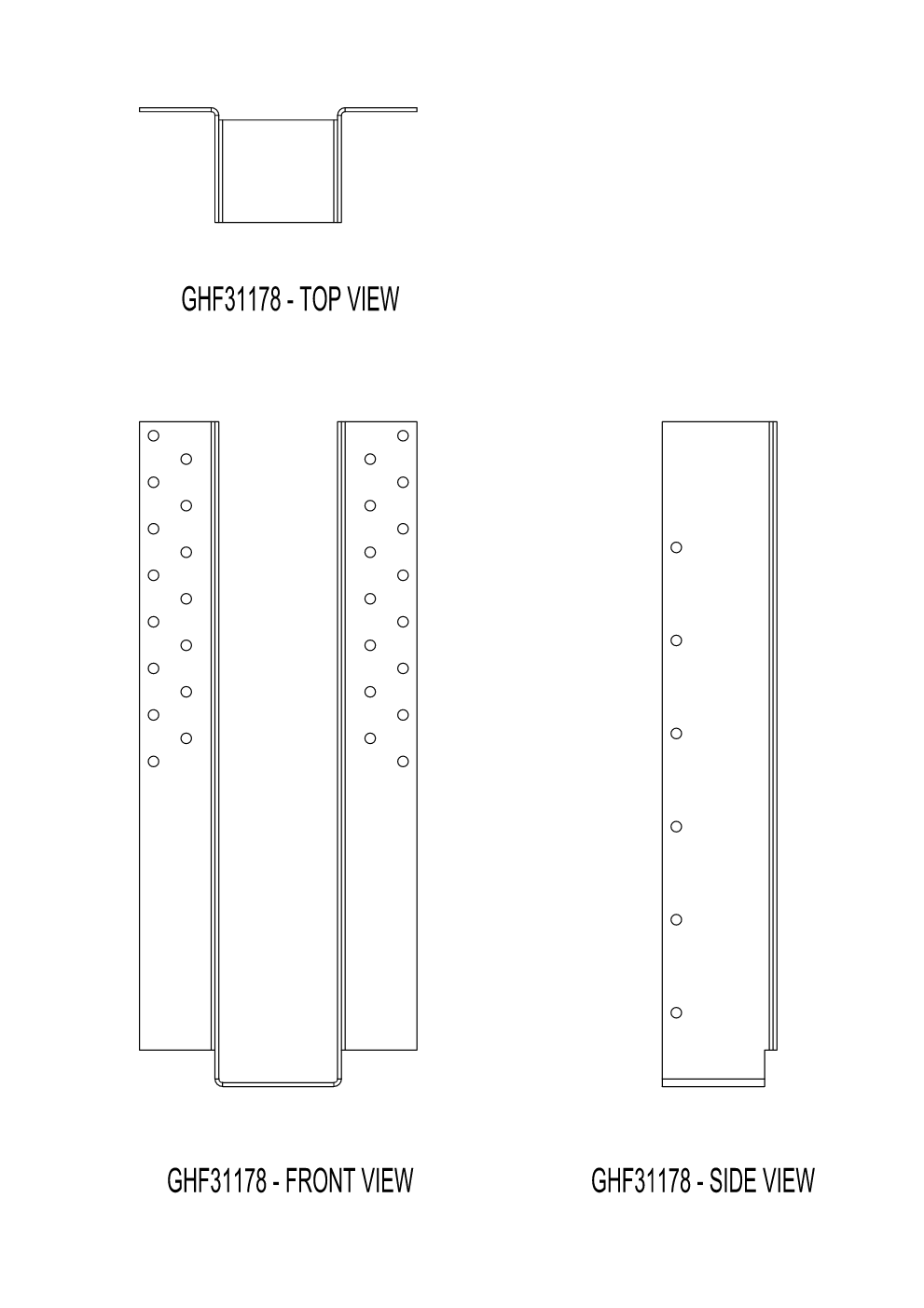

| GHF31178 | View Image | ||||
| GHF31600 | View Image | ||||

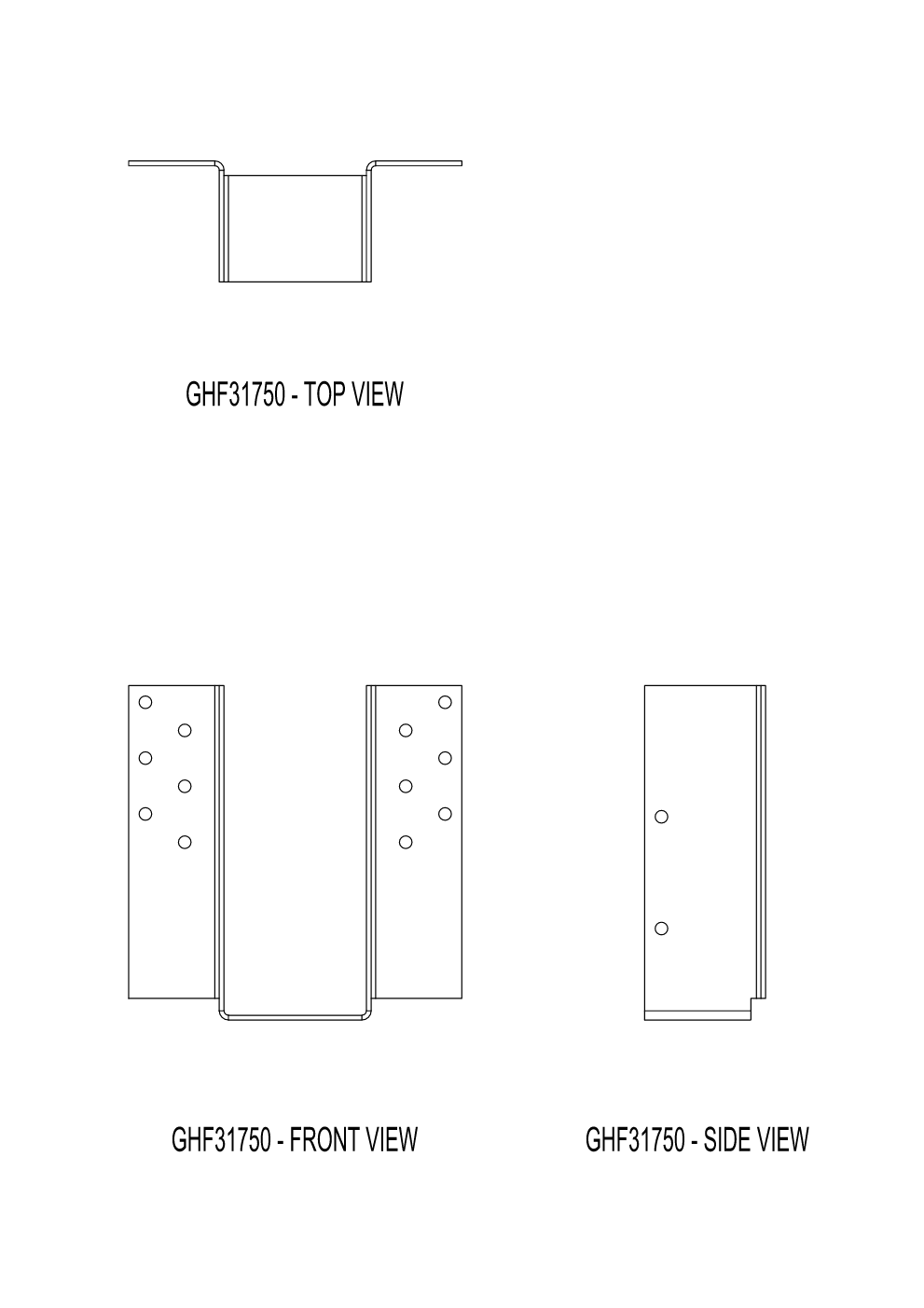

| GHF31750 | View Image | ||||
| GHF31900 | View Image | ||||
| GHF32120 | View Image | ||||

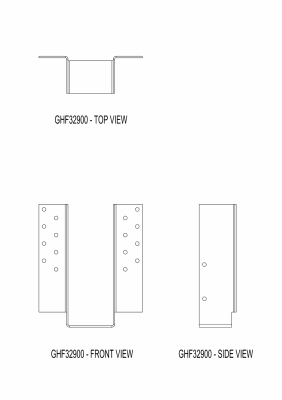

| GHF32900 | Typical | DWG | DXF | View Image | |

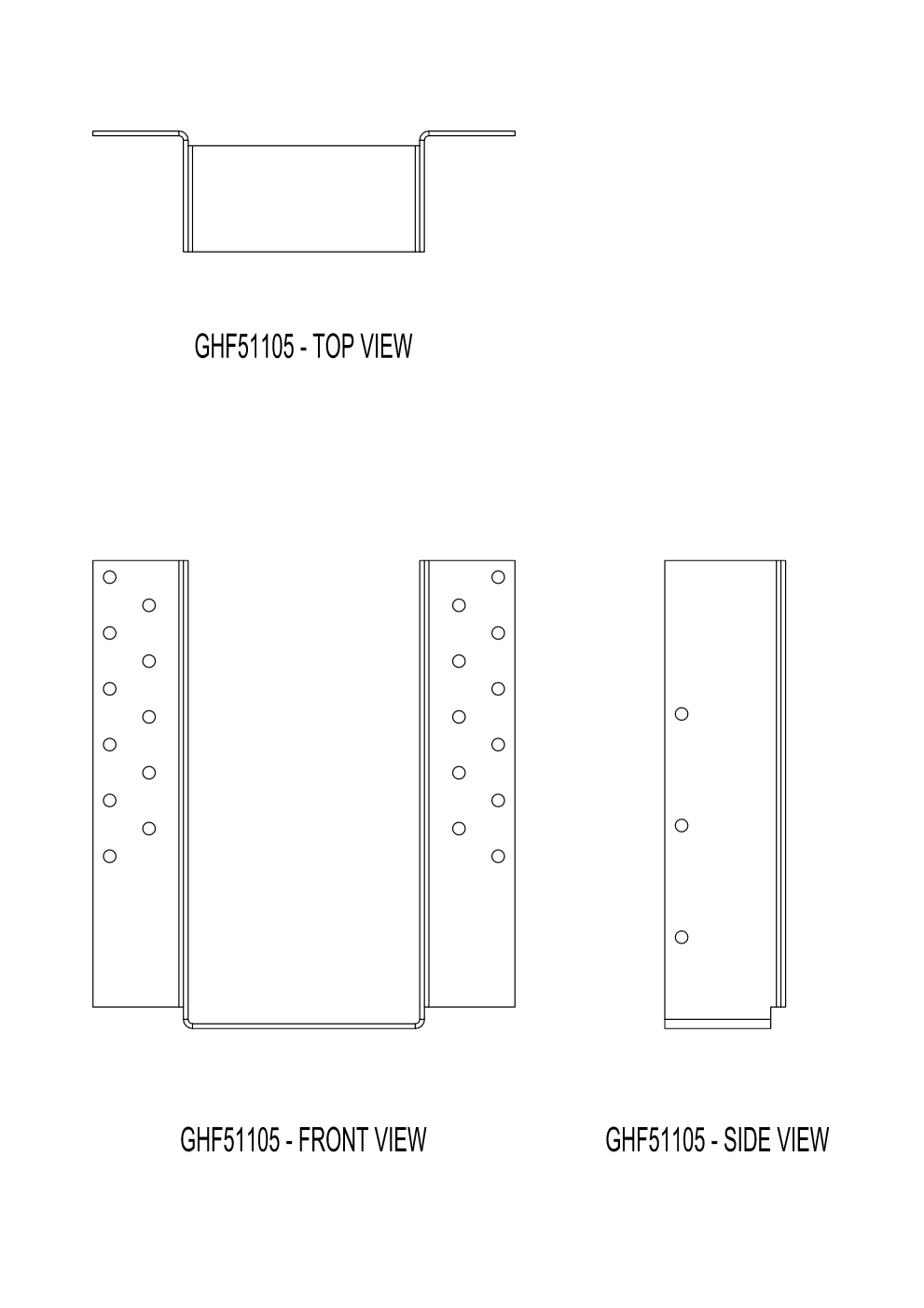

| GHF51105 | View Image | ||||
| GHF51120 | Typical | DWG | DXF | View Image | |

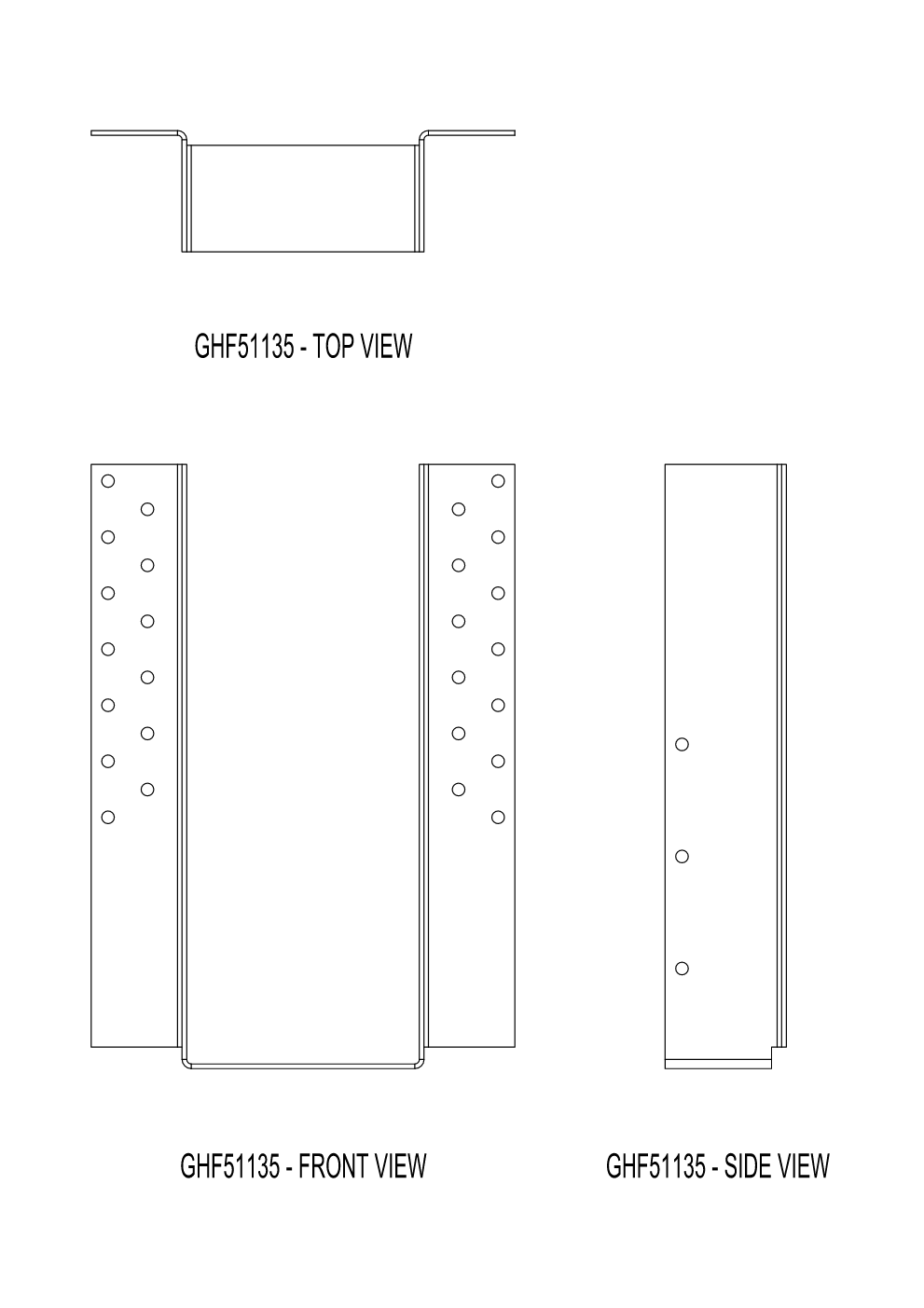

| GHF51135 | View Image | ||||
| GHF51150 | View Image | ||||
| GHF51165 | Typical | DWG | DXF | View Image | |
| GHF51178 | View Image | ||||
| GHF51192 | Typical | DWG | DXF | View Image | |

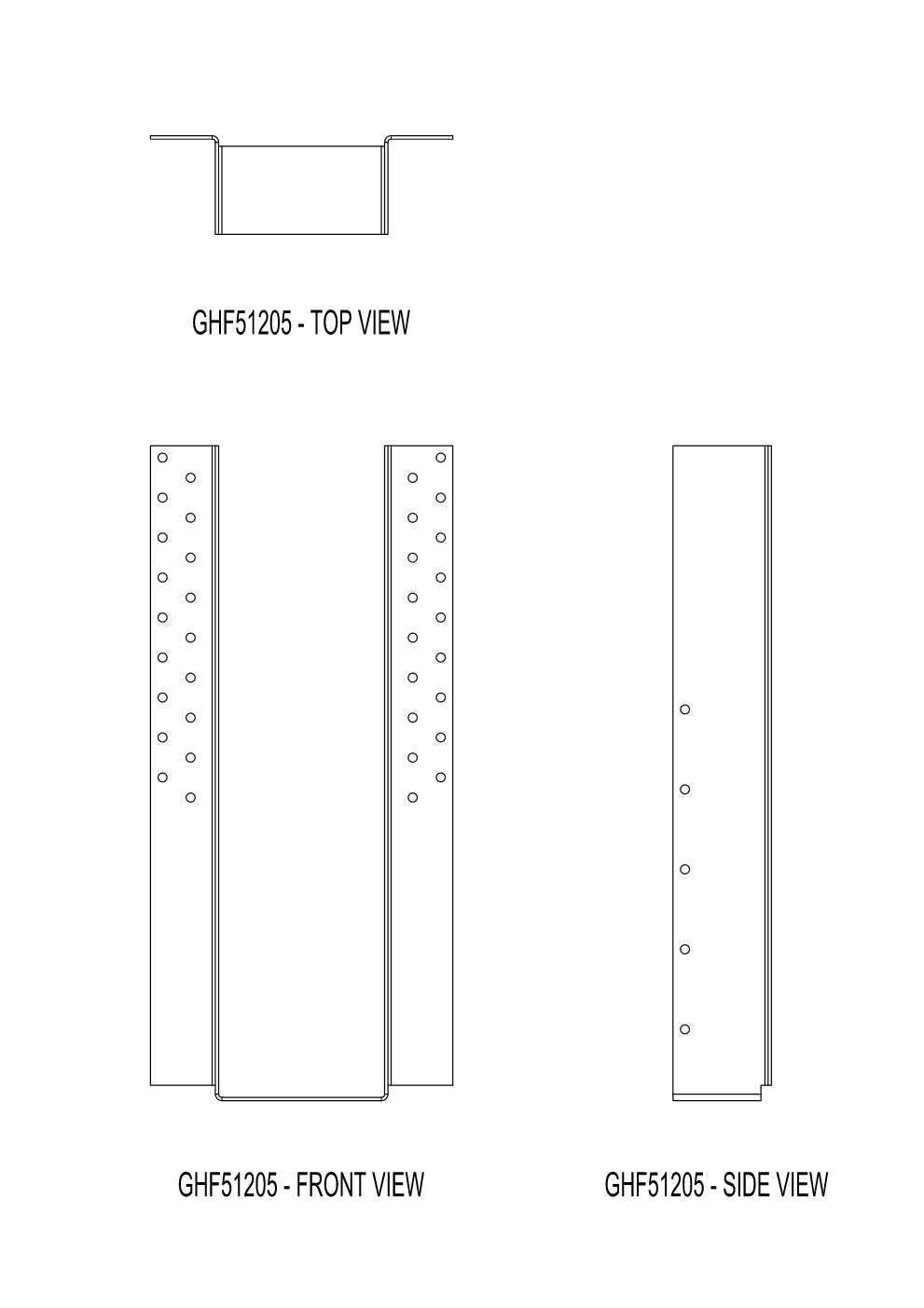

| GHF51205 | View Image | ||||
| GHF51233 | Typical | DWG | DXF | View Image | |
| GHF51600 | View Image | ||||
| GHF51750 | View Image | ||||

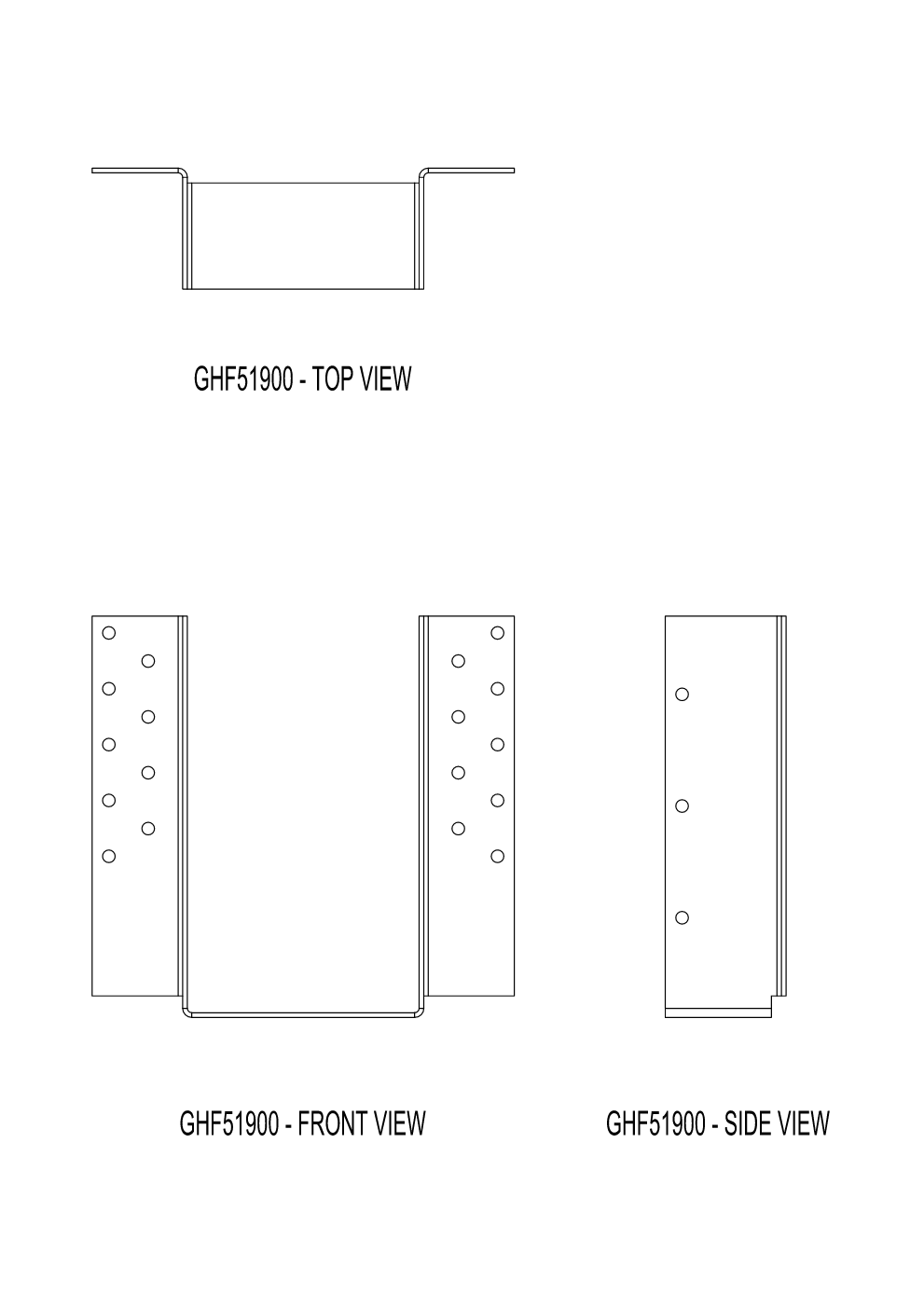

| GHF51900 | View Image | ||||
| GHF52120 | View Image | ||||
| GHF52900 | View Image | ||||
| GHF67105 | View Image | ||||
| GHF67120 | View Image | ||||
| GHF67135 | View Image | ||||
| GHF67150 | View Image | ||||

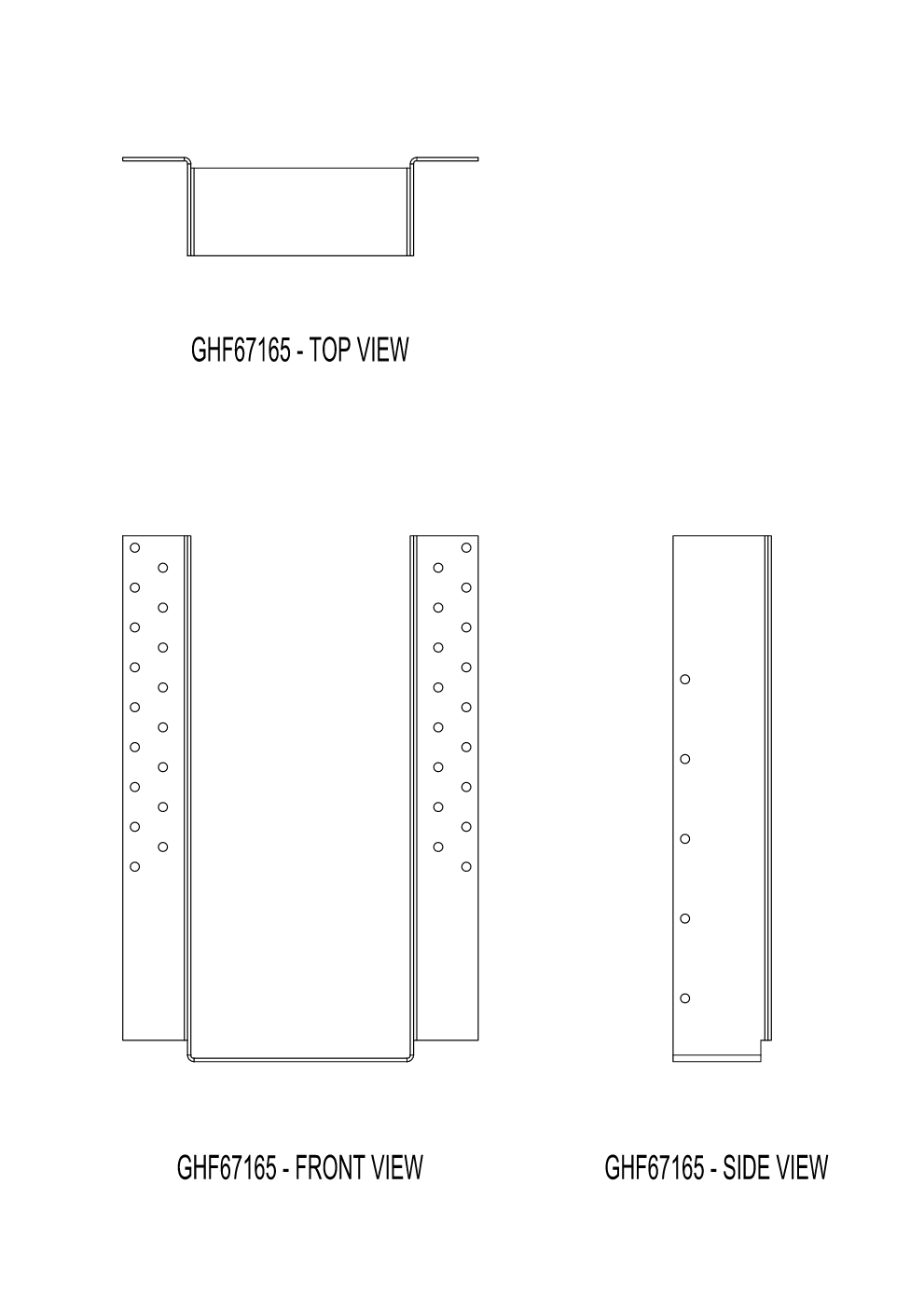

| GHF67165 | View Image | ||||

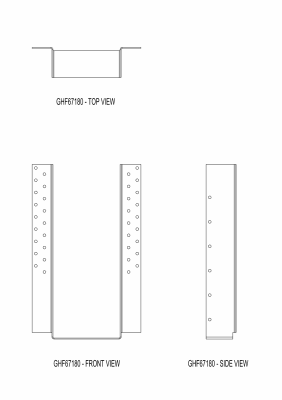

| GHF67180 | Typical | DWG | DXF | View Image | |
| GHF67195 | Typical | DWG | DXF | View Image | |
| GHF67210 | Typical | DWG | DXF | View Image | |
| GHF67225 | Typical | DWG | DXF | View Image | |

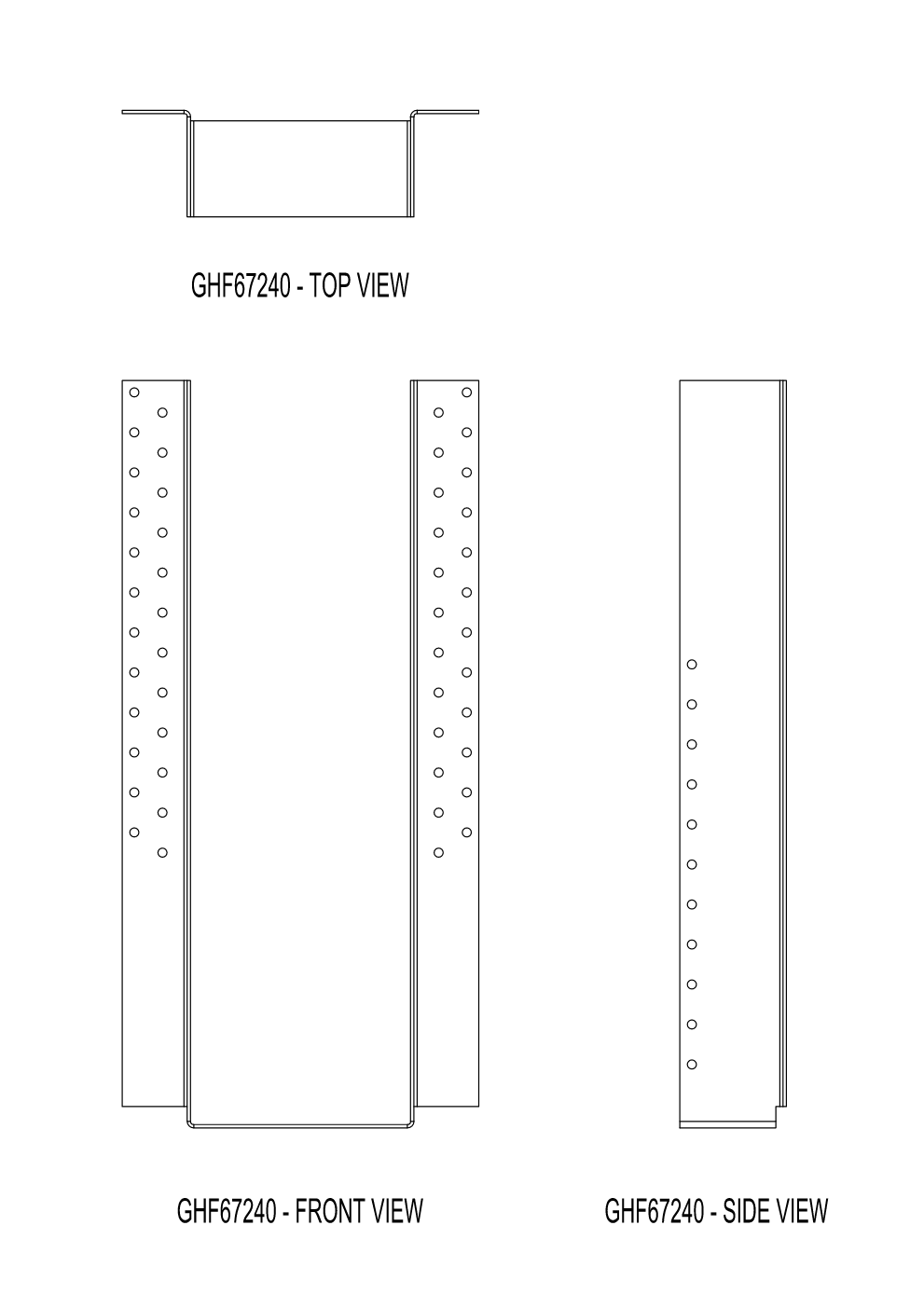

| GHF67240 | View Image | ||||
| GHF67600 | View Image | ||||
| GHF67750 | View Image | ||||
| GHF67900 | View Image | ||||
No Code Listing
