General Hardware

Nail Plates

NP

Reference Series: TP
The NP Nail Plates are an ideal economical solution for attaching wooden members together in a non-structural connection. Also may be used as a prescriptive top plate splice per the 2018 International Residential Code (IRC R602.3.2). They are pre-punched for 8d common nails.
Materials: 20 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Resources

MiTek Product Catalog

Installation

  • Use nails appropriate for intended use. Holes are sized for 8d common or 8d x 1-1/2″ nails.
  • The designer shall determine appropriate load values.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

NP Nail Plate

NP Nail Plate

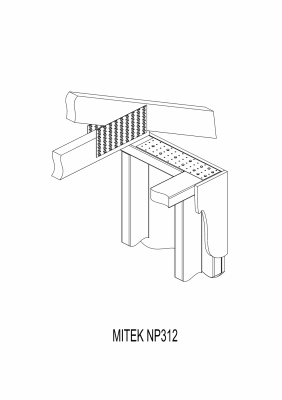

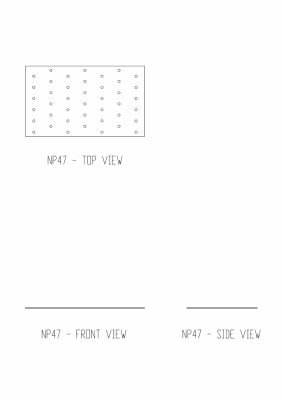

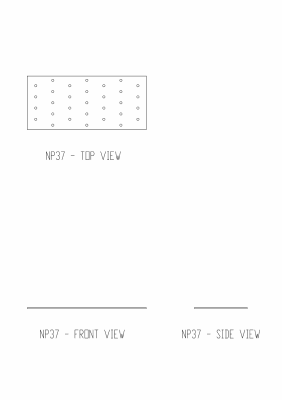

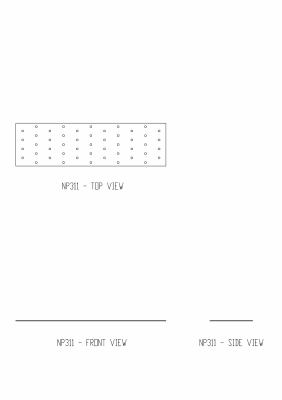

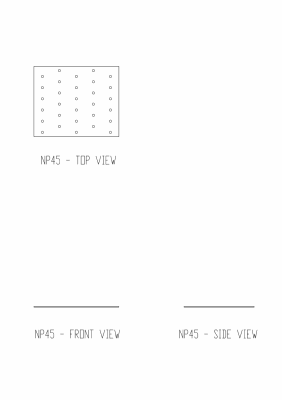

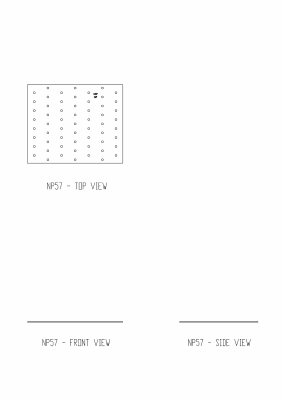

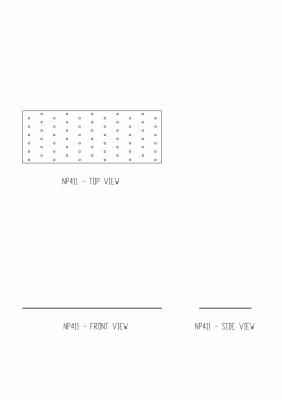

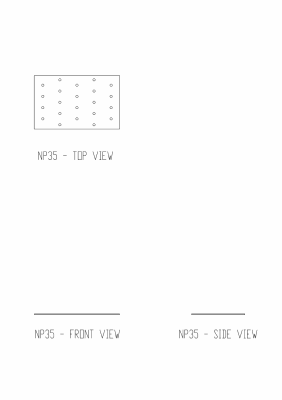

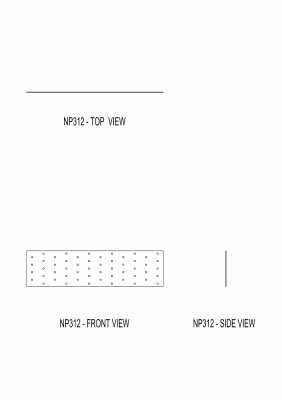

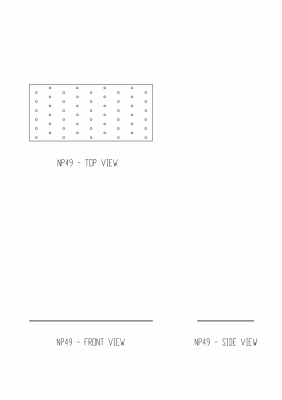

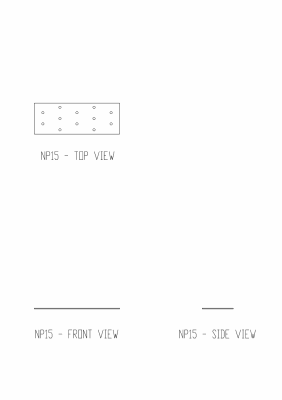

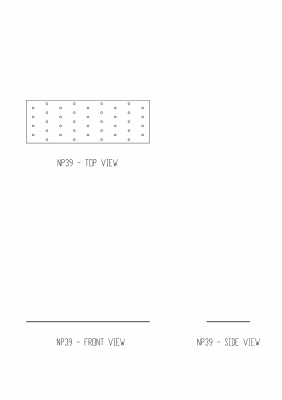

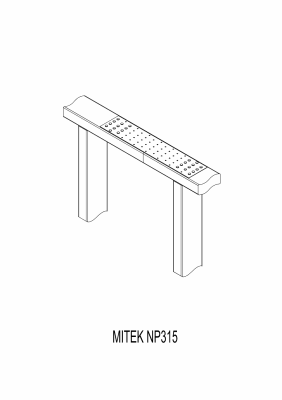

NP Nail PlateTypical nail plate installationTypical NP312 IRC prescriptive top plate splice installation

Load Table

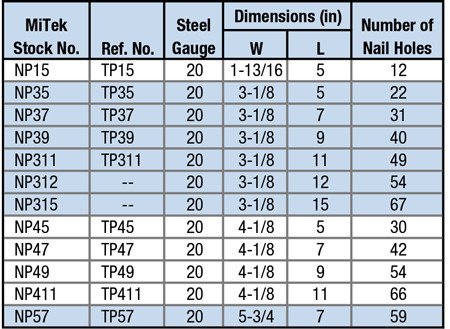

-- -- View / Download the above load table as a PDF

Code Report Table

NP15

Non-Structural: Product is not load rated and does not require code evaluation.

NP311

Prescriptive Code: Product meets prescriptive construction requirements.

NP312

Prescriptive Code: Product meets prescriptive construction requirements.

NP315

Prescriptive Code: Product meets prescriptive construction requirements.

NP35

Prescriptive Code: Product meets prescriptive construction requirements.

NP37

Prescriptive Code: Product meets prescriptive construction requirements.

NP39

Prescriptive Code: Product meets prescriptive construction requirements.

NP411

Prescriptive Code: Product meets prescriptive construction requirements.

NP45

Prescriptive Code: Product meets prescriptive construction requirements.

NP47

Prescriptive Code: Product meets prescriptive construction requirements.

NP49

Prescriptive Code: Product meets prescriptive construction requirements.

NP57

Prescriptive Code: Product meets prescriptive construction requirements.
