General Hardware
Knee Braces
KVB / KVBI
Reference Series: VB
KVB – Installs with MiTek's WS3 structural wood screws for higher load capacity. It can be retrofit into existing framing.
KVBI – Installs with common nails. Designed to be used with I-Joist purlins.
KVBI – Installs with common nails. Designed to be used with I-Joist purlins.
Materials: 12 gauge
Finish: G90 galvanizing

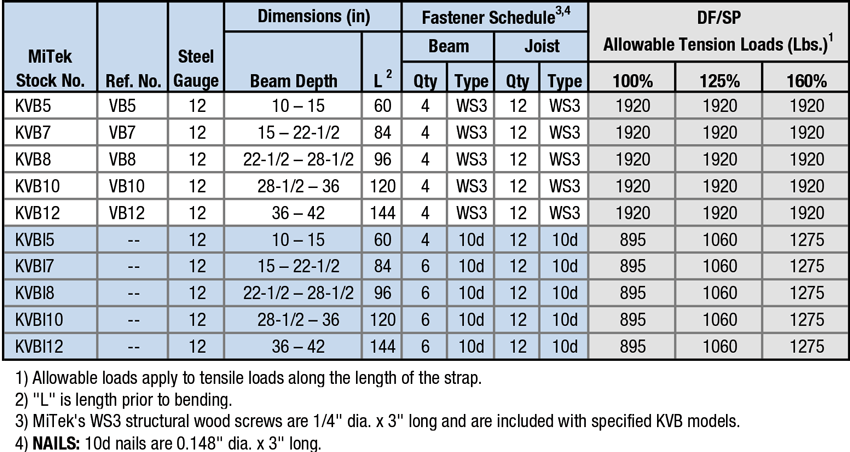

Code Reports:
View Code Report Table
Resources
MiTek Product CatalogInstallation
- Use all specified fasteners.
- MiTek’s WS3 structural wood screws are included with KVB shipments.
- Install flanges at angles of 45° or more to the vertical plane to assure proper lateral resistance.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
KVB5 Knee Brace
