EWP Hangers

Heavy-Duty Truss Hangers

THDH

Reference Series: HGUS
The THDH are high capacity face mount hangers designed for truss-to–truss and structural composite lumber (LVL, PSL and LSL) connections.
Materials: 12 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

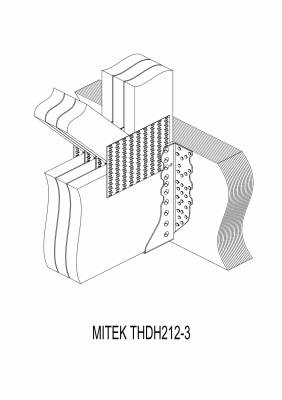

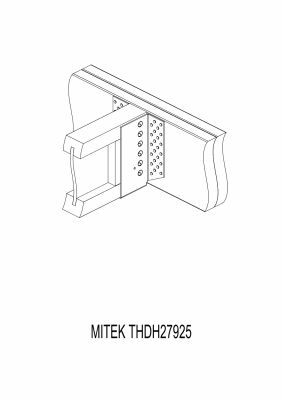

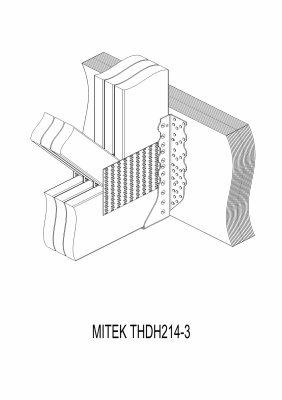

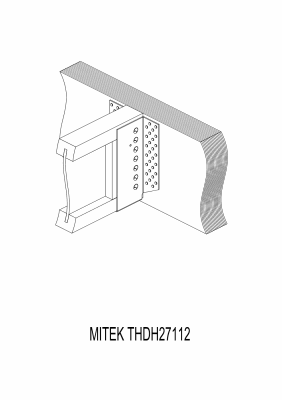

Installation

  • Use all specified fasteners.
  • Joist nails must be driven in at a 30° to 45° angle through the joist or truss into the header to achieve listed loads. Standard length “double shear” nails must be used to achieve listed load values.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

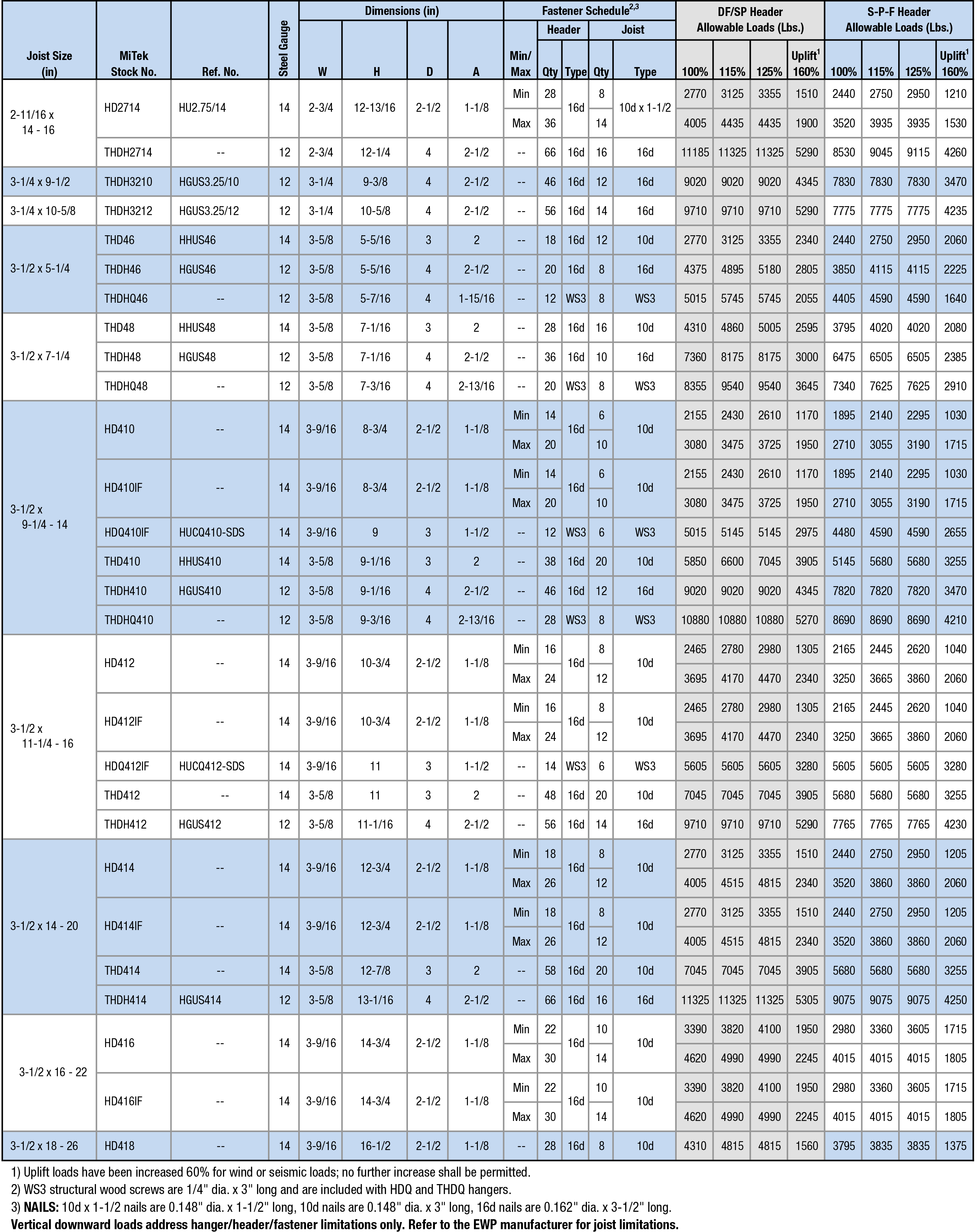

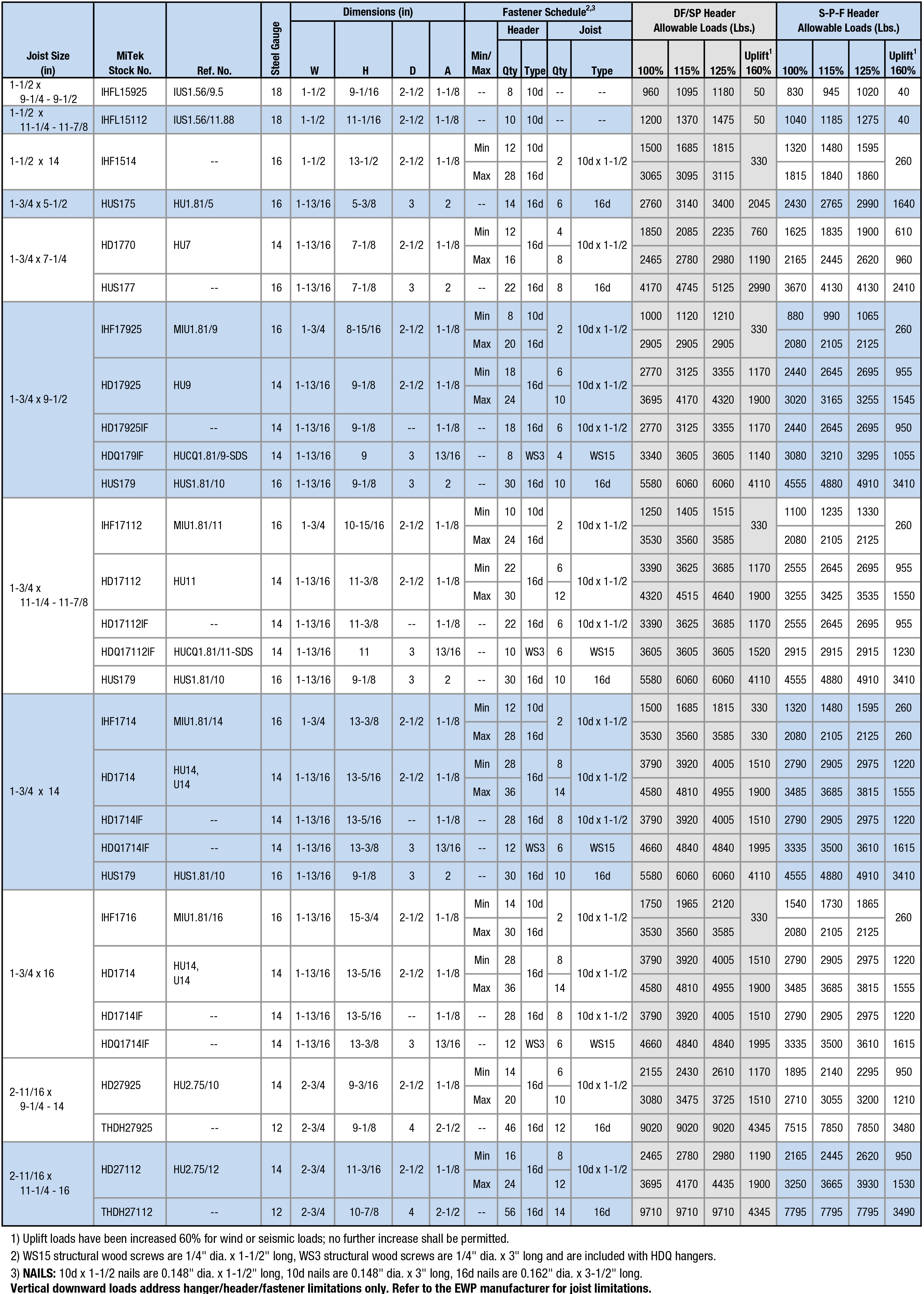

Load Table

EWP Sizes: 1-3/4" x 7-1/4" to 3-1/2" x 16"
EWP Sizes: 3-1/2" x 14" to 7" x 26"

Option Details:

Corrosion Resistant Products Table

Corrosion Resistant Products Table View / Download the above load table as a PDF

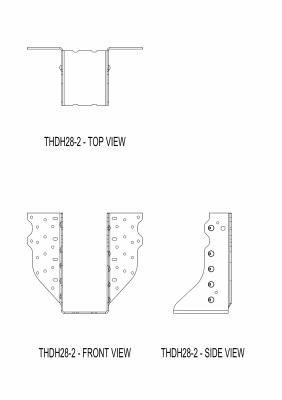

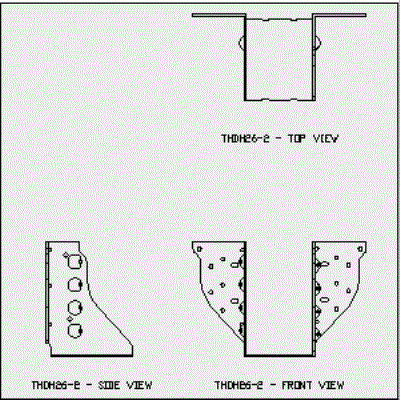

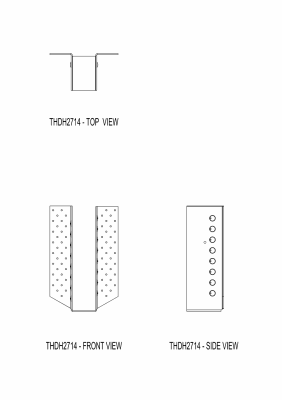

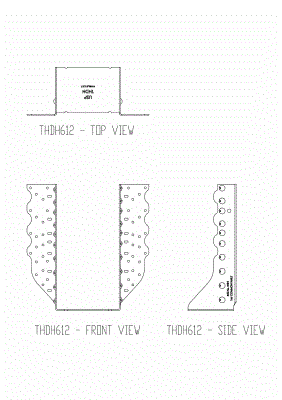

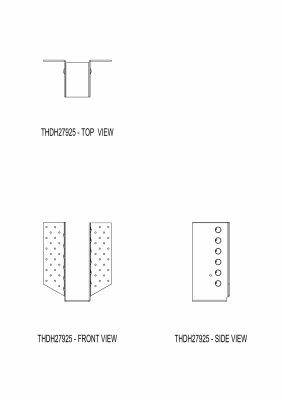

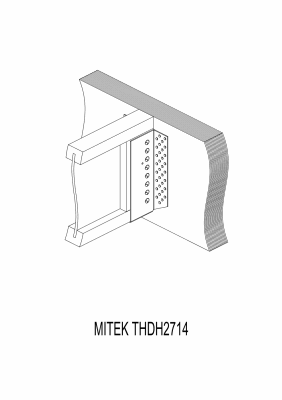

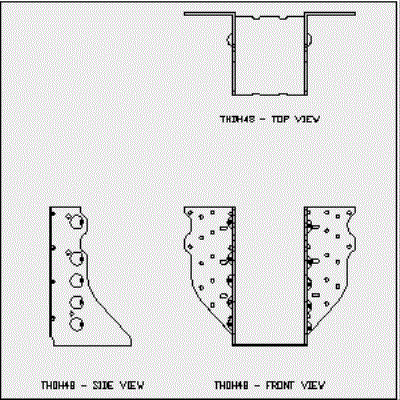

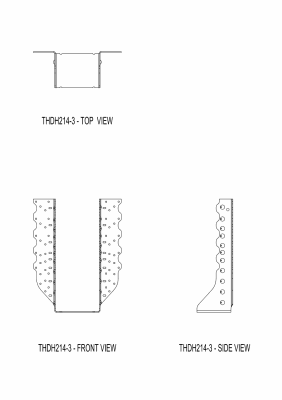

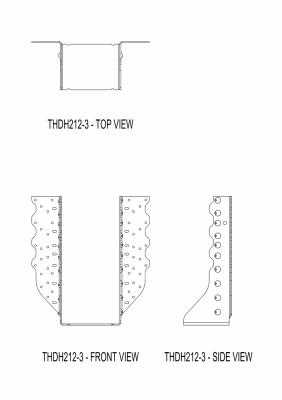

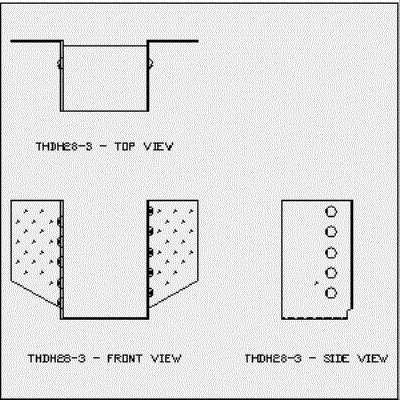

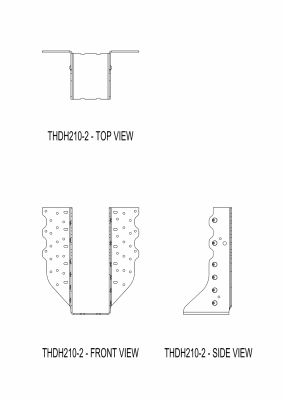

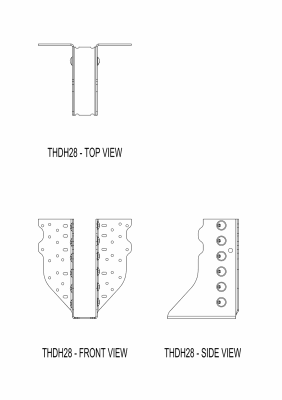

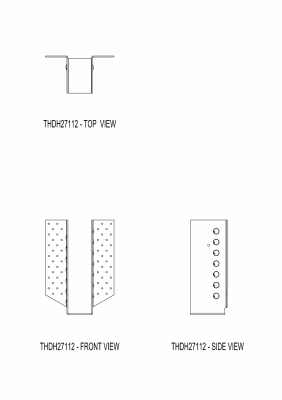

3-View Product Drawings

MiTek Stock # Download or View Files

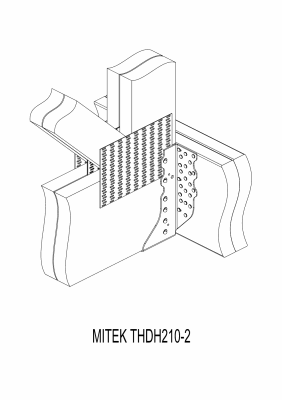

THDH210-2 DWG DXF PDF View Image

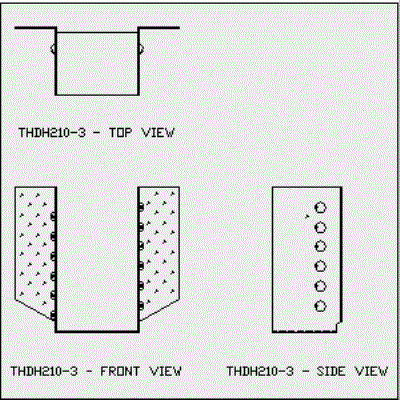

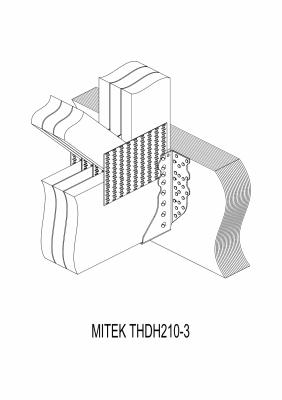

THDH210-3 DWG DXF PDF View Image

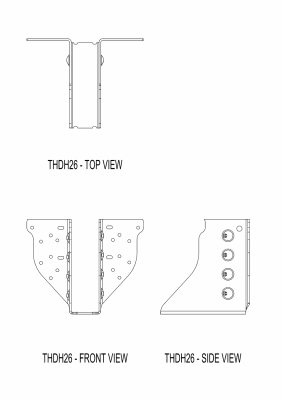

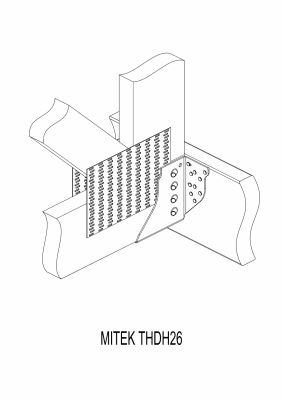

THDH26-2 DWG DXF PDF View Image

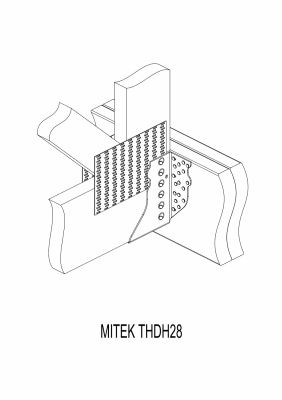

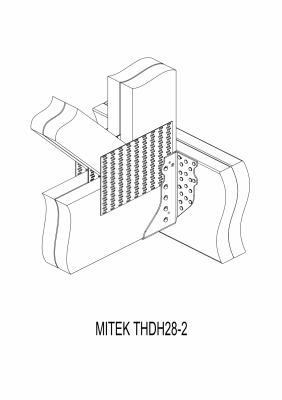

THDH28-2 DWG DXF PDF View Image

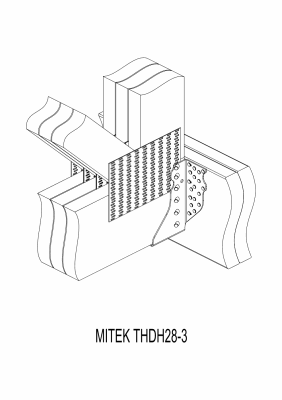

THDH28-3 DWG DXF PDF View Image

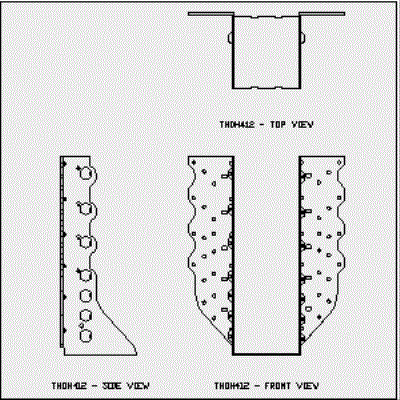

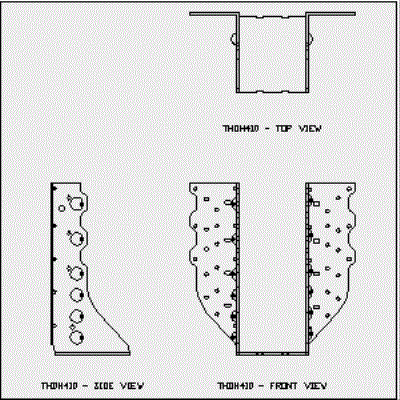

THDH410 DWG DXF PDF View Image
THDH412 DWG DXF PDF View Image
THDH48 DWG DXF PDF View Image

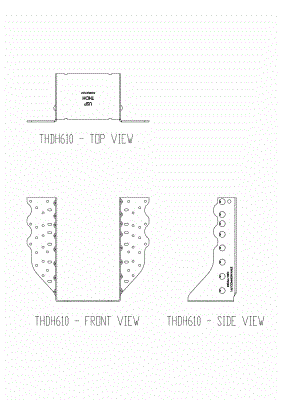

THDH610 DWG DXF PDF View Image
THDH612 DWG DXF PDF View Image

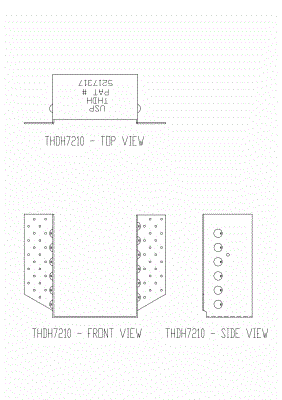

THDH7210 DWG DXF PDF View Image

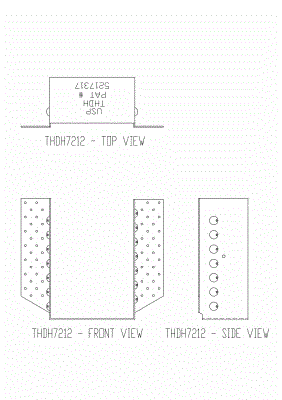

THDH7212 DWG DXF PDF View Image
