HUS
Reference Series: HUS
Designed for medium load conditions. Extended 3" deep seat provides enhanced truss bearing.
Materials: 16 gauge
Finish: G90 galvanizing
Code Reports:
View Code Report Table

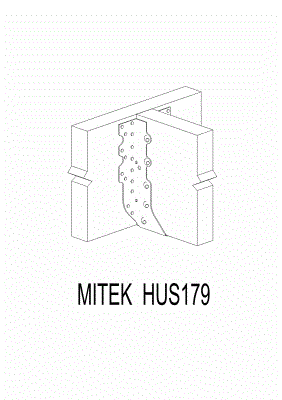

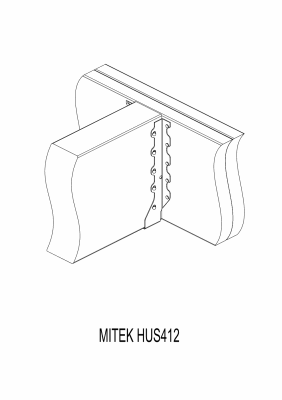

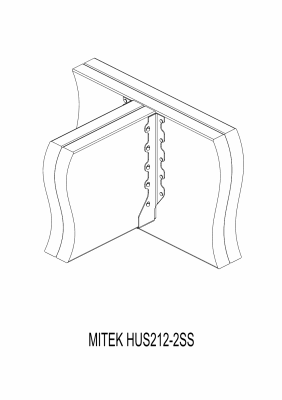

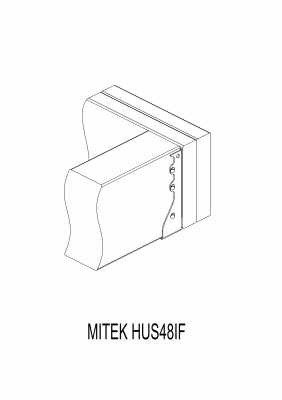

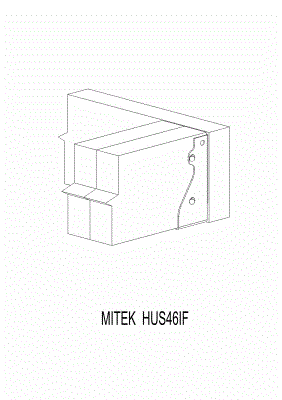

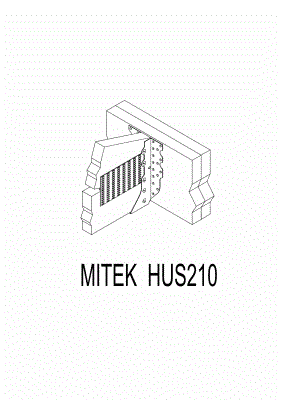

Installation
- Use all specified fasteners.
- Joist nails must be driven at a 30° to 45° angle through the joist or truss into the header to achieve listed loads. Slant/double shear nails must be used to achieve listed load values.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

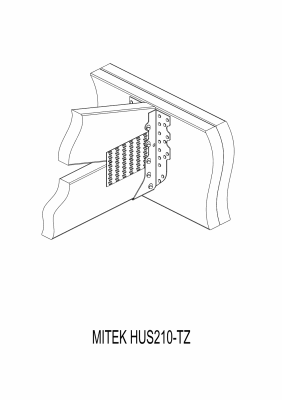

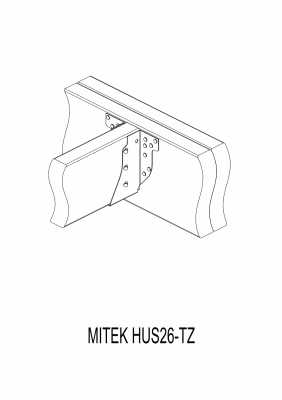

HUS Face Mount Hanger

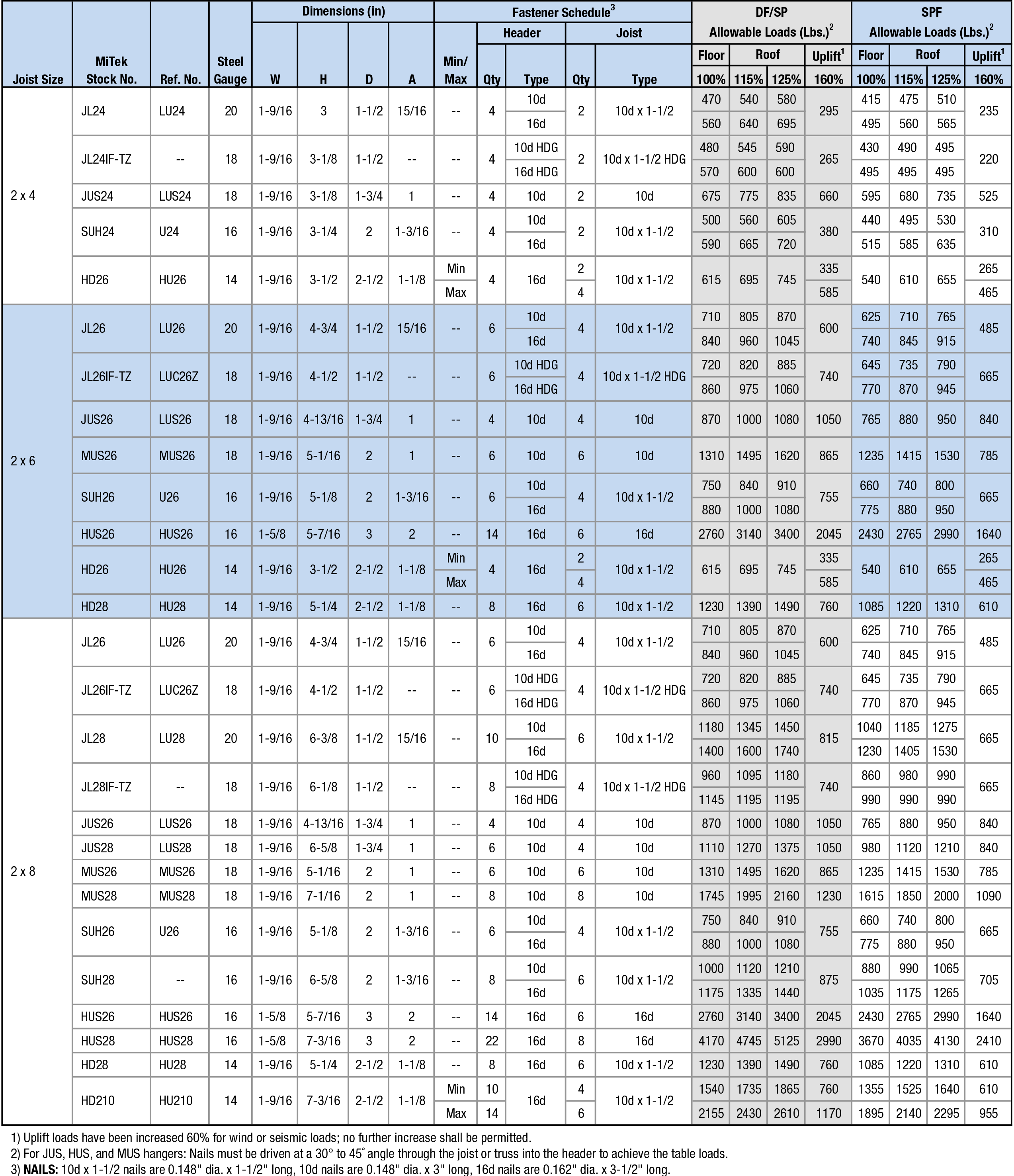

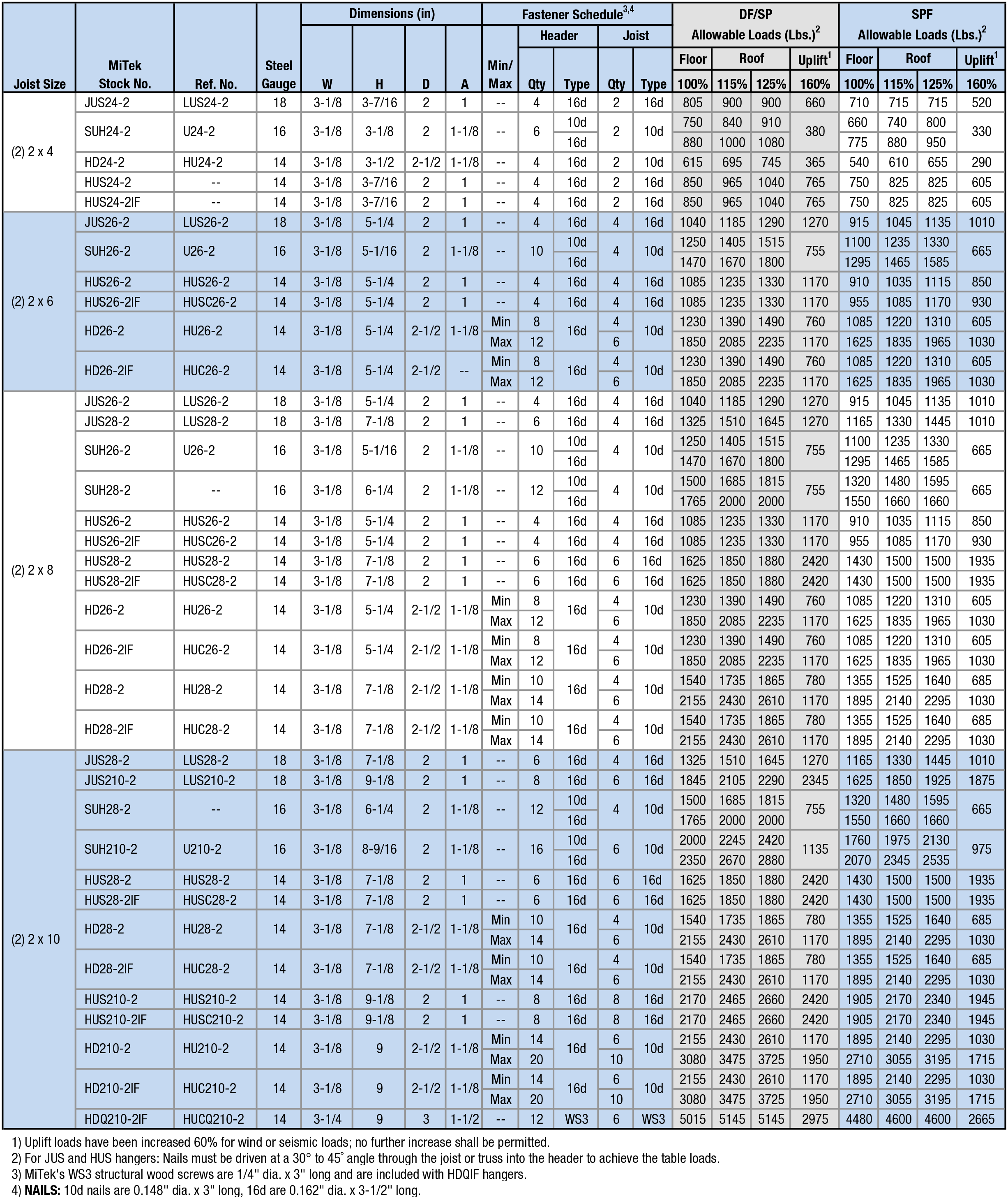

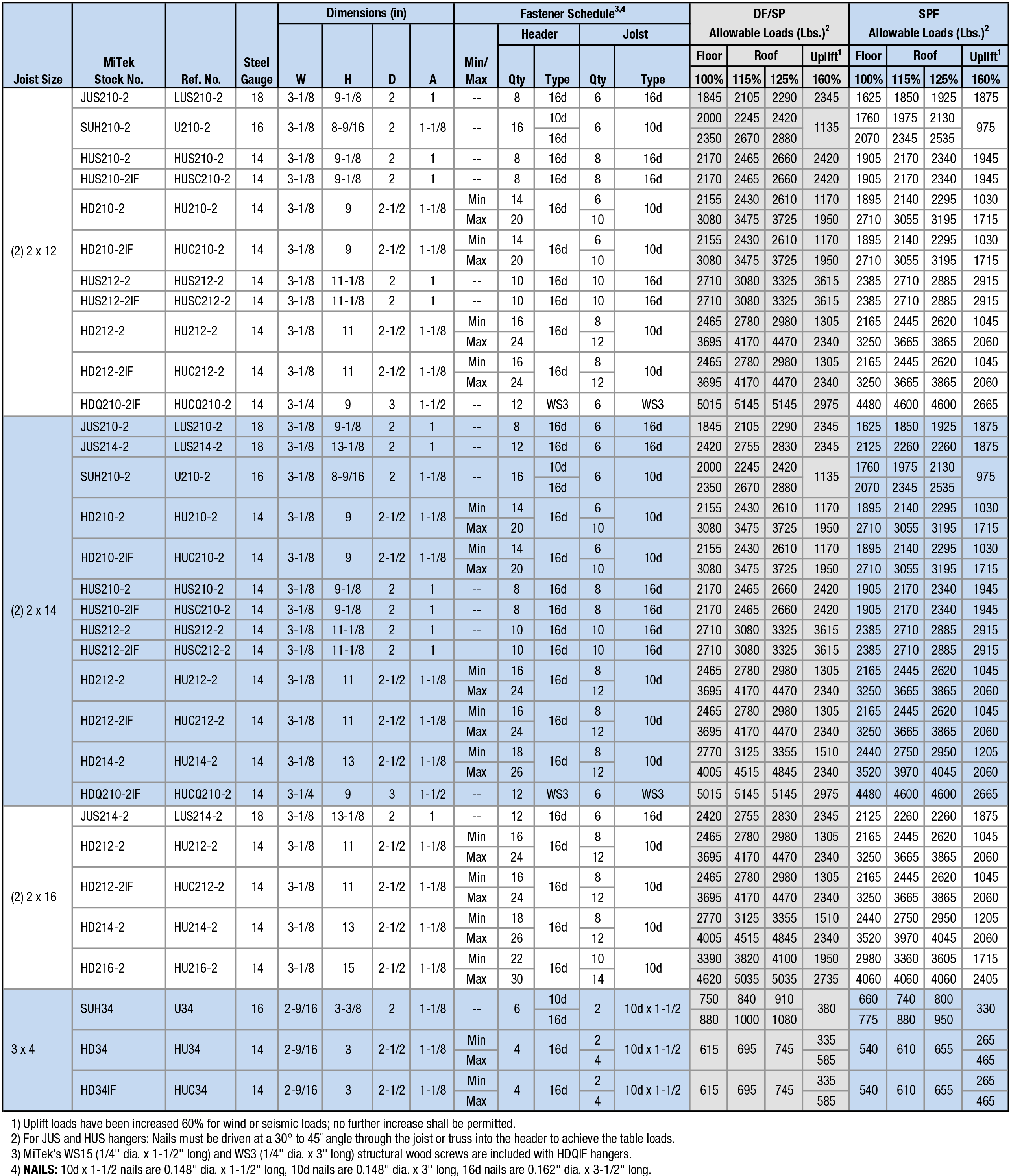

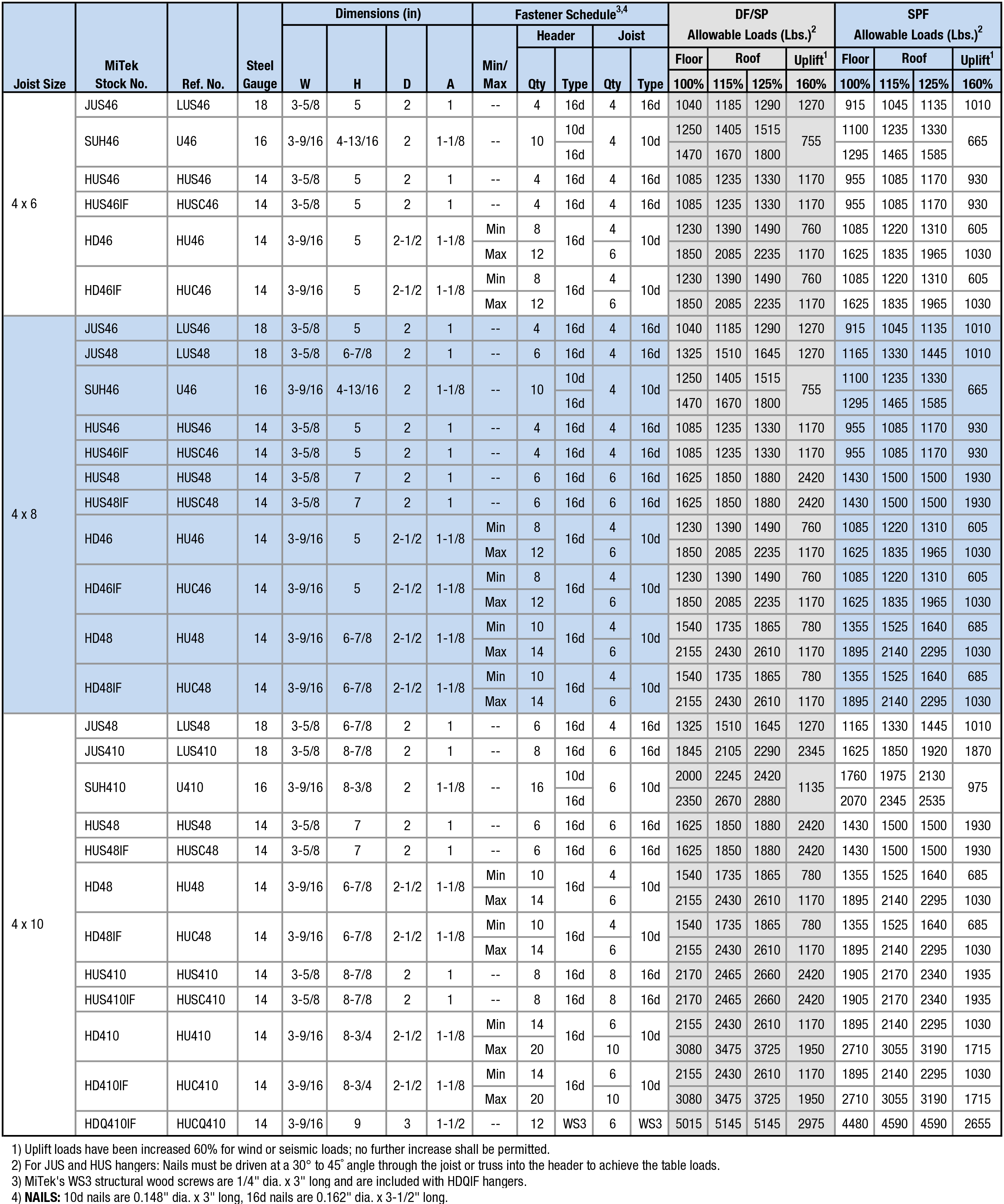

Load Table
EWP Sizes: 1-3/4" x 7-1/4" to 3-1/2" x 11-1/4" - 16"
Truss Sizes: 2 x 6 to 1-3/4" x 14"
Option Details:
HUS Specialty Options Table
View / Download the above load table as a PDFCorrosion Resistant Products Table
View / Download the above load table as a PDFCode Report Table

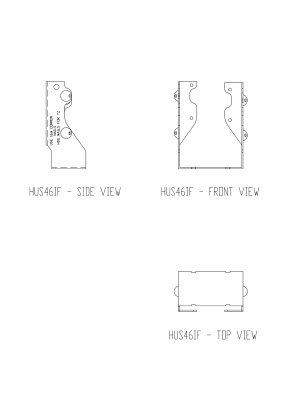

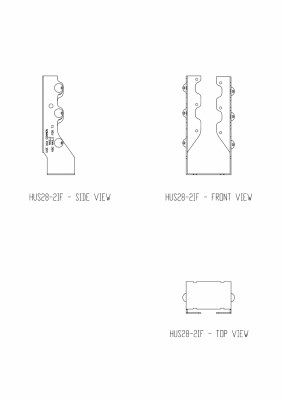

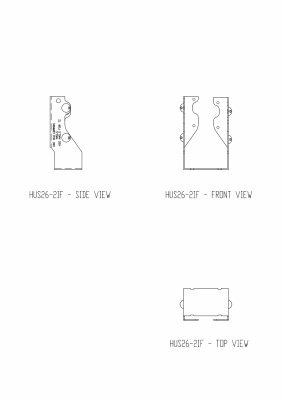

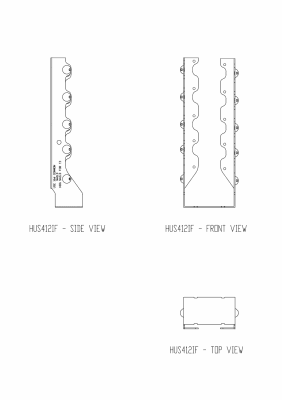

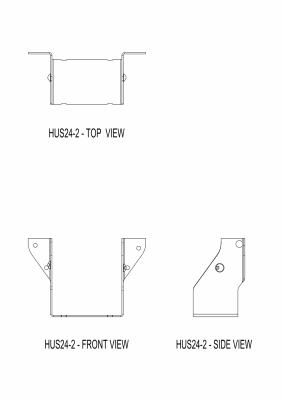

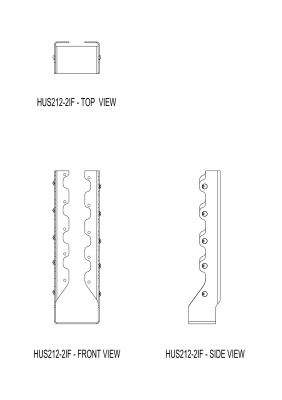

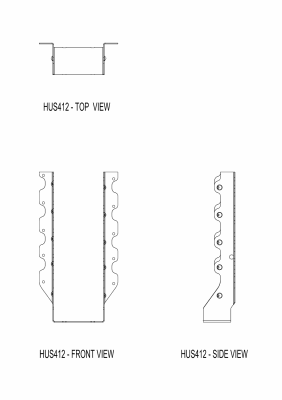

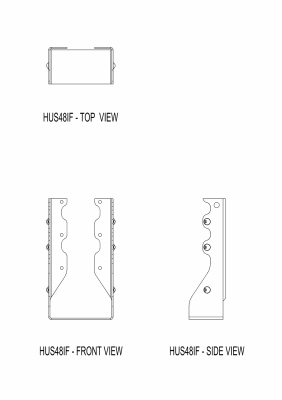

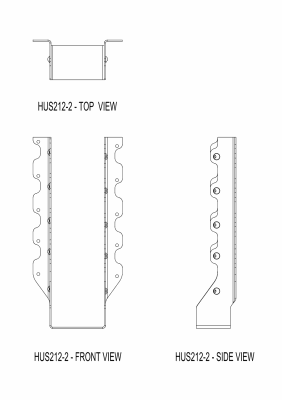

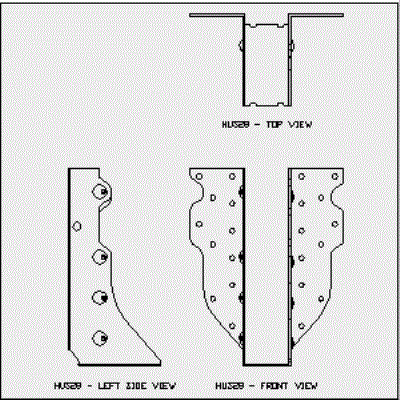

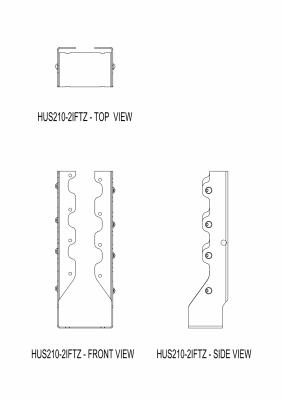

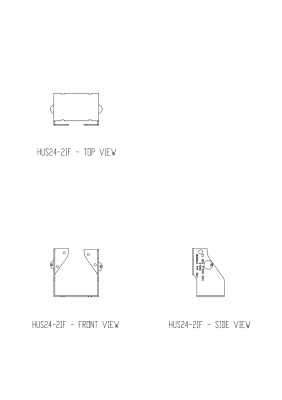

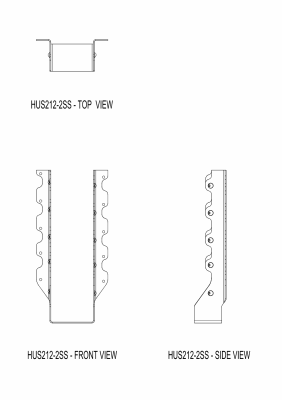

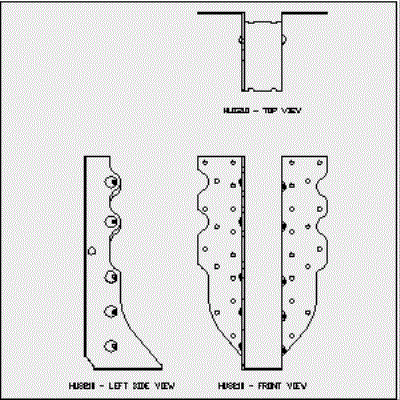

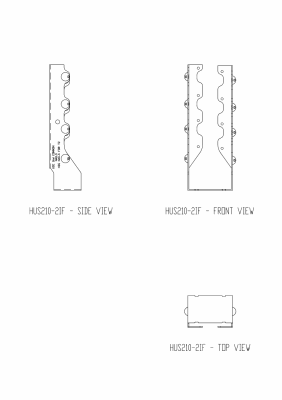

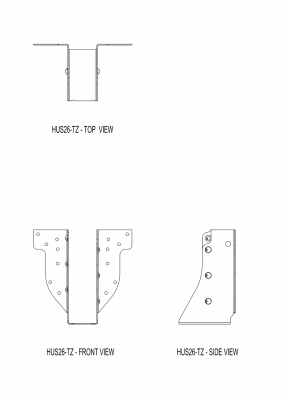

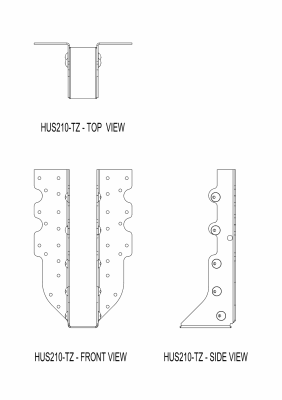

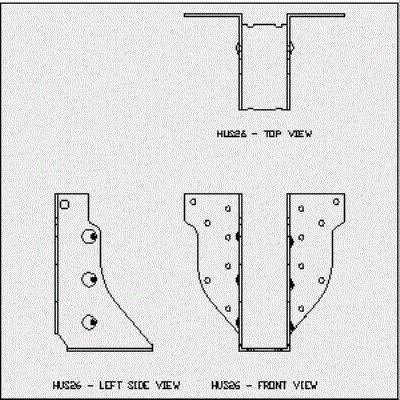

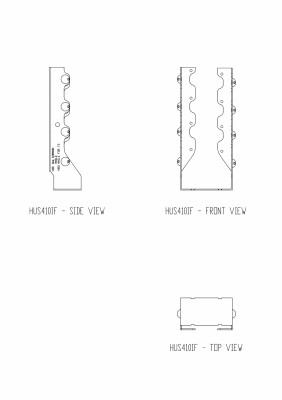

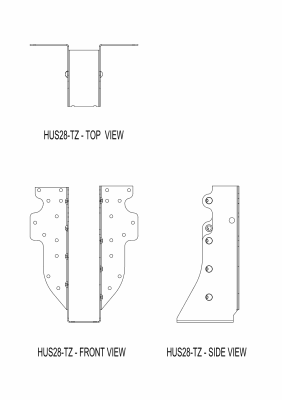

3-View Product Drawings
MiTek Stock # | Download or View Files | |||
---|---|---|---|---|

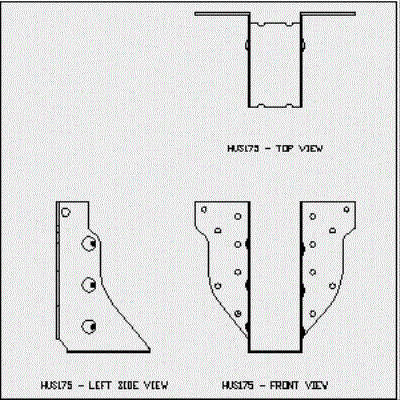

HUS175 | DWG | DXF | View Image | |

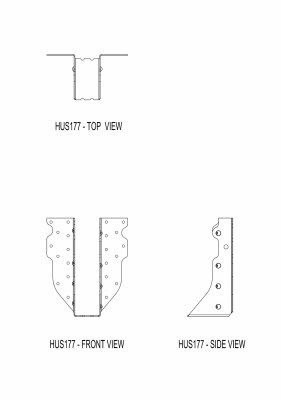

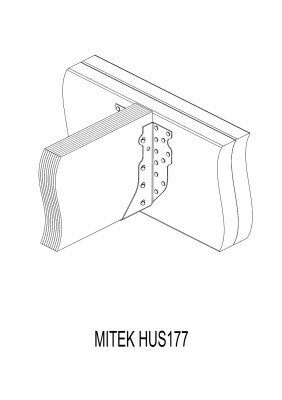

HUS177 | DWG | DXF | View Image | |
HUS179 | DWG | DXF | View Image | |
HUS210 | DWG | DXF | View Image | |

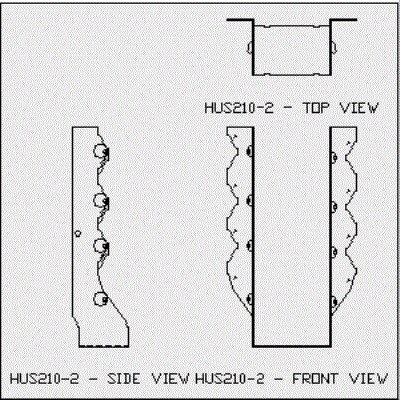

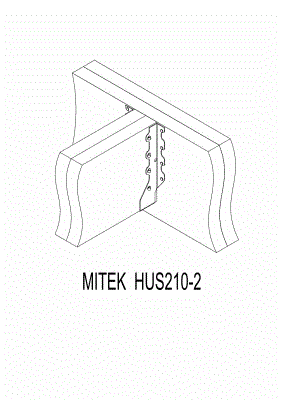

HUS210-2 | DWG | DXF | View Image | |
HUS26 | DWG | DXF | View Image | |
HUS26-2 | DWG | DXF | View Image | |

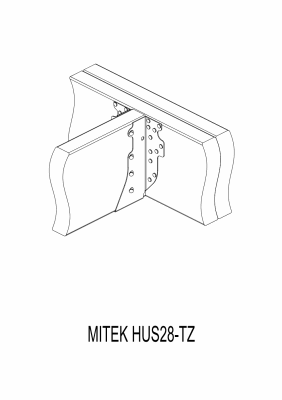

HUS28 | DWG | DXF | View Image | |

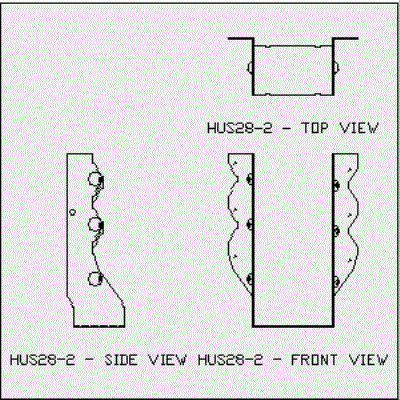

HUS28-2 | DWG | DXF | View Image | |

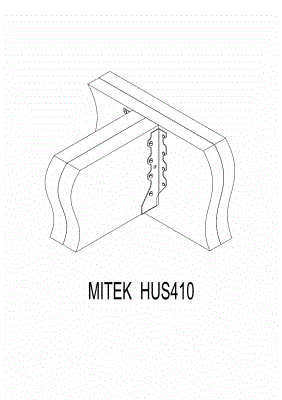

HUS410 | DWG | DXF | View Image | |

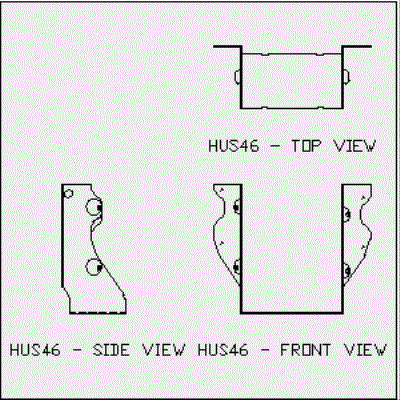

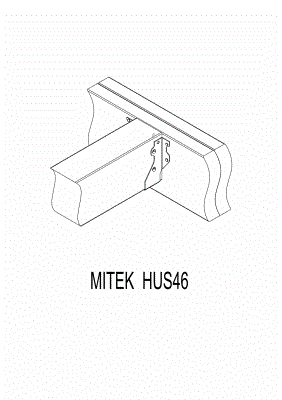

HUS46 | DWG | DXF | View Image | |

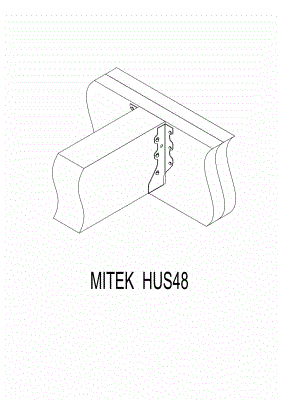

HUS48 | DWG | DXF | View Image |
