EWP Hangers
Inverted Flange Face Mount Hangers
HDQIF
Reference Series: HUCQ
HDQIF inverted flange hangers install with MiTek's structural wood screws eliminating the need to drill bolt holes, simplifying installation.
Materials: 14 gauge
Finish: G90 galvanizing
Code Reports:
View Code Report Table
Technical Bulletins
Installation
- Use all specified fasteners.
- WS15 (1/4″ dia. x 1-1/2″ long) and WS3 (1/4″ dia. x 3″ long) structural wood screws are supplied with HDQIF hangers.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
HDQIF Inverted Flange Face Mount Hanger

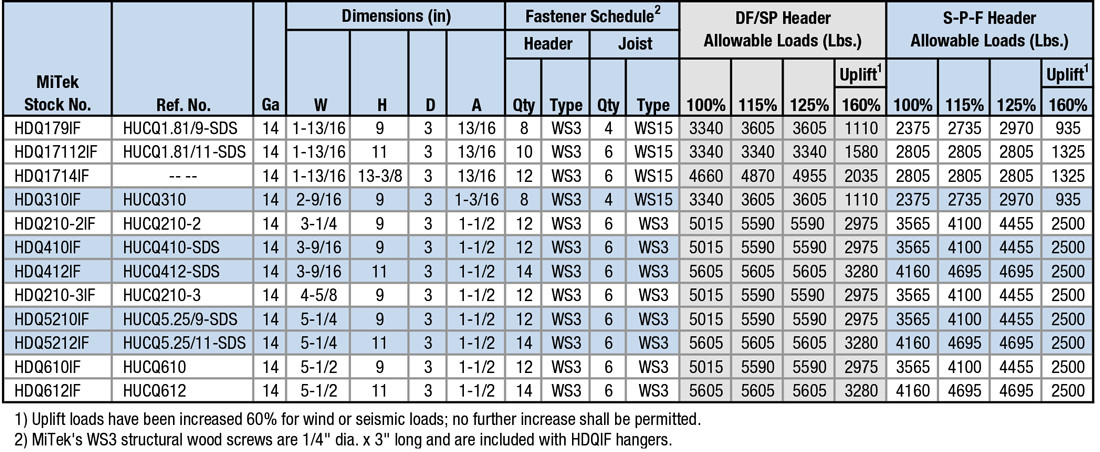

Load Table
Solid Sawn Lumber Sizes
EWP Sizes: 1-3/4" x 7-1/4" to 3-1/2" x 16"
EWP Sizes: 3-1/2" x 14" to 7" x 26"
Option Details:

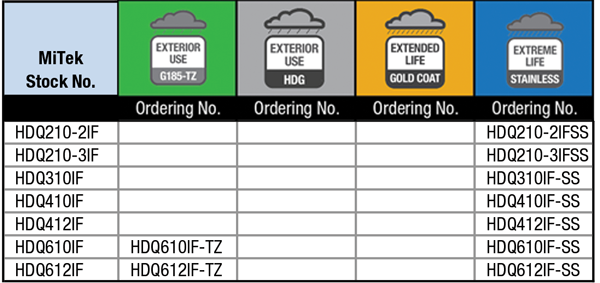

Corrosion Resistant Products Table
View / Download the above load table as a PDFCode Report Table
HDQ210-2IFSS
HDQ210-3IFSS
No Code Listing
HDQ310IF-SS
No Code Listing
HDQ410IF-SS
No Code Listing
HDQ412IF-SS
No Code Listing
HDQ610IF-SS
No Code Listing
HDQ612IF-SS
No Code Listing
No Code Listing
