Deck Tie Back

dtb

Reference Series: DTT, FSC

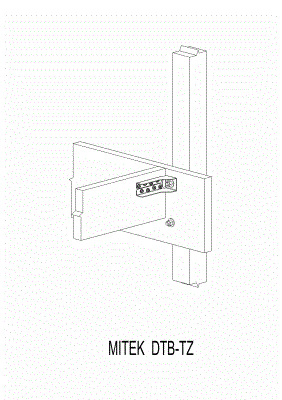

The DTB-TZ Deck Tie Back provides positive anchorage between the deck framing and the exterior wall with a load carrying capacity that exceeds building code requirements. When used in conjunction with MiTek triple-zinc or gold-coat joist hangers, the DTB-TZ transfers the lateral loads into the exterior wall while the joist hangers support the vertical loads. The DTB-TZ can also be used to reinforce the connection between the rail post and the deck.

Materials: 14 gauge

Finish: G-185 galvanizing

Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Install with MiTek’s THR 1/2" threaded rod or equivalent.
  • Drive MiTek's WS15-EXT structural wood screws into joist.
  • Re-install threaded rod or anchor bolt. Secure with washer and nut.
  • Tighten anchor bolt nuts finger tight to base plus 1/3 to 1/2 additional turns with wrench.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934



Option Details:

Corrosion Resistant Products Table

Corrosion Resistant Products Table

View / Download the above option details as a PDF

Code Report Table

MiTek Stock# ICC-ES IAPMO FLORIDA LA CITY
DTB-TZ
0200 FL17219 RR 25954
