Concrete and Masonry
Wedge Expansion Anchors
HD5
Reference Series: STB2
The Power-Stud HD5 anchor is a fully threaded, torque-controlled, wedge expansion anchor. Suitable base materials include normal-weight concrete, lightweight concrete and grouted concrete masonry. The anchor is manufactured with a hot-dip galvanized carbon steel body and stainless steel expansion clip. Nut and washer are included.
Materials: Anchor Body – Carbon Steel; Expansion Clip: Type 304 Stainless Steel; Hex Nut: ASTM A 563, Grade A; Washer: ASTM F 844
Finish: Anchor Body, Nut, Washer – Hot-dip galvanized; Expansion Clip: Stainless Steel
Code Reports:
View Code Report Table
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

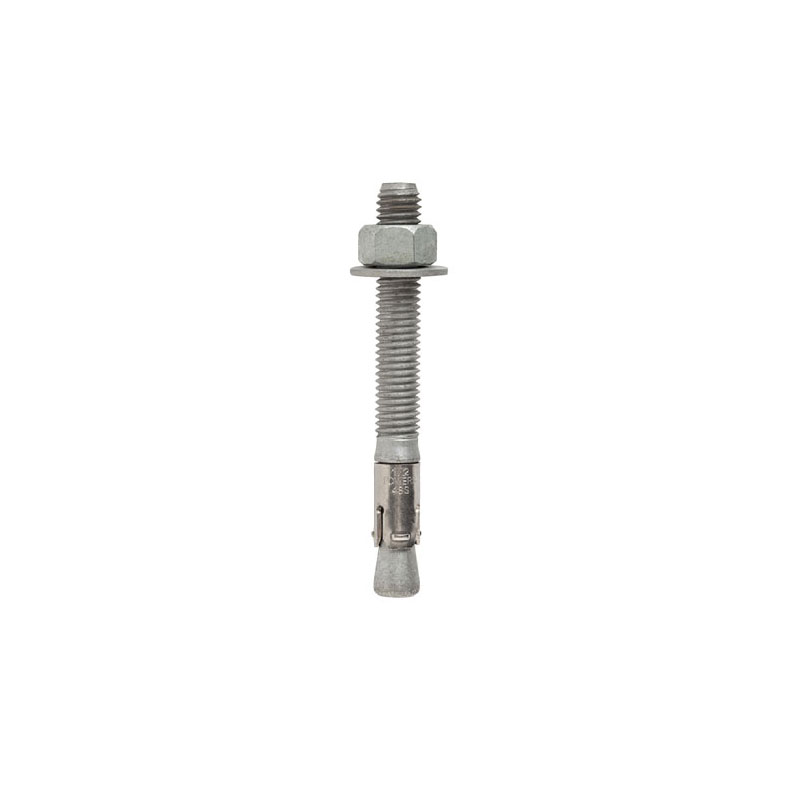

Power-Stud® HD5 assembly

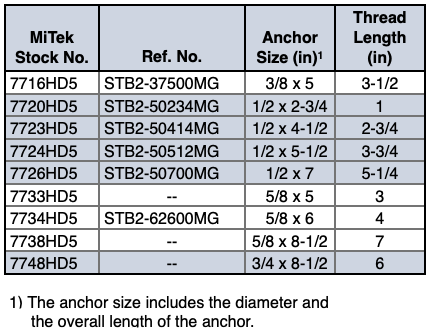

Code Report Table
MiTek Stock #
ICC-ES
IAPMO
FLORIDA
LA CITY
No Code Listing
