Floor Girder Hangers

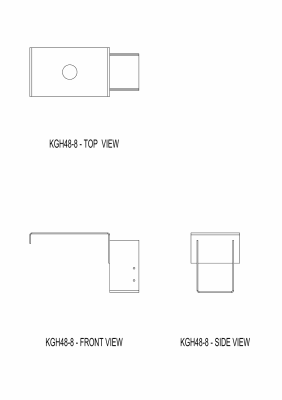

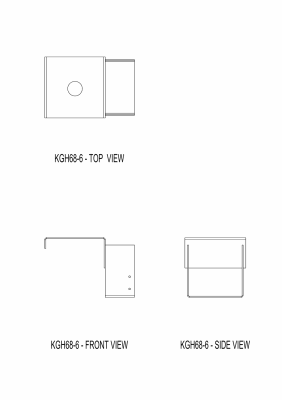

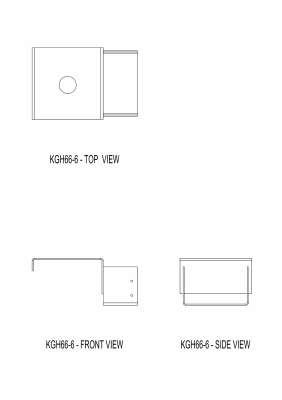

KGH

Reference Series: GH
Connects girder beams to foundation walls and eliminates the need to block out pockets or inserts while forming foundation.
Materials: 12 gauge
Finish: USP primer
Code Reports: View Code Report Table

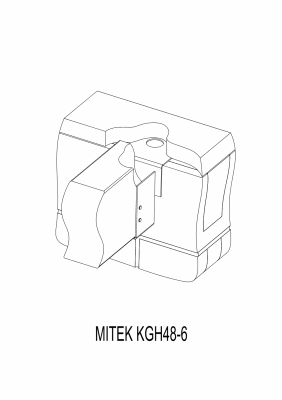

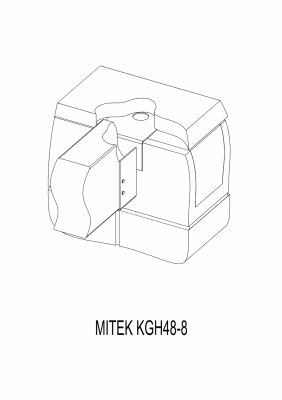

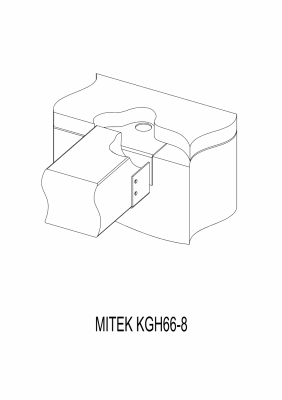

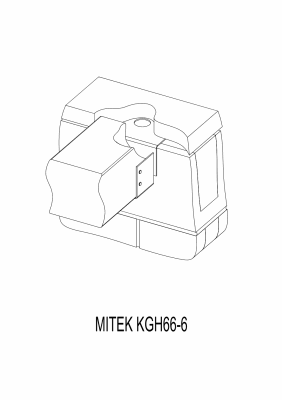

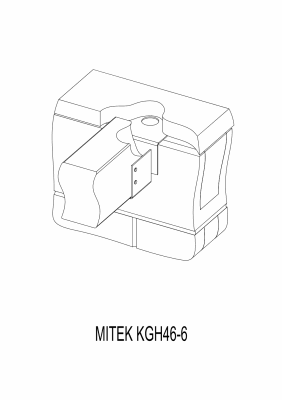

Installation

  • Use all specified fasteners.
  • H dimension assumes 2x mudsill. For 3x or larger mudsill, please contact factory.

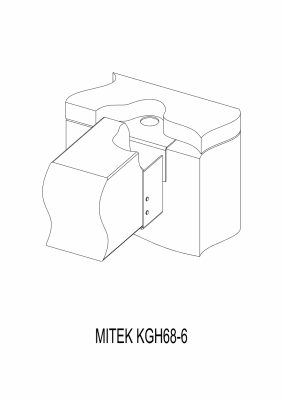

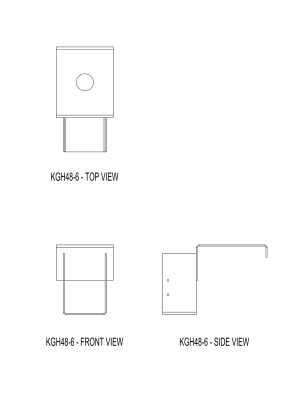

  • The 1-1/2″ hole, centered in the saddle, allows for installation over any protruding foundation bolts. This is not required.
  • Placement of a wood sill over the top of the KGH top flange is required to achieve allowable loads.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Option Details:

Consult USP for non-catalog design variations.>Nailer Options Table

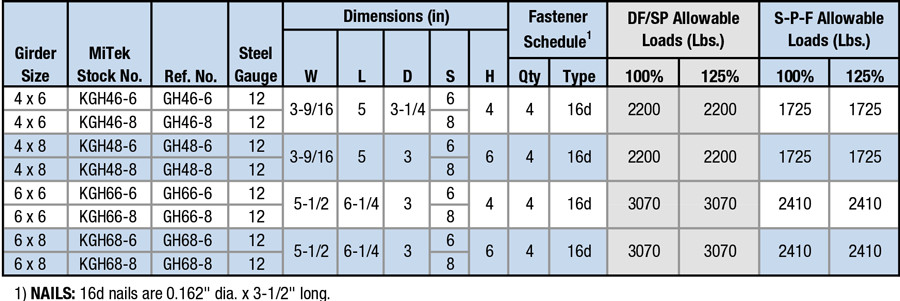

Consult USP for non-catalog design variations.>Nailer Options Table View / Download the above load table as a PDF
