Concrete and Masonry

Embedded Truss Anchor

DTC

Reference Series: HETAL
The DTC series attaches trusses to concrete or masonry walls. Innovative seat design gives added lateral resistance while still providing a moisture barrier.
Materials: 16 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Embed 4″ into concrete tie beam or masonry bond beam.
  • Installations should be spaced no closer together than 8″ center-to-center.
  • Straps may be installed straight or wrapped over to achieve table loads.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Code Report Table

DTC

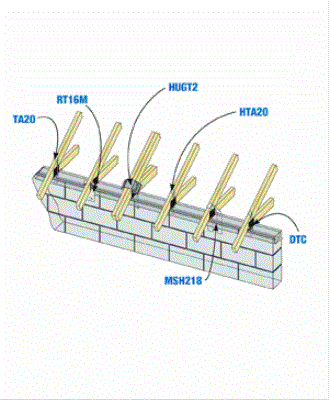

High Wind Drawings

MiTek Stock # Download or View Files
DTC
Bond/Tie Beam to TrussDWGDXFPDFView Image
