Concrete and Masonry

Foundation Anchors

SFA / SFJA

Reference Series: FJA
SFA – Mudsill anchors for retrofit applications. Features a slotted bend line for easy adjustment when foundation walls are slanted.
SFJA – Ties floor joists directly to foundations with bolt fastening.
Materials: 12 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Resources

MiTek Product Catalog

Installation

  • Use all specified fasteners.
  • A design professional must specify anchor bolt type, length, and embedment. Anchor bolts are laterally loaded. Follow installation instructions for epoxy adhesive. Reference MiTek Anchoring Solutions Guide Click here.
  • Allowable loads assume a minimum concrete compressive strength of 2,500 psi.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

SFA8 Foundation Anchor

SFA8 Foundation Anchor

SFA8 Foundation AnchorTypical SFA8 installationSFJA Foundation AnchorTypical SFJA installation

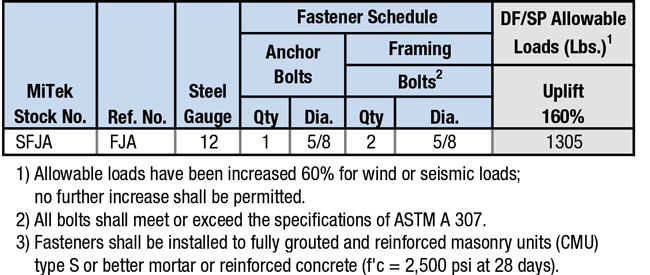

Load Table

-- -- View / Download the above load table as a PDF

Code Report Table

SFA8

No Code Listing

SFJA

No Code Listing
