Concrete and Masonry

Bearing Plates

BP / HBPS / LBP / LBPS

Reference Series: BP, BPS, LBP, LBPS
The BP and LBP bearing plates reduce the stress on the mudsill plates as the nut is tightened on an anchor bolt. Manufactured with ASTM A36 steel, they can be ordered with either a hot-dip galvanized or Triple Zinc finish. These bearing plates may be used to satisfy the prescriptive code requirements of your local building code. The HBPS and LBPS bearing plates have a slotted hole and allow for easy adjustment for anchor bolt mis-location.

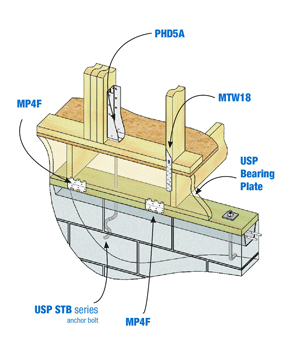

BP / LBP – Designed to meet code requirements for mudsill-to-foundation.
HBPS / LBPS – Offers anchor bolt adjustment slots.

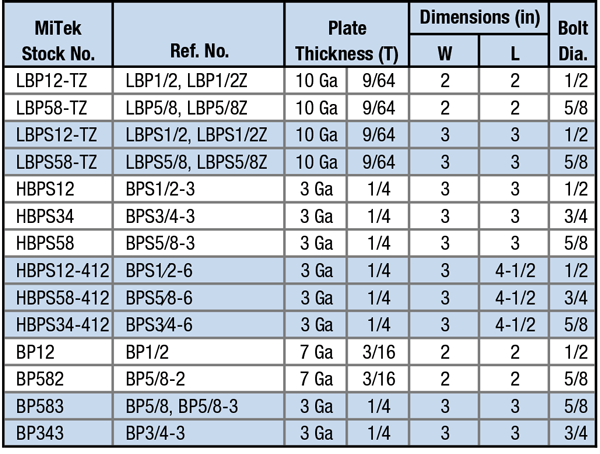

Materials: See Load Table
Finish: BP / HBPS – none; LBP / LBPS – G-185 galvanizing
Code Reports: View Code Report Table

Installation

  • Bolt holes are sized 1/16″ larger than Bolt Dia. shown in load table below.
  • Reference IRC R602.11.1, IBC 2308.3.1.1 for minimum plate size requirements.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Option Details:

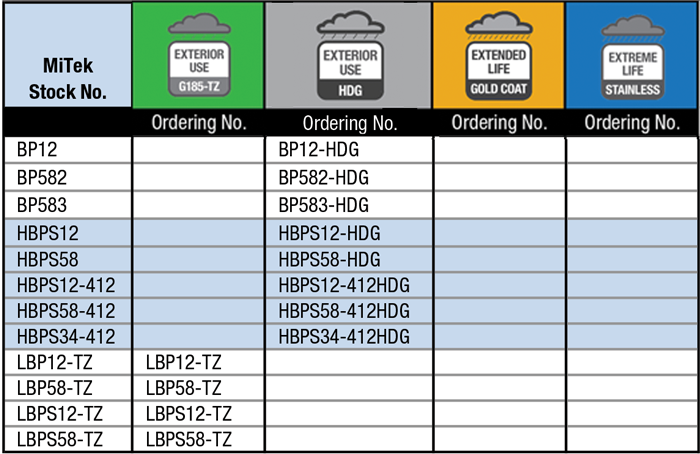

Corrosion Resistant Products Table

Corrosion Resistant Products Table View / Download the above load table as a PDF

Code Report Table

BP12

Product meets Prescriptive Code Requirements

BP12-HDG

Product meets Prescriptive Code Requirements

BP343

Product meets Prescriptive Code Requirements

BP582

Product meets Prescriptive Code Requirements

BP583

Product meets Prescriptive Code Requirements

BP583-HDG

Product meets Prescriptive Code Requirements

HBPS12

Product meets Prescriptive Code Requirements

HBPS12-BC

Product meets Prescriptive Code Requirements

HBPS34

Product meets Prescriptive Code Requirements

HBPS58

Product meets Prescriptive Code Requirements

HBPS58-HDG

Product meets Prescriptive Code Requirements

LBP12-TZ

No Code Listing

LBP58-TZ

No Code Listing

LBPS12-TZ

No Code Listing

LBPS58-TZ

No Code Listing

High Wind Drawings

MiTek Stock # Download or View Files
BP
Foundation Outside ViewDWGDXFPDFView Image
Bond/Tie Beam to Truss w/PlateDWGDXFPDFView Image
Truss Single StoryDWGDXFPDFView Image
Mono Concrete SlabDWGDXFPDFView Image
BP12
Foundation Outside ViewDWGDXFPDFView Image
Bond/Tie Beam to Truss w/PlateDWGDXFPDFView Image
Truss Single StoryDWGDXFPDFView Image
Mono Concrete SlabDWGDXFPDFView Image
BP343
Foundation Outside ViewDWGDXFPDFView Image
Bond/Tie Beam to Truss w/PlateDWGDXFPDFView Image
Truss Single StoryDWGDXFPDFView Image
Mono Concrete SlabDWGDXFPDFView Image
BP582
Foundation Outside ViewDWGDXFPDFView Image
Bond/Tie Beam to Truss w/PlateDWGDXFPDFView Image
Truss Single StoryDWGDXFPDFView Image
Mono Concrete SlabDWGDXFPDFView Image
BP583
Foundation Outside ViewDWGDXFPDFView Image
Bond/Tie Beam to Truss w/PlateDWGDXFPDFView Image
Truss Single StoryDWGDXFPDFView Image
Mono Concrete SlabDWGDXFPDFView Image
