Caps and Bases
Post Caps
EPCM / PCM
Reference Series: EPC, PC

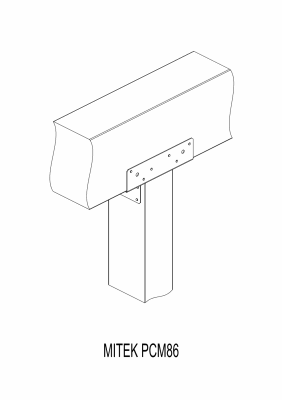

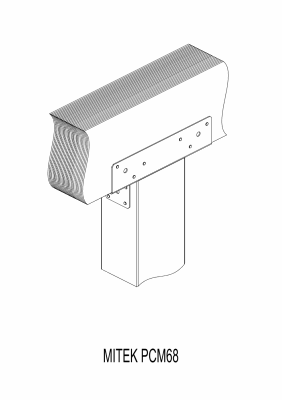

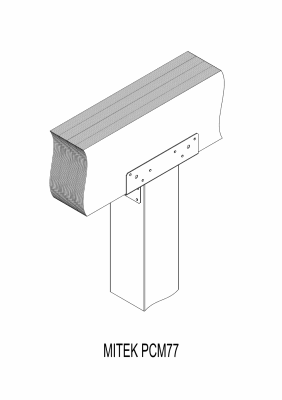

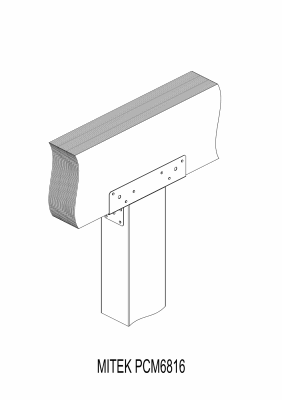

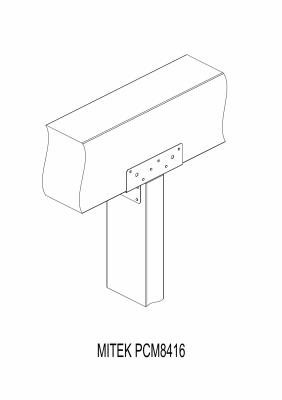

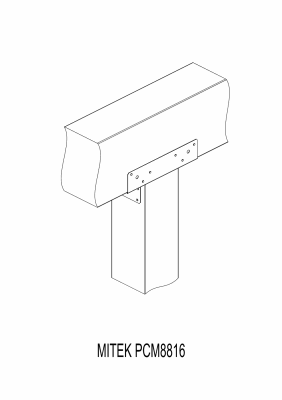

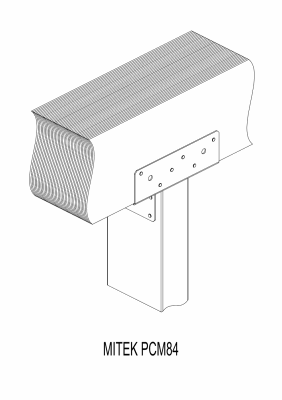

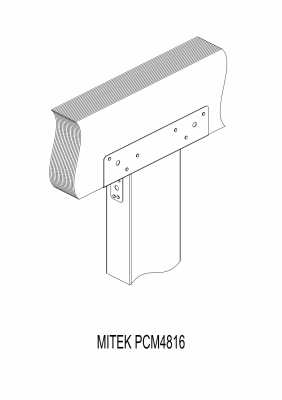

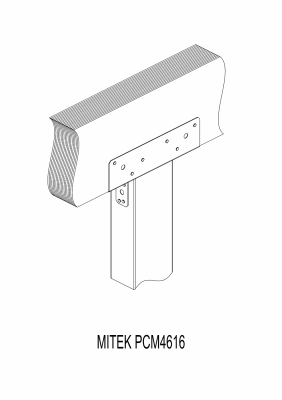

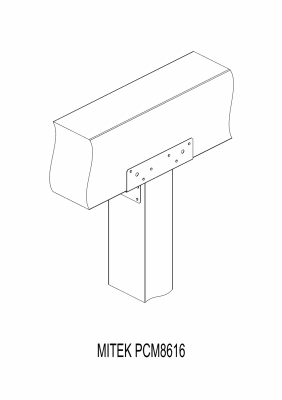

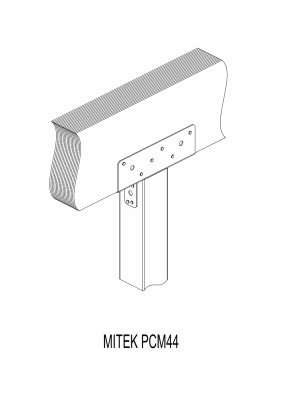

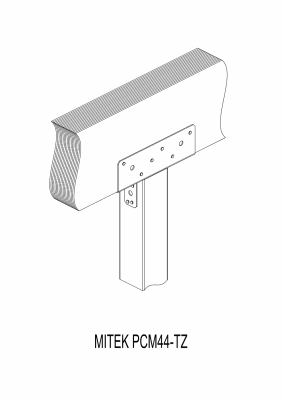

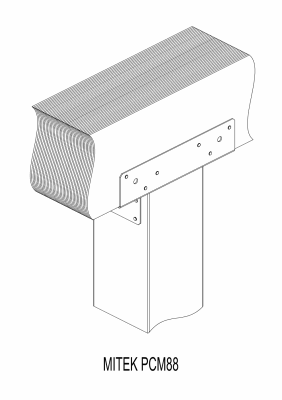

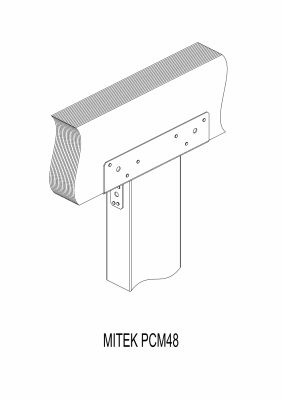

PCM – Provides a positive connection for medium-duty, post-to-beam applications.

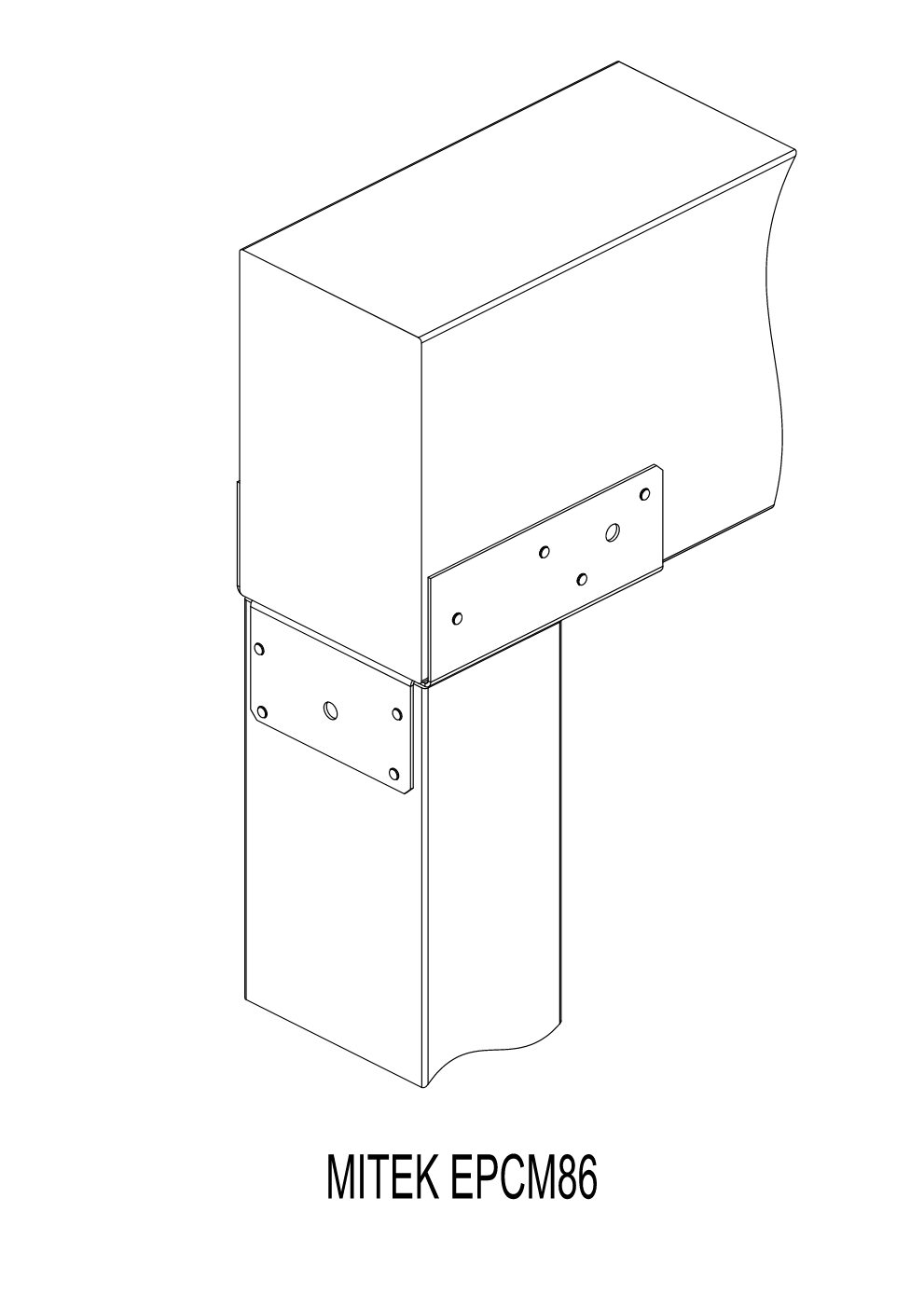

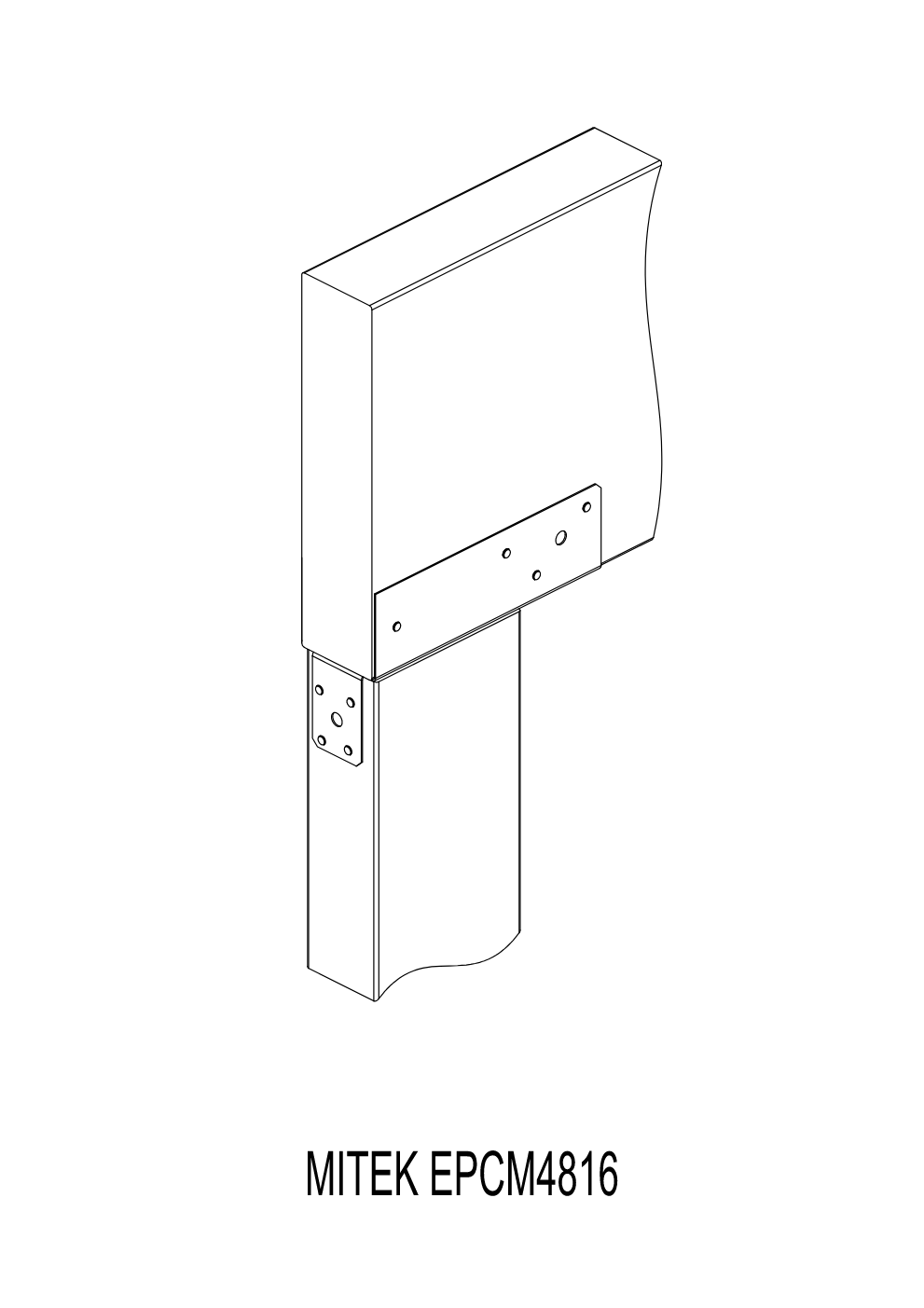

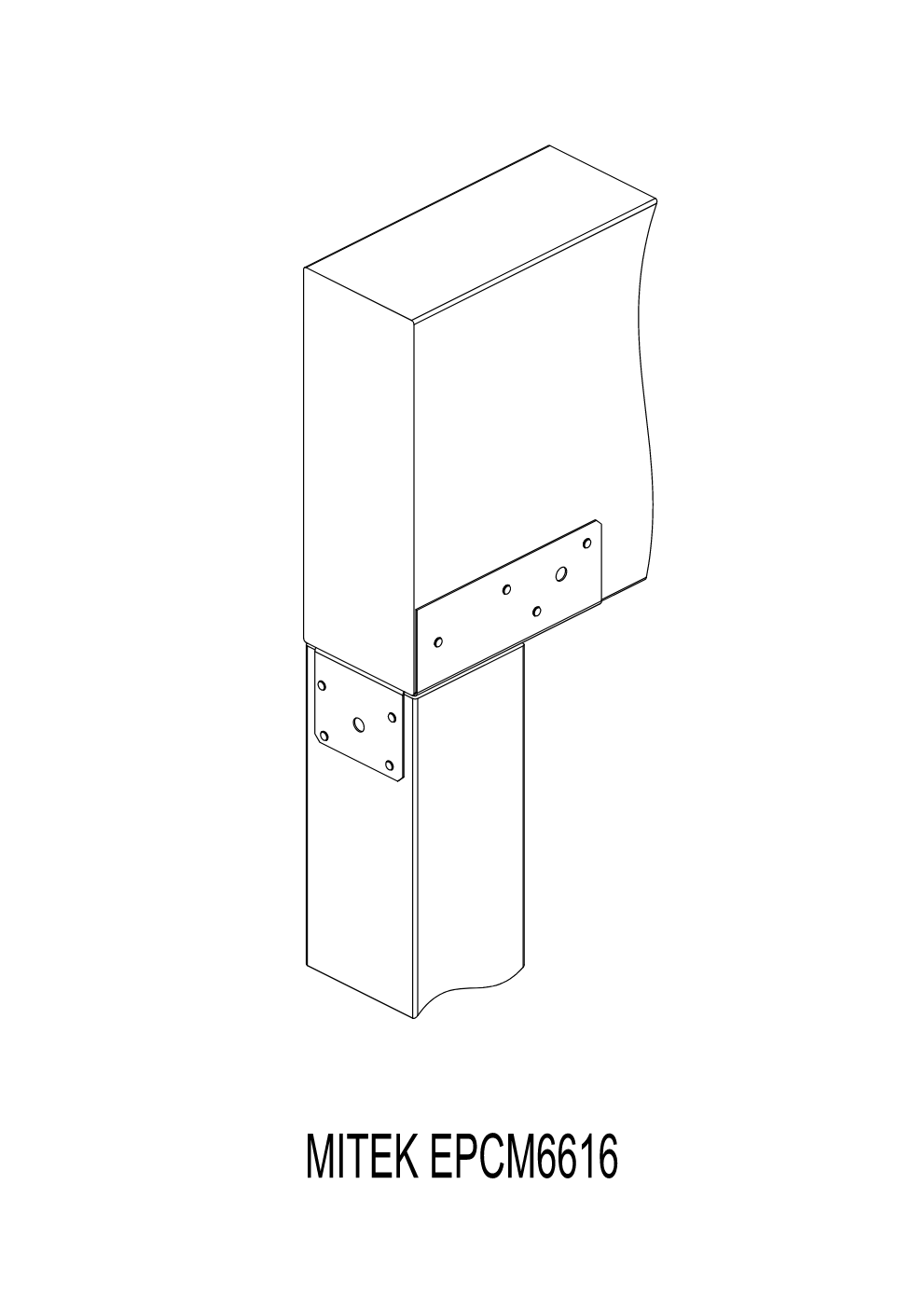

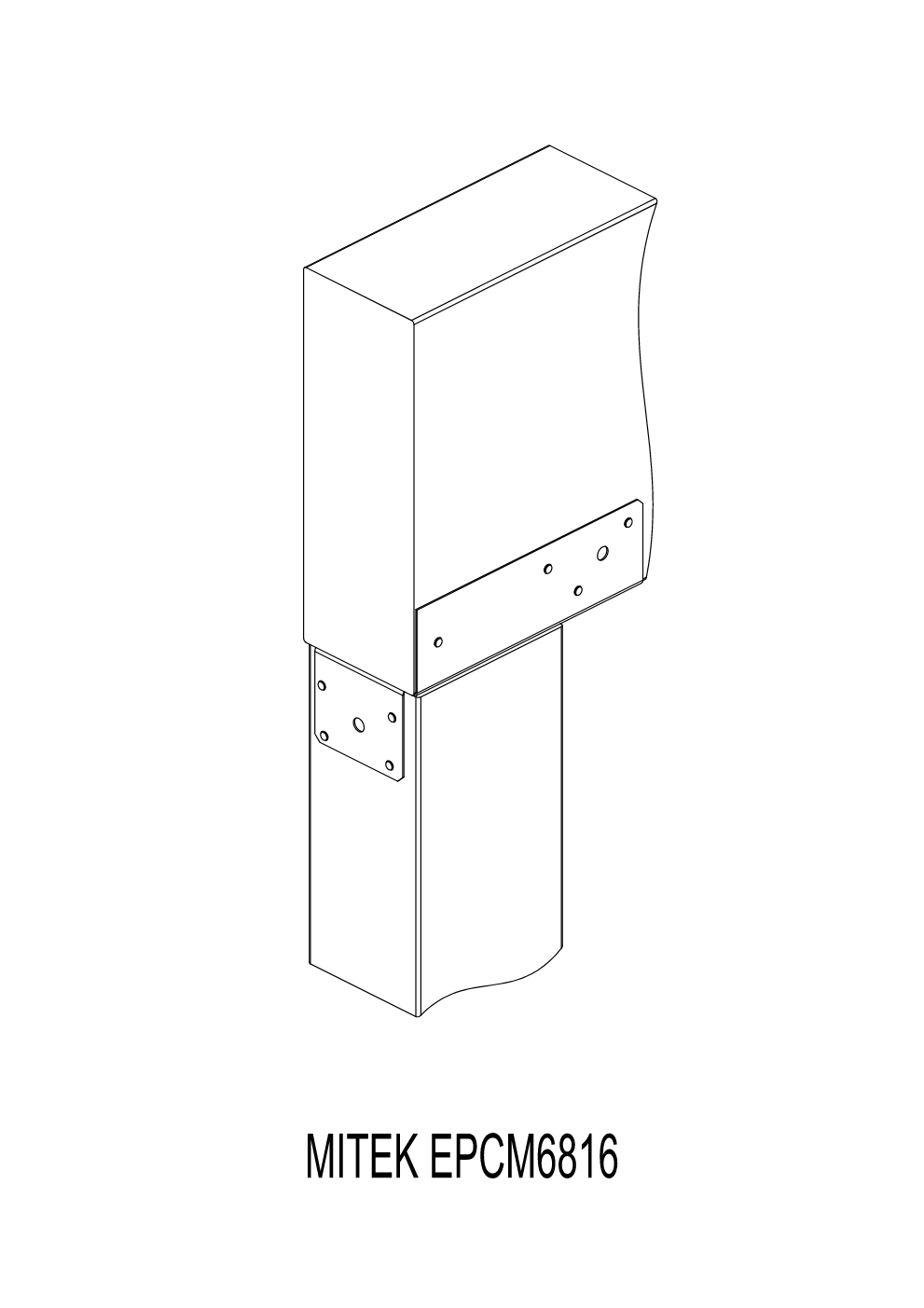

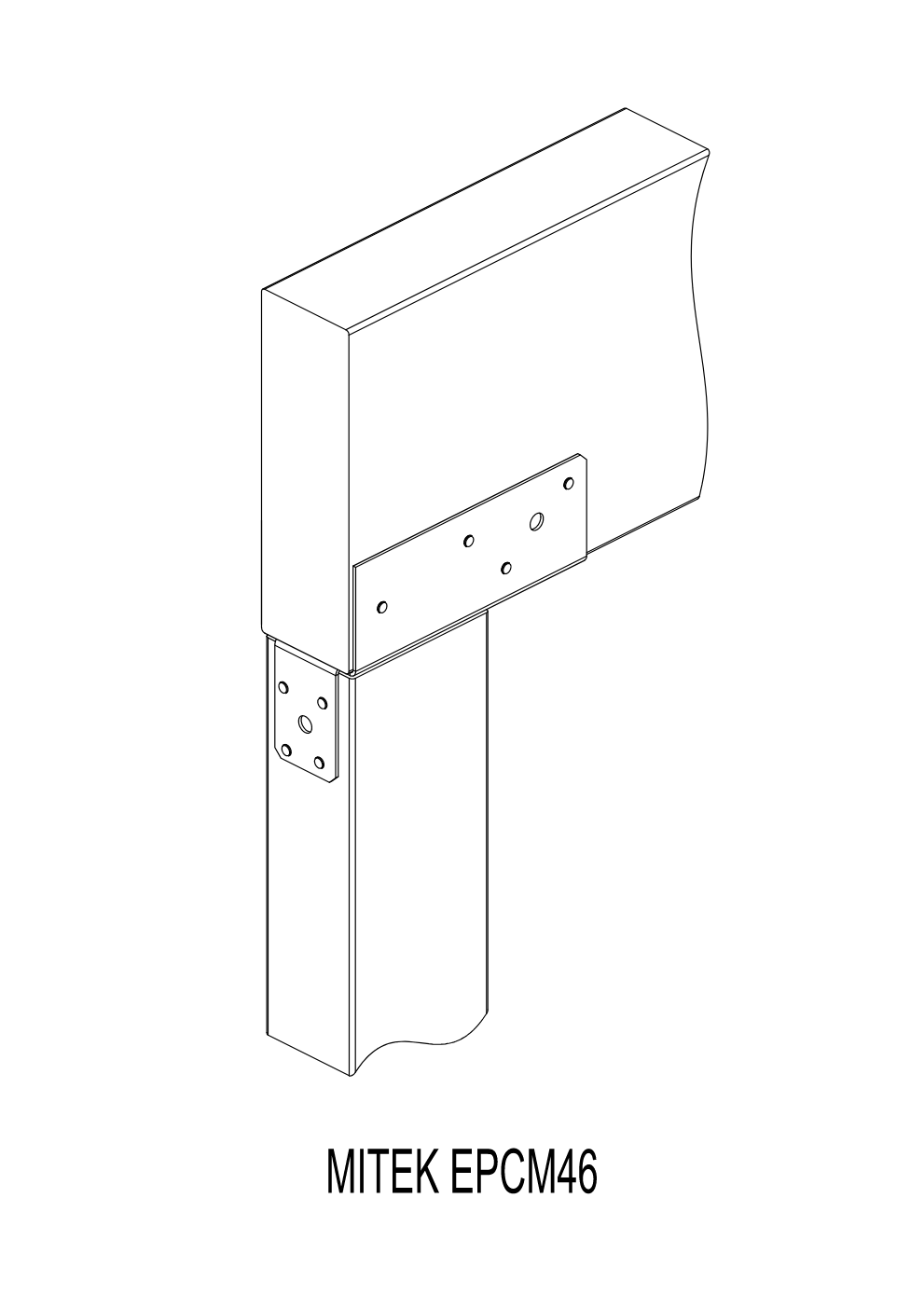

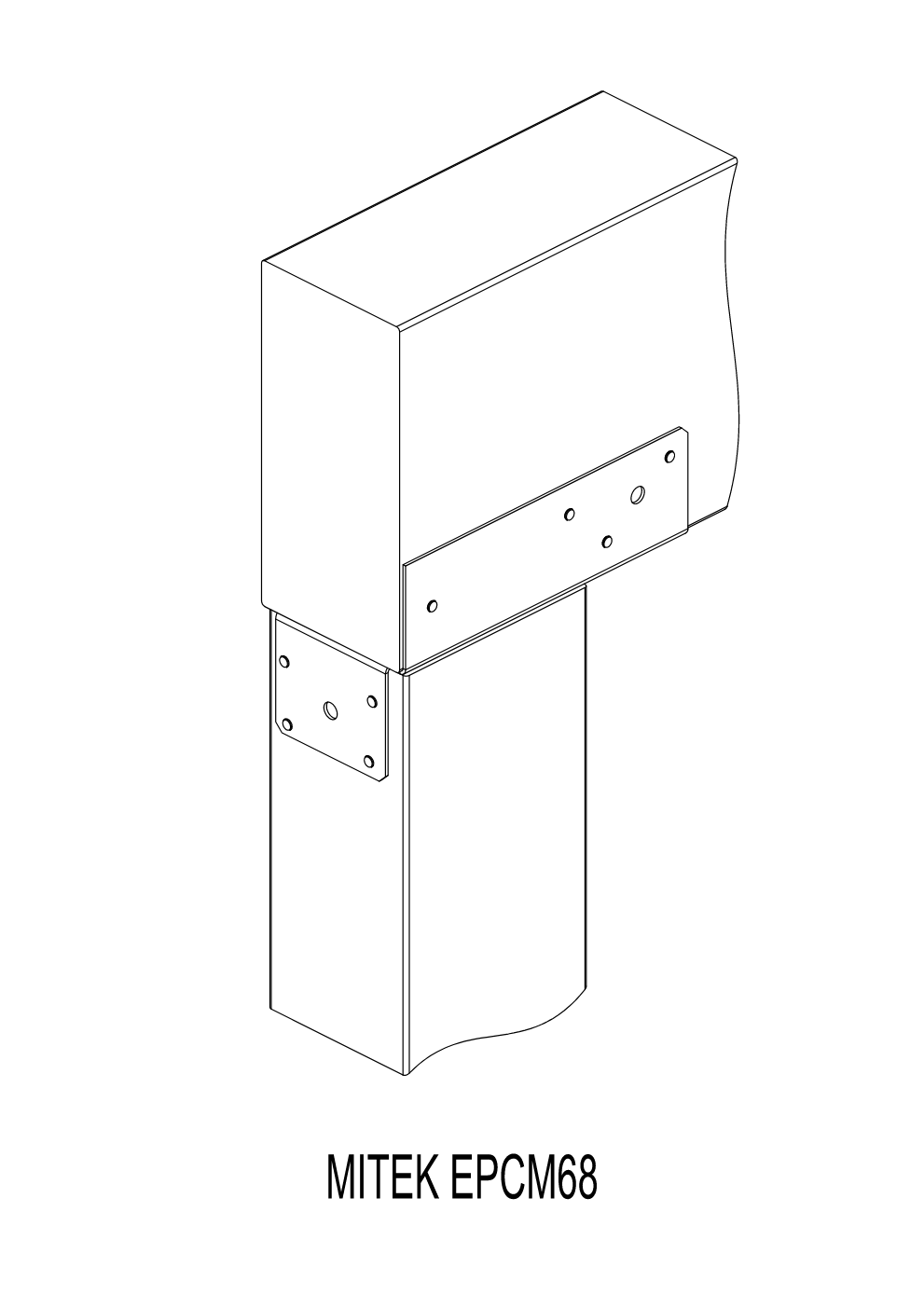

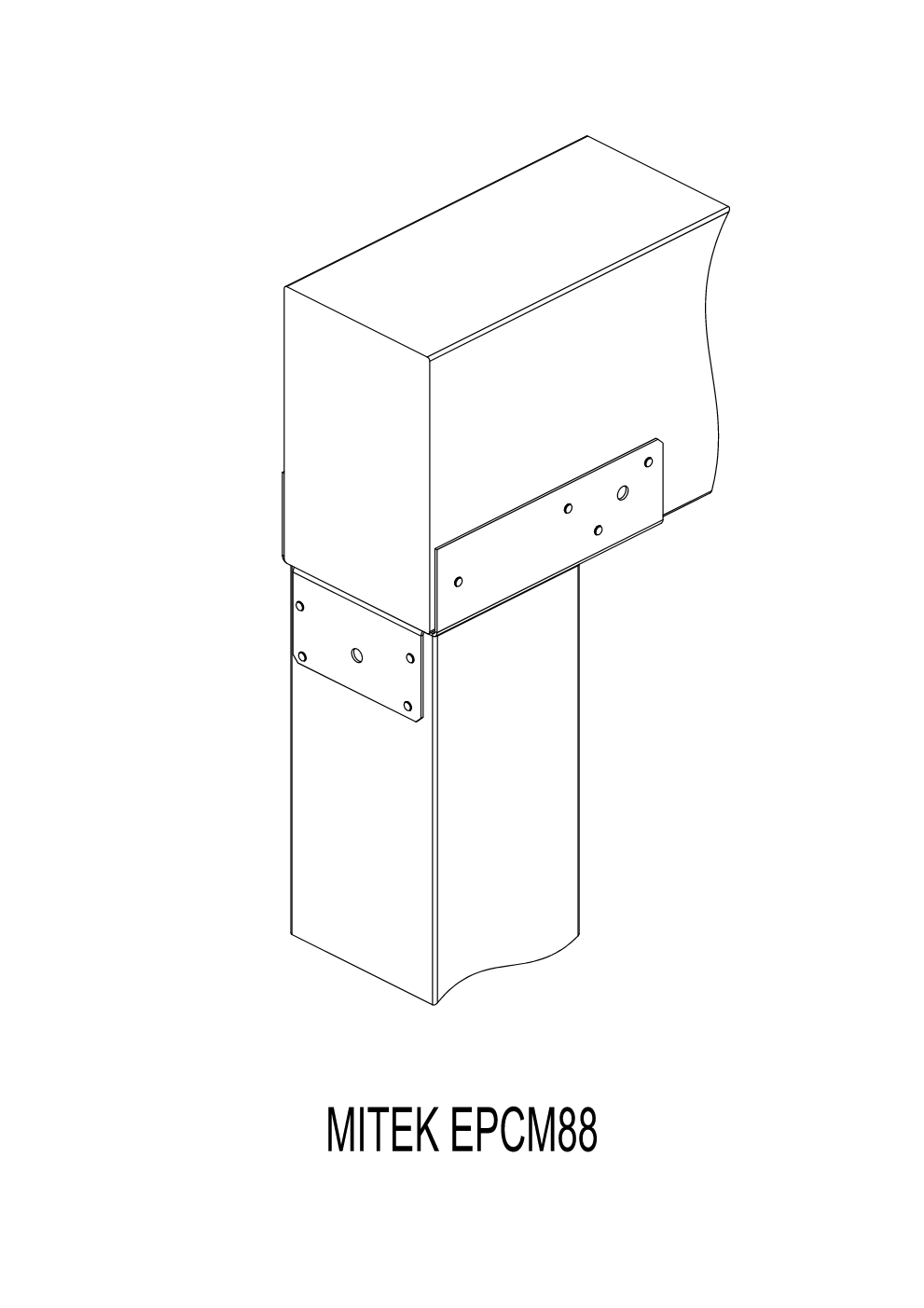

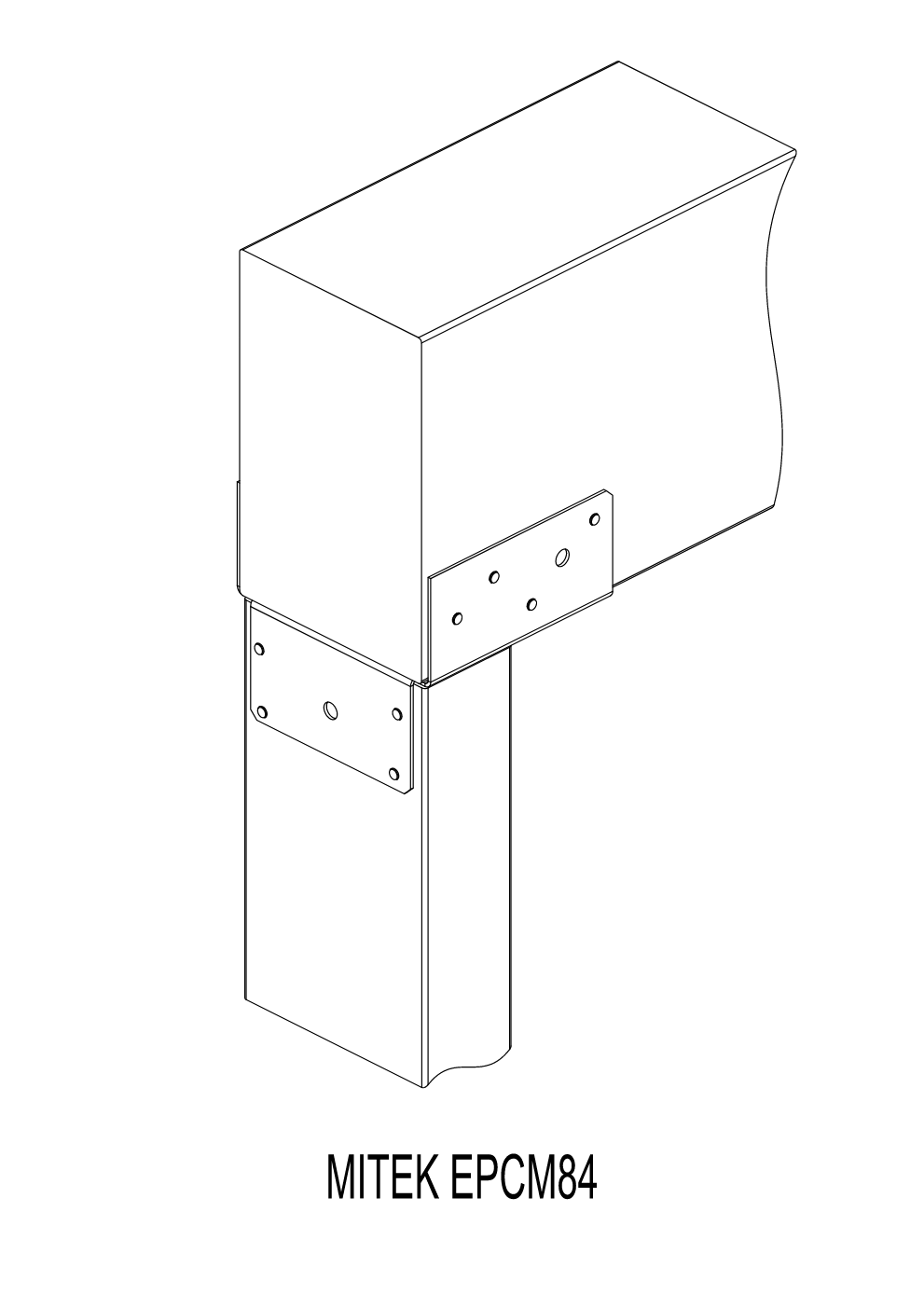

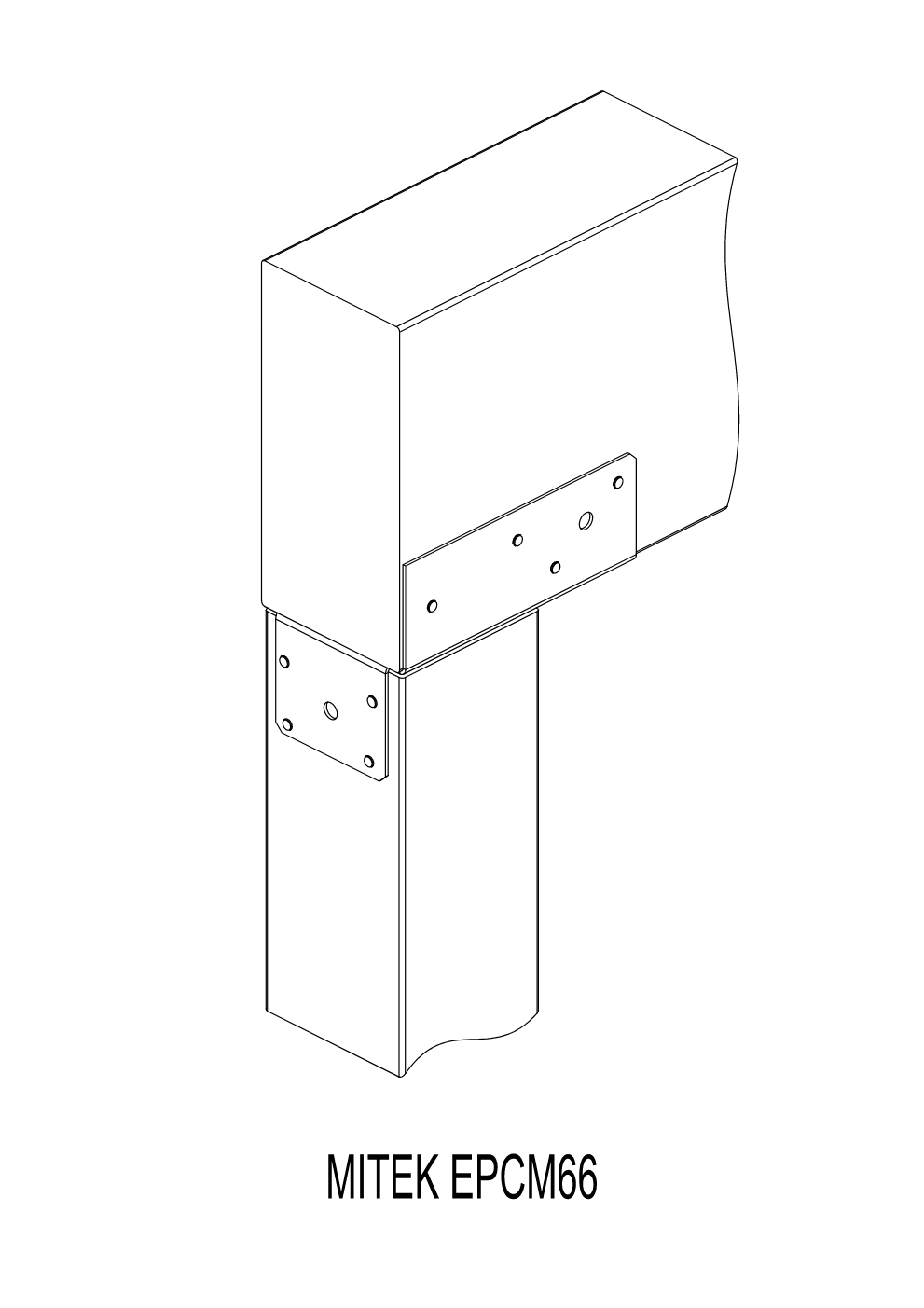

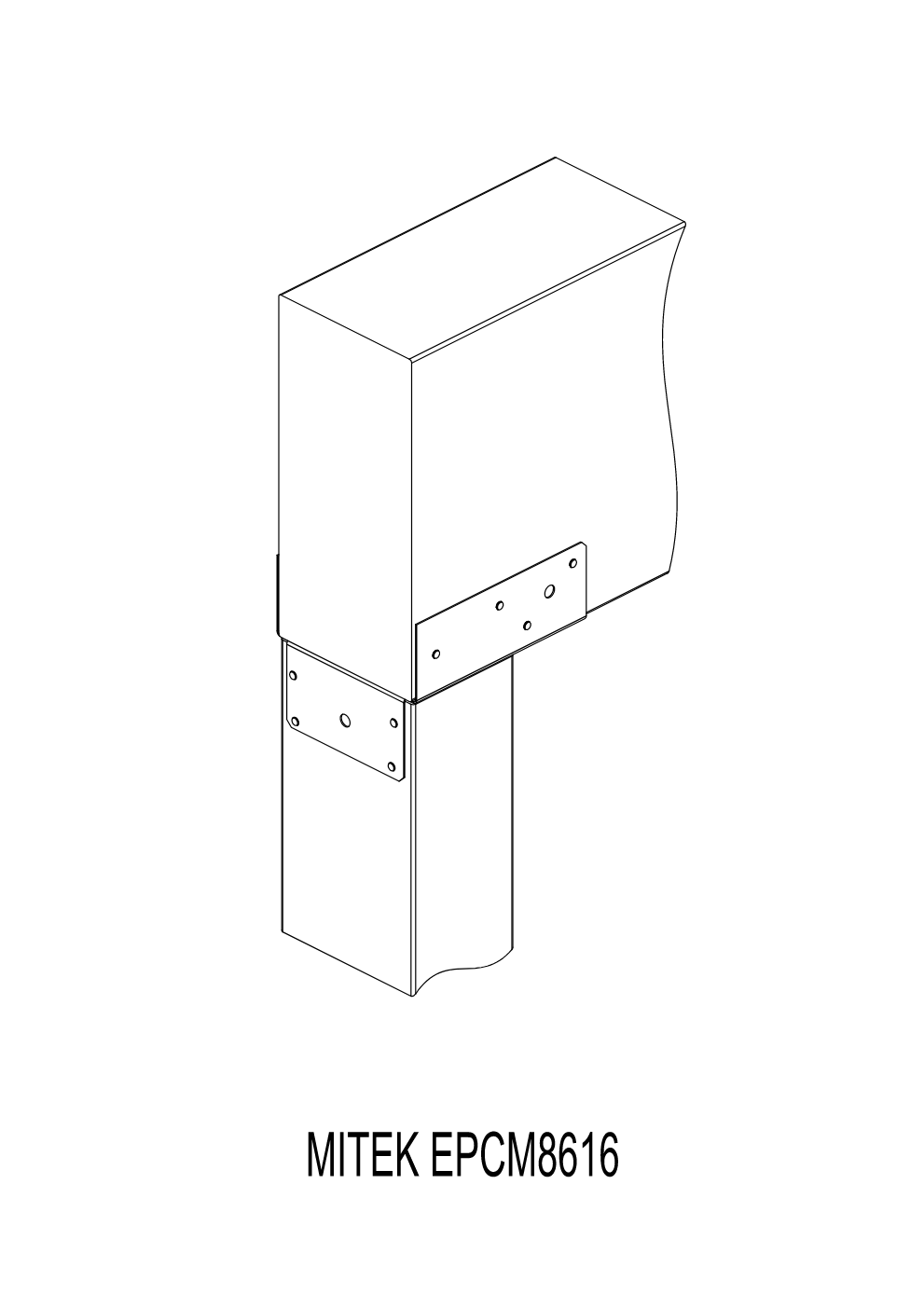

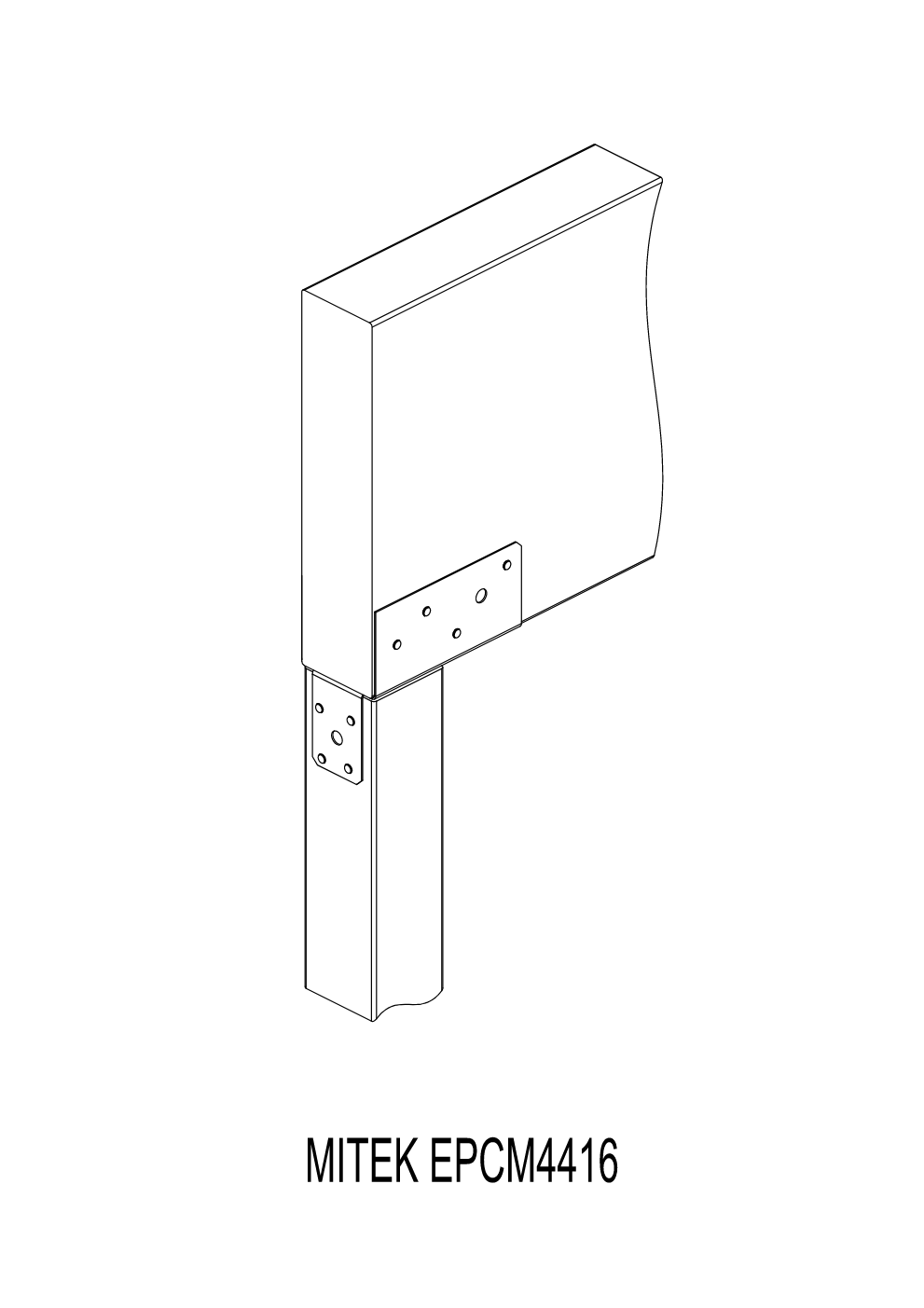

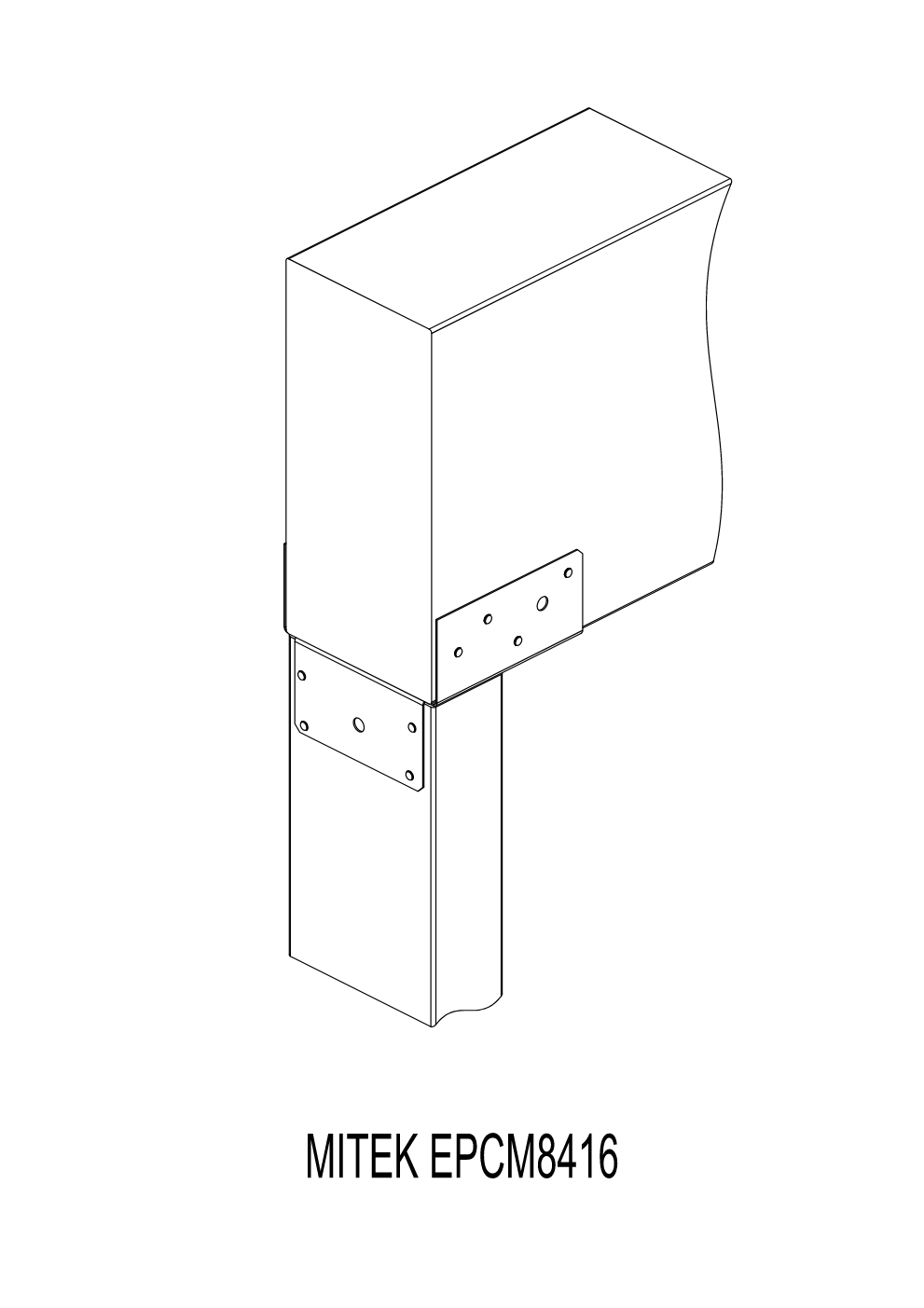

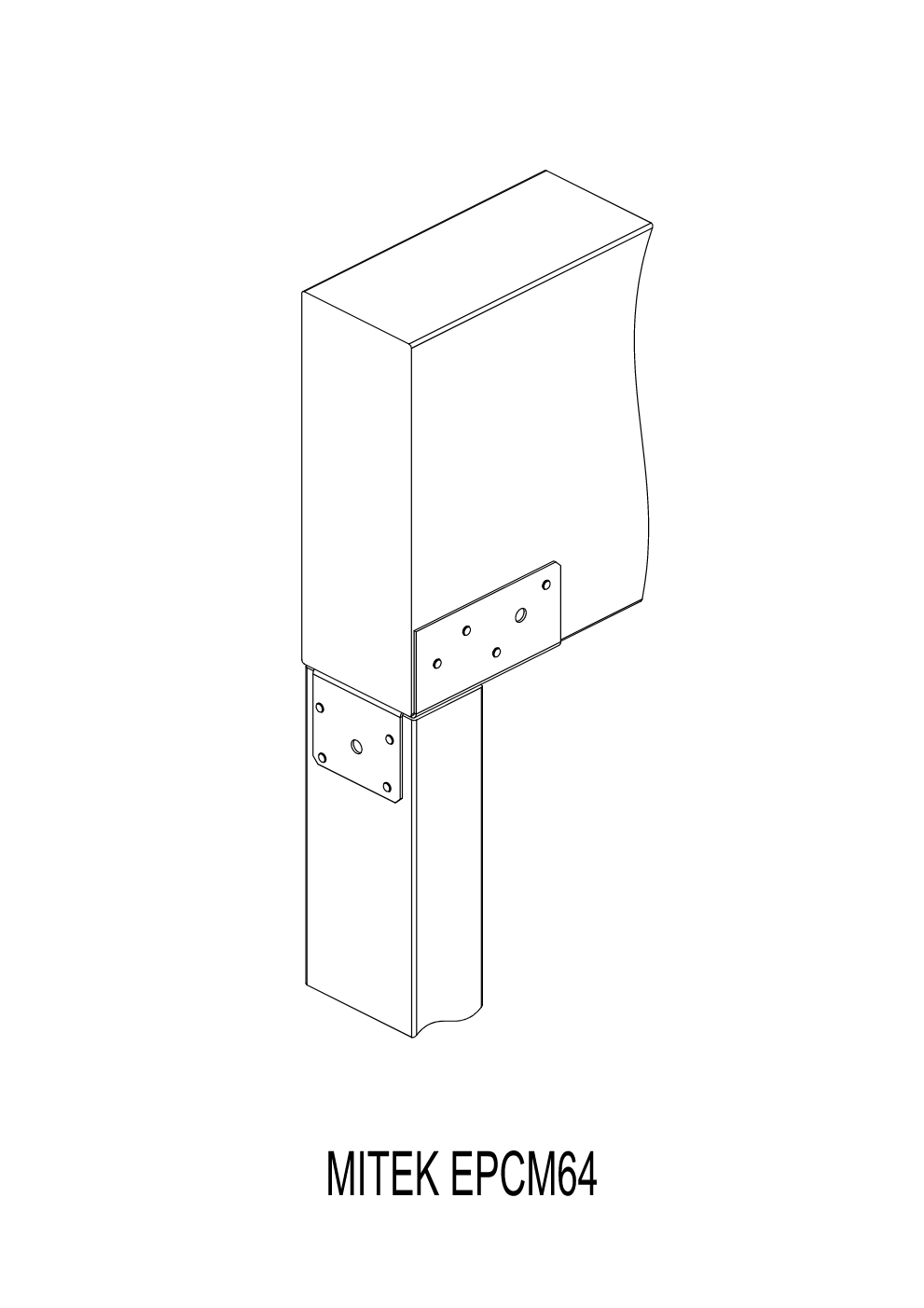

EPCM – End column caps.
EPCM – End column caps.
Materials: See Load Table
Finish: G90 galvanizing
Code Reports:
View Code Report Table
Resources
MiTek Product CatalogInstallation
- Use all specified fasteners.
- PCM 16 gauge post caps should not be substituted for PCM 12 gauge post caps unless approved by the Engineer of Record.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

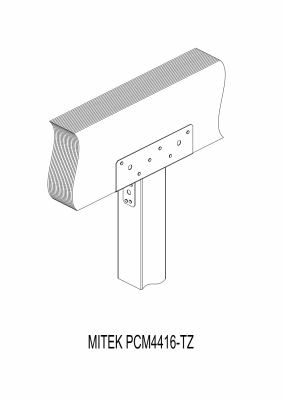

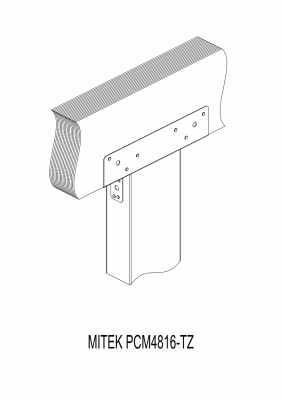

PCM Post Cap
Option Details:
Corrosion Resistant Products Table

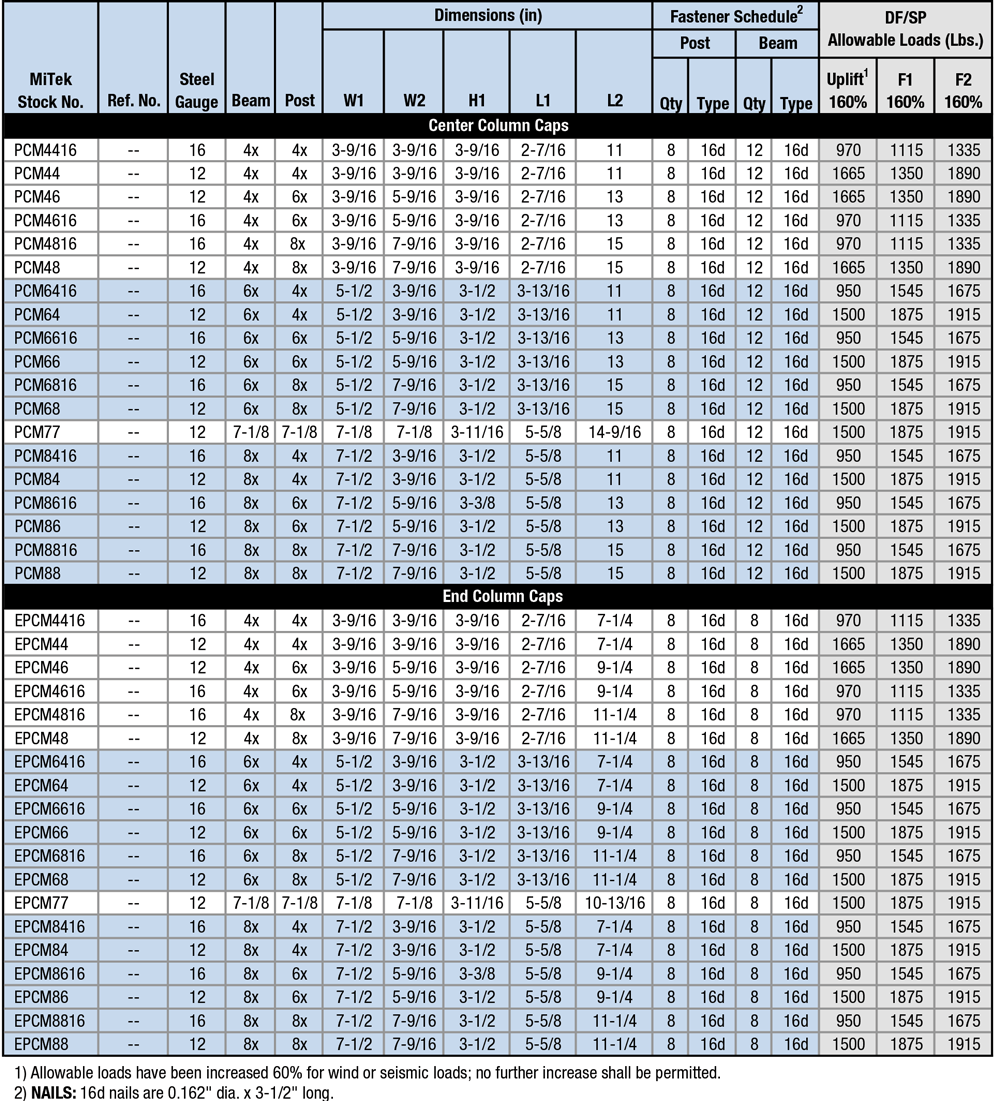

View / Download the above load table as a PDFCode Report Table

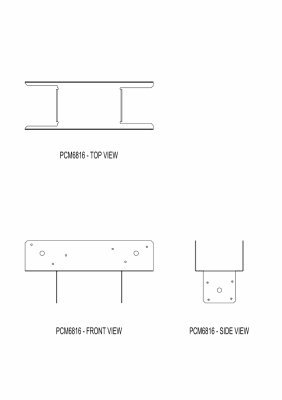

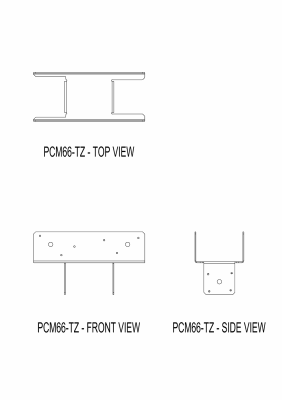

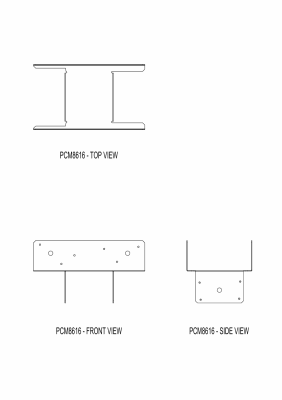

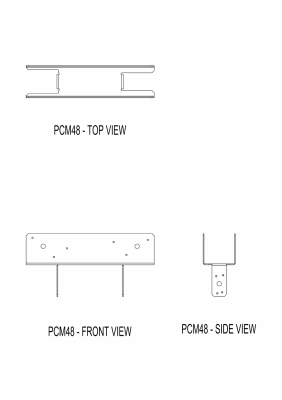

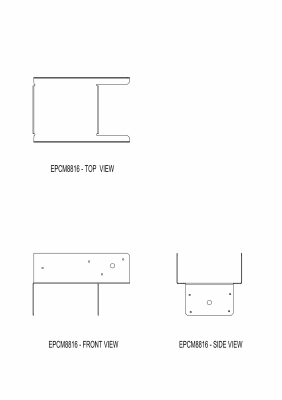

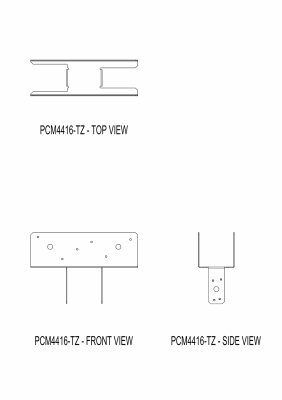

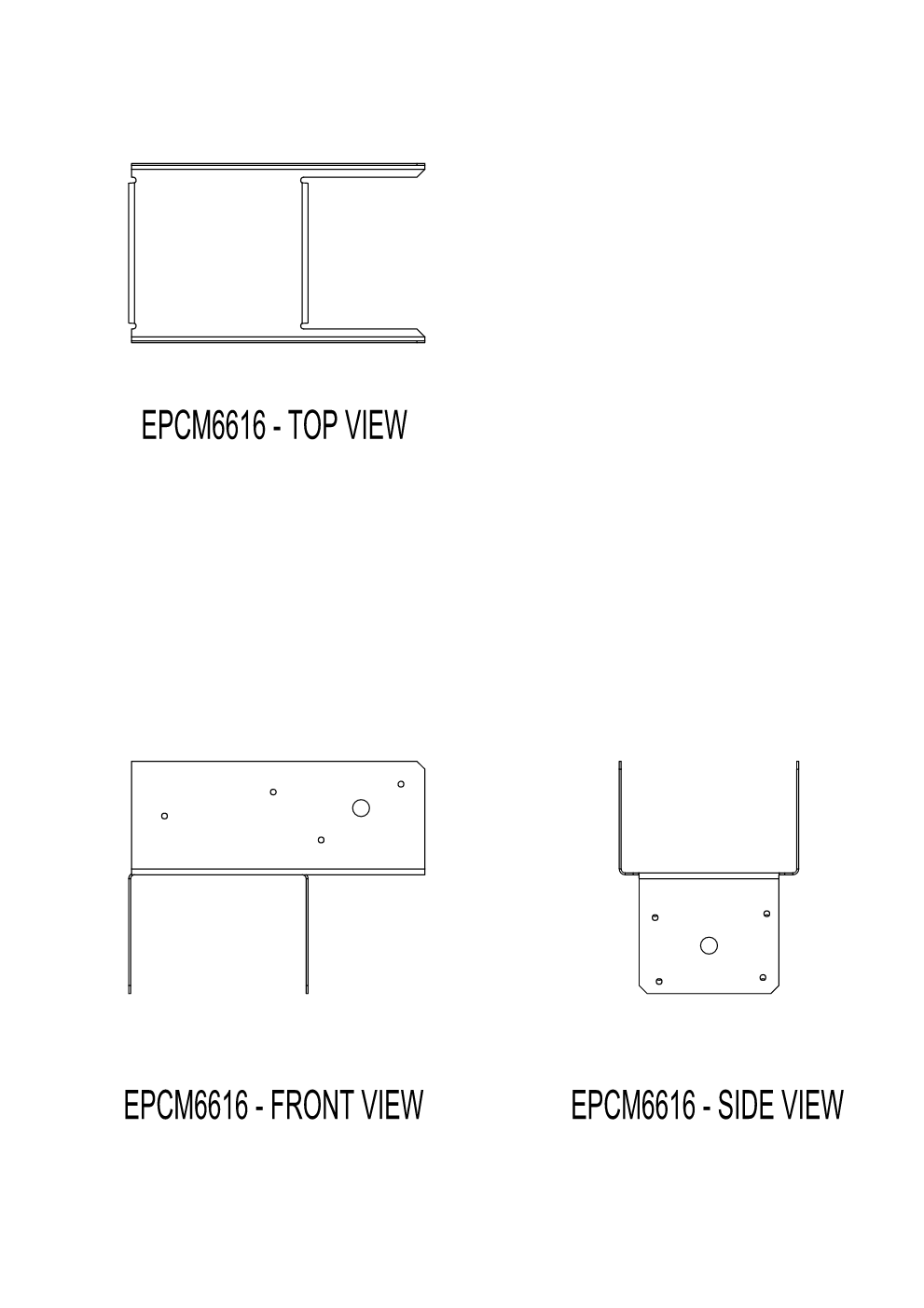

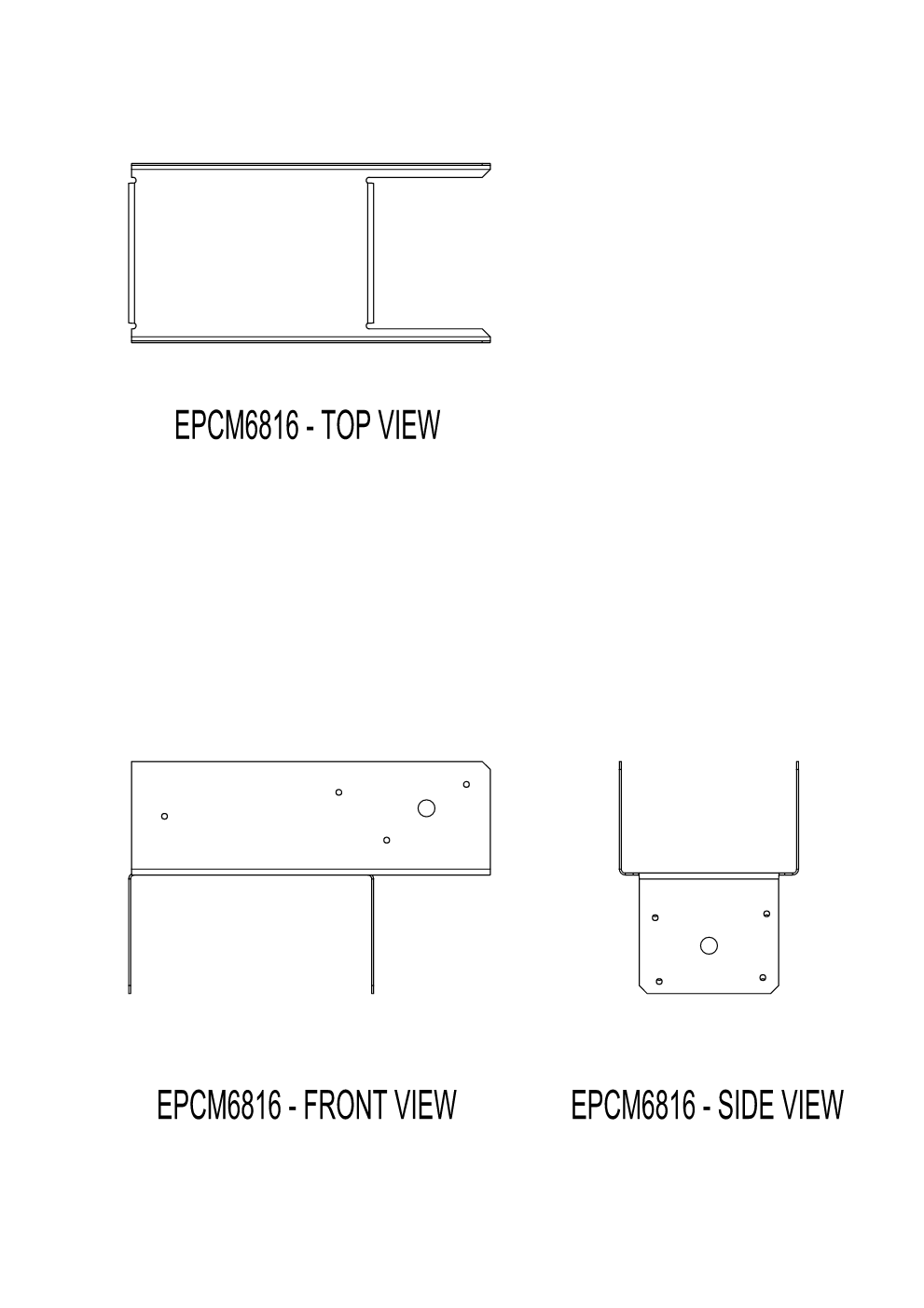

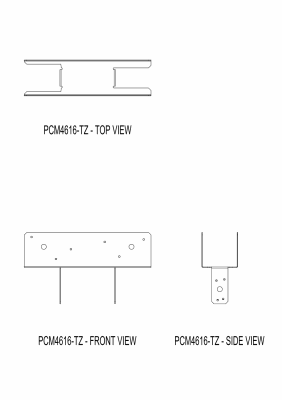

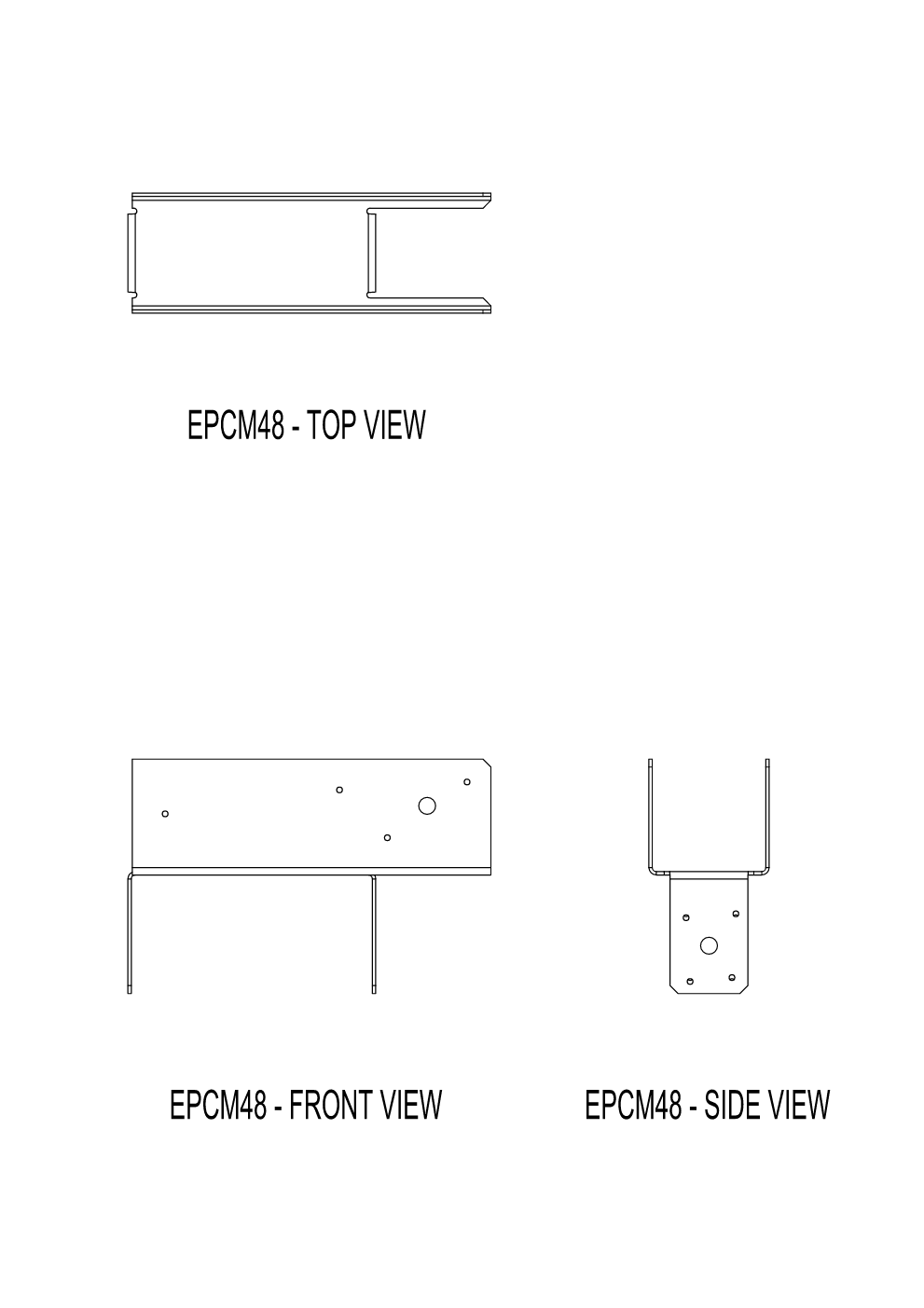

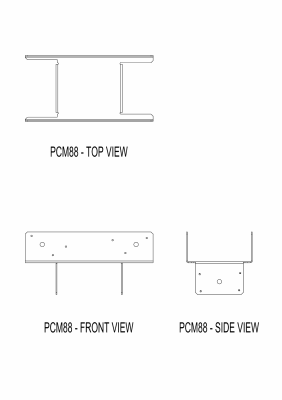

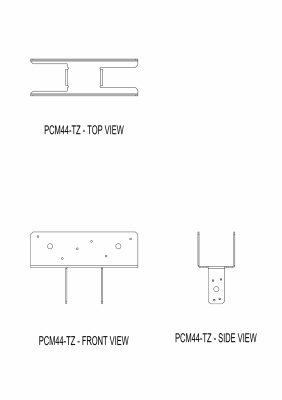

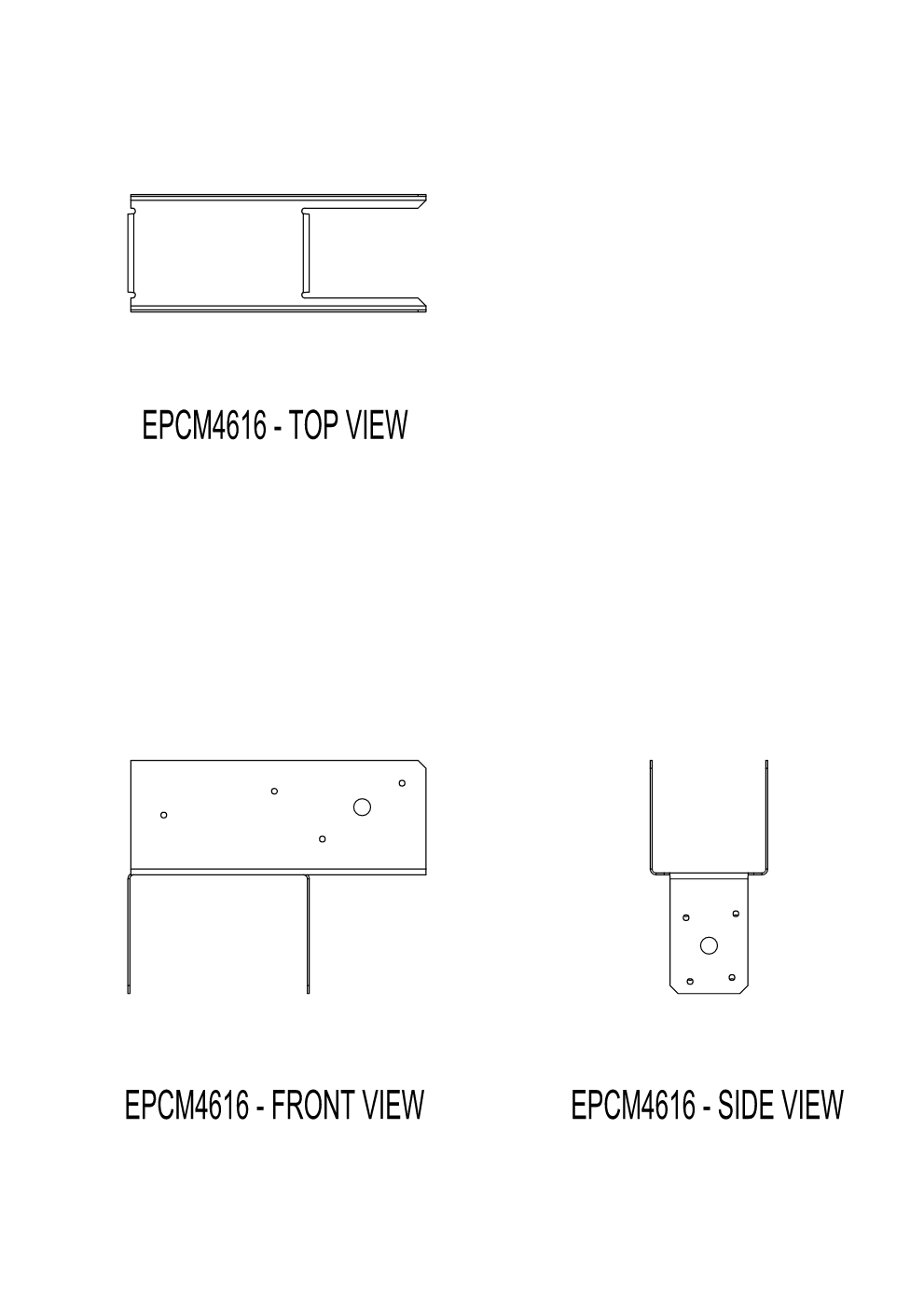

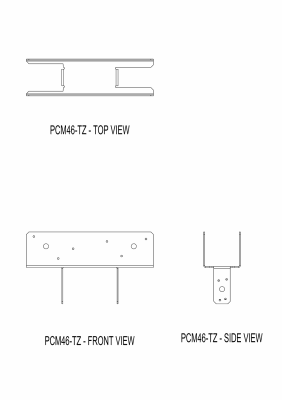

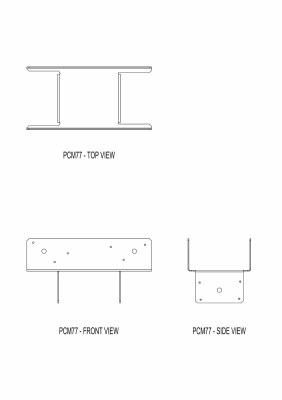

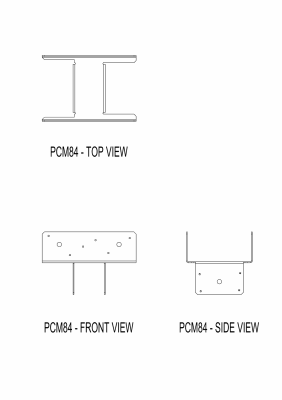

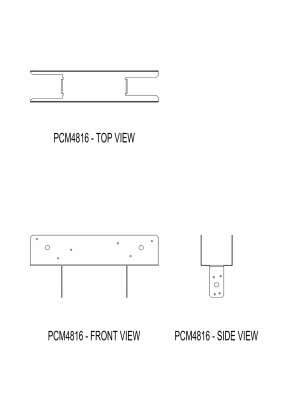

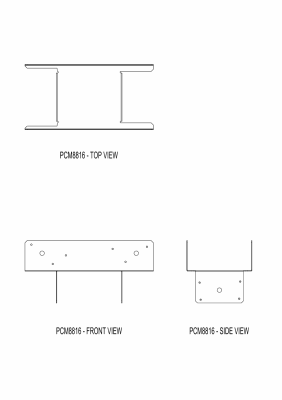

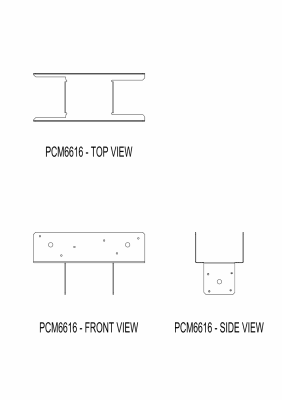

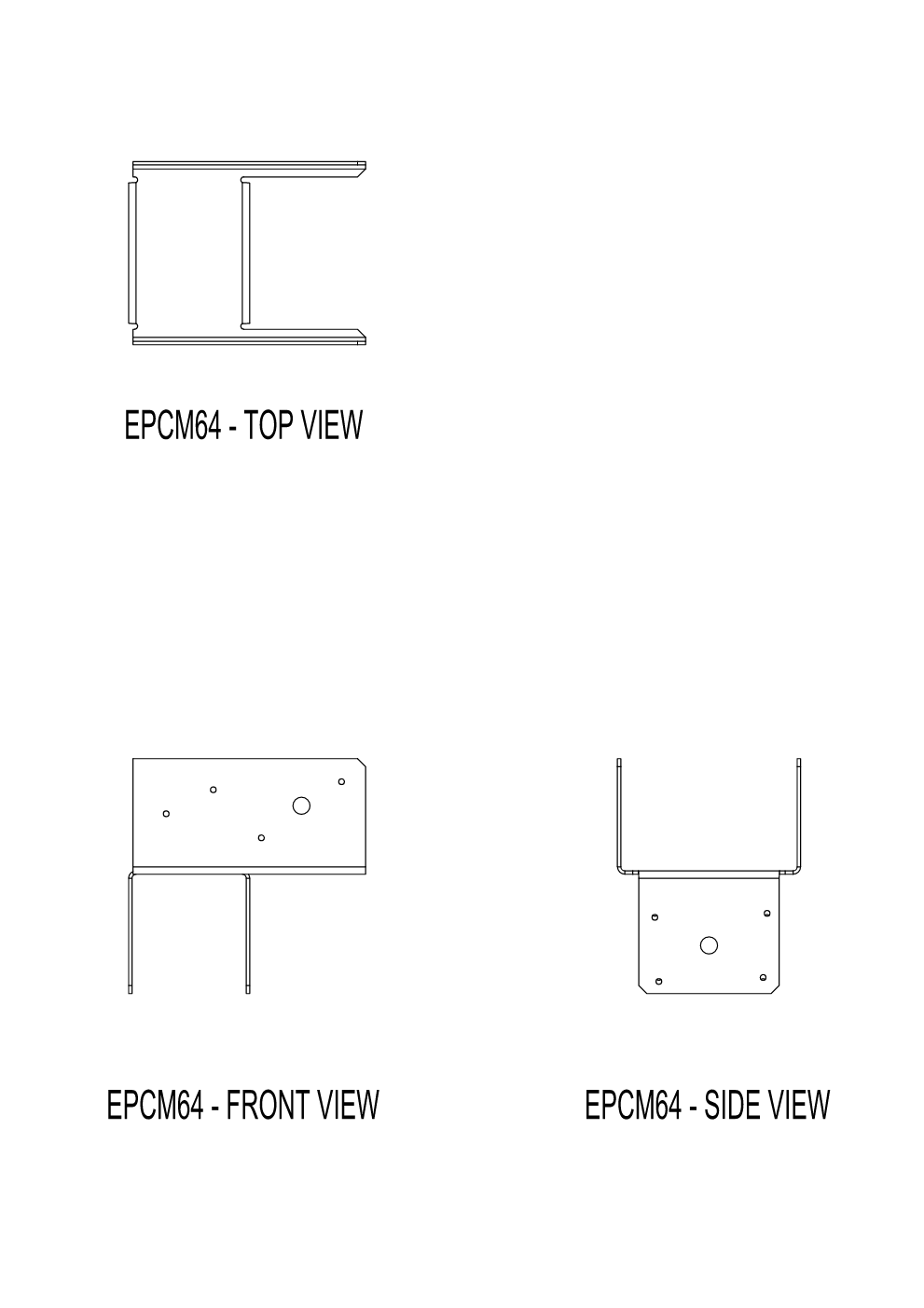

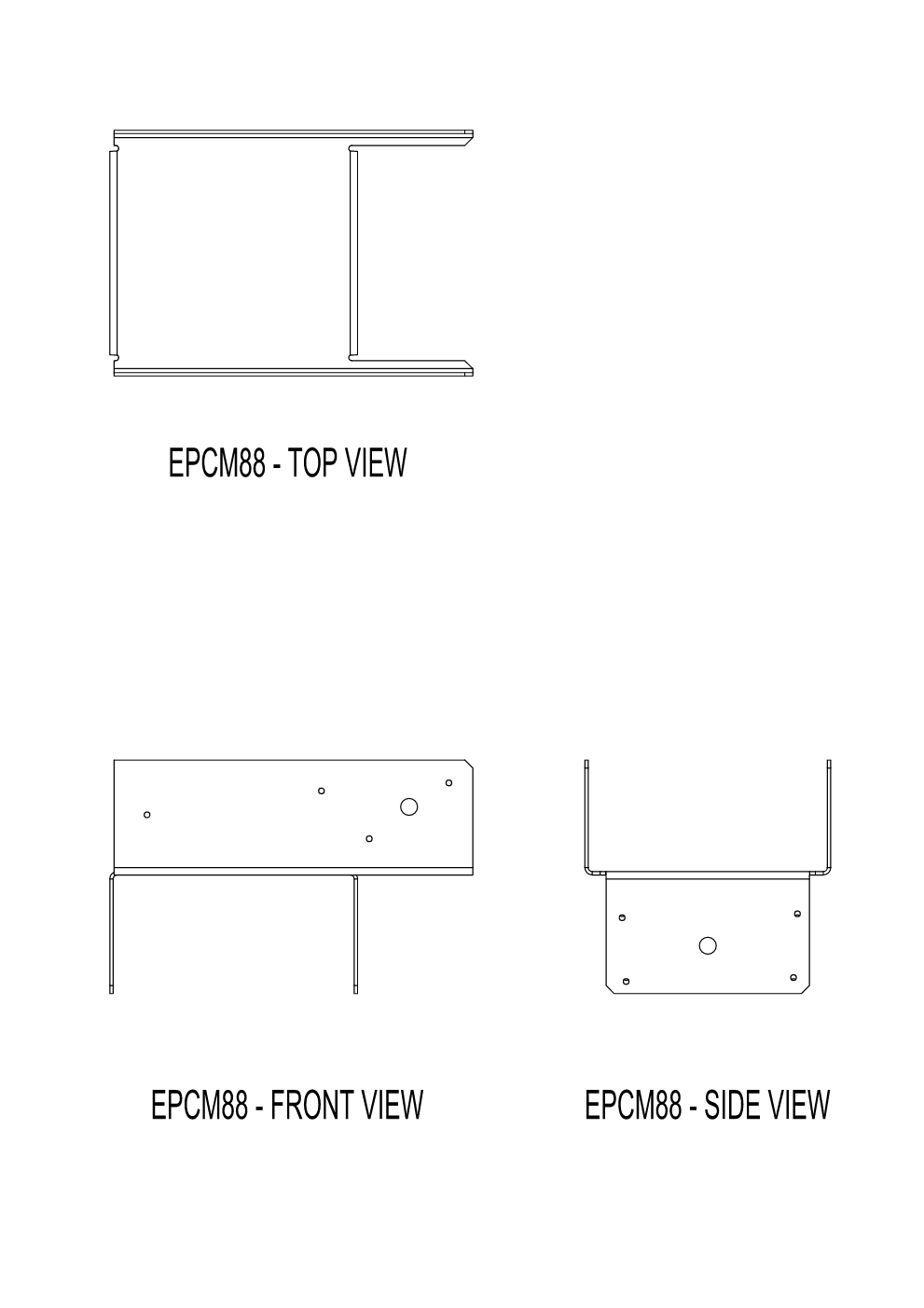

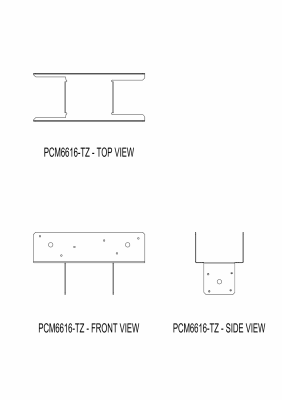

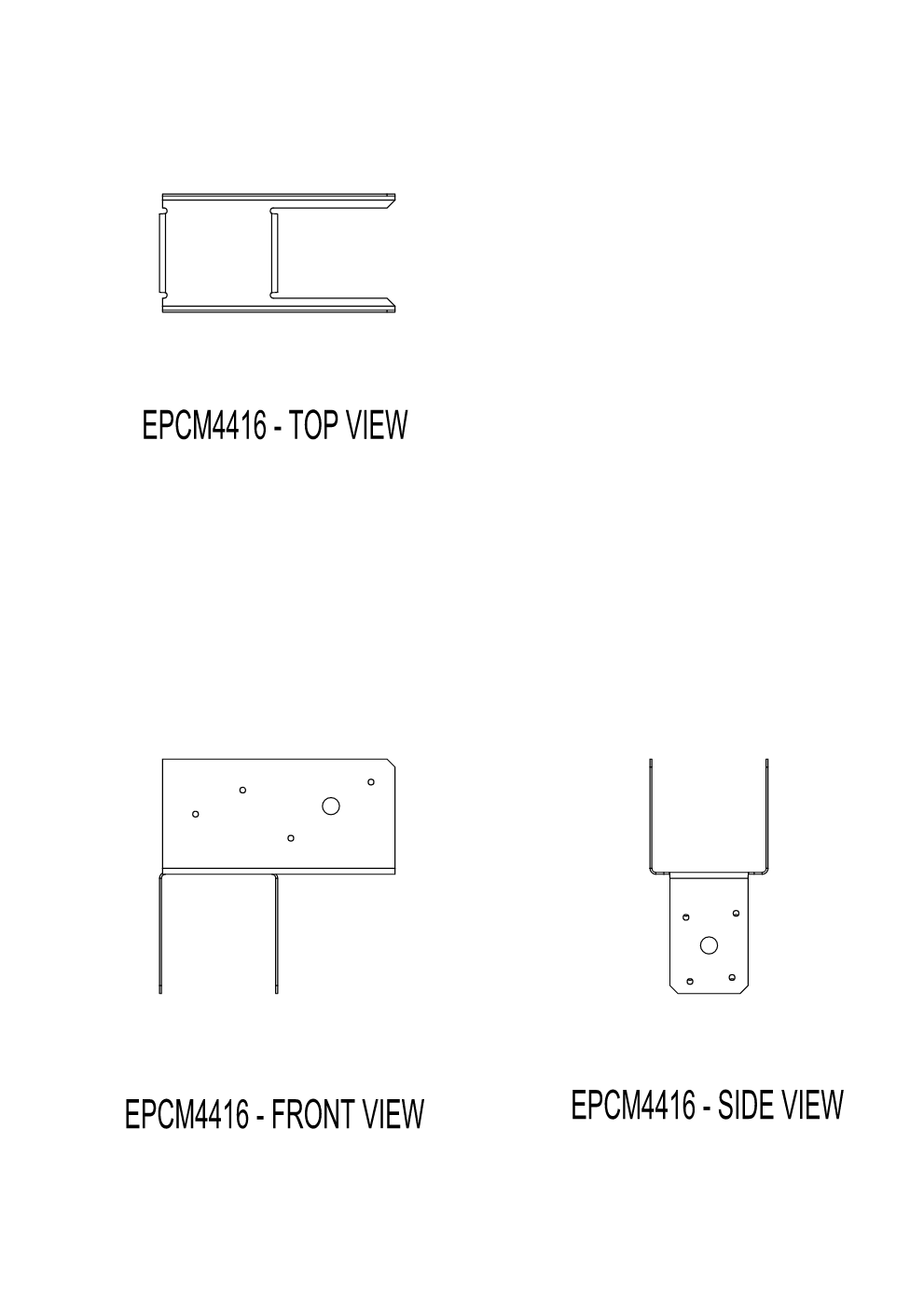

3-View Product Drawings
MiTek Stock # | Download or View Files | |||
---|---|---|---|---|

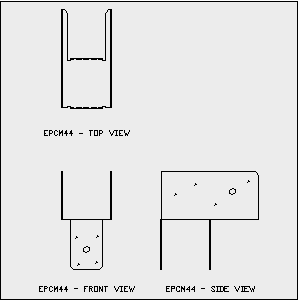

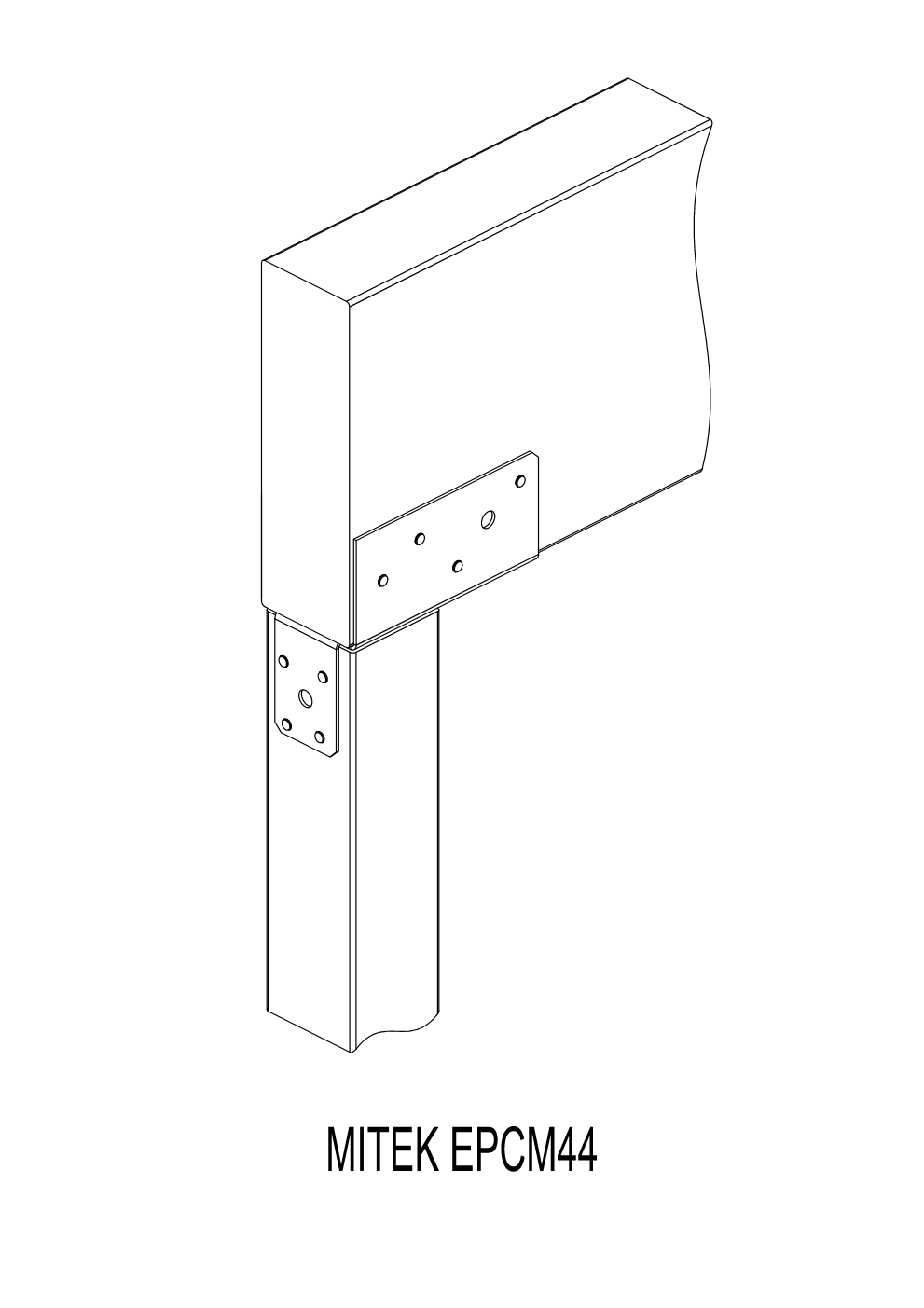

EPCM44 | DWG | DXF | View Image | |

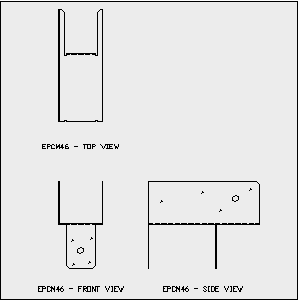

EPCM46 | DWG | DXF | View Image | |

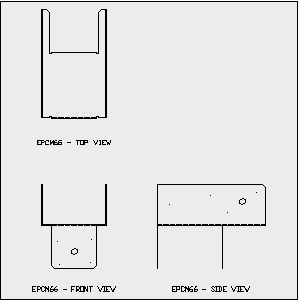

EPCM66 | DWG | DXF | View Image | |

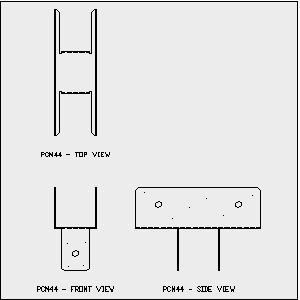

PCM44 | DWG | DXF | View Image | |

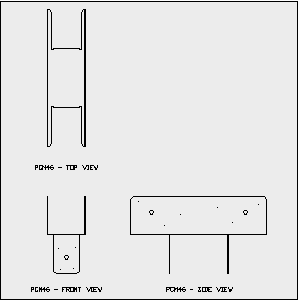

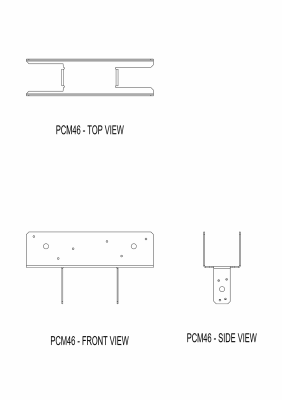

PCM46 | DWG | DXF | View Image | |

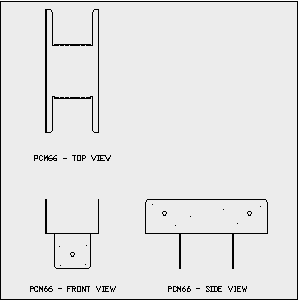

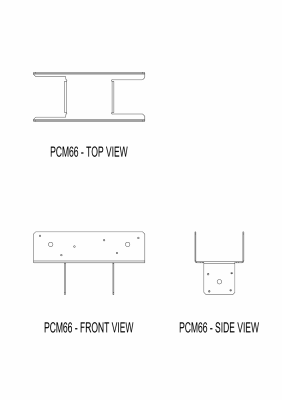

PCM66 | DWG | DXF | View Image | |

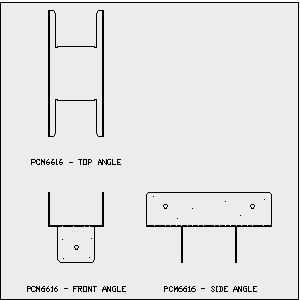

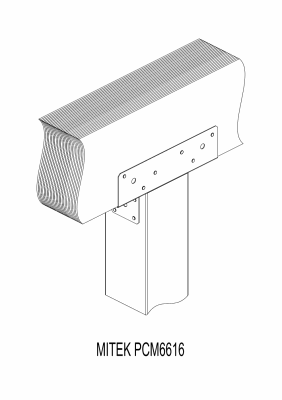

PCM6616 | DWG | DXF | View Image |
