Post Beam Corner Connectors

PBC

Reference Series: -- --
The PBC series is a one-piece connector designed to secure two mitered beams on a corner post while providing uplift capacity.
Materials: 18 gauge
Finish: G-185 galvanizing
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Install PBC on outside corner of post forming tabs to inner side of post.
  • Assumes beam members are bevel cut at corner.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Option Details:

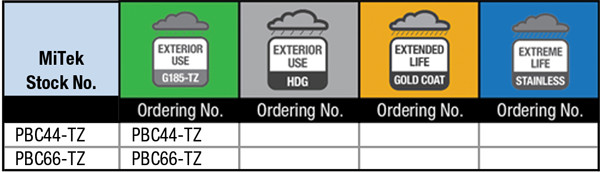

Corrosion Resistant Products Table

Corrosion Resistant Products Table View / Download the above load table as a PDF

Code Report Table

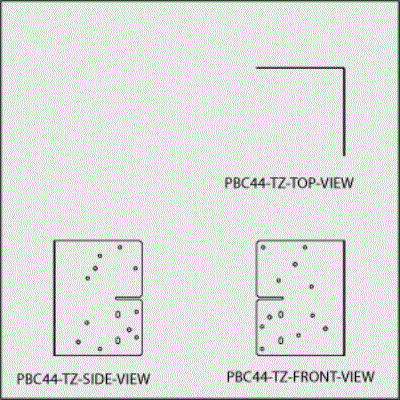

3-View Product Drawings

MiTek Stock # Download or View Files

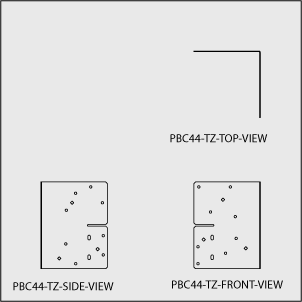

PBC44-TZ DWG DXF PDF View Image
