Caps and Bases
Post Anchors
D
Reference Series: BC
Secures nominal sized posts to wood surfaces for light-duty applications.
Materials: 18 gauge
Finish: G90 galvanizing; D44-TZ / D46R-TZ – G-185 galvanizing
Code Reports:
View Code Report Table
Technical Bulletins
Installation
Use all specified fasteners.
Not recommended for fence posts or other unrestrained (not fixed or fastened at top) applications. These anchors are not designed to resist overturning (moment) loads.
While D series post anchors offer some lateral and uplift resistance, they are not recommended as a primary means of anchorage for posts in railings.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
D44-TZ Post Anchor

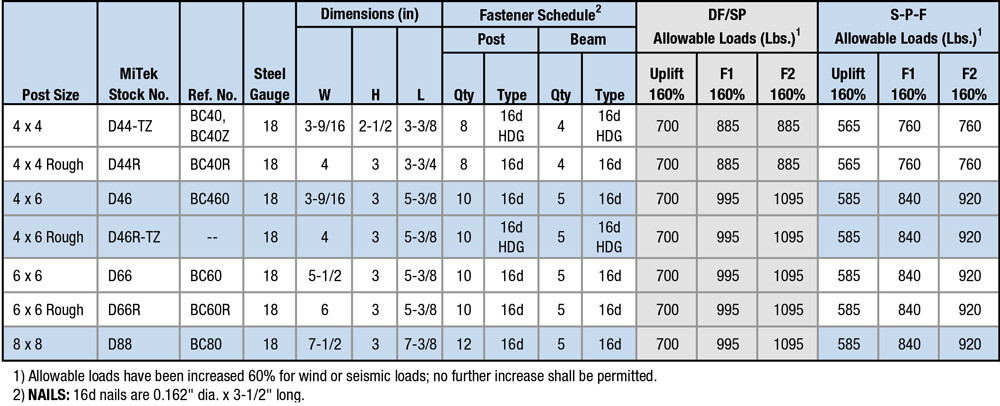

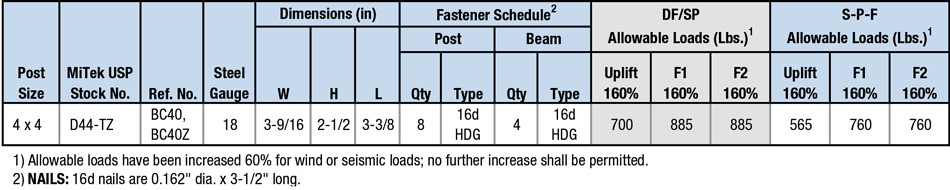

Load Table

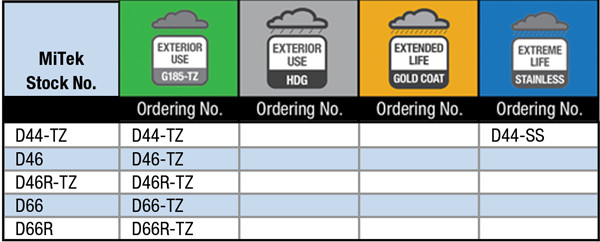

Option Details:
Code Report Table

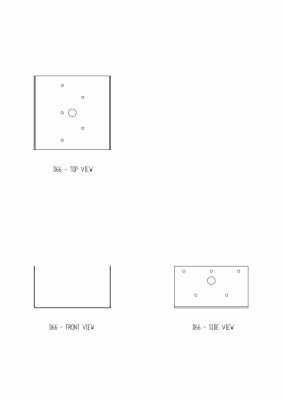

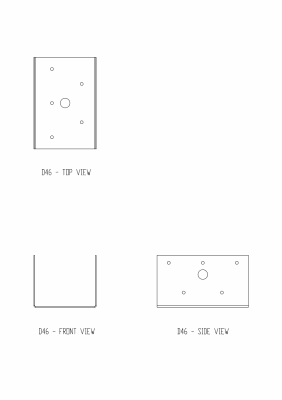

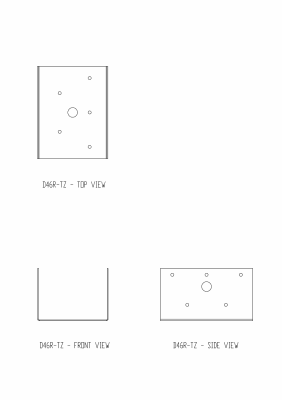

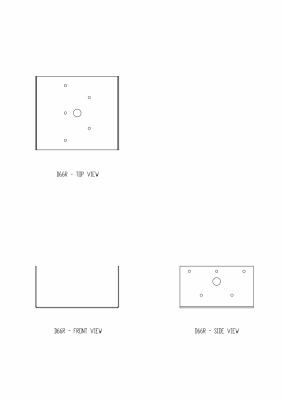

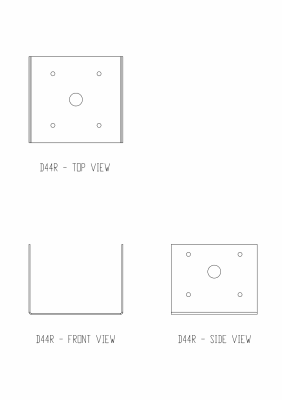

3-View Product Drawings
| MiTek Stock # | Download or View Files | |||
|---|---|---|---|---|

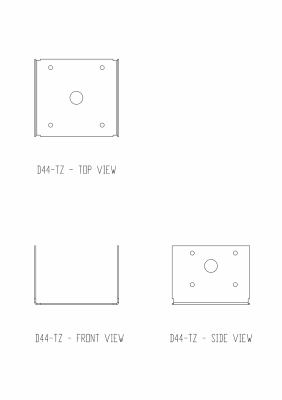

| D44-TZ | DWG | DXF | View Image | |
| D44R | DWG | DXF | View Image | |
| D46 | DWG | DXF | View Image | |
| D46R-TZ | DWG | DXF | View Image | |
| D66 | DWG | DXF | View Image | |
| D66-TZ | DWG | DXF | View Image | |

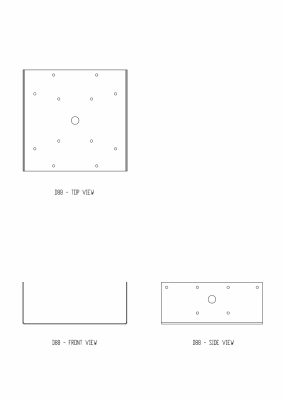

| D88 | DWG | DXF | View Image | |
Application Drawings
| MiTek Stock # | Download or View Files | ||||
|---|---|---|---|---|---|
| D44-TZ | Typical | DWG | DXF | View Image | |
| D46 | Typical | DWG | DXF | View Image | |
