Lally Column Caps

KLCC

Reference Series: LCC
Lally Column Caps connect lally columns to wood beams. Fits 3-1/2" and 4" diameter lally columns.
Materials: 12 gauge
Finish: USP primer
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Fit KLCC onto lally column. Position wood beam in KLCC saddle and fasten.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Code Report Table

KLCC35-35

No Code Listing

KLCC35-4

No Code Listing

KLCC45-35

No Code Listing

KLCC45-4

No Code Listing

KLCC525-35

No Code Listing

KLCC525-4

No Code Listing

KLCC6-35

No Code Listing

KLCC6-4

No Code Listing

KLCC7-35

No Code Listing

KLCC7-4

No Code Listing

3-View Product Drawings

MiTek Stock # Download or View Files
KLCC35-35 DWG DXF PDF View Image

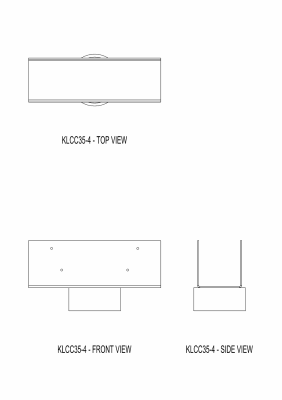

KLCC35-4 DWG DXF PDF View Image
KLCC45-35 DWG DXF PDF View Image
KLCC45-4 DWG DXF PDF View Image

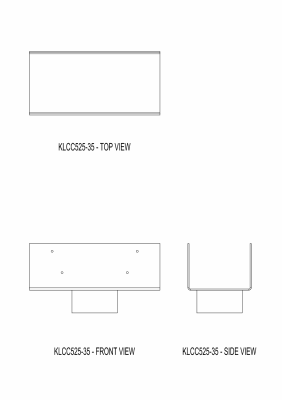

KLCC525-35 DWG DXF PDF View Image
KLCC525-4 DWG DXF PDF View Image

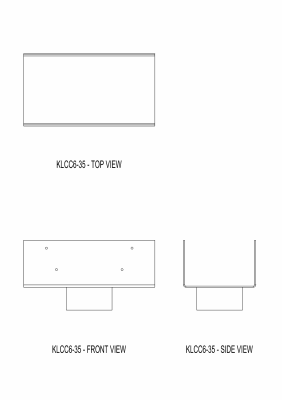

KLCC6-35 DWG DXF PDF View Image

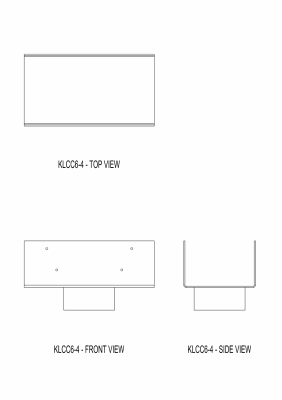

KLCC6-4 DWG DXF PDF View Image

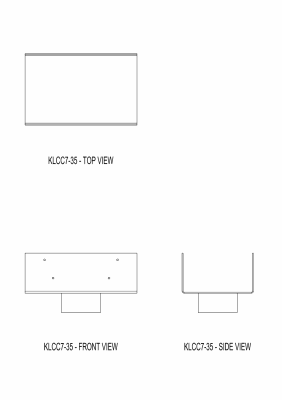

KLCC7-35 DWG DXF PDF View Image
KLCC7-4 DWG DXF PDF View Image

Application Drawings

MiTek Stock # Download or View Files

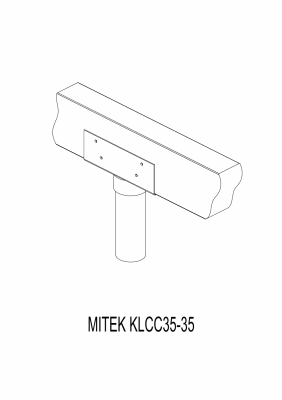

KLCC35-35 Typical DWG DXF PDF View Image

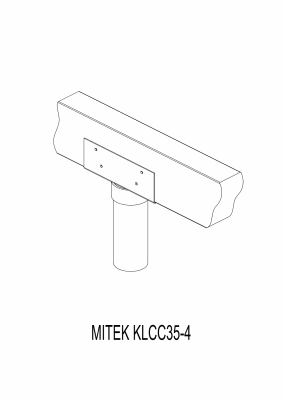

KLCC35-4 Typical DWG DXF PDF View Image

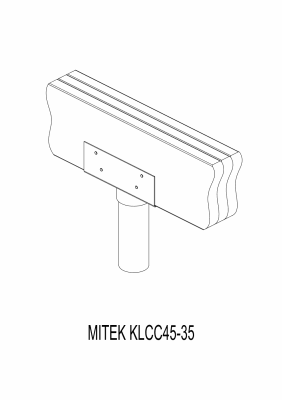

KLCC45-35 Typical DWG DXF PDF View Image
KLCC45-4 Typical DWG DXF PDF View Image

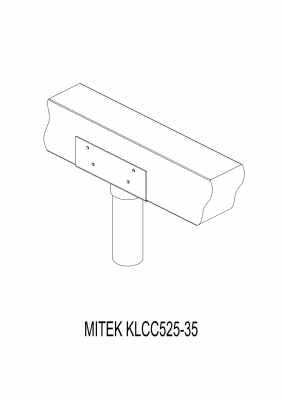

KLCC525-35 Typical DWG DXF PDF View Image
KLCC525-4 Typical DWG DXF PDF View Image

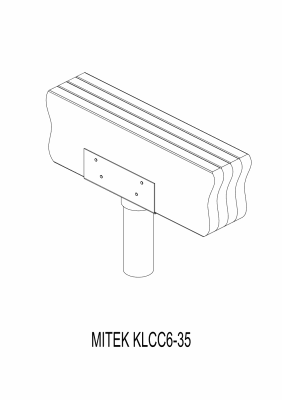

KLCC6-35 Typical DWG DXF PDF View Image

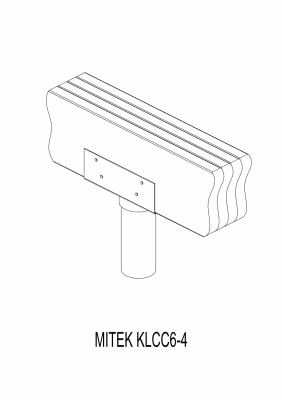

KLCC6-4 Typical DWG DXF PDF View Image

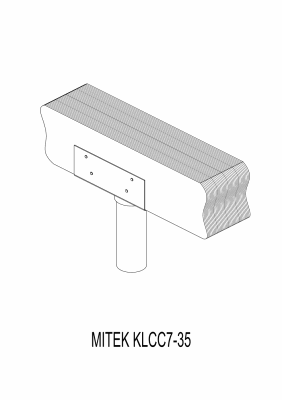

KLCC7-35 Typical DWG DXF PDF View Image

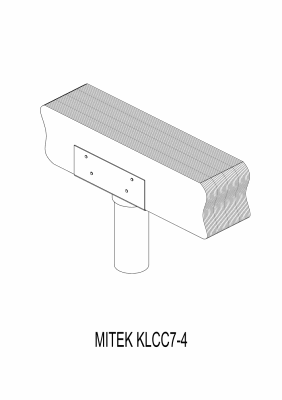

KLCC7-4 Typical DWG DXF PDF View Image
