Caps and Bases
Column Bases
KCB
Reference Series: CB
Provides high structural capacity and installs with bolts providing an architectural appearance.
Materials: See Load Table
Finish: KCB (5/8" bolt models) – G90 galvanizing; KCB (3/4" bolt models) – USP primer
Code Reports:
View Code Report Table
Resources
MiTek Product CatalogTechnical Bulletins
Installation
- Use all specified fasteners.
- Not recommended for fence posts or other unrestrained (not fixed or fastened at top) applications. These bases are not designed to resist overturning (moment) loads.

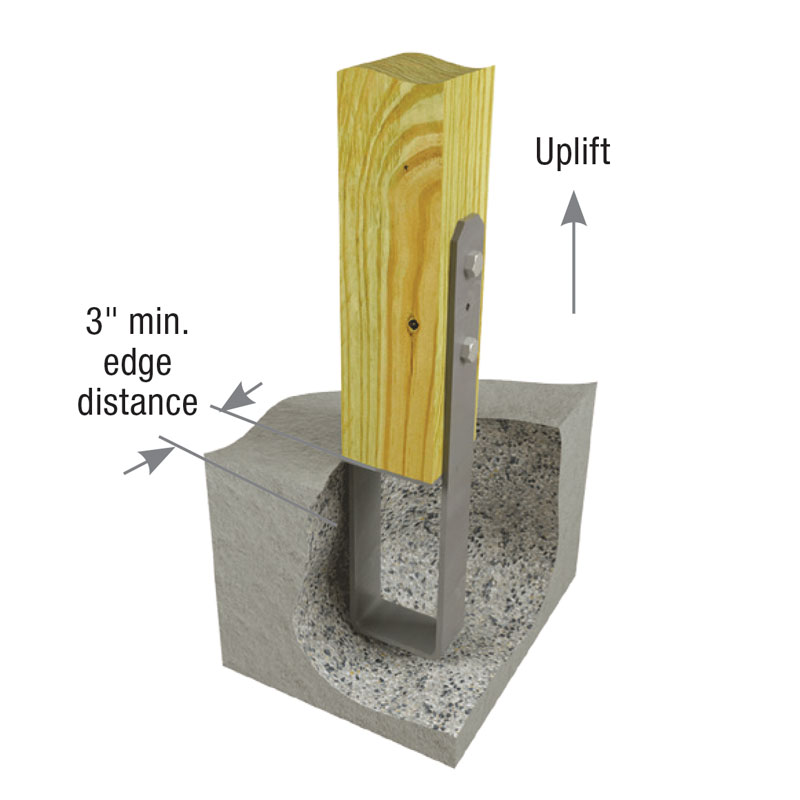

- KCB column bases require a minimum edge distance of 3″.
- Maintain 3″ minimum edge distance between post and edge of concrete.
- Embed column base with bottom of base plate flush to concrete.
- Reference IRC R407.3, IBC 2304.10.7
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

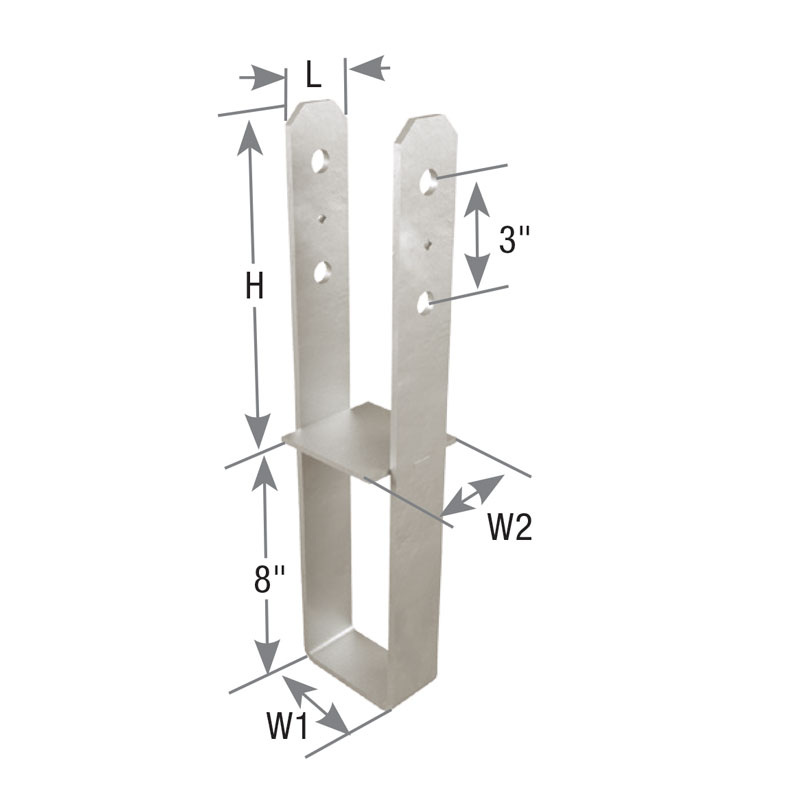

KCB Column Base
Option Details:

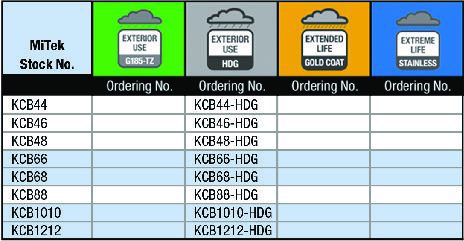

Corrosion Resistant Products Table>KCB models available in rough/full sizes.

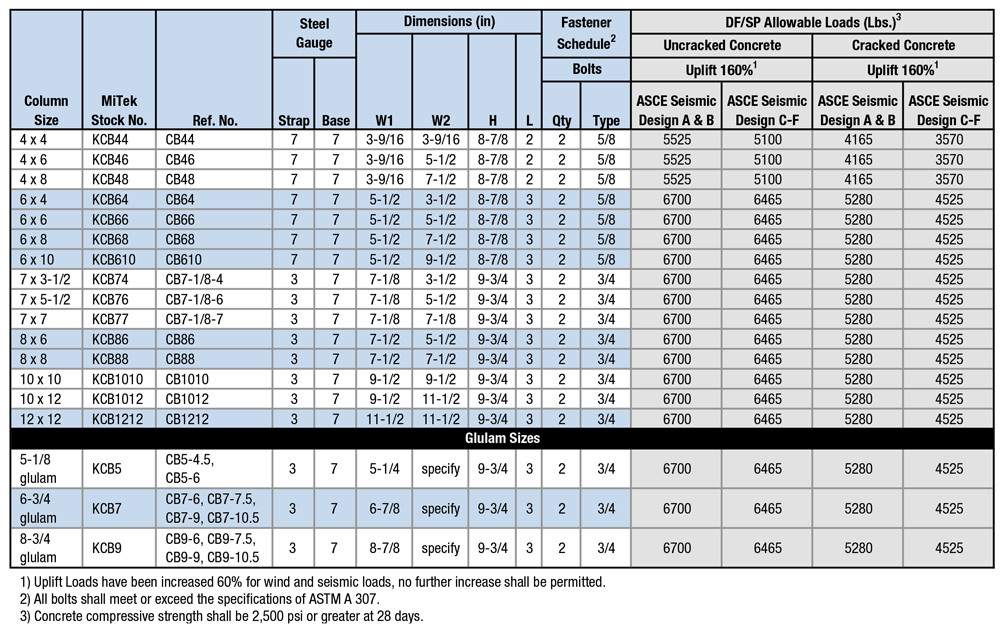

View / Download the above load table as a PDF
Code Report Table
KCB1010
KCB1012
No Code Listing
KCB1212
No Code Listing
KCB44
No Code Listing
KCB46
No Code Listing
KCB46-HDG
No Code Listing
KCB48
No Code Listing
KCB5
No Code Listing
KCB610
No Code Listing
KCB64
No Code Listing
KCB66
No Code Listing
KCB66-HDG
No Code Listing
KCB68
No Code Listing
KCB7
No Code Listing
KCB74
No Code Listing
KCB76
No Code Listing
KCB77
No Code Listing
KCB86
No Code Listing
KCB88
No Code Listing
KCB9
No Code Listing
No Code Listing
