Angles & Straps

Stud Plate Ties

SPT / SPTH / SPTHW

Reference Series: SP, SPH

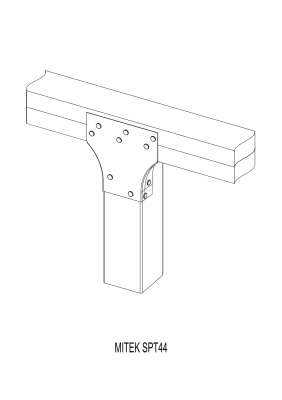

SPT – 20 gauge. Ties single and double plates to studs.
SPTH – Heavier 18 gauge version of SPT.

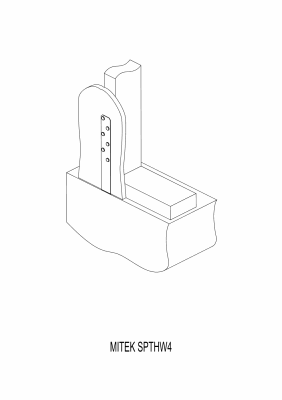

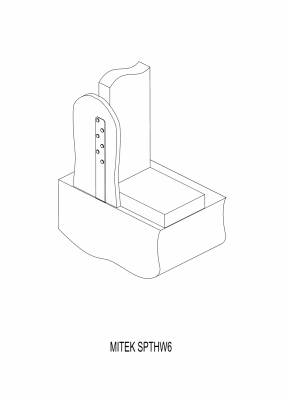

SPTHW – 18 gauge. Attaches plate to studs over 1/2" sheathing.

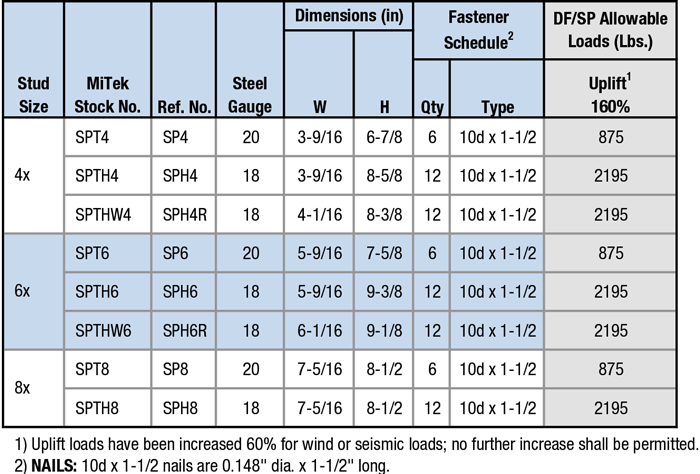

Materials: See Load Table
Finish: G90 galvanizing
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Option Details:

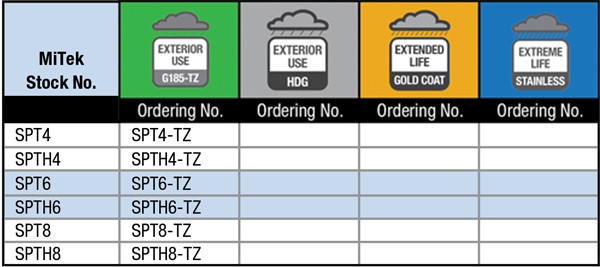

Corrosion Resistant Products Table

Corrosion Resistant Products Table View / Download the above load table as a PDF

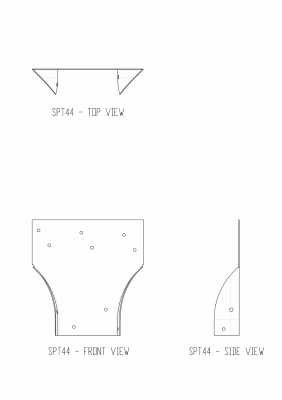

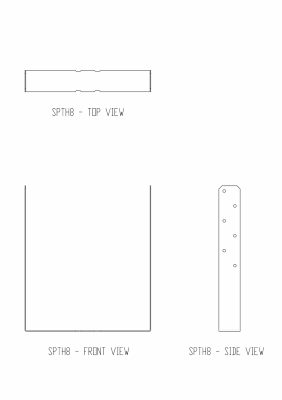

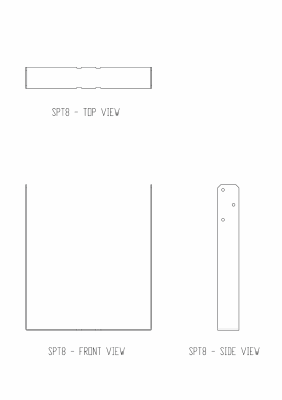

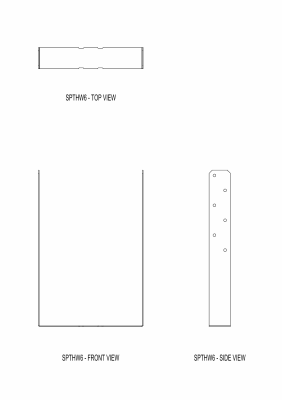

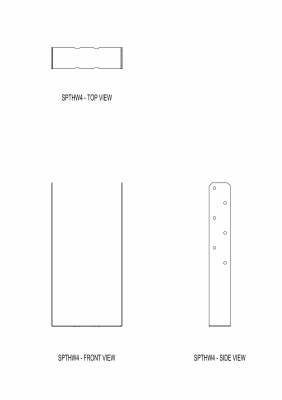

3-View Product Drawings

MiTek Stock # Download or View Files

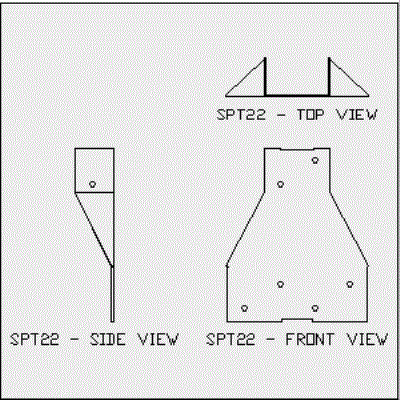

SPT22 DWG DXF PDF View Image

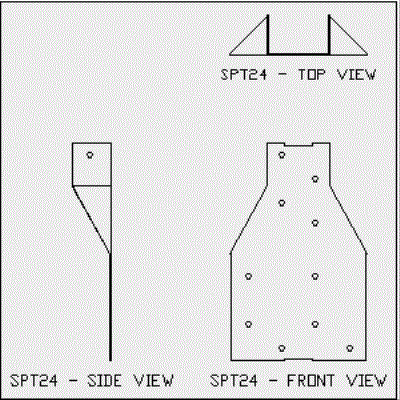

SPT24 DWG DXF PDF View Image

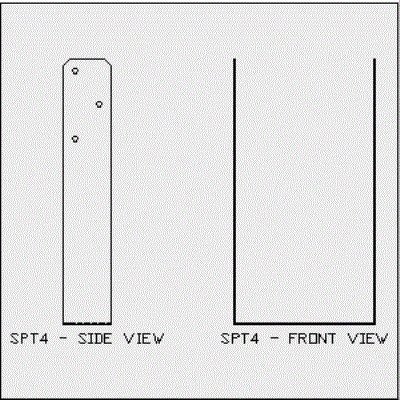

SPT4 DWG DXF PDF View Image

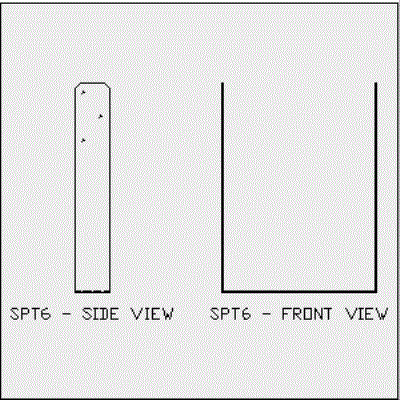

SPT6 DWG DXF PDF View Image

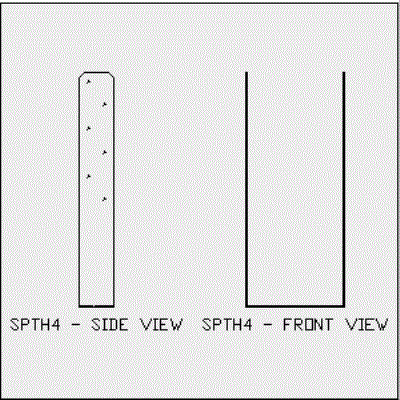

SPTH4 DWG DXF PDF View Image

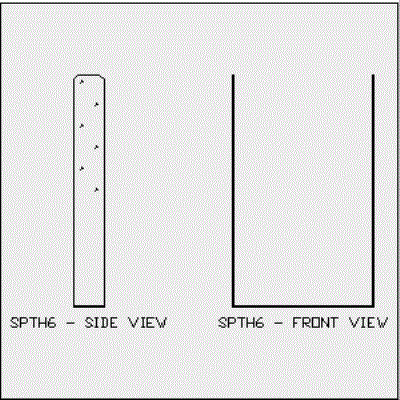

SPTH6 DWG DXF PDF View Image

High Wind Drawings

MiTek Stock # Download or View Files
SPT
Window/DoorDWGDXFPDFView Image
Top Plate to WallDWGDXFPDFView Image
Truss Single StoryDWGDXFPDFView Image
Mono Concrete SlabDWGDXFPDFView Image
SPT22
Truss Single StoryDWGDXFPDFView Image
Mono Concrete SlabDWGDXFPDFView Image
SPT24
Top Plate to WallDWGDXFPDFView Image
Truss Single StoryDWGDXFPDFView Image
SPT4
Window/DoorDWGDXFPDFView Image
Top Plate to WallDWGDXFPDFView Image
Truss Single StoryDWGDXFPDFView Image
SPTH
Window/DoorDWGDXFPDFView Image
Top Plate to WallDWGDXFPDFView Image
SPTH4
Window/DoorDWGDXFPDFView Image
Top Plate to WallDWGDXFPDFView Image
