Angles & Straps
Stud Plate Ties
SPT / SPTH / SPTHW
Reference Series: SP, SPH
SPT – 20 gauge. Ties single and double plates to studs.
SPTH – Heavier 18 gauge version of SPT.
SPTHW – 18 gauge. Attaches plate to studs over 1/2" sheathing.
SPTH – Heavier 18 gauge version of SPT.
SPTHW – 18 gauge. Attaches plate to studs over 1/2" sheathing.
Materials: See Load Table
Finish: G90 galvanizing
Code Reports:
View Code Report Table
Resources
MiTek Product CatalogTechnical Bulletins
Installation
- Use all specified fasteners.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
SPT Stud Plate Tie
Option Details:
Code Report Table
3-View Product Drawings
| MiTek Stock # | Download or View Files | |||
|---|---|---|---|---|
| SPT22 | DWG | DXF | View Image | |
| SPT24 | DWG | DXF | View Image | |
| SPT4 | DWG | DXF | View Image | |
| SPT6 | DWG | DXF | View Image | |

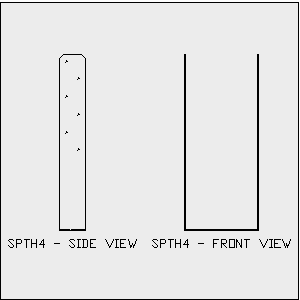

| SPTH4 | DWG | DXF | View Image | |

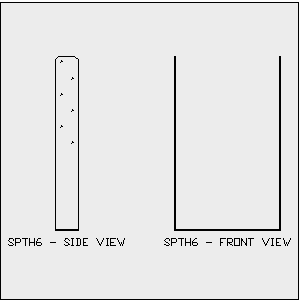

| SPTH6 | DWG | DXF | View Image | |
High Wind Drawings
| MiTek Stock # | Download or View Files | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPT |
|
||||||||||||||||||||
| SPT22 |
|
||||||||||||||||||||
| SPT24 |
|
||||||||||||||||||||
| SPT4 |
|
||||||||||||||||||||
| SPTH |
|
||||||||||||||||||||
| SPTH4 |
|
||||||||||||||||||||
