Stair Angles

sca

Reference Series: TAZ
Stair angles simplify stair construction. There is no need to calculate and notch stair stringers. Stronger and safer than wood blocking, and the angle and fasteners are hidden from view.

Materials: 12 gauge

Finish: G-185 galvanizing

Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Use the SCA9-TZ for single 2x10 stair treads and SCA10-TZ for double 2x6 stair treads.
  • To calculate stair construction do the following:
    1. Find the number of steps needed by taking the vertical drop from the deck surface to grade. Divide by 7. Round off to the nearest whole number. (Ex: Vertical drop of 39" divided by 7 equals 5.57" rounded off is 6")
    2. Find the step rise by dividing the vertical drop by the number of steps (39" divided by 6 = 6.5")
    3. Find the step run by measuring the depth of your tread board (Ex: (2) 2x6s have a run of 11-1/4")
    4. Find the stairway span by multiplying the run by the number of treads minus one (Ex: 11-1/4" x 5 = 56-1/4")

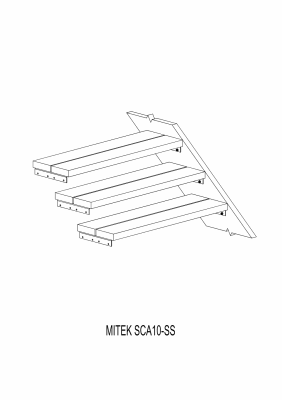

  • Using the above calculations, mark stair angle locations on each stringer. Attach a stair angle to the inside of each stringer at the marked locations. Attach stringers to deck rim joist and railing posts. Position treadboards on angles and fasten from below.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

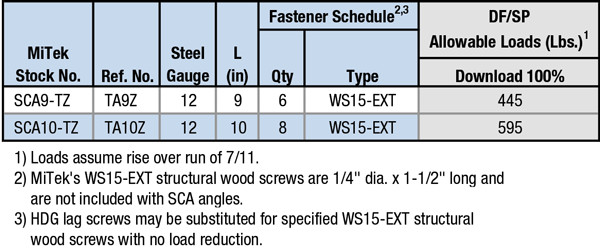

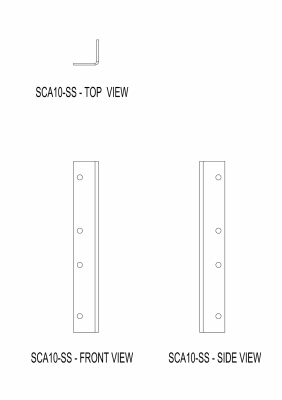

Option Details:

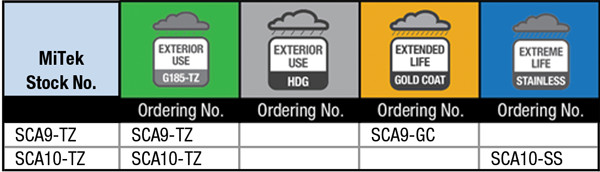

Corrosion Resistant Products Table

Corrosion Resistant Products Table

View / Download the above option details as a PDF

Code Report Table

USP Stock# ICC-ES IAPMO FLORIDA LA CITY
SCA10-TZ
583 FL17245 RR 25836
SCA9-TZ
583 FL17245 RR 25836
