Solid Sawn Hangers
CONCEALED JOIST HANGERS
CJHQ
Reference Series: CJTZ

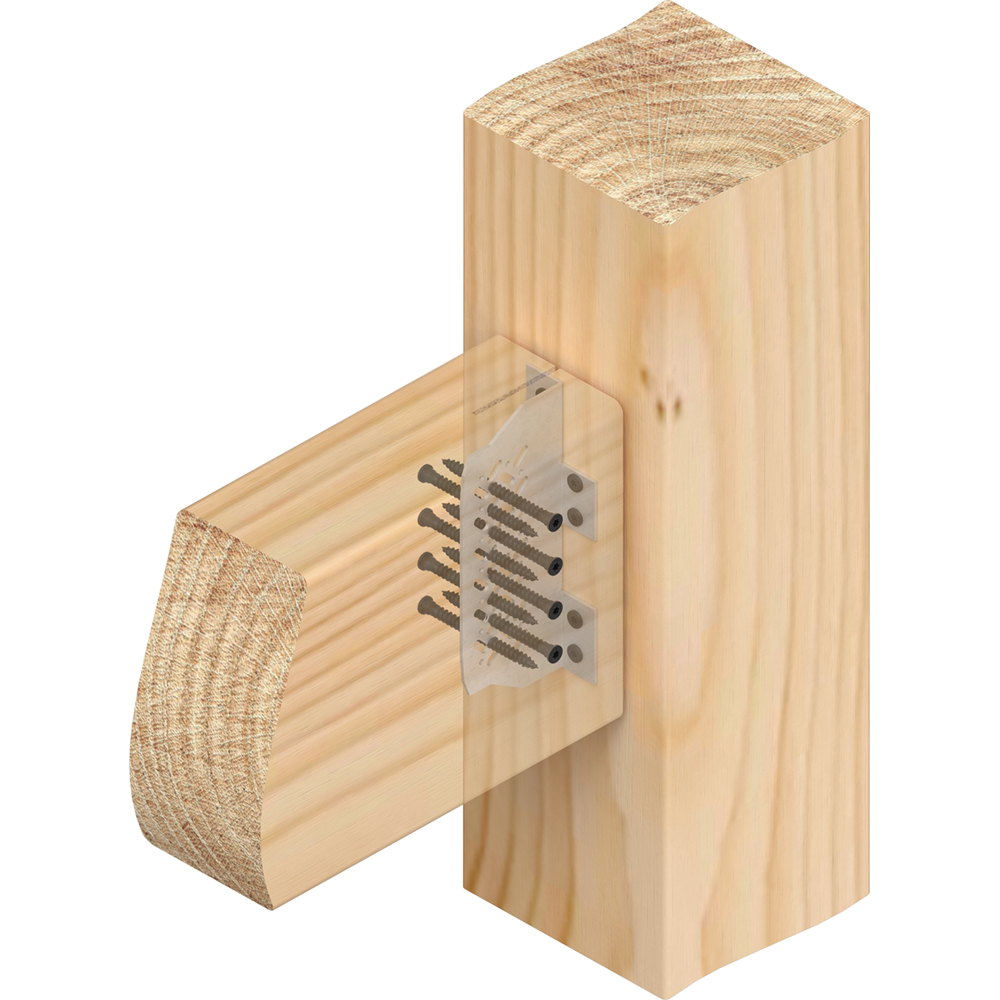

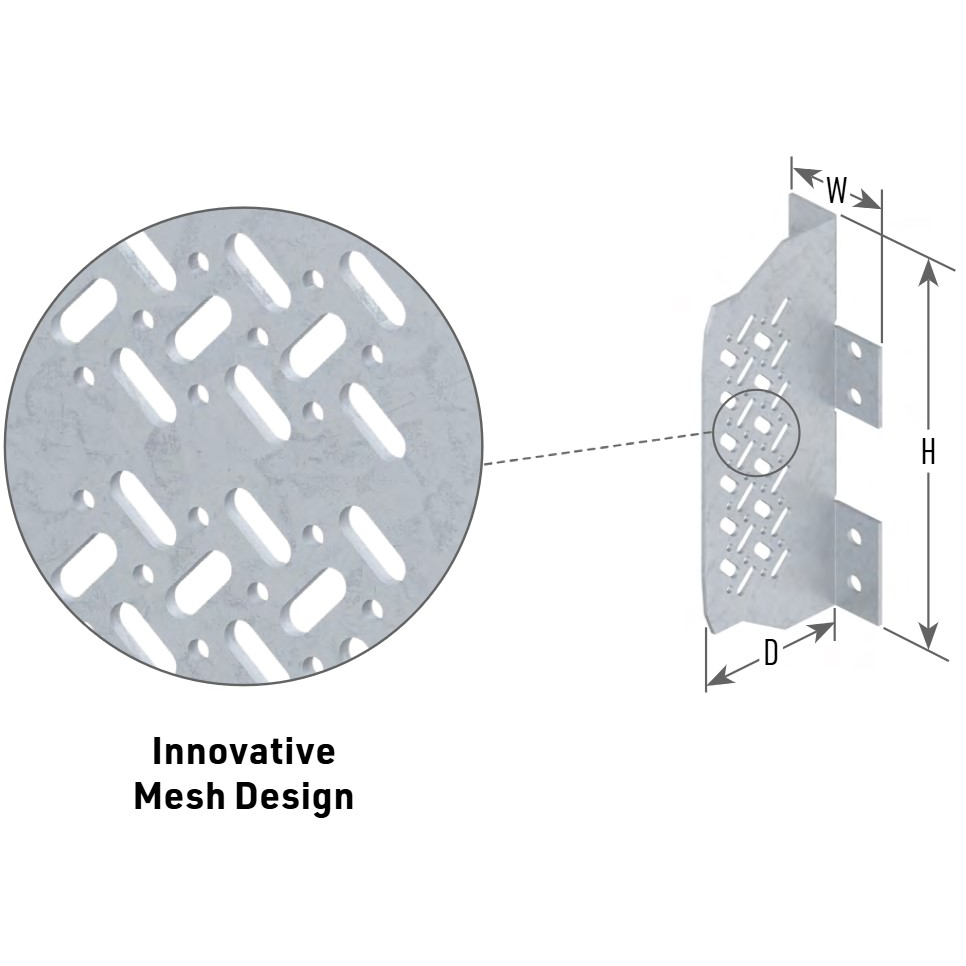

CJHQ concealed joist hangers discreetly secure wood joists to posts and beams. These innovative hangers use a new installation method and provide a hidden structural connection for a clean look in architectural applications. The innovative mesh design makes installation easier by allowing the screws to be installed in a larger target area. Precise drilling for pins and bolts is not needed, making installation much easier.

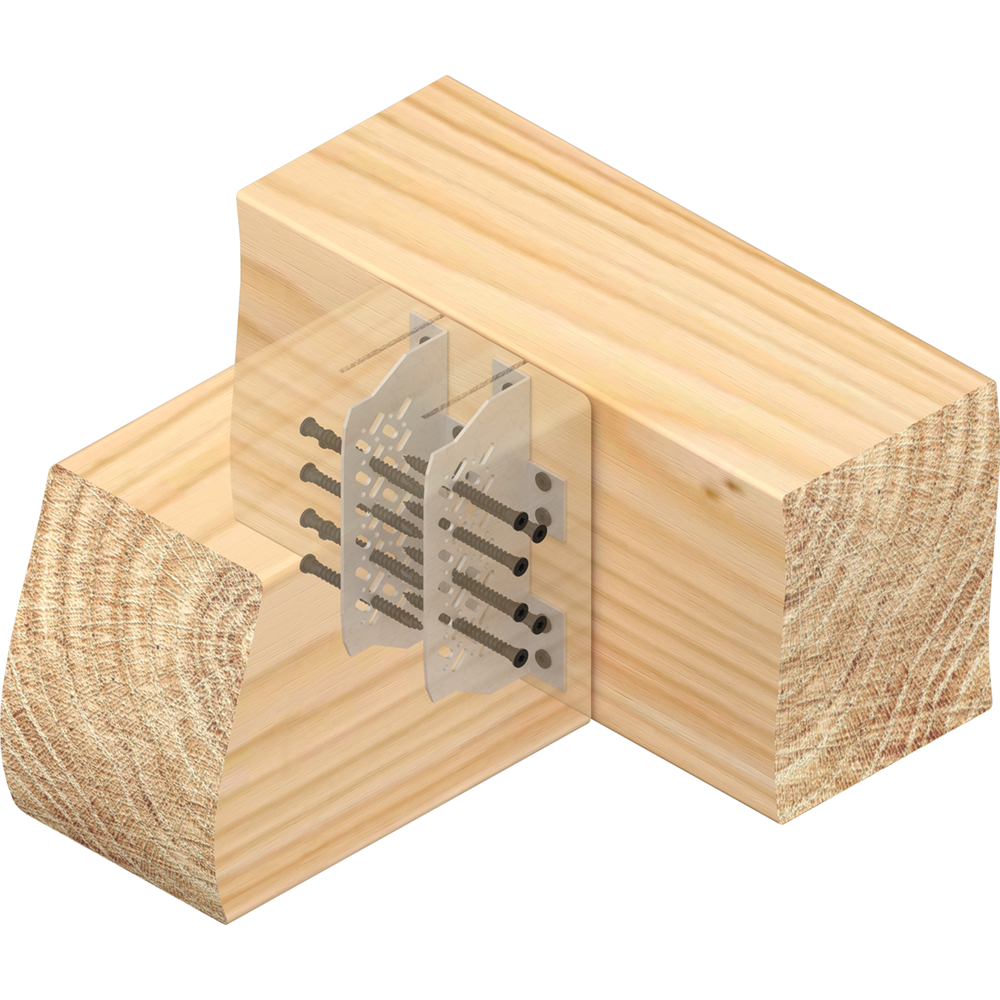

CJHQ joist hangers come in models suitable for 4x6, 4x8, 4x10, and 4x12 nominal and rough-cut lumber joists and may be installed in pairs in 6x members.
Materials: 12 gauge
Finish: G-185 galvanizing
Code Reports:
View Code Report Table
Installation
- Not recommended for fence posts or other unrestrained (not fixed or fastened at top) applications. These anchors are not designed to resist overturning (moment) loads.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
CJHQ
