Truss and Rafter Tiedowns

Embedded Truss Anchor

HLPTA

Reference Series: -- --
The HLPTA75 is designed and tested to provide higher lateral capacity and net uplift. Offers greater pullout resistance and is compatible with bond beam reinforcing.

Patent: U.S. Patent No. 7,254,919
Materials: 18 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Resources

MiTek Product Catalog

Installation

  • Use all specified fasteners.
  • Embed in concrete tie beam or masonry bond beam until the seat is resting on the surface.
  • Minimum of one #7 rebar or two #5 rebars through the theoretical shear cone is required.
  • Minimum spacing between anchors is 10″ to achieve full design load capacities on single anchors.
  • When used in a double rebar installation, concrete tie beam stirrup should be sized to accommodate connector leg placement.
  • Designer shall verify connector clearance when using in conjunction with stirrups and two rebar applications.
  • Verify grout is not in contact with truss member. Moisture barrier may be required.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

HLPTA75 Embedded Truss Anchor

HLPTA75 Embedded Truss Anchor

HLPTA75 Embedded Truss AnchorTypical HLPTA75 single rebar installationTypical HLPTA75 single anchor installationTypical HLPTA75 double rebar installationTypical HLPTA75 double anchor installation

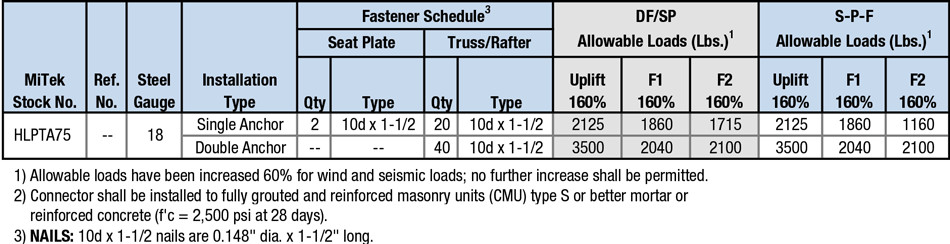

Load Table

-- -- View / Download the above load table as a PDF

Code Report Table

HLPTA75
FL1247

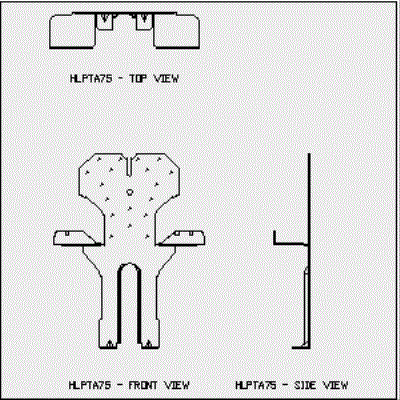

3-View Product Drawings

MiTek Stock # Download or View Files
HLPTA75 DWG DXF PDF View Image
