Truss and Rafter Tiedowns

Retrofit Strap Connector

RUSC

Reference Series: -- --
The RUSC Retro Uplift Strap Connector provides a wood-to-wood uplift connection attaching trusses with a 2x4 bottom chord to a double stud in the wall below. WS3 Wood Screws are utilized for fast installation. The connector can be installed after roof sheathing has been installed.
Materials: 10 gauge
Finish: USP primer
Code Reports: View Code Report Table

Resources

MiTek Product Catalog

Installation

  • Use all specified fasteners.
  • The RUSC shall be installed in pairs.
  • Install on minimum 2-ply with equal wall studs centered directly below.
  • Works with 2 x 4 bottom chord member and 2 x 4 wall studs.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

RUSC Retrofit Strap Connector

RUSC Retrofit Strap Connector

RUSC Retrofit Strap ConnectorTypical RUSC installation

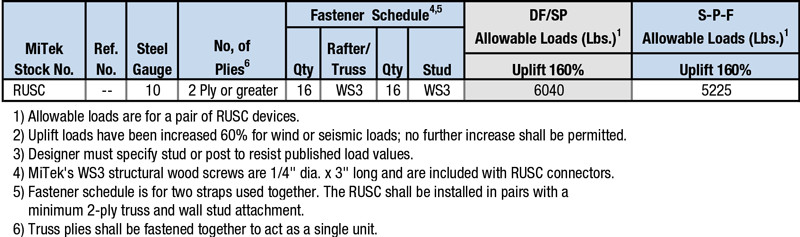

Load Table

-- -- View / Download the above load table as a PDF

Code Report Table

RUSC
FL6223
