Truss and Rafter Tiedowns

Hurricane Gusset Angles

HGAM

Reference Series: HGAM10KTA
Designed for attaching gable end trusses to wood top plates and masonry walls. For installation into grouted concrete tie beam or masonry bond beam. Provides lateral and uplift resistance.
Materials: 14 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Install MiTek’s WS15 structural wood screws into the truss and drill holes for screw anchors. Install screw anchors into concrete block per manufacturer’s recommendation.
  • MiTek’s WS structural wood screws and 1-3/4″ screw anchors are included with HGAM10 angles.
  • Moisture barrier may be required.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Option Details:

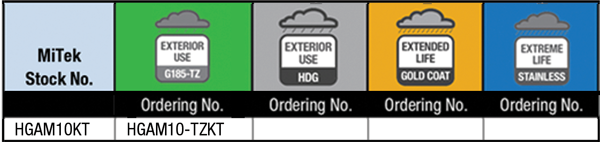

Corrosion Resistant Products Table

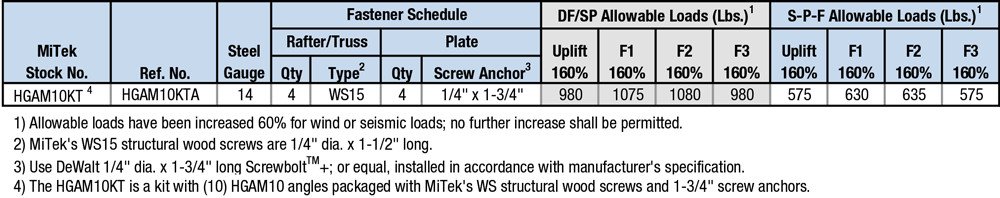

Corrosion Resistant Products Table View / Download the above load table as a PDF

Code Report Table

HGAM10KT
