High Uplift Girder Truss Hangers
GTWS
Reference Series: -- --

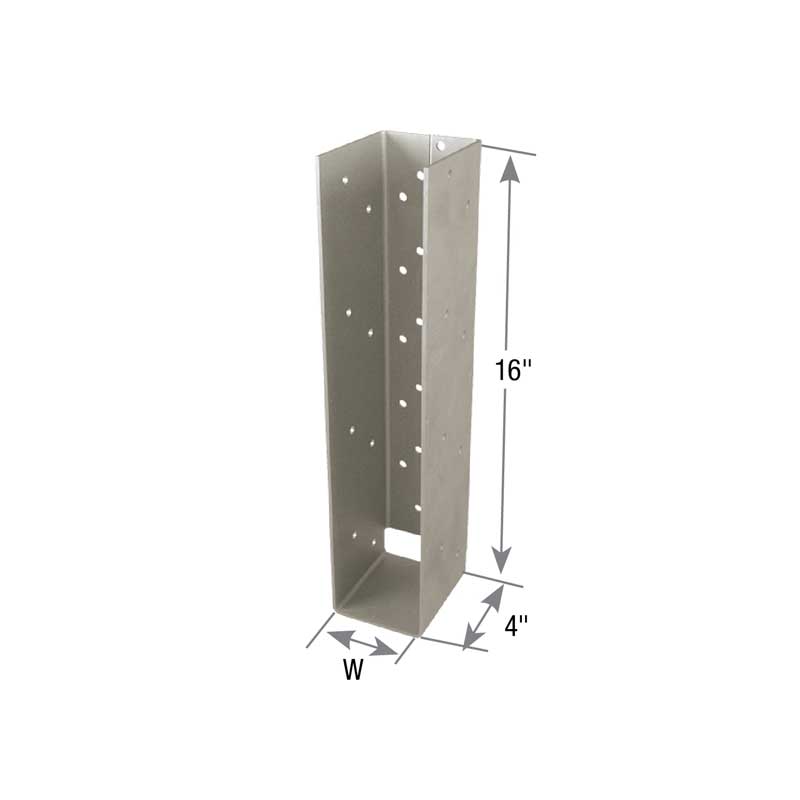

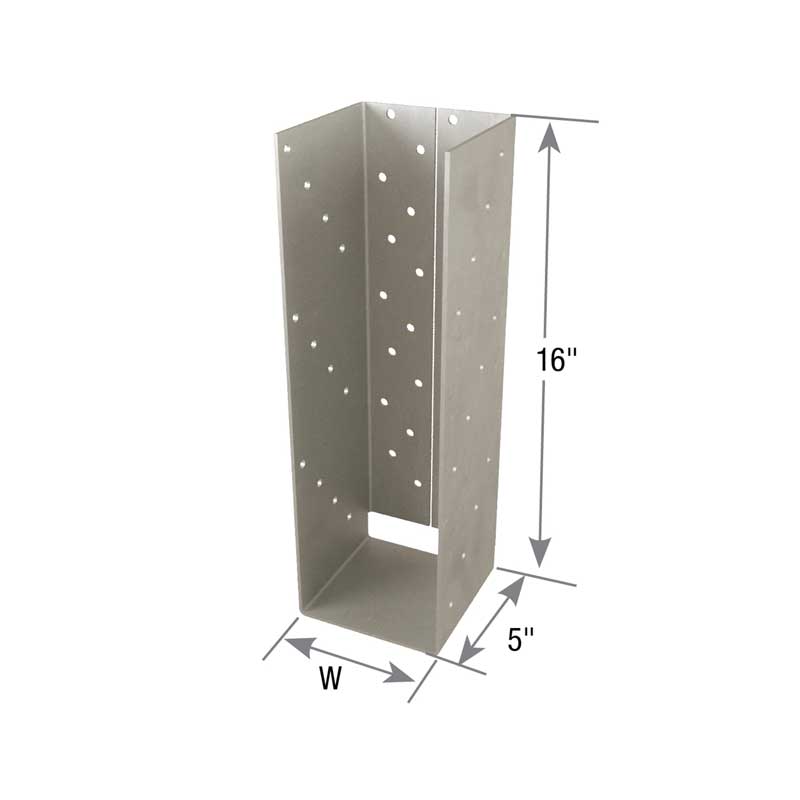

The GTWS series girder-to-girder hangers feature high uplift capacities along with high gravity load ratings.
Materials: 10 gauge
Finish: G90 galvanizing
Code Reports:
View Code Report Table
Technical Bulletins
Installation
- Use all specified fasteners.
- WS Wood Screws are included with hangers where specified.
- GTWS2T shall be installed to a minimum 2×4 vertical member of a girder truss with no restriction on the size of the bottom chord.

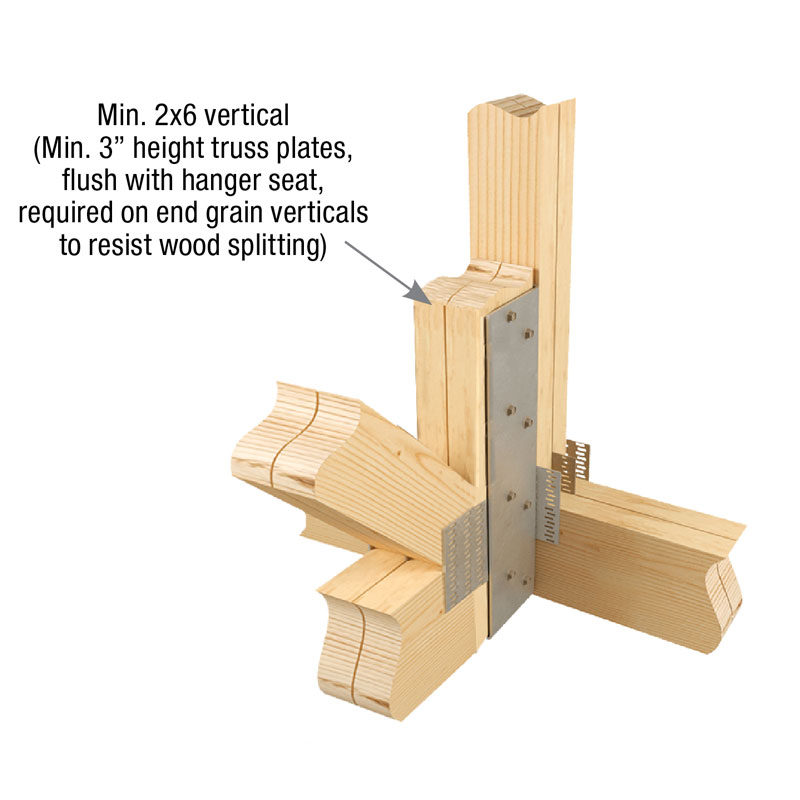

- GTWS3T shall be installed to a minimum 2×6 vertical member of a girder truss with no restriction on the size of the bottom chord.
- GTWS4T shall be installed to a minimum 2×8 vertical member of a girder truss with no restriction on the size of the bottom chord.
