Plated Truss

Girder Tiedowns

HUGT

Reference Series: HGT
The HUGT series high uplift girder tiedowns can be installed on beams and top chords of trusses with slopes from 0˚ to 34˚.
Materials: 7 gauge
Finish: Primer
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Install the HUGT over the beam or truss (see “W” dimension on load table for appropriate width).
  • Wood Application: Install (4) LBP58-TZ washers for (2) 5/8″ tension rod/bolts.
  • Attached members shall be designed to resist applied loads.
  • Concrete Application: Moisture barrier may be required.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Code Report Table

HUGT2
HUGT3
HUGT4

3-View Product Drawings

MiTek Stock # Download or View Files

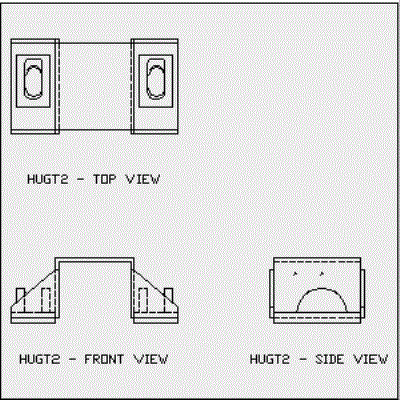

HUGT2 DWG DXF PDF View Image

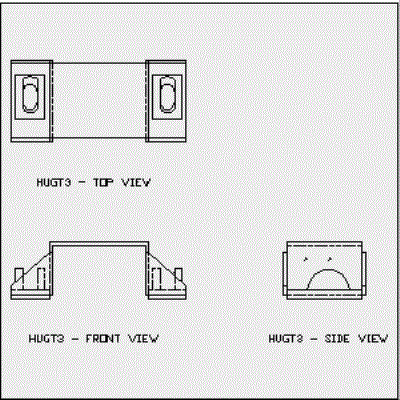

HUGT3 DWG DXF PDF View Image

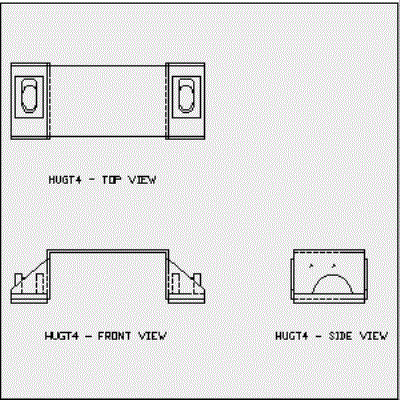

HUGT4 DWG DXF PDF View Image

High Wind Drawings

MiTek Stock # Download or View Files
HUGT
Bond/Tie Beam to TrussDWGDXFPDFView Image
HUGT2
Bond/Tie Beam to TrussDWGDXFPDFView Image
