KEGQ

Reference Series: EGQ
KEGQ hangers have high load capacities attributable to wood screw fastening, heavy steel construction, and a continuous top flange.
Materials: See Load Table
Finish: Primer
Code Reports: View Code Report Table

Resources

MiTek Product Catalog

Options

Installation

  • Use all specified fasteners.
  • WS3 Wood Screws, ¼” dia. x 3” long, are supplied with KEGQ hangers.
  • Minimum header height (H) is 11-7/8″.
  • Beam height dimension (H) must be specified when ordering.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

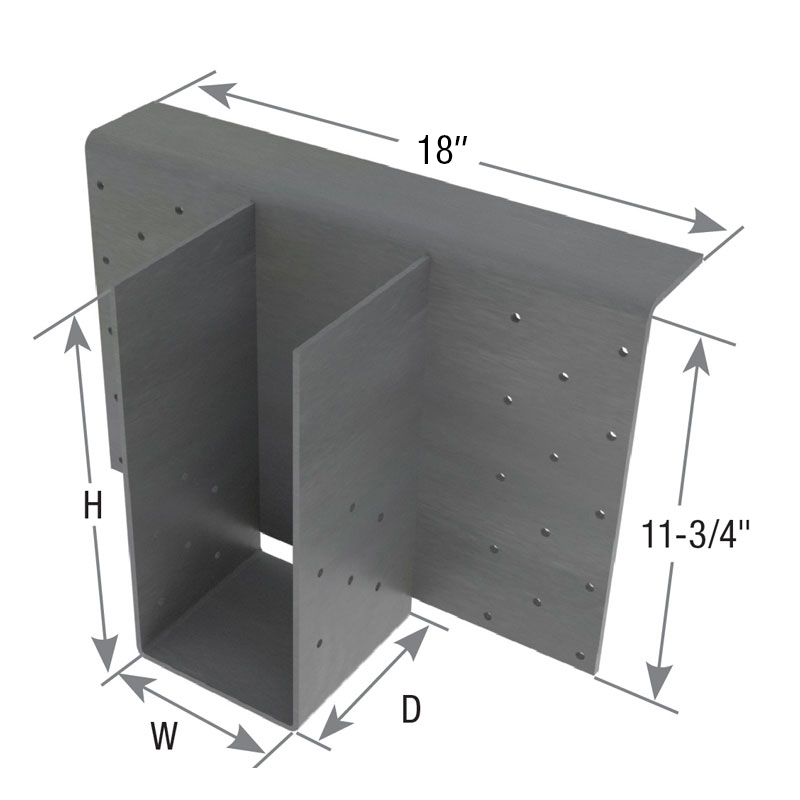

KEGQ550

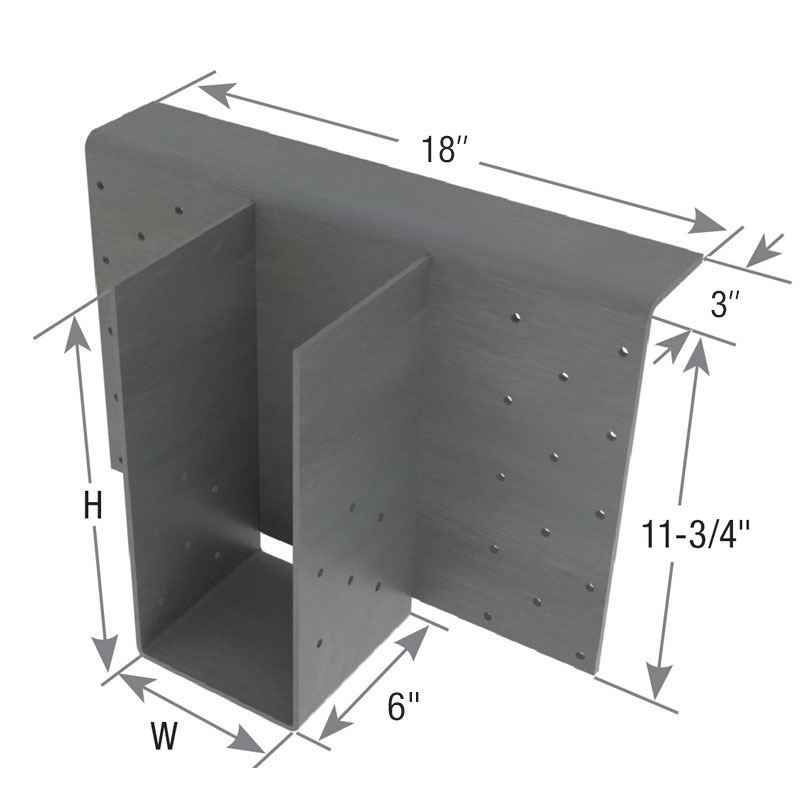

KEGQ550

KEGQ550Typical KEGQ550 installation

Load Table

-- -- View / Download the above load table as a PDF

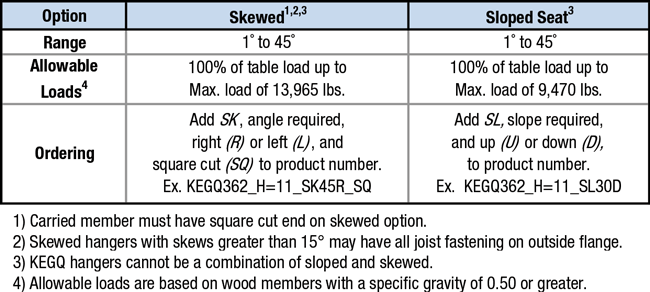

Option Details:
